Instruction Manual
https://vivo-us.com/products/stand-v104a
SKU: STAND-V104A
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do
not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly
or inappropriate use.
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
TOOLS NEEDED
Phillips
Screwdriver Drill
22 lbs
(10 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
PER ARM
3
S-C (x3)
M6x10mm
Screw
S-D (x2)
M10x15mm
Screw
K(x2)
Spare Cap
H(x1)
Support Plate
S-I (x1)
M10 Washer
S-H (x1)
Spring Washer
I(x1)
Foam Pad
C(x1)
Clamp Brace

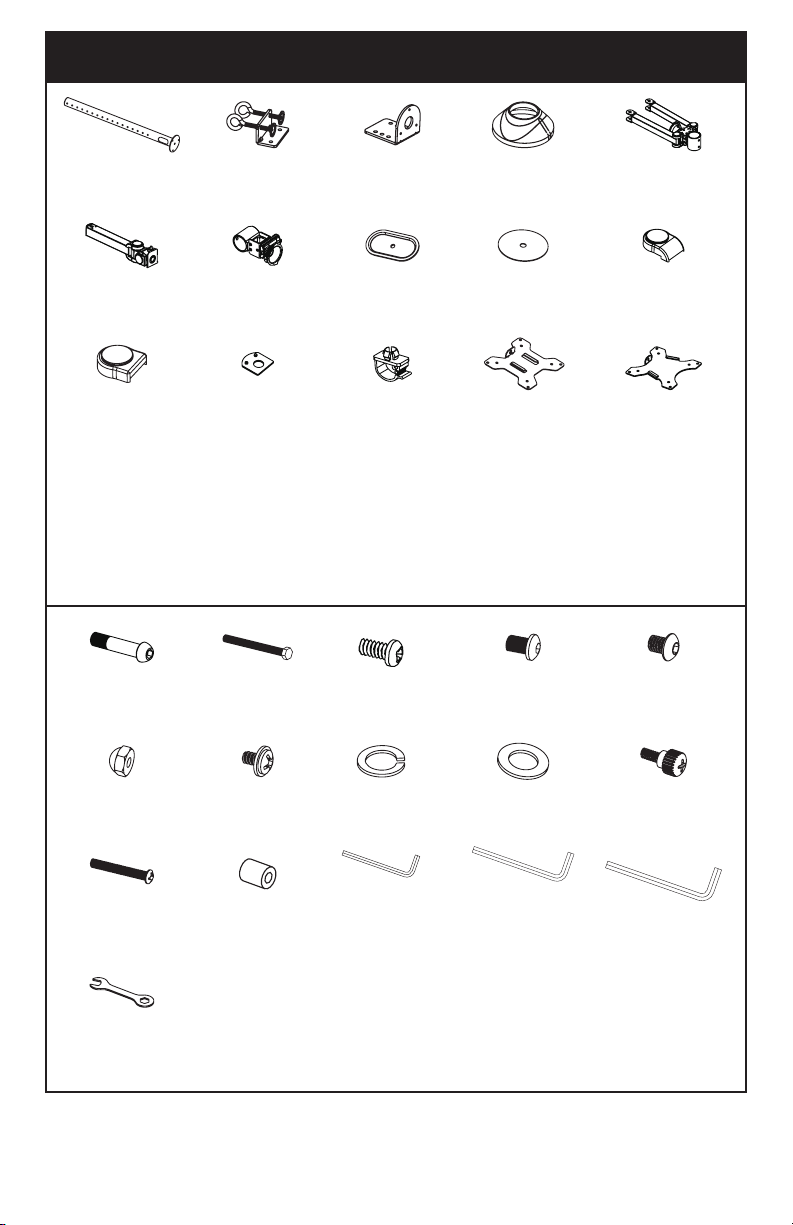

PACKAGE CONTENTS
A (x1)
Pole
B(x1)
Clamp
D(x1)
Decorative
Cover
E(x1)
Center
Monitor Arm
G (x1)
Mount
J (x4)
Monitor Arm
Cover
L (x4)
Plastic Spacer
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
F(x2)
Monitor Arm
S-B (x1)
M10x100mm
Screw
S-E(x4)
M8x10mm
Screw
M-A (x16)
M4x12mm
Thumbscrew
S-A (x2)
M10x47mm
Screw
M-B (x16)
M4x30mm
Screw
M-C (x16)
M4 Spacer
T-A (x1)
3mm Allen
Wrench
T-B (x1)
5mm Allen
Wrench
T-C (x1)
6mm Allen
Wrench
T-D (x1)
Wrench
N (x2)
Side
VESA Plate
S-F (x2)
Nut
O(x2)
Center
VESA Plate
S-G (x2)
M4x6mm
Screw
M(x4)
Cable Clip
4
ASSEMBLY STEPS

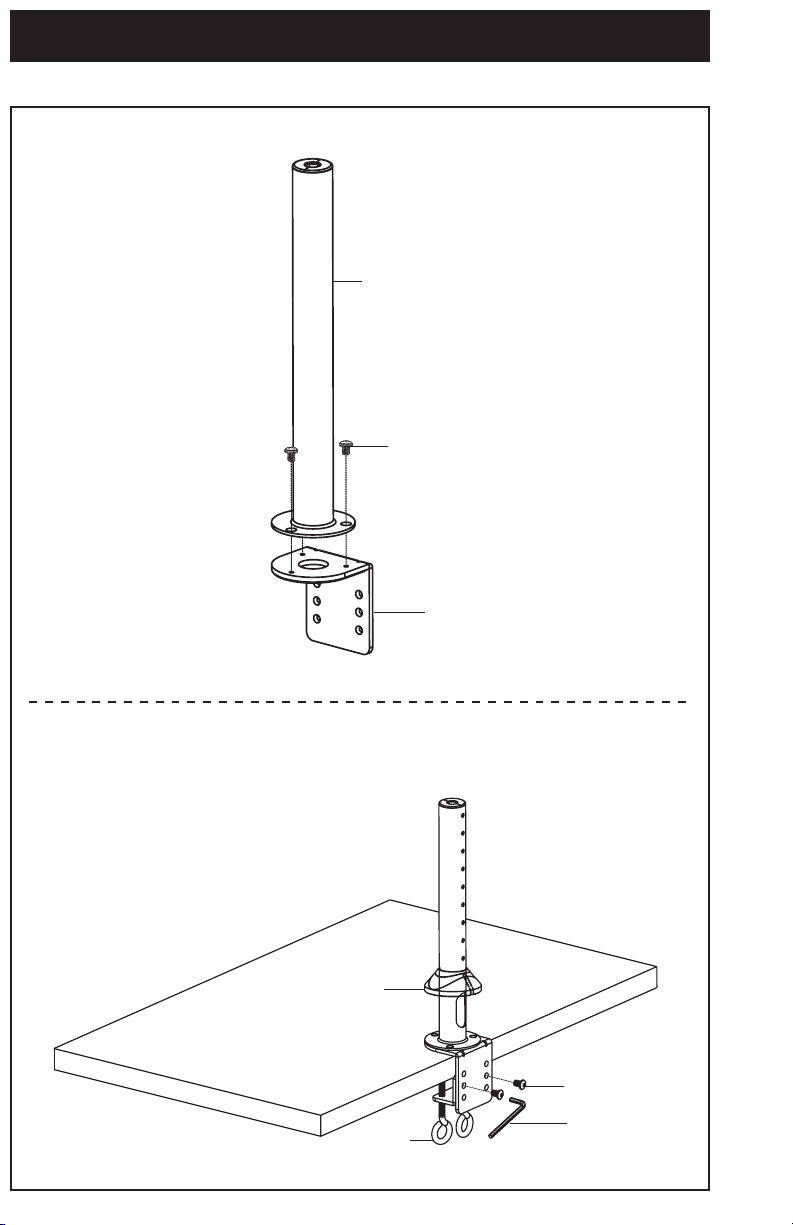

STEP 1 - Clamp Installation
Install Pole (A) to Clamp Brace (C) using M6x10mm Screws (S-C) and a Phillips screwdriver.
Assemble Clamp (B) to Clamp Brace (C) using M10x15mm Screws (S-D) and 5mm Allen Wrench (T-B).
Secure the clamp assembly to the desktop be tightening to the hand bolts on Clamp Brace (C). Install
the Pole Cover (D) to Pole (A).
C
A
S-C
B
D
S-D
T-B
5

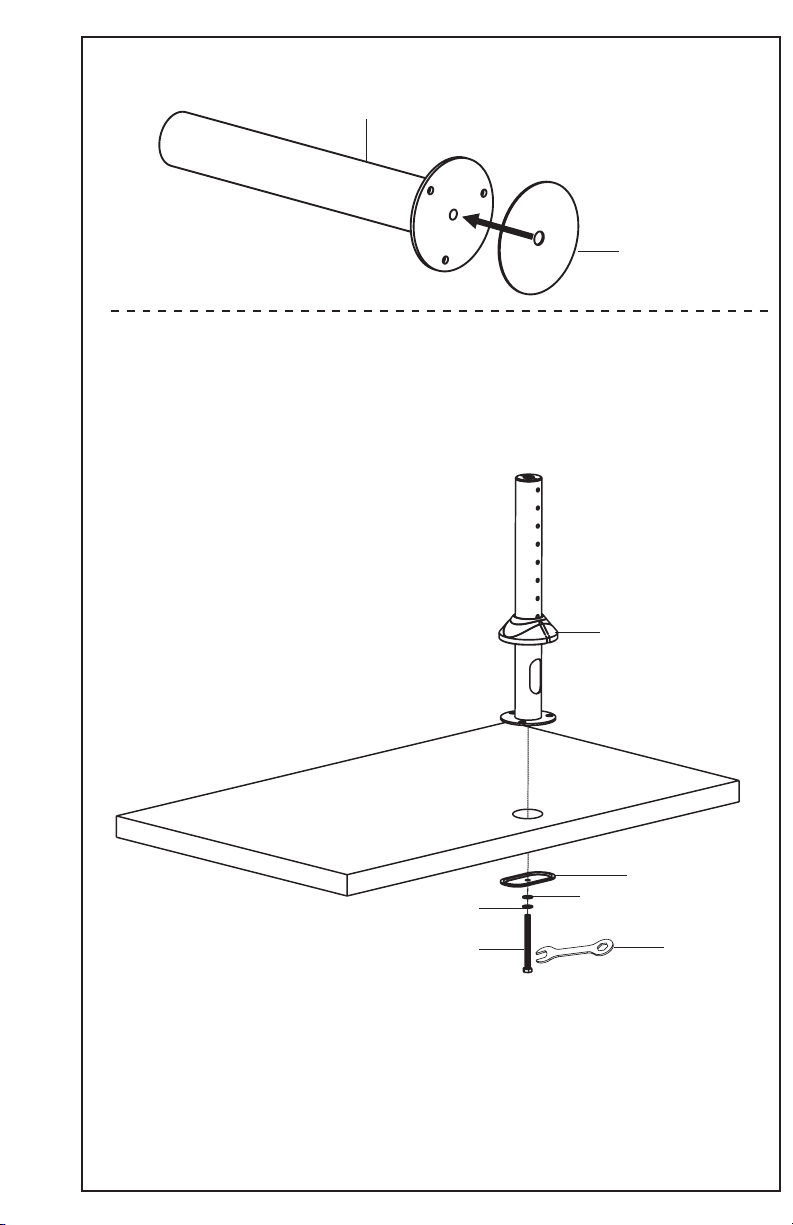

STEP 1 - Grommet Installation
Remove adhesive backing from Foam Pad Pad (I) and place on the bottom of Pole (A).
Install Pole (A) to existing grommet hole using Support Plate (H) with M10x100mm Screw (S-B),
M10 Washer (S-G) and Spring Washer (S-F). Tighten with Wrench (T-D). Install the Pole Cover (D)
to Pole (A).
S-G
S-F
T-D
S-B
I
A
D
H
If no grommet hole exists, drill a 3/8” (10mm) diameter hole through the mounting surface.
6
STEP 2
Align Monitor Arm and Center Monitor Arm (E,F) so that the holes for the cable clips are facing
down. Insert Monitor Arms (F) into Center Monitor Arm (F) as shown below. Secure using
M10x47mm Screws (S-A) and 6mm Allen Wrench (T-C).
Press Monitor Arm Covers (J) onto the top and bottom of arm joints. Place Cable Clips (M) into wire
clip holes.
Cable Clip
Hole
Cable Clip
Hole
Cable Clip
Hole
NOTE: Transparent monitor arm image used to show wire
clip holes. Holes are on the underside of arms and are not
visable when arm is facing upright.
Cable Clip
Hole
Cable Clip
Hole
Cable Clip
Hole
Lay Monitor Arm (F) on flat surface with holes for cable clips facing down. Add Plastic Spacers (L)
to holes at ends of Monitor Arm (F).
NOTE: Transparent monitor arm image used to show cable clip holes. Holes are on the underside of
arms and are not visable when arm is facing upright.
L
F
S-A
T-C
E
J
M
F
7
STEP 3
Slide arm assembly onto Pole (A) at desired height and secure using M8x10mm Screws (S-E) and
5mm Allen Wrench (T-B).
Center VESA Plate (P) Installation

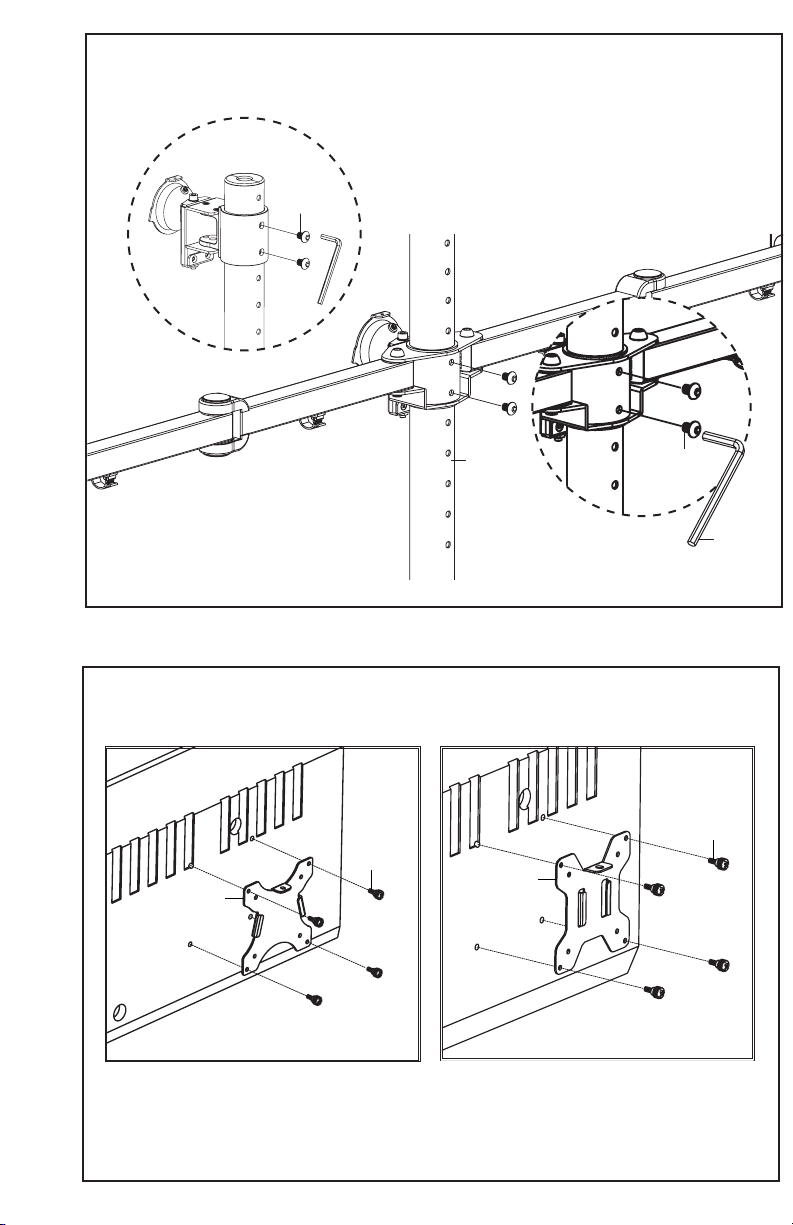

STEP 4a - Flat Back Monitors
Side VESA Plate (O) Installation
Attach the Center VESA Plates (P) to the monitors you intend to mount in the center of the mount.
Attach Side VESA Plates (O) to remaining monitors. Secure using M4x12mm Screws (M-A).
M-A
M-A
O
P
NOTE: Hand tighten screws to avoid stripping the plastic screw heads.
S-E
T-B
A
T-B
S-E
8
STEP 4b - Curved/Recessed Back Monitors
Attach the Center VESA Plates (O) to the monitors you intend to mount in the center of the mount.
Attach Side VESA Plates (N) to remaining monitors. Secure using M4 Spacers (M-C), M4x30mm
Screws (M-B) and a Phillips screwdriver.
Center VESA Plate (O) Installation Side VESA Plate (N) Installation
M-BM-B
O
M-C
M-C
N
STEP 5
E1
Slide the center monitors onto the Center Head (E1) and Mount (G). Install M4x6mm Screws (S-G) to
secure the monitors.
S-G
9
STEP 6
Slide the outer monitors onto Outer VESA Heads (F1). Secure
with Cap Nut (S-F).
F1
S-F
Adjust Monitor Tilt
Pry o Plastic Covers (F2) from the Outer VESA Heads (F1). The exposed nut
on the side is used to adjust the tilt. Tighten the nut using Wrench (T-D) to
adjust. Replace Plastic Covers (F2).
To adjust center monitor swivel or tilt, use
3mm Allen Wrench (T-A) to loosen center
set screw on the Center Head (E1) and
Mount (G), as shown at le.
F2
T-D
F1
T-A
E1
10

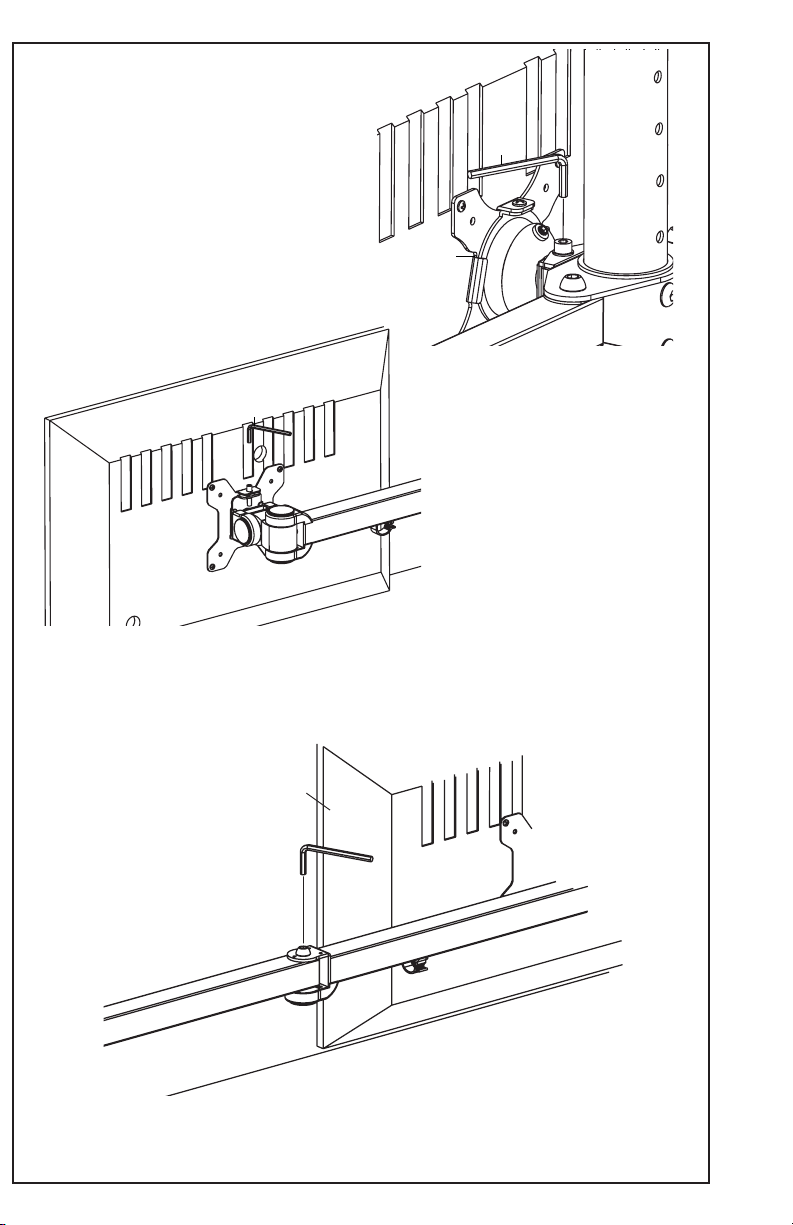

Adjust Monitor Height
To adjust center monitor height, turn the
screw behind Center Head (E1) and Mount
(G) using the 5mm Allen Wrench (T-B).
To level the side monitors, remove
the Cap Nut (S-F) and turn the inner
bolt with the 3mm Allen Wrench (T-A)
to raise or lower the monitor. Replace
Nut aer the adjustment.
T-B
E1
T-A
To adjust swivel joint tension, remove the Monitor Arm Cover (J) and turn the bolt underneath with
the 5mm Allen Wrench (T-B.
