EN-1

English

Warning Before Installation

Contact your distributor in the

event of occurrence.

Refer to your user's manual for the

operating temperature.

Power off the Network Camera as

soon as smoke or unusual odors

are detected.

Do not touch the Network Camera

during a lightning storm.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

Do not manually pan and tilt the

Network Camera when the power is

on.

EN-2

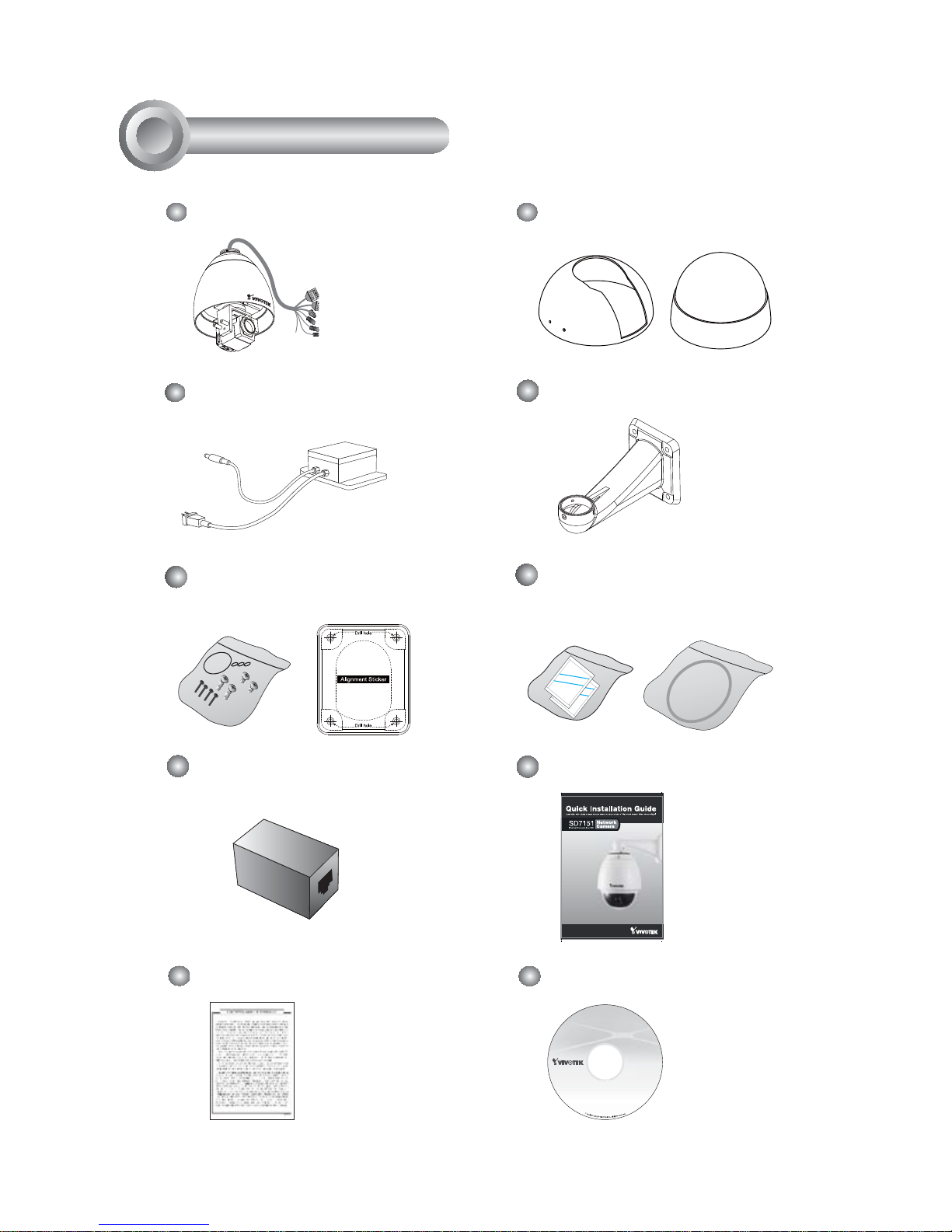

Package Contents

Power Adapter

Software CD

SD7151

Warranty Card

Black Cover / Dome Cover

Wall Mount Bracket

RJ45 Female/Female

Coupler

Quick Installation Guide

O-ring and Screws /

Alignment Sticker

Silica Gel / Metal Ring

Silica gel

EN-3

English

Inner View

Reset Button

Lens

Outer View

Physical Description

Status LED

Ethernet 10/100

RJ45 Plug

Audio Out (green)

Microphone In (pink)

Power Cord Socket (black)

General I/O

Terminal Block

Ground

EN-4

Hardware Installation

Mounting the Network Camera

1. Attach the alignment sticker to the wall.

2. Drill four pilot holes into the wall.

3. Attach the black cover to the Network Camera using the supplied four black screws.

4. Stick the supplied two pieces of silica gel symmetrically to the inner side of the

dome cover. Then place the metal ring into the dome cover to ﬁx the silica gel.

5. Fix the dome cover to the Network Camera and secure it by rotating it clockwise.

6. Loosen the three screws on the front opening of the wall mount bracket.

7. Place the O-ring on the front opening of the wall mount bracket.

8. Feed the cables through the front opening of the wall mount bracket and pull them

from wall outlet.

9. Attach the Network Camera to the wall mount bracket by tightening the three

screws on the front opening of the wall mount bracket.

10. Fasten the wall mount bracket to the wall.

356

789

Silica gel

EN-5

English

Network Deployment

POWE

OLLIS

ION

LINK

IVE

PAR

TITION

12345

1. If you have external devices such as

sensors and alarms, connect them to

the general I/O terminal block.

2. Use the supplied RJ45 female/female

coupler to connect the Network Camera

to a switch.

Use Category 5 Cross Cable when

Network Camera is directly connected

to PC.

3. Connect the power cable from the

Network Camera to a power outlet.

G N D : Ground

DI4: Digital Input

DI3: Digital Input

DI2: Digital Input

DI1: Digital Input

G N D : Ground

N.O. : RELAY_NO

COM. : RELAY_COM

+12V : Power, 12V DC

(AC 24V 2A)

EN-6

1. Install "Installation Wizard 2" from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network

is analyzed, please click on the "Next" button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and

Network Cameras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that

matches the one labeled on the side of the camera lens or S/N number on the

label of carton to connect to the Network Camera via Internet Explorer.

0002D17151CD

Model No.:SD7151

P/N: 100043690G

F/W Ver.: 0100G

CARTON OF NO. 01

MADE IN TAIWAN

!!0!!

Q'ty: 1 PCS

EAN: 4712123671550

S/N: 0002D17151CD

RoHS

0002D17151CD

Installation

Wizard 2

Assigning an IP Address

EN-7

English

For further setup, please refer to the user's manual on the software CD.

Ready to Use

1. Access the Network Camera on the LAN.

2. Retrieve live video through a web browser or recording software.
