Volt STK-17LI Series Bedienungsanleitung

VOLT®Line Voltage Landscape Lighting

VOLT®Line Voltage Stake

STK-17LI-XXX

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

VOLT®Line Voltage Landscape Lighting

VOLT®Line Voltage Stake

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 2 -

Important: Please Read Before Installation

Important Safety Instructions

WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS MAY RESULT IN

DEATH, INJURY OR SIGNIFICANT PROPERTY DAMAGE- For your protection, read and

follow these warning and instructions carefully before installing or maintaining this

xture. These instructions do not attempt to cover all installation and maintenance

situations. If you do not understand these instructions or additional information is

required, contact VOLT® Lighting prior to installation.

WARNING: RISK OF ELECTRIC SHOCK- To aviod electric shock, serious injury, or

death, be certain that all electrical power is disconnected from the supply branch

ciricuit conductors before installing or maintaining this xture. This product must be

installed and maintained in accordance with the applicable installation codes by a

person familiar with the construction and operation of the product and the hazards

involved.

WARNING: RISK OF PERSONAL INJURY- This product may have sharp edges. Wear

gloves to prevent cuts or abrasions when removing from carton, handling, installing

and maintaining this product. VOLT® Lighting assumes no responsibility for claims

arising out of improper or careless installation or handling of this product.

1) Do not install a damaged xture.

2) The xture must be wired in accordance with the National Electrical

Code and applicable local codes and ordinances.

3) Proper grounding is required to ensure personal safety. Be certain

green lead from the xture is connected to supply ground.

4) Use code compliant connectors for all electrical connections.

5) ALL work should be done by a qualied electrician.

WARNING: NEVER connect or disconnect any component while power

supply is engaged.

DELIVERY: Upon receipt of xture and accessories (packed separately),

thoroughly inspect for any freight damage. All damage should be

reported to the delivery carrier. Do not install damage xtures. Compare

the catalog description listed on the packaging slip with the xture label

on the inside of the housing to be sure you have received the correct

merchandise.

Package Contents

Product Dimensions

A. (1) Stake

[email protected] • 813.978.3700

B. (1) Grid

- 3 -

Install Stake and Conduit

Dig a hole in the ground for the conduit runs and the stake. Install

the conduit. Slide the stabilizer grid onto the stake and secure with

the screws. Place the stake over the conduit runs. Backll against the

mounting stake.

Stake

Stabilizer

Grid

Conduit

Ground Level

17.32”

2.96”

1”

3.1”

8.26”

www.voltlighting.com

INSTALLATION INSTRUCTIONS

- 4 -

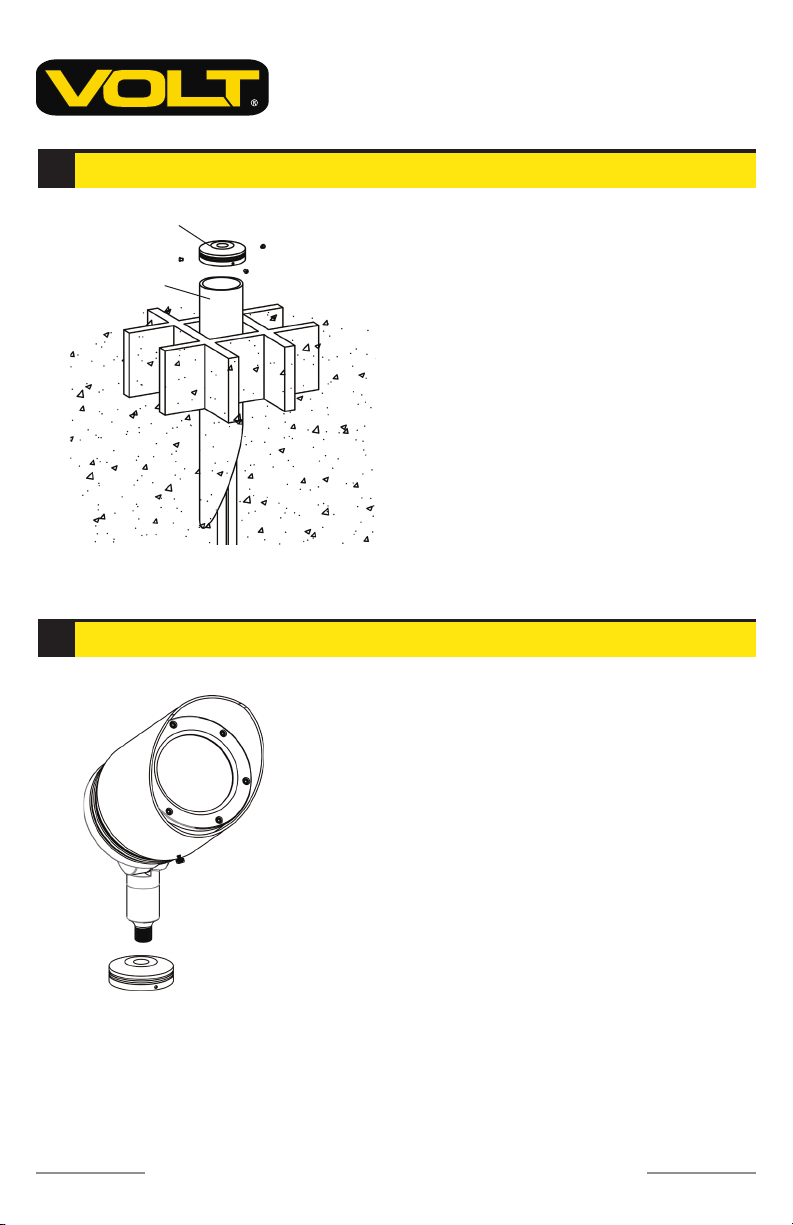

Remove the cap from the stake

by loosening the set screws.

Remove Cap from Stake

Set Screw

Cap

Stake

Thread the cap onto the xture

body and hand tighten until

snug.

Install Cap to Fixture

Fixture

Cap

VOLT®Line Voltage Landscape Lighting

VOLT®Line Voltage Stake

[email protected] • 813.978.3700

- 5 -

Wire Connection and Fixture Installation

Allow enough wire from the

xture for adjustment purposes.

Connect the wires from

the xture into the wiring

terminal. The white wire goes

to the “Neutral” terminal; the

black wire goes to the “Live”

terminal; and the green wire

goes to the “Ground” terminal.

Fix them in place with the

connector screws.

Set Screw

Cap

Stake

Wire

Connector

Supply

Wires

Fixture

Wires

www.voltlighting.com

- 6 -

INSTALLATION INSTRUCTIONS

VOLT®Line Voltage Landscape Lighting

VOLT®Line Voltage Stake

IS-STK-17LI-XXX-ver3

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
