VOLT® Low Voltage Landscape Lighting

VOLT® Low Voltage Clamshell Path Light

VPL-1050-4-BBZ

- 1 -

VOLT® Clamshell Path Light

VPL-1050-4-BBZ

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 2 -

Important: Please Read Before Installation

Important Safety Instructions

This luminaire is intended for installation in accordance with local

codes and the National Electric Code (NEC). Failure to adhere to

these codes and instructions may result in serious injury, property

damage and void the warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing

this xture.

2. Warning: this xture is not intended to be installed within 10 feet [3

meters] of a pool, spa or fountain.

3. This xture is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Underground Low Energy Cable must not be buried over 6” (15.2 cm) in

order to connect to the main low voltage cable.

5. Wiring connections must be made with UL Listed wire connectors that

are suitable for the application.

6. Position the wire connector so that it is located within 6 inches (15.2

cm) from a building structure, a luminaire, or tting.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO

PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before reducing lamp.

2. Lamp gets HOT quickly!

3. Do not touch the hot lens, guard or cowl.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time.

6. Use a soft cloth.

7. Oil from skin may damage lamp.

8. Do not operate the xture with a damaged or missing lens or shield.

Package Contents

A. (1) Fixture Body

Parts Required (Sold Separately)

A. (1) Mounting Accessory

B. (1) Flat Bi-Pin LED Bulb

[email protected] • 813.978.3700

- 3 -

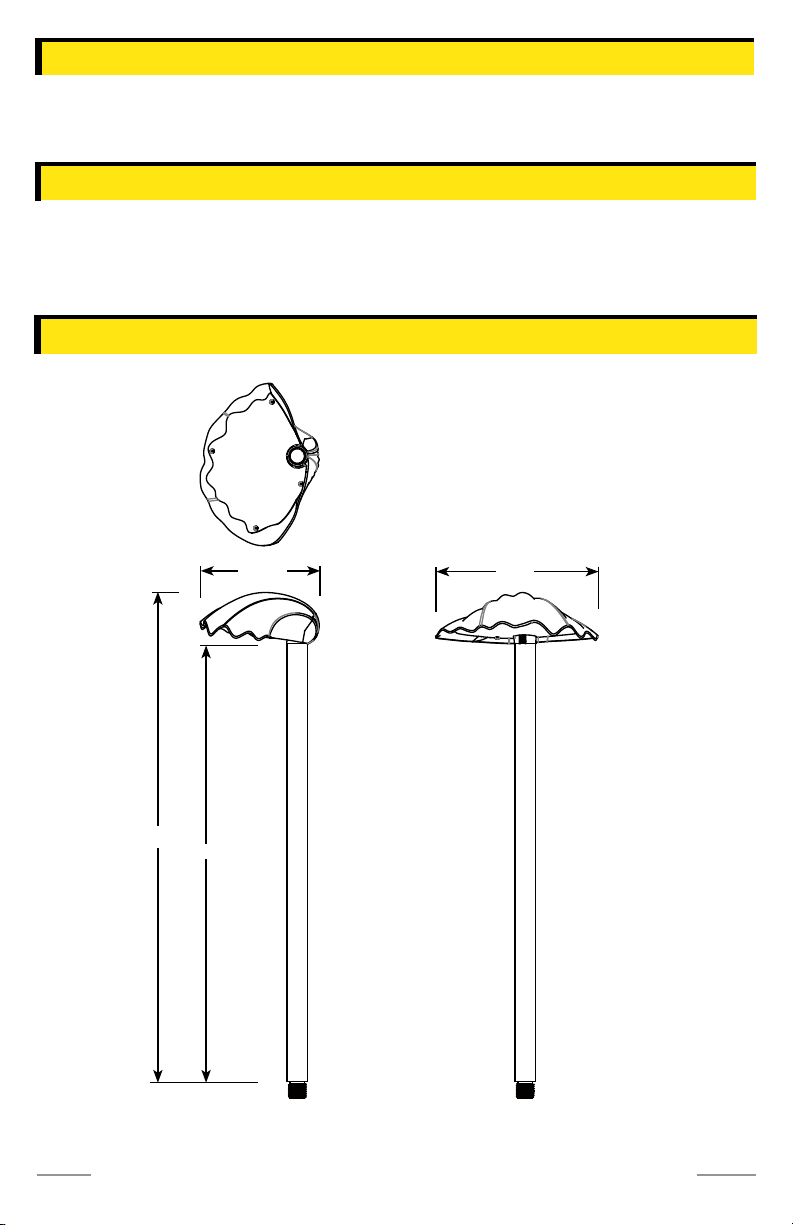

Product Dimensions

26.5” 23.5”

5.75” 7.8”

INSTALLATION INSTRUCTIONS

www.voltlighting.com

Remove Lens

Install Bulb

Install Lens

- 4 -

VOLT® Clamshell Path Light

VPL-1050-4-BBZ

Shade

Screw

Lens

Using a screwdriver, loosen

screws on the lens and remove

the lens from the shade.

Socket

Flat Bi-Pin Bulb

or GU4 Bulb Insert bulb with correct

wattage and type marked on

xture label and push into

place.

CAUTION: Do not exceed

maximum wattage marked on

xture label.

Shade

Screw

Lens

Place the lens back onto

the shade and secure with

previously removed screws.

Tighten until snug with

screwdriver.

[email protected] • 813.978.3700

- 5 -

Install Stake

Install Fixture Body to Stake

Determine the desired

location for mounting the

luminaire. Hammer the stake

into the ground until ange

of stake is ush to grade. To

avoid damage to the stake,

place a board on top of the

stake while hammering.

Note: If the ground is hard

and the stake is difcult to

install, make a crosscut in the

ground using a at shovel.

Board

Ground

Soil

Stake

Pass supply wires through

the center hole of the

stake and thread the

stem onto the stake.

Hand tighten until snug.

Clear away area in ground

and lay supply wires into

wireway slots.

Ground

Stem

Supply Wires

Soil

Stake

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 6 -

Wire Connections

Install/Replace Bulb

VOLT® Clamshell Path Light

VPL-1050-4-BBZ

Strip two leads from xture wires. Using two UL listed wire

connectors (sold separately), connect leads from xture wires to

main supply cable leads.

Main Supply Cable

Fixture Wires

Wire Connectors

Please reverse Step 1 - Step 3 to expose the bulb and replace it

with the correct wattage and type marked on the xture label.

IMPORTANT: The Bulb must be protected from moisture and dust at

all times. Always reinstall the lens when removed.

- 7 -

IS-VPL-1050-4-BBZ-ver1.pdf
