Volt VSSI-2005-50-BK Bedienungsanleitung

VOLT®Solar Landscape Lighting

VOLT®Solar Bistro String Lights (50ft)

VSSI-2005-50-BK

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

Important: Please Read Before Installation

INSTALLATION INSTRUCTIONS

www.voltlighting.com

Important Safety Instructions

- 2 -

VOLT®Solar Bistro String Lights (50ft)

VSSI-2005-50-BK

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

Please note that these solar xtures are equipped with built-in photocells, so

they will not turn on until it is dark enough. These xtures will also require

plenty of sunlight to function properly. It’s best to place the xture in an

area where the sun will get to it through out the day and where no ambient

lighting will affect the photocell at night. If your xture is not functioning

at night, be sure that the on/off button has been engaged. See step one for

details.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Lamp gets HOT quickly!

2. Do not touch the hot lens, guard or enclosure.

3. Keep lamp away from materials that may burn.

4. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

5. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

[email protected] • 813.978.3700

- 3 -

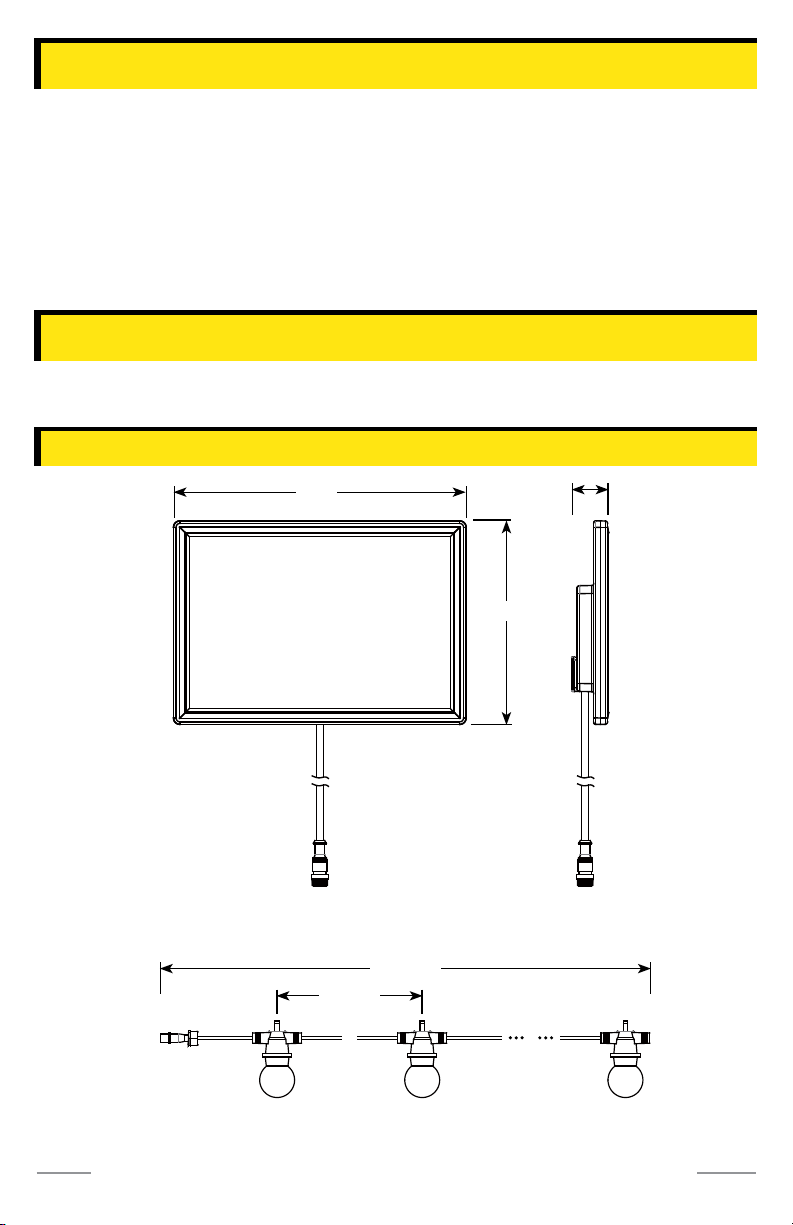

Product Dimensions

Package Contents

Parts Required (Sold Separately)

A. (1) Guide Wire

A. (1) Solar Panel

B. (1) Support Arm

C. (1) Clamp with Support Arm

D. (1) Bistro String (50 feet

long)

E. (32) Bulbs (2 replacement

bulbs are included)

F. (1) Stake

G. (4) Straps

H. (4) Screws

I. (4) Wall Anchors

11.6”

50 Feet

2 Feet

SOLAR PANEL

BISTRO STRING

8”

1.5”

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 4 -

VOLT®Solar Bistro String Lights (50ft)

VSSI-2005-50-BK

Follow 1 of the 4 Solar Panel Mounting Methods

Method 1: Clamp Mount

Mount Clamp with Support Arm

Attach the clamp onto the side of the mounting surface.

Then go to the Installing Solar Panel and Bistro String steps.

Mounting Surface

Clamp

Support Arm

Mounting Surface

[email protected] • 813.978.3700

- 5 -

Method 2: Surface Mount

Surface Mount

Place the support arm onto the

surface and mark points using

the holes as a guide. Then, drill

proper holes for the wall anchors

to be inserted.

Attach the support arm onto the

surface using the screws. Make

sure the screws are tightened

with a screwdriver to secure the

support arm.

Then go to the Installing Solar

Panel and Bistro String steps.

Wall Anchor

Mark

Support Arm

Screw

MOUNT SURFACE

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 6 -

Insert Straps

Method 3: Straps Mount

Tie the Strap

VOLT®Solar Bistro String Lights (50ft)

VSSI-2005-50-BK

Pass the ends of the strap through

two holes on the support arm.

Strap

Support Arm

Install the support arm by

wrapping the strap around the

desired tree or post. Insert the

pointed end of the strap into

the opposite end of the strap

and pull it through to tighten

the support arm onto the tree

or post.

Then go to the Installing Solar

Panel and Bistro String steps.

Strap

Strap End

Support Arm

TREE or POST

Insert Stake to Ground

[email protected] • 813.978.3700

- 7 -

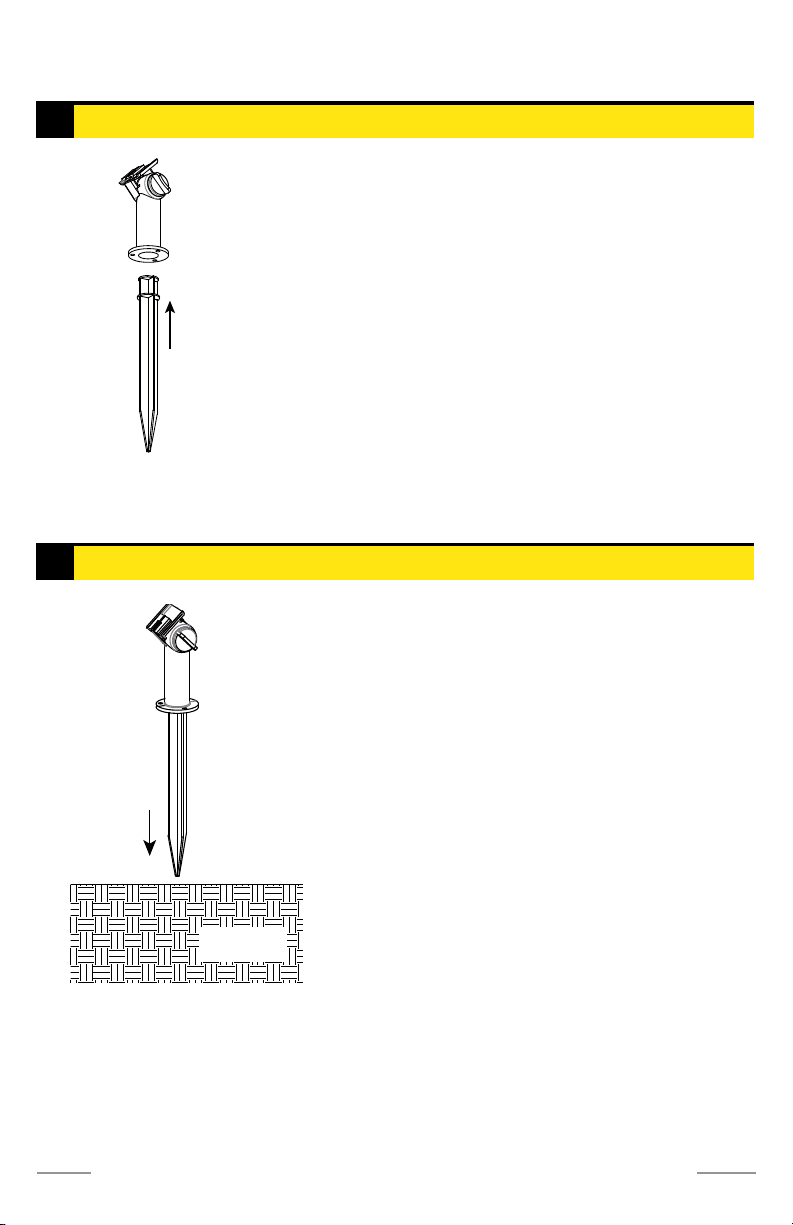

Install Stake to Support Arm

Method 4: Stake Mount

Insert the top end of the stake

into the base of support arm.

Stake

Support Arm

Insert the stake into the ground.

Then go to the Installing Solar

Panel and Bistro String steps.

Support Arm

Ground

Stake

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 8 -

Install Solar Panel and Bistro String

VOLT®Solar Bistro String Lights (50ft)

VSSI-2005-50-BK

Remove Wire Cover

Twist and remove the wire

cover from the solar panel.

Wire Cover

Solar Panel

Wire

Connect Wires

Wire

Cap

Solar Panel

Bistro String

Connect the wire from bistro

string to the wire from the solar

panel. Tighten cords together by

using the cap on the wire from

the bistro string.

Install One Bulb to Test

Thread one bulb onto one

socket and tighten gently.

Bulb

Socket

Install Bistro String

Insert Stake to Ground

[email protected] • 813.978.3700

- 9 -

Test Solar Panel

Place the solar panel onto a at

opaque working surface. Press

the ON/OFF switch on the back of

the solar panel to test the light

source. The light will turn on

while the switch is on.

Now you can proceed to next

steps of installations knowing the

xture is in ON mode.

On/Off Switch

BACK

FLAT SURFACE

Solar Panel

Insert the attachment piece on

the back of the solar panel onto

the holder on the top end of the

support arm.

Support Arm

Solar Panel

Holder

Attachment piece

Pass the guide wire through the holes on the top end of the sockets

and then x the guide wire to your desired location or tie the bistro

string to applicable locations directly.

Socket

Guide Wire

Bistro String

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 10 -

Final Adjustment

VOLT®Solar Bistro String Lights (50ft)

VSSI-2005-50-BK

Install Remaining Bulbs

Thread bulbs onto the sockets

and tighten gently.

Bulb

Socket

Screw

Solar Panel

ROTATE Loosen the screw at the knuckle

to adjust the solar panel to make

sure it can get plenty of sunlight.

Then tighten the screw to secure

the solar panel placement.
