INSTALLATION INSTRUCTIONS

VOLT®LOW VOLTAGE LANDSCAPE LIGHTING

VOLT®Modernelle Flat Top Brass Path Light (Bronze)

ITEM: VAL-1052-BBZ

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT®Modernelle Flat Top Brass Path Light (Bronze) - VAL-1052-BBZ

INSTALLATION INSTRUCTIONS

IMPORTANT: PLEASE READ BEFORE INSTALLATION

IMPORTANT SAFETY INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation, opera-

tion maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing

this luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that

are suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or

tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

PACKAGE CONTENTS

A. (1) Fixture Body

813.978.3700 • [email protected] • www.voltlighting.com

PRODUCT DIMENSIONS

Parts Required (Sold Separately)

A. (1) G4 Bulb B. Mounting Accessory

24”

8.47”

7.1”

VOLT® Modernelle Flat Top Brass Path Light (Bronze) - VAL-1052-BBZ

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

REMOVE LENS

Fixture Remove the lens from the x-

ture.

Fixture

Lens

Screw

Install G4 Bulb

Insert G4 bulb with correct

wattage and type marked

on xture label.

CAUTION: Do not exceed

maximum wattage marked

on luminaire label.

Socket

G4 Bulb

Install Lens

813.978.3700 • [email protected] • www.voltlighting.com

Fixture Place the lens back onto

the xture and secure

with previously removed

screws.

Fixture

Lens

Screw

Install Lamp Body to Stake

Pass the xture wire through the

stake and thread the stake onto

the xture. Thread the lock ring

against the stake and hand tight-

en until snug.

Fixture

Lock Ring

Stake

Fixture Wire

VOLT® Modernelle Flat Top Brass Path Light (Bronze) - VAL-1052-BBZ

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

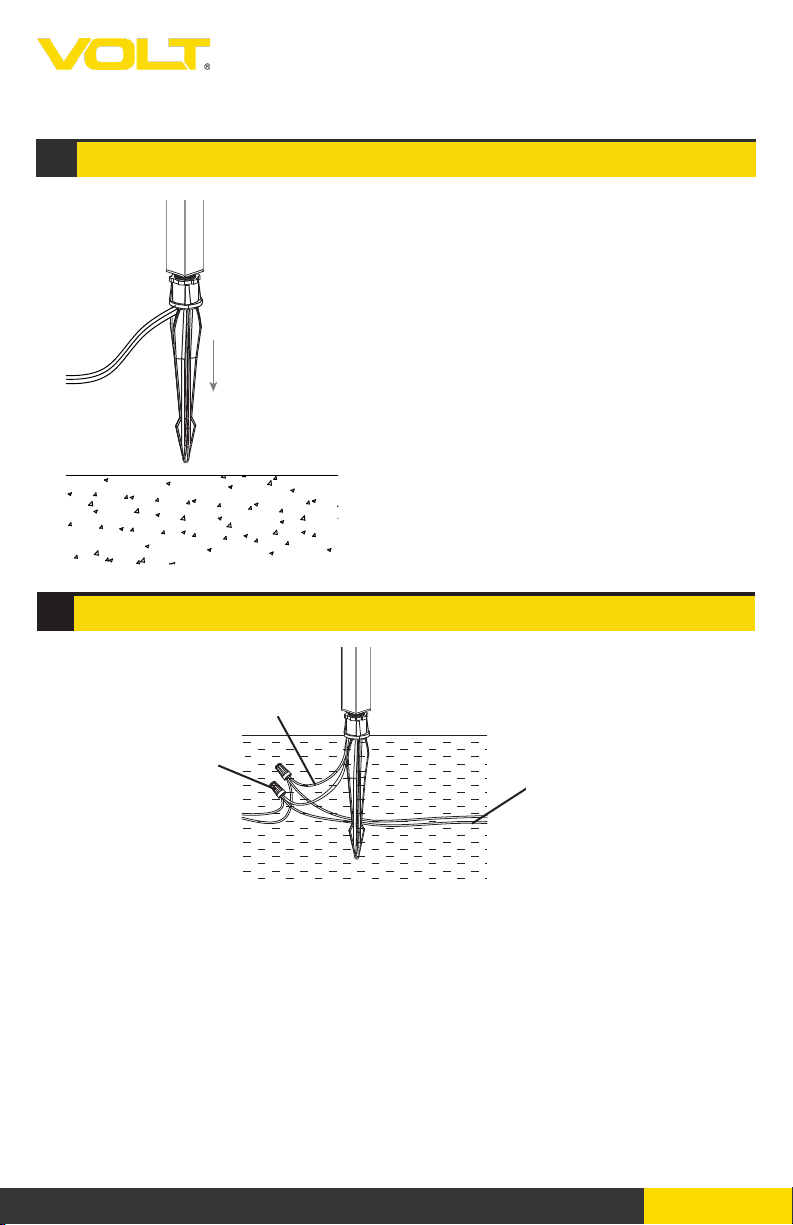

INSTALL STAKE

813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com

Determine the desired location for

mounting the xture. Insert the

stake into the ground until ange

of stake is ush to grade.

NOTE: If the ground is hard and

the stake is difcult to install,

make a crosscut in the ground

using a at shovel.

Stake

Ground

Soil

WIRE CONNECTION

Strip both the leads from the luminaire pigtail. Using two UL listed wire

connectors (sold separately), connect the leads from the luminaire to

the main supply cable leads.

Pigtail

Wire connectors Main Supply

Cable

813.978.3700 • [email protected] • www.voltlighting.com

INSTALL REPLACE BULB

Please reverse Step 2 - Step 3 to expose the G4 bulb and replace

it with the correct wattage and type marked on the xture label.

Then, reinstall the shade.

IMPORTANT: The G4 bulb must be protected from moisture and

dust at all times. Always reinstall the shade when moved.

Specications and product details subject to change without notice.

[email protected] • www.voltlighting.com

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
