INSTALLATION INSTRUCTIONS

VOLT®Low Voltage Landscape Lighting

VOLT®Traditional Lantern Brass Path & Area Light

VPL-1047-4-BBZ

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 2 -

Important: Please Read Before Installation

Important Safety Instructions

VOLT®Traditional Lantern Brass Path & Area Light

VPL-1047-4-BBZ

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used at 12V/AC.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. Position the low voltage wire and UL listed wire connector so that it is

located within 6 inches (15.2 cm) from a building structure, a luminaire

or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

[email protected] • 813.978.3700

- 3 -

Package Contents

A. (1) Fixture Body

Parts Required

A. (1) Mounting Accessories

B. (1) Flame Lamp

C. (1) SCB Lamp (sold separately)

Product Dimensions

10.75”

8”

6”

25”

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 4 -

VOLT®Traditional Lantern Brass Path & Area Light

VPL-1047-4-BBZ

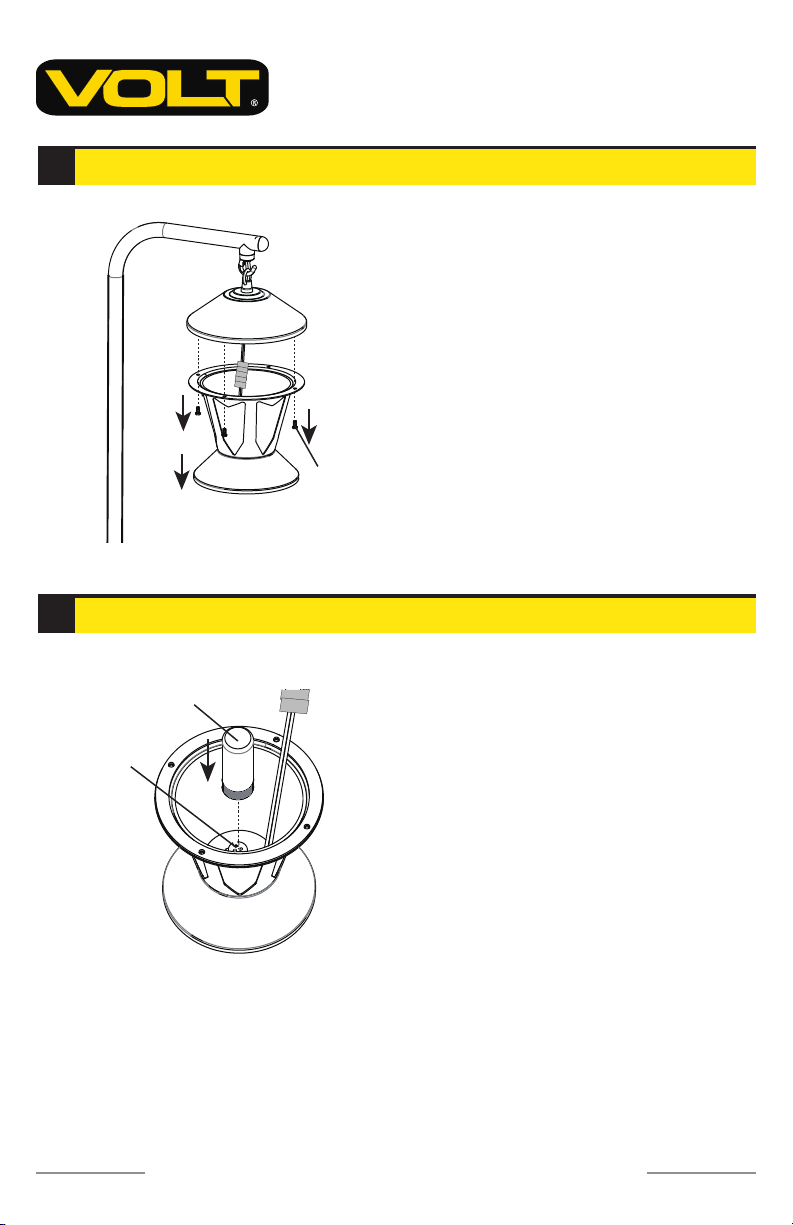

Remove Hat Bottom

Remove the bottom of the hat,

by using a screwdriver to loosen

the screws.

Hat Top

Hat Bottom

Screws

Install Flame Lamp

Install the ame lamp by aligning

the line on the bottom of the lamp

to the holes in the socket. Once it

is aligned, gently push the ame

lamp into the socket

CAUTION: Do not exceed

maximum wattage marked on

luminaire label.

Socket

Flame Lamp

Install SCB Lamp

[email protected] • 813.978.3700

- 5 -

Reinstall Hat Bottom

Reinstall the hat bottom using

the previously removed screws.

Use a screwdriver to make sure

the screws are secure.

Hat Top

Hat Bottom

Screw

Remove Lens

Remove the lens on the bottom

of the hat by loosening the

screws using a screwdriver.

Lens

Hat

Screw

Use SCB lamp with correct wattage

and type marked on xture label.

Align the bayonet base of the SCB

lamp to bayonet socket. Insert the

SCB lamp into the bayonet socket and

twist it until the SCB lamp is inserted

properly.

CAUTION: Do not exceed

maximum wattage marked on

luminaire label.

SCB Lamp

Bayonet Socket

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 6 -

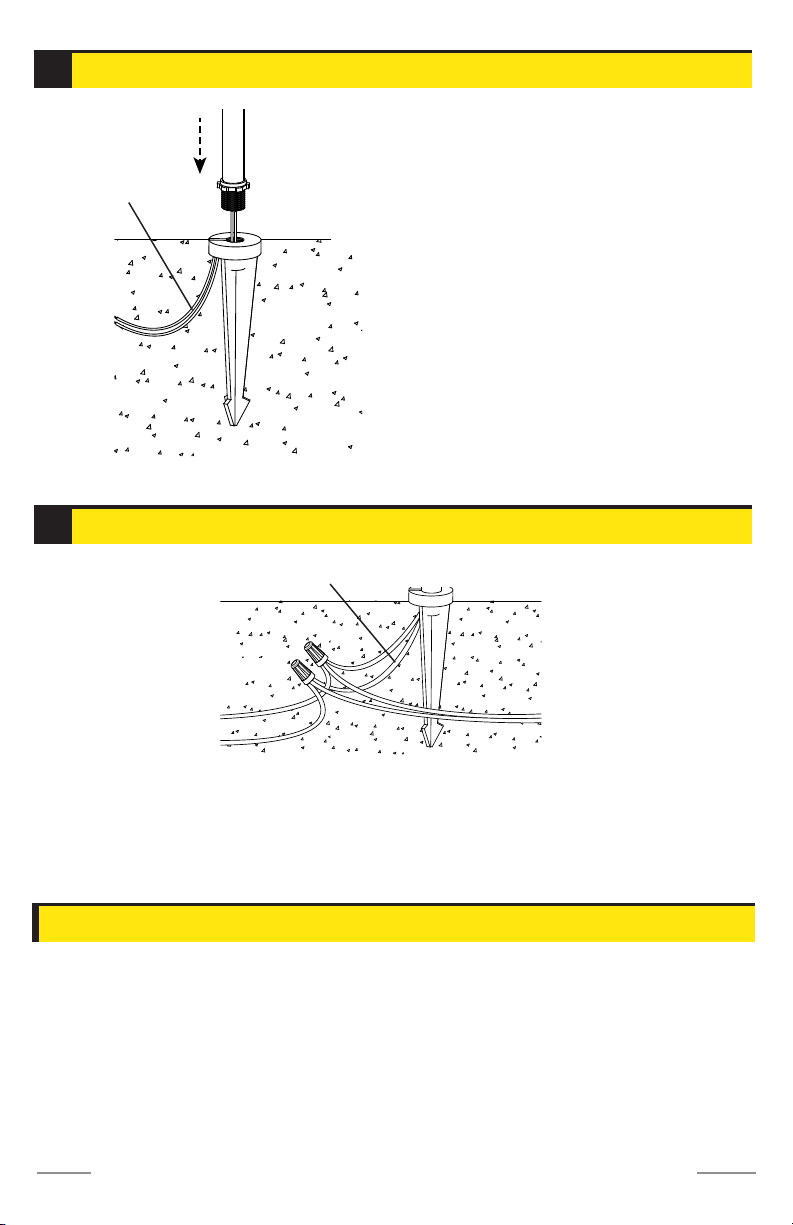

Install Stake

VOLT®Traditional Lantern Brass Path & Area Light

VPL-1047-4-BBZ

Reinstall Lens

Place the lens back onto the

bottom of the hat and use the

previously removed screws

to secure. Tighten with a

screwdriver.

Lens

Hat

Screw

Determine the desired location

for mounting the stake. Hammer

the stake into the ground until

ange of stake is ush to the

ground. To avoid damage to the

stake, place a board on top of

the stake while hammering.

Note: If the ground is hard and

the stake is difcult to install,

make a crosscut in the ground

using a at shovel.

Board

Ground

Soil

Stake

[email protected] • 813.978.3700

- 7 -

Wire Connections

Install/Replace Lamp

Install Fixture to Stake

Pass supply wires through

the open slot of the stake

and thread the xture onto

the stake. Hand tighten until

snug. Clear away area in

ground and lay the supply

wires into wireway slot.

Ground

Stem

Supply Wires

Soil

Stake

Strip both leads from xture wires. Using two UL listed wire

connectors (sold separately), connect the leads from xture wires to

main supply cable leads.

Main Supply

Cable

Fixture Wires

Wire Connectors

Reverse Step 2 - Step 3 to replace the ame lamp. Then reinstall the bottom

of the hat to protect the lamp. Reverse Step 5 - Step 6 to replace the SCB

lamp. Reinstall the lens to protect the lamp.

IMPORTANT: Flame lamp and SCB lamp must be protected from moisture and

dust at all times. Always reinstall the hat and lens when removed.

- 8 -

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

IS-VPL-1047-4-BBZ-ver1.pdf

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
