Volt BRASS BULLY VWL-5 Series Bedienungsanleitung

VOLT®Low Voltage Landscape Lighting

Brass Bully Well Lights

INSTALLATION INSTRUCTIONS

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT®Brass Bully Well Lights

Important: Please Read Before Installation

IMPORTANT SAFETY INFORMATION

INSTALLATION INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situation.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with wire connectors that is suitable for

outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm)

7. If additional lengths of low voltage cable is required, please contact

www.voltlighting.com or call 1-813-978-3700.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may damage

lamp.

6. Do not operate the luminaire tting with a missing or damage shield.

SAVE THESE INSTRUCTIONS

www.voltlighting.com

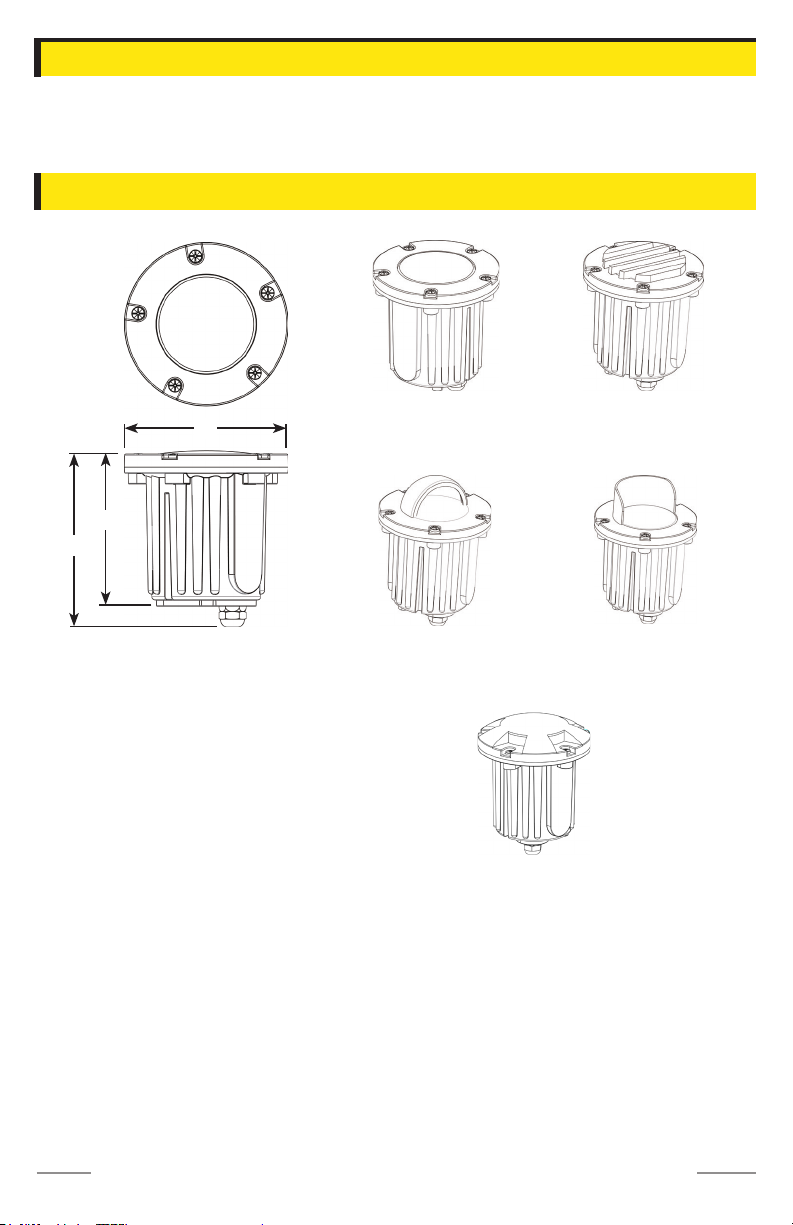

Package Contents

Product Dimensions

A. (1) Housing

B. (1) Luminaire Cover with

Gasket

customersupport@voltlighting.com • 813.978.3700

Brass Bully Open

550

Brass Bully Beacon

553

Brass Bully Grate

552

Brass Bully Shielded

554

5”

4.5”

5.5”

C. (5) Lock Screws

Brass Bully Turret

VWL-555

INSTALLATION INSTRUCTIONS

www.voltlighting.com

VOLT®Brass Bully Well Lights

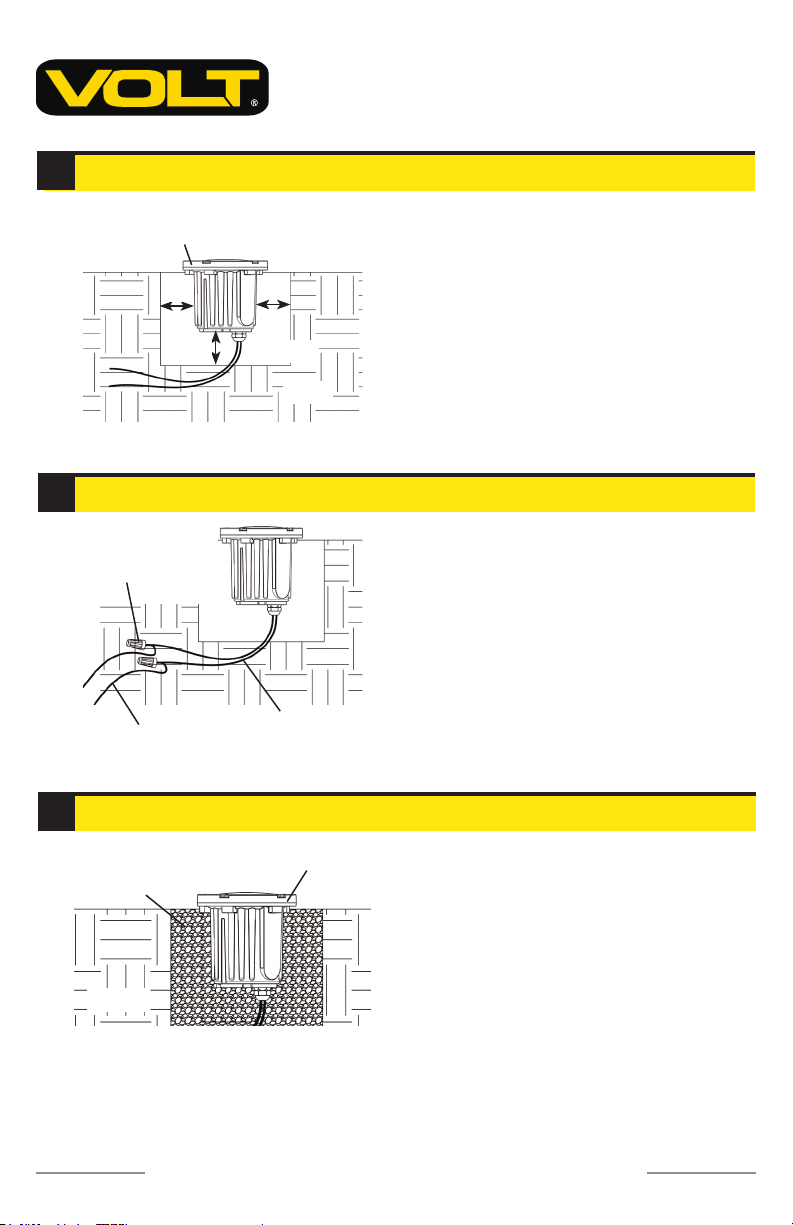

Strip two leads from luminaire

pigtail. Using two wire connectors,

sold separately, connect leads from

luminaire to main low voltage supply

cable leads.

Wire Connection

Pigtail

Wire Connector

Main Low Voltage

Supply Cable

Install the luminaire in hole and ll

hole with pea gravel or sand.

Fill Pea Gravel or Sand

Pea Gravel

or Sand

Luminaire

Soil

3”

Dig Hole

Dig hole in the ground. Make sure

there is approximately 3” space

surrounding the luminaire housing for

pea gravel or sand.

Luminaire

Hole

Soil

customersupport@voltlighting.com • 813.978.3700

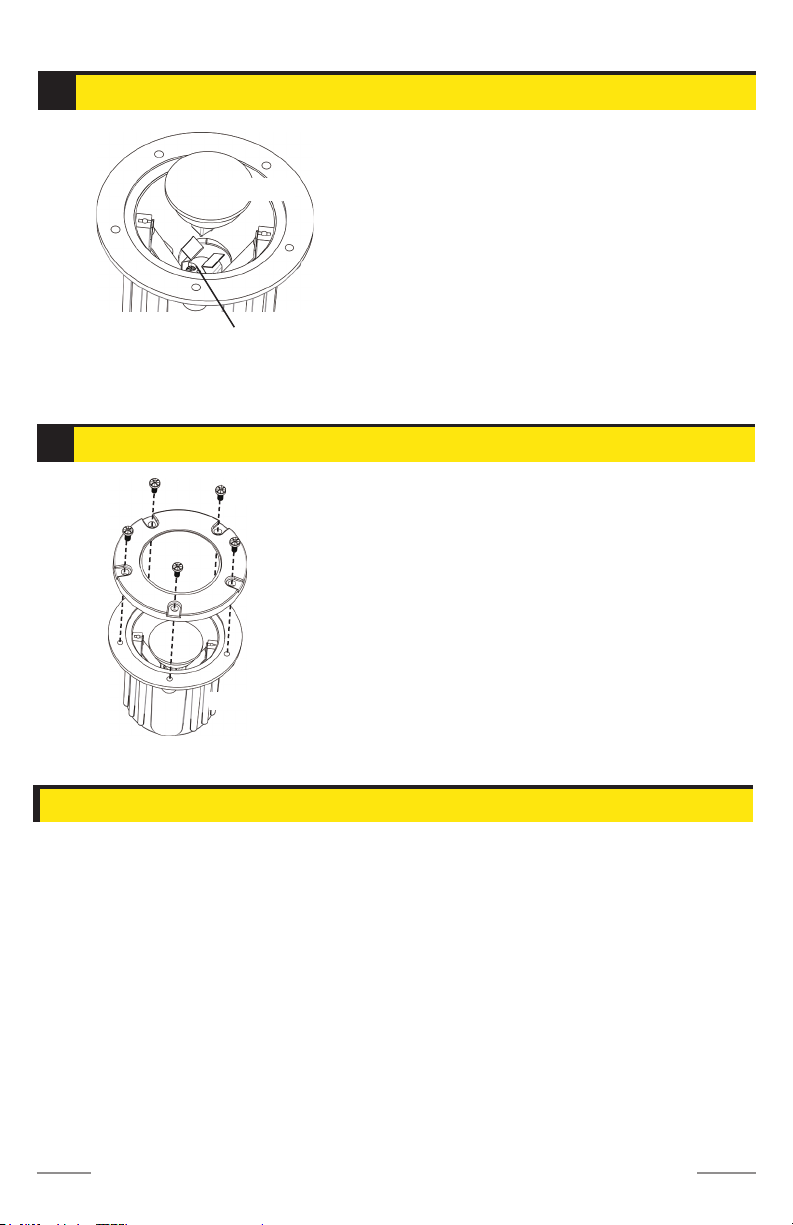

Insert MR16 lamp with correct

wattage and type as marked on

luminaire label.

CAUTION: Do not exceed maximum

wattage marked on luminaire label.

NOTE: DO NOT touch lamp with

bare hands. Use soft cloth to handle

lamp.

Place luminaire cover with gasket

onto housing and secure with lock

screws.

Install Lamp

Install Luminaire Cover with Gasket

Lamp

Lock Screw

Socket

Luminaire

Cover with

Gasket

Housing

Install/Replace Lamp

Please reverse Step 4 - Step 5 to expose the bulb and replace it with correct

wattage and type marked on luminaire label. Reinstall luminaire cover.

IMPORTANT: Halogen lamps must be protected from moisture and dust at all

times. Always re-install luminaire cover when moved.

is-brassbully-ver2.pdf

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
