VOLT®Low Voltage Landscape Lighting

VOLT® Up/Down Integrated LED Deck Light

VDL-6007

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT® Up/ Down Integrated LED Deck Light

VDL-6007

INSTALLATION INSTRUCTIONS

www.voltlighting.com

Important: Please Read Before Installation

Important Safety Instructions

This luminaire is intended for installation in accordance with local codes and the

National Electric Code (NEC). Failure to adhere to these codes and instructions

may result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm.)

7. If additional lengths of low voltage cable is required, please contact

www.voltlighting.com or call 1-813-978-3700.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO

PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn o/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damage shield.

[email protected] • 813.978.3700

Package Contents

A. (1) Fixture

Parts Required (Sold Separately)

A. (2) lock screws (sold separately) B. (2) wall anchors (sold separately)

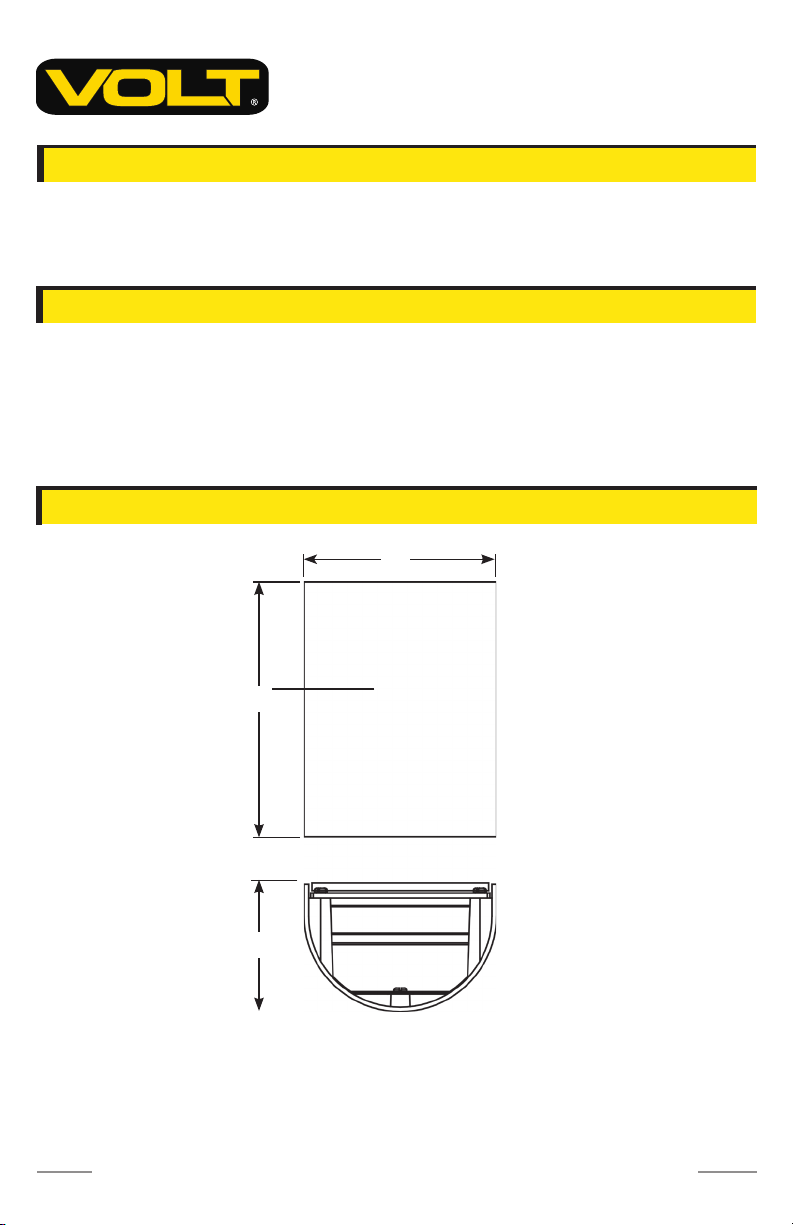

Product Dimensions

3”

4”

2”

VOLT® Up/ Down Integrated LED Deck Light

VDL-6007

INSTALLATION INSTRUCTIONS

www.voltlighting.com

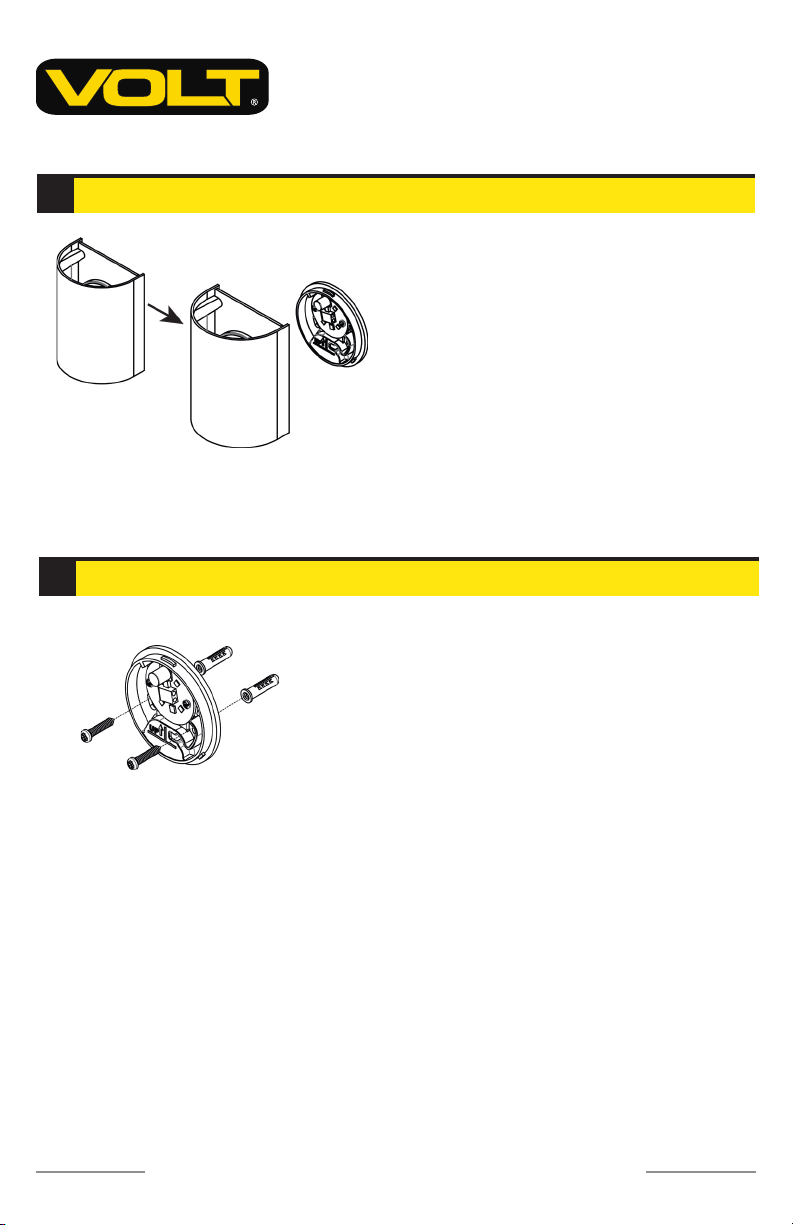

Rotate the cover clockwise

until it is stops and then lift

the cover straight o.

Note: The rst time it may be

dicult because the xture

has a very tight o-ring seal and

a grease sealant for moisture

protection.

Separate Cover and Backplate

Fixture

Backplate

Cover

Backplate

Lock Screw (not

included)

Wall Anchor Hold the base in the correct

direction as indicated by the

arrow on it. Attach the base onto

the desired location and secure

with the lock screws.

Note: Wall anchors are required

for certain installation conditions

(brick walls, concrete walls, etc.)

Use the holes in the base to mark

where to put the holes in the

wall. Remove the base and drill

the proper holes in the wall, then

insert the wall anchors.

Install Backplate

VOLT® Up/ Down Integrated LED Deck Light

VDL-6007

INSTALLATION INSTRUCTIONS

www.voltlighting.com

Push the shade hard onto the back-

plate aligning the gaps (air tighten

moisture proof xtures require

some force to get the air out).

Once the shade is ush with the

backplate, rotate the shade until it

stops and locks into place.

Backplate

Cover

Attach Cover to Backplate

Strip both leads from the

luminaire pigtail. Using two wire

connectors (sold separately),

connect the leads from the

luminaire to the main supply

cable leads.

Fixture

Wire Connector

Main Supply Cable

Pigtail

Wire Connections

VOLT® Up/ Down Integrated LED Deck Light

VDL-6007

INSTALLATION INSTRUCTIONS

[email protected] • 813.978.3700

VOLT® Up/ Down Integrated LED Deck Light

VDL-6007

INSTALLATION INSTRUCTIONS

[email protected] • 813.978.3700

IS-VDL-6007-ver1.pdf

Specications and product details subject to change without notice.

reserved. [email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
