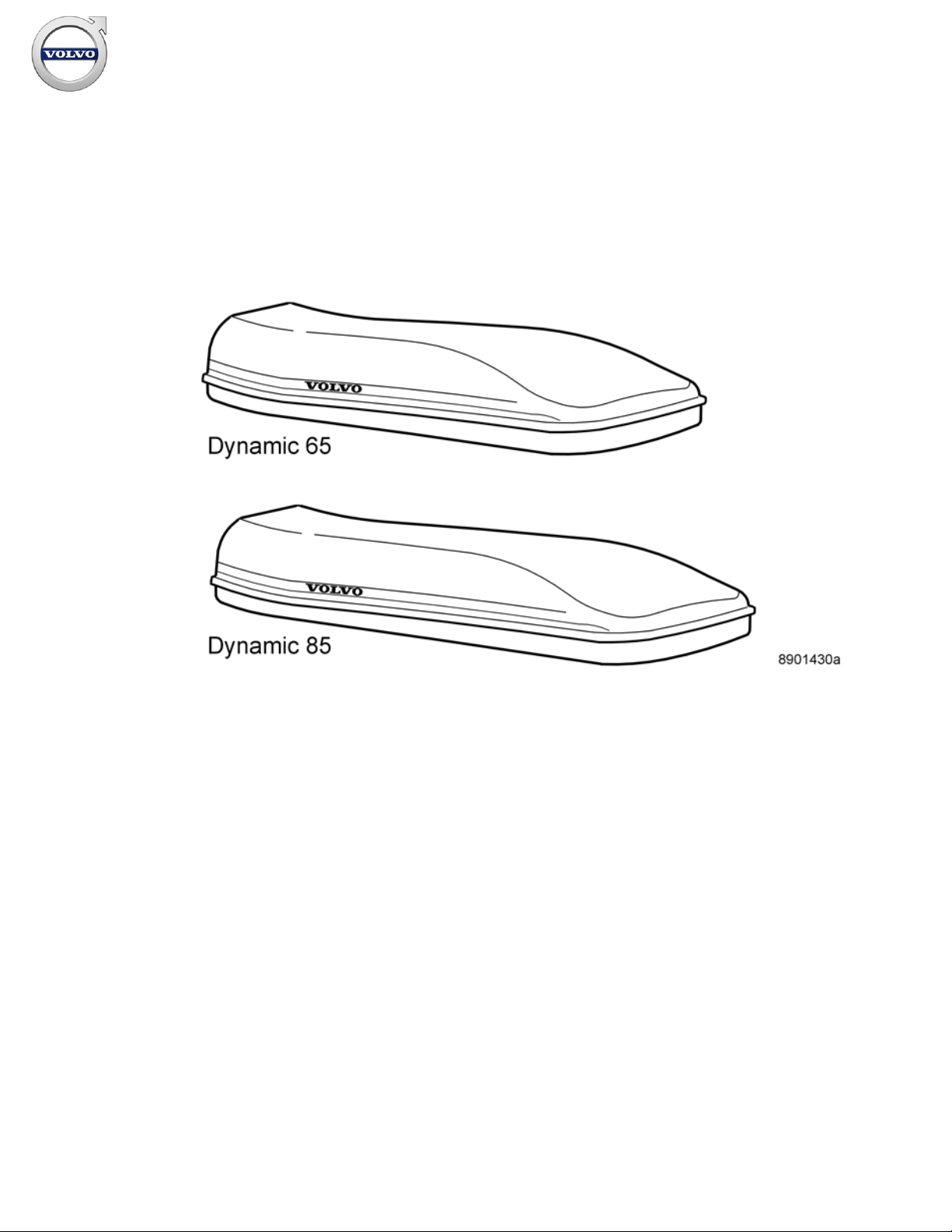

Volvo Dynamic 65 Bedienungsanleitung
Instruction No Version Part. No.
9491340 1.0
Roof box
A8901430
Instruction No Version Part. No.
9491340 1.0
Roof box
A8901430
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Roof box- 9491340 - V1.0
Page 1 / 10

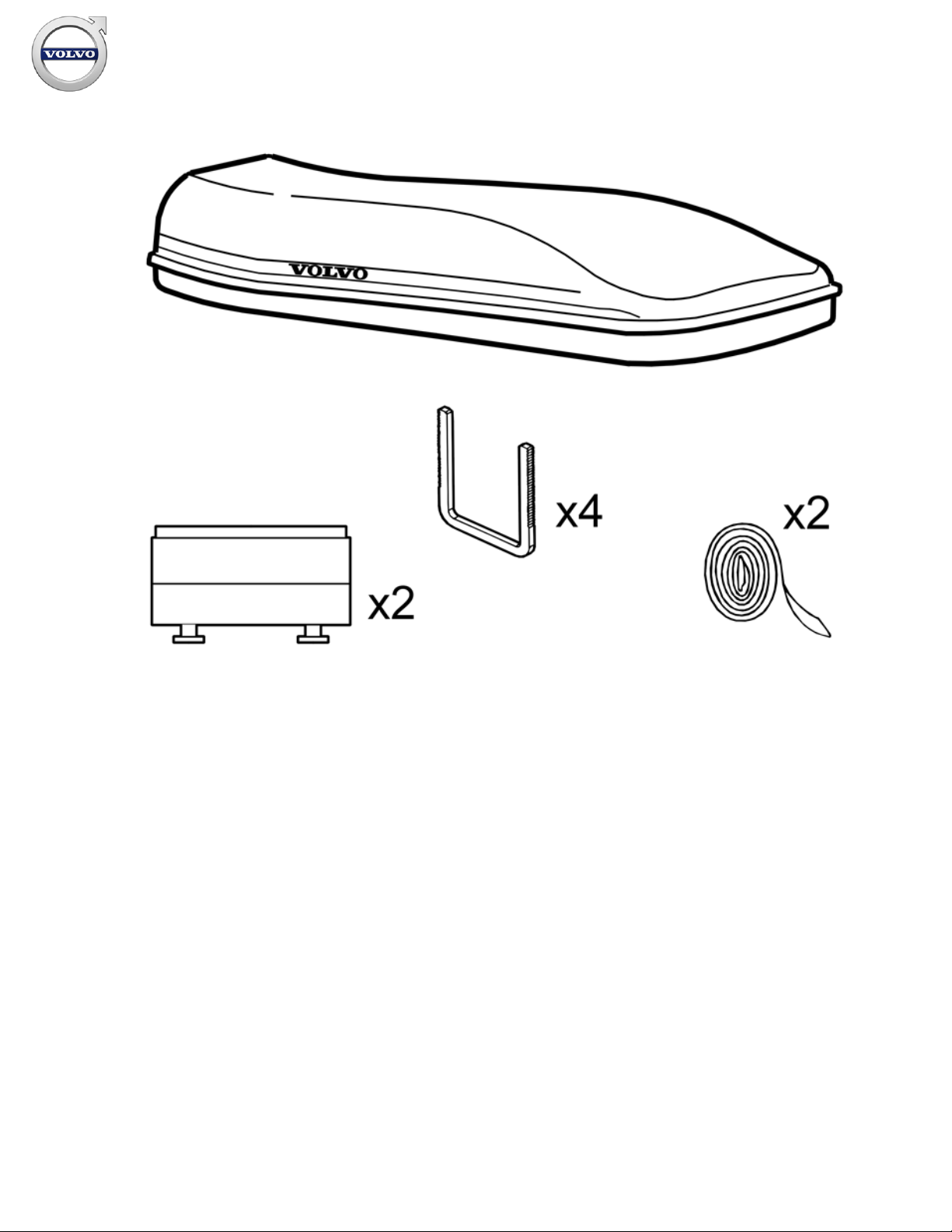

B8901445
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Roof box- 9491340 - V1.0
Page 2 / 10
INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Note!
Be aware of the changed height and driving characteristics of
the car with load carriers and box. Always secure loads.
Check that the box is properly locked and the key removed
before traveling. The total roof load capacity of the car must
not be exceeded. See the car instruction book. Highest
permitted load = load carrier weight + box weight + load
weight. For safety the car should not be driven at top speed.
The speed should be adjusted to the load transported and of
course to appropriate speed limits.Remember the following
with the box mounted:- The increased height of the car. -
Wind noise may occur.These installation instructions should
be stored with the car handbook. Damage to the car and
surroundings may occur if the instructions are not followed.
Installing the roof box
1
A8901443
Installing the roof box

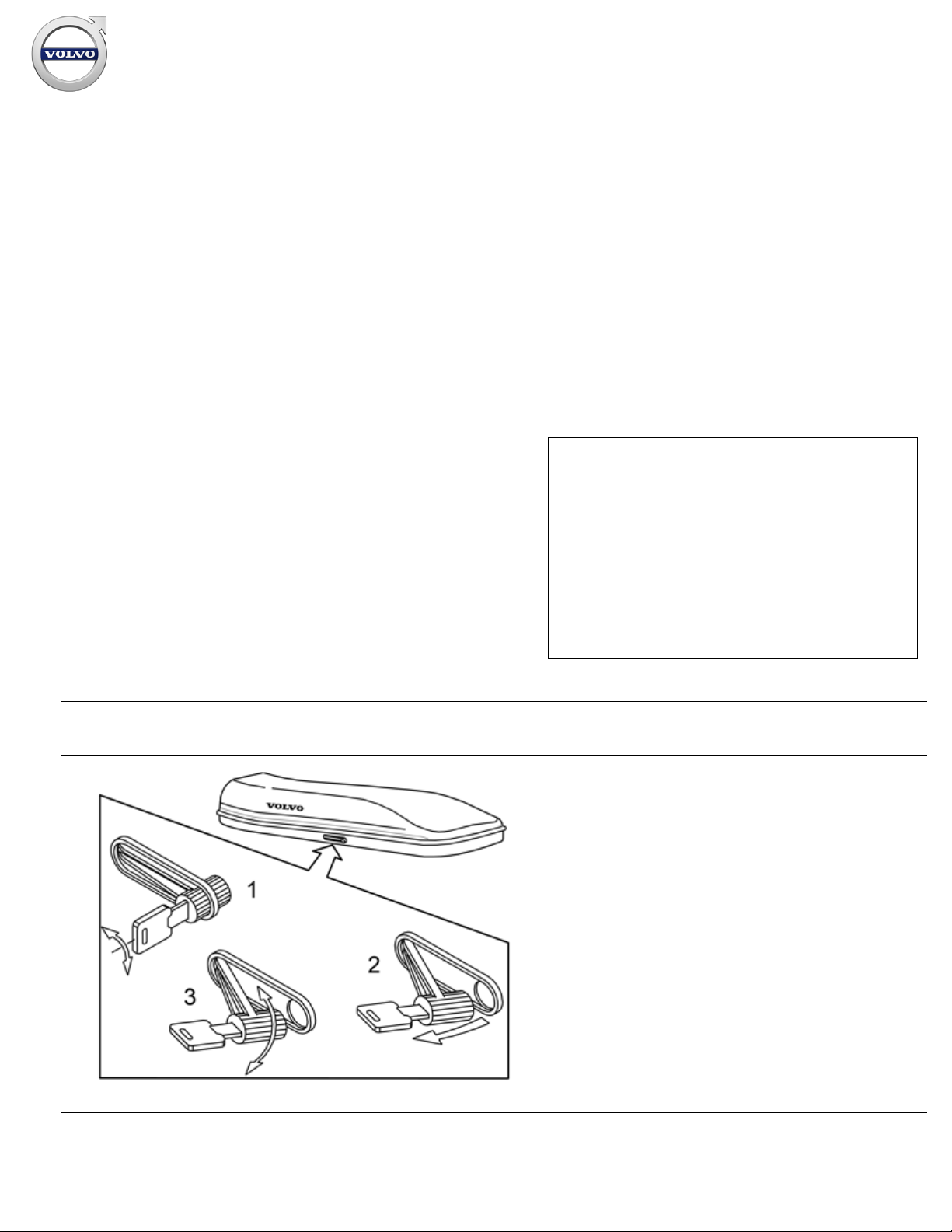

Opening the roof box
Unlock and turn the handle downwards to open the roof box.
Closing the roof box
Press the cover down completely and turn the handle to the
upper position. Press the handle inwards and lock.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Roof box- 9491340 - V1.0
Page 3 / 10
2
B8901446

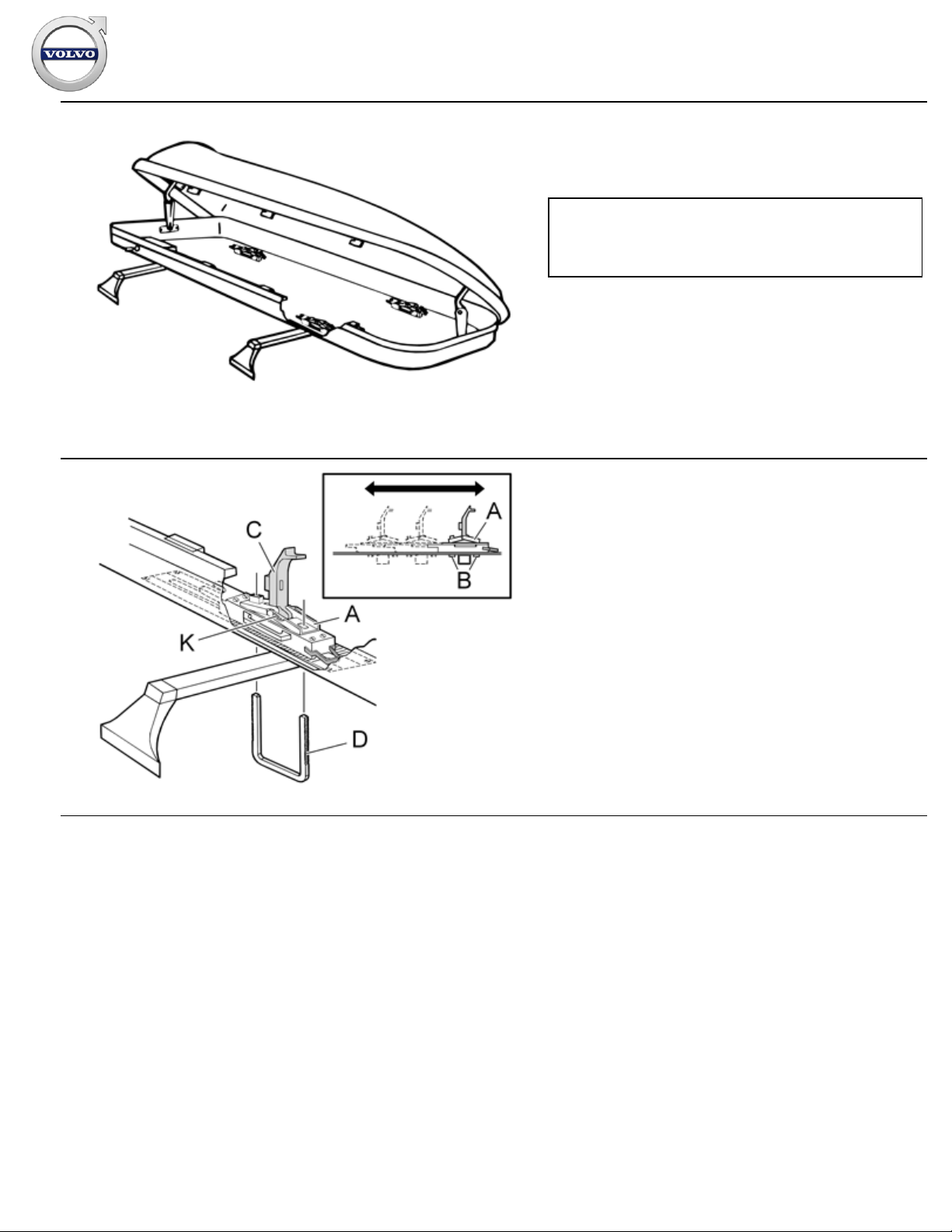

Place the roof box on the load carriers parallel to the car. Ensure
that neither the roof box or the load carrier obstruct the tailgate.
Note!
Applies to V40: The roof box can be used together with the
roof antenna and roof spoiler. It is necessary, however, to bend
the roof antenna and the tailgate should be opened with care.
3
B8900864
When opening the box ensure that the opposite side is locked.
The four moveable securing plates (A) in the bottom of the box
should be moved so that they lie above the load carrier rails
between the grommets (B) in each securing plate (A).
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Roof box- 9491340 - V1.0
Page 4 / 10
4
B8900865
Position the locking handle (C) in each securing plate in the
vertical position. Insert the first U-bracket (D) upwards through
the grommets (B).
5
B8900866
Press the center section of the securing plates downward,
pressing against the indicated pressure point (K) beside the lock
handle (C). Press the U-bracket (D) upwards until it is tight
against the load carrier.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Roof box- 9491340 - V1.0
Page 5 / 10
6
B8900867
Fold down the lock handle (C) to the horizontal position. This
requires a force of approximately 50 N (11 lbf), there should be
considerable tension.
If this is not the case the U-bracket installation must be
repeated.
Then fold the safety bracket (E) over the lock handle (C) until it
snaps shut. If this cannot be done, check that the lock handle is
snapped shut in the final position. Install the other three securing
plates in the same way.
Check that the box is securely fixed to the load carrier at regular
intervals.
Installing ski holders/ski support
7A
B8901438
7B
Installing ski holders/ski support

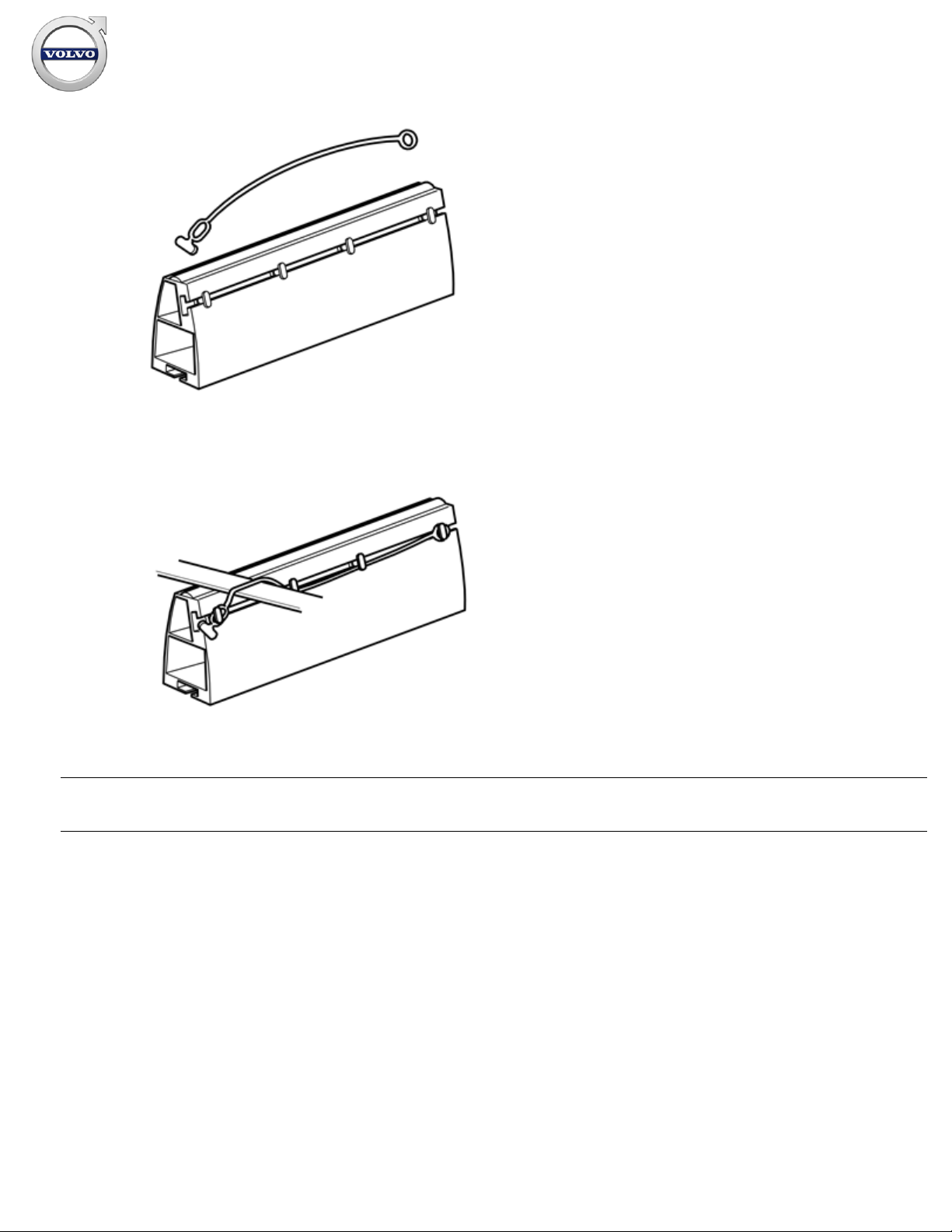

Install the ski supports by sliding the clamp bolts into the roof
box tensioner forks. Ensure that the catches are turned as
illustrated.
Install the ski holders on the catches and turn the clamp bolts to
the locked position.
Note!
The ski holder must be locked with clamp bolts.
Use the straps supplied to secure the skis.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Roof box- 9491340 - V1.0
Page 6 / 10
B8901439
7C
B8901440
Transporting other goods
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Roof box- 9491340 - V1.0
Page 7 / 10
8
B8901017
Transporting other goods

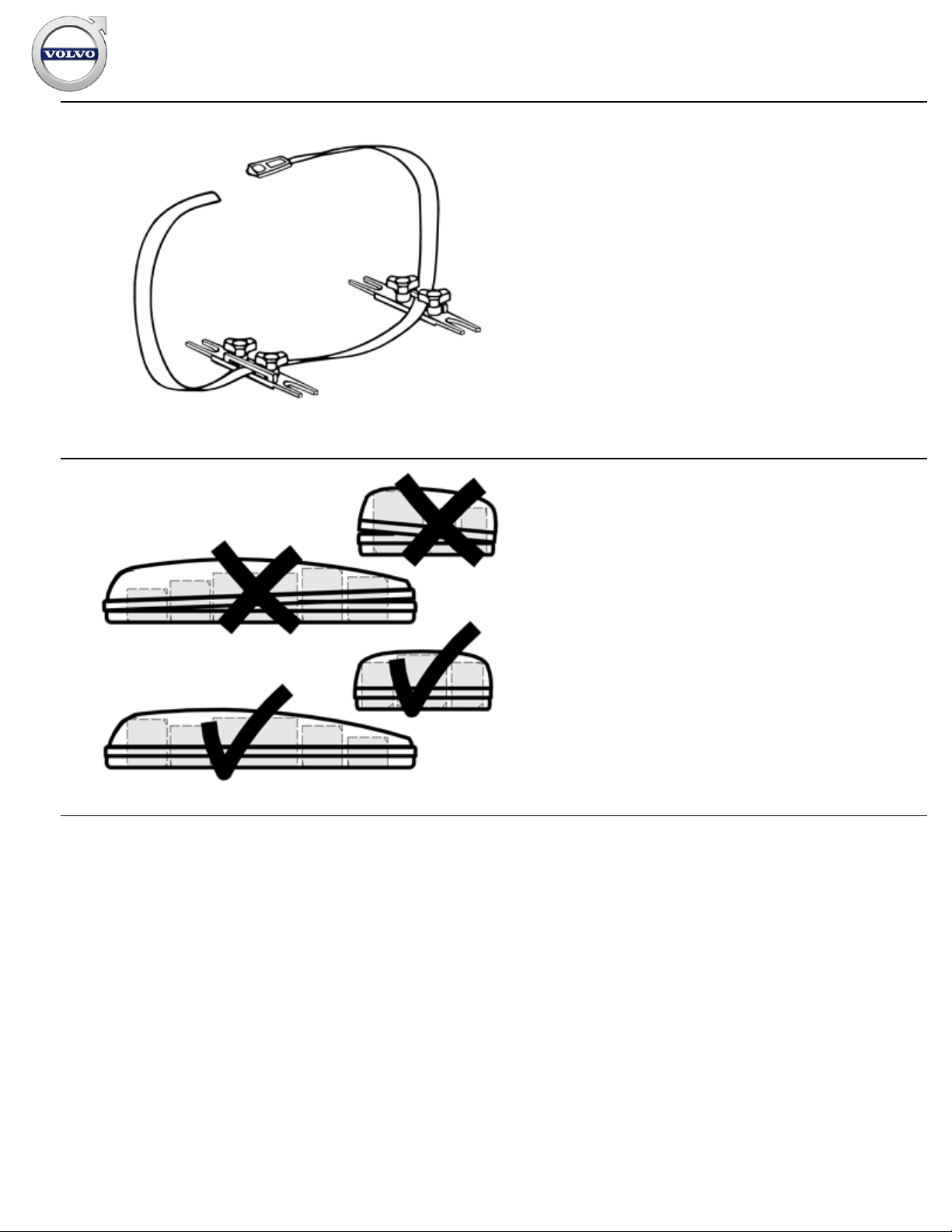

Remove the ski holders by turning the clamp bolts to the open
position. The clamp bolts are left in the roof box tensioner units.
Use the straps supplied to secure the loads.
9
B8901441
When loading the roof box distribute the load so that the cover
can be properly closed.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Roof box- 9491340 - V1.0
Page 8 / 10
10
B8901442
Roof box may not be loaded with more than 75 kg (165 lbs). The
load should be distributed as illustrated.
Note!
Do not load car with more than the maximum roof load.
Removing the roof box
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Roof box- 9491340 - V1.0
Page 9 / 10
11A
B8902279
11B
B8902280

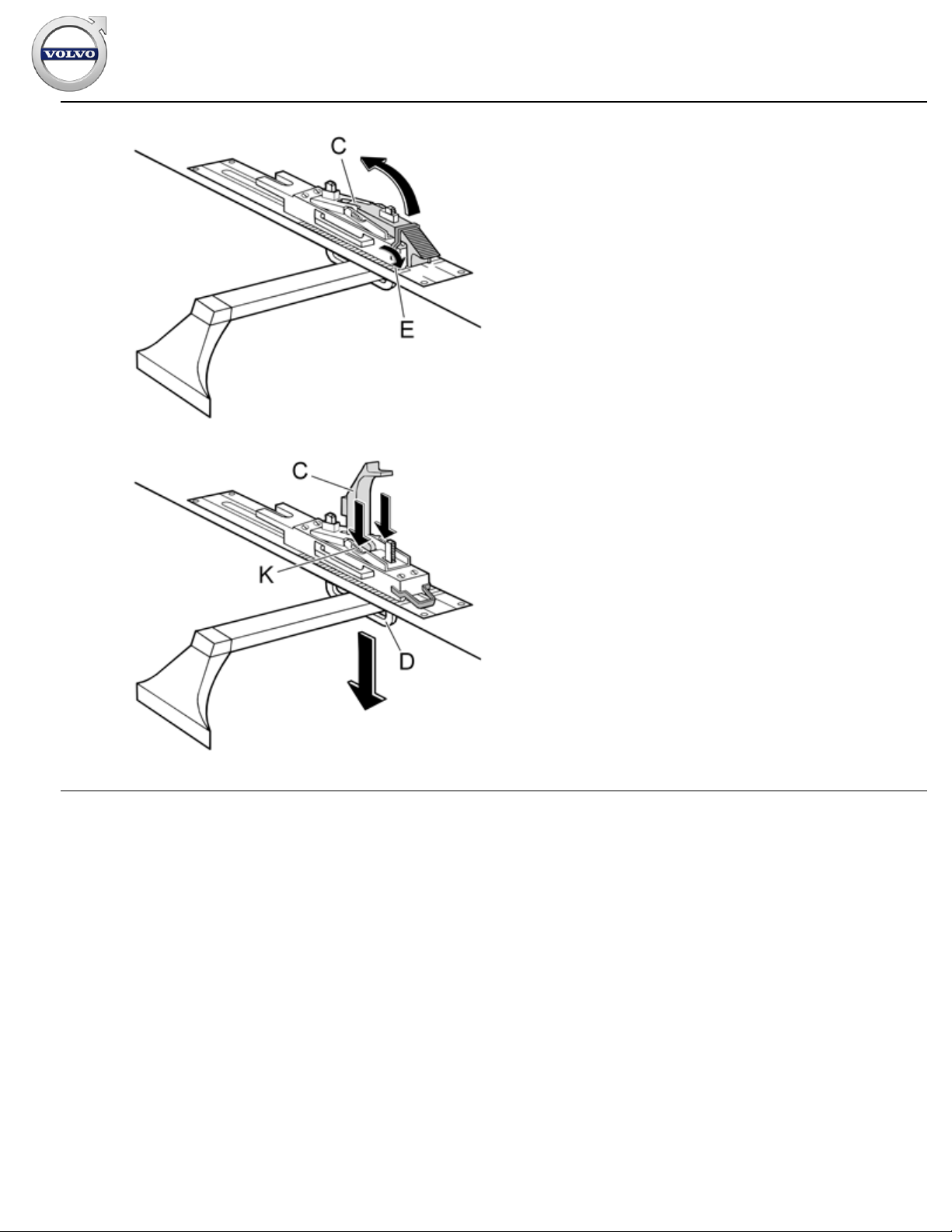

Removing the roof box
Open the roof box (see step ) and remove the load and ski
holders. Fold down the safety bracket (E), open the locking
handle (C) and fold it to the vertical position. Press down the
center of the securing plate in the roof box with one hand. Press
against the pressure points (K) beside the lock lever (C). At the
same time pull the U bracket (D) down from the mounting unit
(A) using the other hand.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Roof box- 9491340 - V1.0
Page 10 / 10
