Vook VDT2704XD-P Bedienungsanleitung

VOOK

HD-SDI

QUICK START GUIDE

VDT2704XD-P; VDT2708XD-P; VDT2716XD-P

VOOK

4/8/16-CH DVR Quick Start Guide

1. Hardware installations

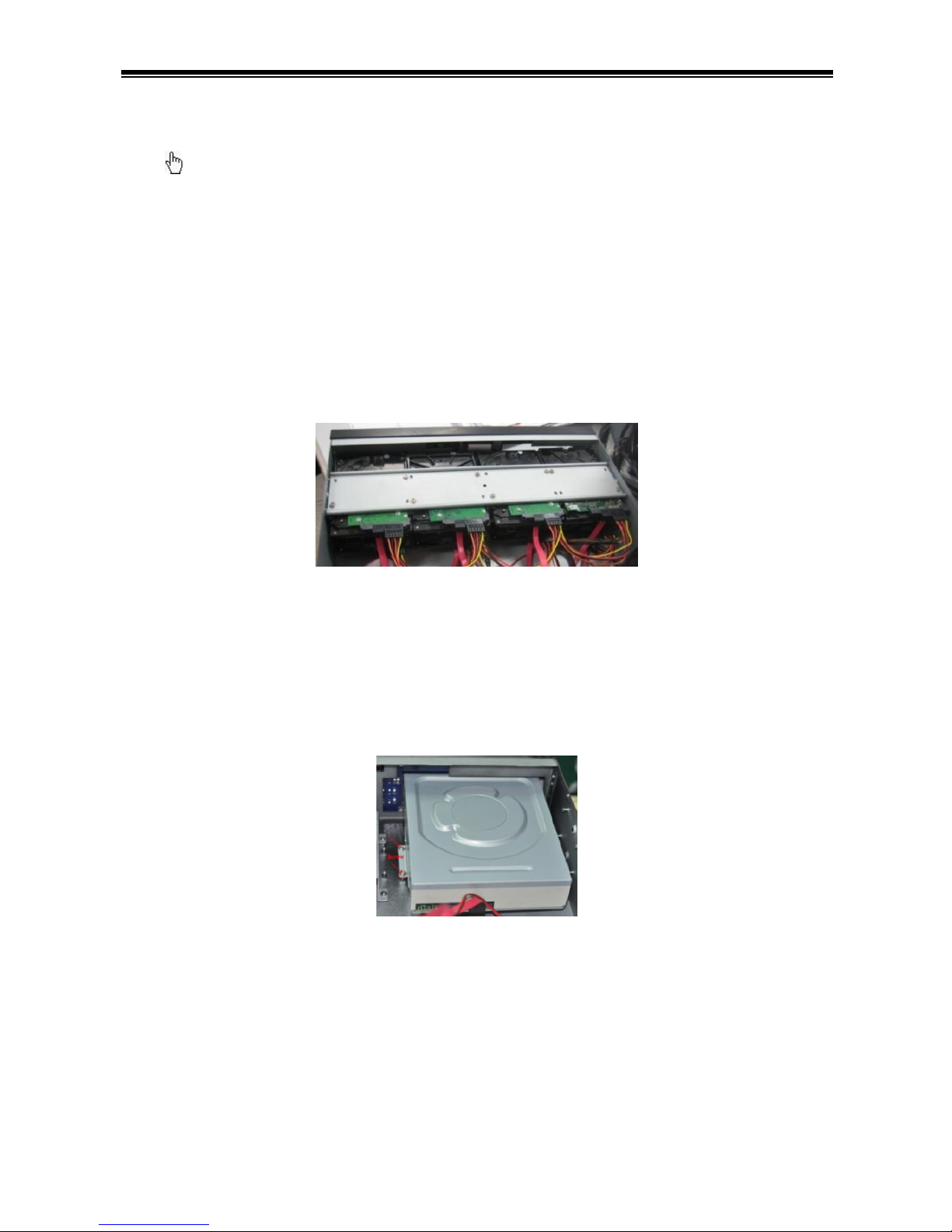

1.1 Install Hard Drive

Notice: 1.This series support eight SATA hard drives. Please use the hard drive the

manufacturers recommend specially for security and safe field.

2. Please calculate HDD capacity according to the recording setting.

Step1: Unscrew and Open the top cover

Step2: Connect the power and data cables. Place the HDD onto the bottom

case as the following picture.

Step3: Screw the HDD

Note: For the convenience to install, please connect the power and

data cables firstly, and then screw to fix.

1.2 Install DVD Writer

Step1: Unscrew and Open the top cover.

Step2: Unscrew and take the barrier out of the front panel. Then connect the

power and data cables. Finally, put the DVD with the holder into the case, let

the screw holes of the case aim at the holder‟s and screw them firmly.

2. Connections

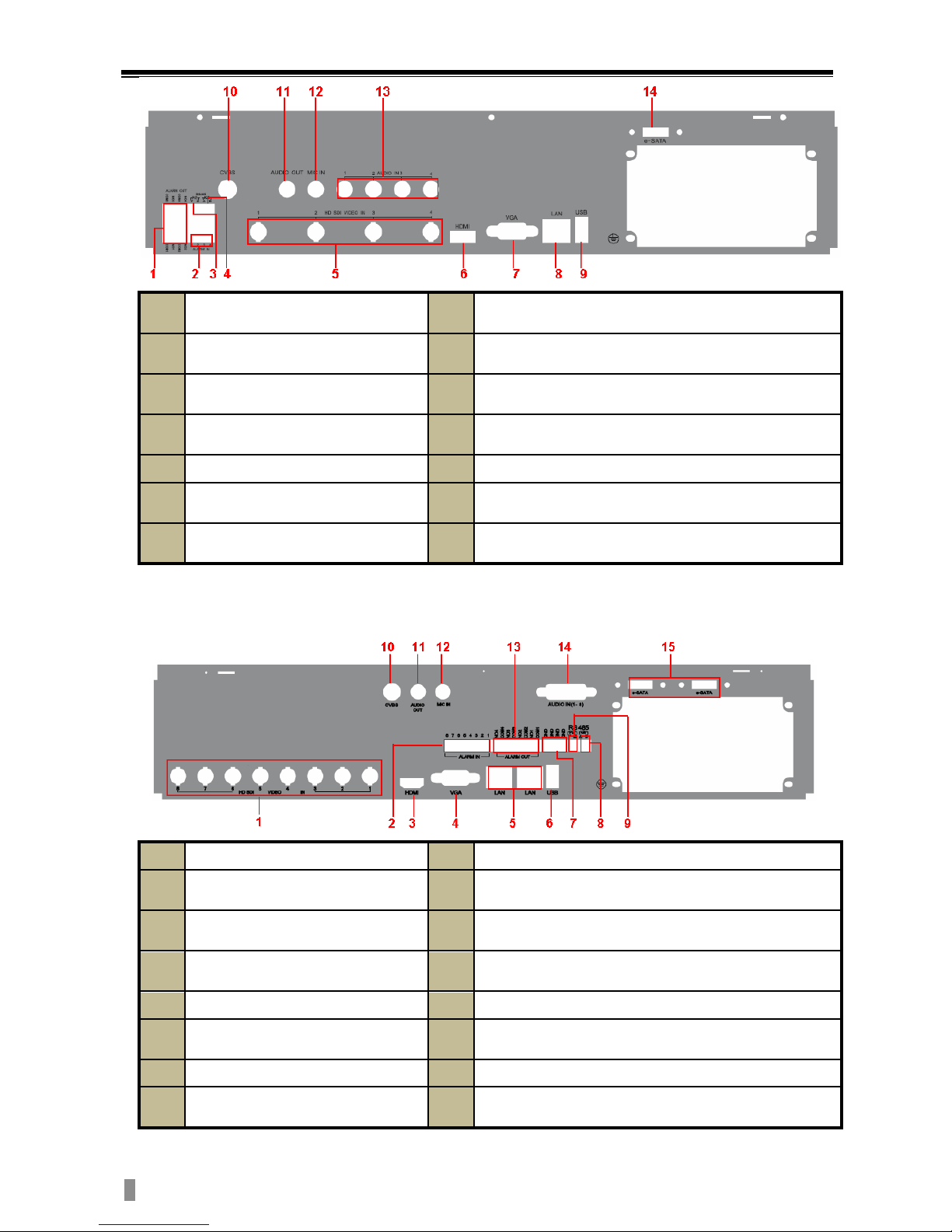

2.1 Rear view for 4-ch DVR

VOOK

4/8/16-CH DVR Quick Start Guide

Relay Output. Connect to

external alarm

Network port

Connect to external sensor

Connect USB mouse or connect external USB

devices

Connect to speed dome. Y is

TX+, Z is TX-

CVBS output

Connect to keyboard. A is TX+,

B is TX-

Audio output, connect to the sound box

HD SDI video signal inputs

Talk. Connect to microphone

Connect to high-definition

display device

Audio input

VGA output, connect to

monitor

Connect to HDD for backup.

2.2 Rear view for 8-ch DVR

HD SDI video signal inputs.

Connect to speed dome. Y is TX+, Z is TX-

Alarm Inputs for connecting

sensors

CVBS output

Connect to high-definition

display device

Audio output, connect to the sound box

VGA output, connect to

monitor

Talk. Connect to microphone

Network port

Relay Output. Connect to external alarm.

Connect USB mouse or connect

external USB devices

Audio input

Grounding

Connect to HDD for backup

Connect to keyboard. A is TX+,

B is TX-.

VOOK

4/8/16-CH DVR Quick Start Guide

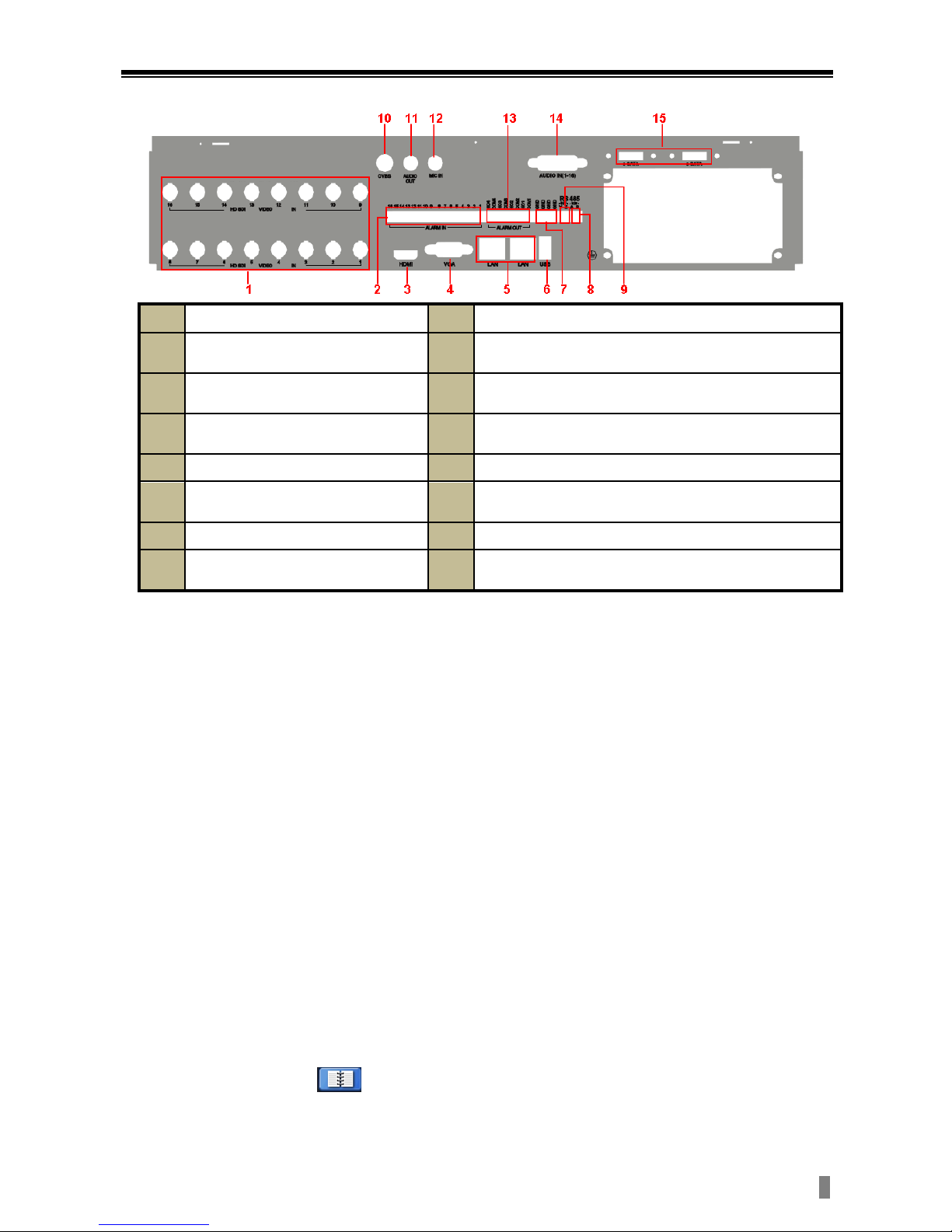

2.3 Rear view for 16-ch DVR

HD SDI video signal inputs.

Connect to speed dome. Y is TX+, Z is TX-

Alarm Inputs for connecting

sensors

CVBS output

Connect to high-definition

display device

Audio output, connect to the sound box

VGA output, connect to

monitor

Talk. Connect to microphone

Network port

Relay Output. Connect to external alarm.

Connect USB mouse or connect

external USB devices

Audio input

Grounding

Connect to HDD for backup

Connect to keyboard. A is TX+,

B is TX-.

3. Startup &Shutdown

3.1 Startup

Step1: Connect to cameras and monitor.

Step2: Connect with the source power;

Step3: The device will boot and the power indicator will display blue.

Step4: A WIZZARD window will be pop-up.

3.2 Shutdown

You can shut down the device by using IR remote controller and mouse.

By IR remote controller:

Step1: Press Power button. This will bring up a shutdown window. The unit will

shut down by clicking “OK” button.

Step2: Disconnect the power

By mouse:

Step1: Enter into Menu and select “Shut Down” icon. This will take you

to a shutdown window.

Step2: Click OK. Then the unit will power off after a while.

VOOK

4/8/16-CH DVR Quick Start Guide

Step3: Disconnect the power.

4. Setup Wizard

After the device starts, a setup wizard pops up. You can set up time，network ,

record and disk management.

Click Device name box to popup a keyboard as follows:

It supports digits, alphabets and symbols as inputs. Click Shift button to input

Capital letters and symbols; click Shift button again to return.

Click „Next‟ button to bring up a network setup window.

The default HTTP port is 80. The default server port is 6036. You can check

„Obtain an IP address automatically‟ to acquire network information or input IP

address, subnet mask, gateway, preferred/alternate DNS server manually. This

function is used to monitor DVR through internet (See Section 10 for details).

Click „Next‟ button. This will take you to record setup window.

VOOK

4/8/16-CH DVR Quick Start Guide

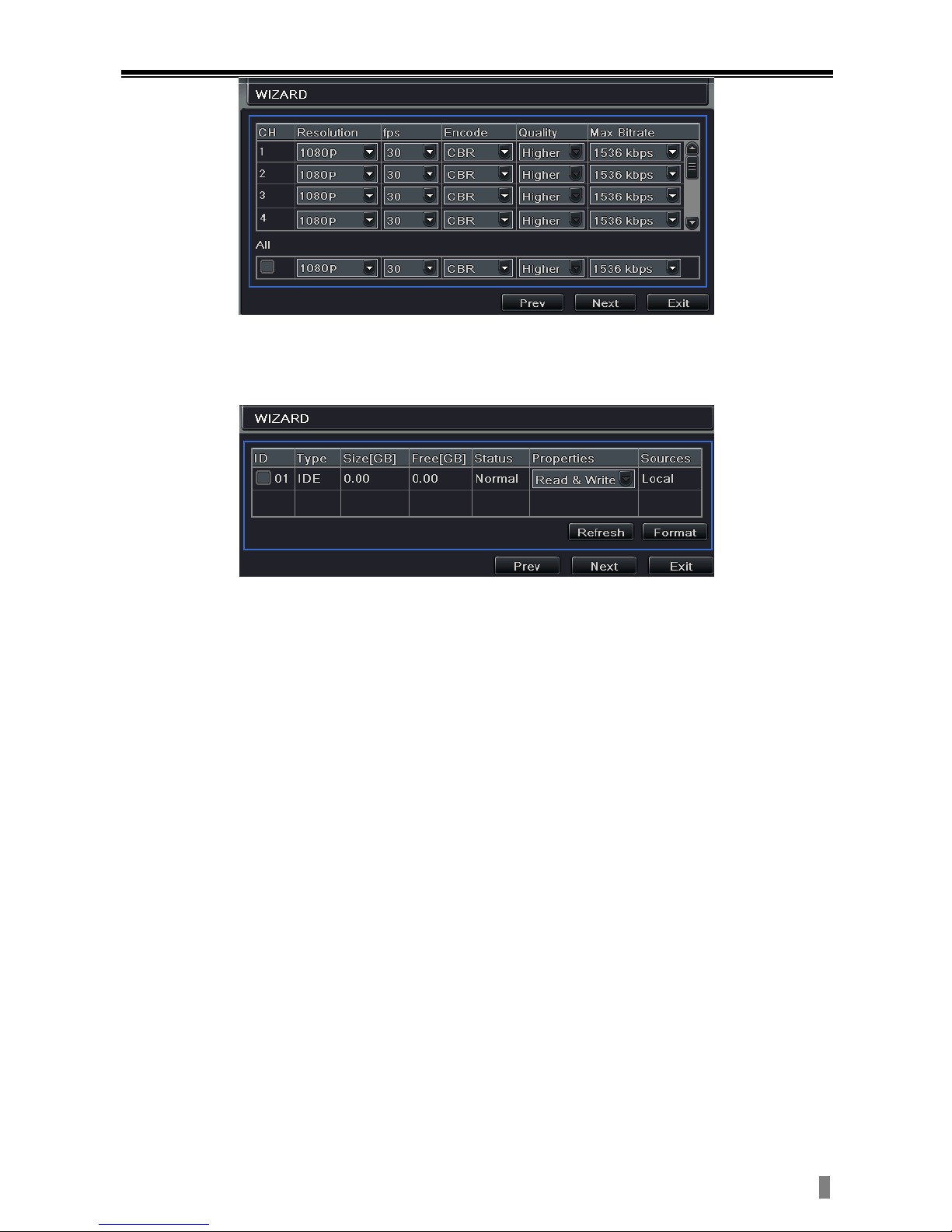

Select resolution, fps, encode, quality and bitrate. The higher the value is, the

clearer the recorded picture is. Of course, more space of HDD will be taken up.

Click „Next‟ button. This will take you to the HDD management window.

You can check your HDD information through this tab. If your HDD was recently

installed, select the HDD from the list to format it.

Click „Next‟ button. This will let you to see your DVR status. And then Click

„Finish‟ button to end this wizard.

You can also refer to the complete setup steps from the relevant sections of DVR

User Manual. If you don‟t want to setup Wizard, please click Exit button to exit.

5. Login

After you exit the wizard setup, you can login to the DVR.

Notice: This DVR can only display options on either VGA/HDMI monitor or BNC

monitor at a given point of time, if there is live image display without menu

options，please check if there is display on other device/monitor, or long press

ESC/Fn key to wait for login dialog box to appear. Long press ESC/Fn key can

switch the output between BNC and VGA/HDMI.

Click the MENU button to bring the LOGIN dialogue box and enter the user name:

admin and password: 123456

VOOK

4/8/16-CH DVR Quick Start Guide

6. Main menu setup

Click right mouse, or press ENTER button on the front panel to enter into the

main menu. Then click Setup to enter into Setup interface as shown below

Basic configuration: Users can set video system, menu language, audio, time

and authorization check.

Live configuration：Users can set name/time display, picture color and hide

cameras.

Record configuration：Users can set record quality, frame rate, resolution,

time stamp and recycle.

Schedule configuration: Users can set schedule for timer, motion detection,

and sensor alarm respectively.

Alarm configuration: Users can set sensor type, alarm trigger and buzzer

alarm.

Network configuration: Users enable network function, and configure IP

address, DDNS, transmission video parameters here.

User configuration: Administrator can add, delete users, and change their

authorization

PTZ configuration: Users can set protocol, baud rate, address, presets and

auto cruise track here.

Advanced configuration: Users can reboot the device and import & export

VOOK

4/8/16-CH DVR Quick Start Guide

data into or from mobile storage medium.

7. Recording Setup

A user needs to install and format a HDD, and set all the recording parameters

before recording. There are four kinds of record modes.

7.1 Manual Recording

A user can press REC button on the front panel after quitting system setup.

Press this button again to stop recording.

Or press REC button on remote controller. Click it again to stop.

Or click REC button on the tool bar with mouse. Click it again to stop.

7.2 Schedule Recording

To Setup Schedule Recording:

Step1: Enter into MenuSetupSchedule tab. Refer to the following picture.

Step2: Click “ ” button to add a certain day schedule; click “ ” button to

delete the selected schedule;

Step 3: You can also double-click the grid to pop up a week schedule window.

Select day and then click „Add‟ button to setup the start time and end time. Then

select other days and click „Copy‟ button to save the setting to other days. Finally,

click „OK‟ button to save week schedule.

VOOK

4/8/16-CH DVR Quick Start Guide

Step 4: Select other channels and set timeline for them or select „Apply Settings

To All Channel and click “Copy” button to set the same settings for all channels.

7.3 Motion Based Recording

Motion detection based recording: when there is a motion event detected, the

camera will be triggered to record.

To Setup Motion Based Recording:

Step 1: Enter into MenuSetupScheduleMotion tab. The setup steps for

schedule for motion based recording are similar to normal schedule setup. You

can refer to 7.2 Schedule Recording for details.

Step 2: Enter into MenuSetupAlarmMotionMotion tab as shown below.

Step3: Enable motion alarm (Please specify to channel) and click „Apply‟ to save

settings.

Step4: Click „Setting‟ button under the Area to set Sensitivity and Detection area.

Left click the grid and drag to delete the area. Drag again to add area. You can

drag slide bar to set the sensitivity value (1-8). The higher the value is the more

sensitive it is to motion. Since the sensitivity is influenced by color and time (day

or night), you can adjust its value according to the practical conditions. Click

icon to set the whole area as detection area. Click icon to clear the set

detection area. Click icon to test the sensitivity as per the local conditions.

Once motion is sensed, it displays a figure icon. Click icon to save the

setting. Click icon to exit the current interface

VOOK
