Wali GSDM003 Bedienungsanleitung

INSTALLATION MANUAL

[email protected]

75x75/100x100

GSDM003

Monitor Desk Mount

(1.5~7kg)x3

(3.3~15.4lbs)x3

RATED

27”

MAX

Supplied Parts List

Arm

A(x1)

Pole

B(x1)

Base

C(x1)

VESA Plate

D(x3)

Support Plate

I(x1)

C-Clamp

F(x1)

Décor Cover

G(x1)

Bolt

H(x1)

Top Screw

N(x3)

ARM

R(x1)

C-Clamp Brace

E(x1)

Allen Key 4mm

S(x1)

Support Plate

K(x1)

Washer

M(x1)

Nut

L(x1)

Anti-skid Pad

J(x4)

M6x16 Bolt

Q(x3)

Allen Key 6mm

T(x1)

Wrench

U(x1)

M6x10 Bolt

O(x2)

M6x12 Bolt

P(x3)

X 3

M4x12 Bolt

M-A(x4)

M4x16 Bolt

M-B(x4)

M5x12 Bolt

M-C(x4)

M5x16 Bolt

M-D(x4)

D5 Washer

M-E(x4)

Spacer

M-F(x4)

Step 1

Step 2

Step 3

Fit clamp: 0.4”-3.3”

Grommet: 0.4”-3.1”

Option A Clamp Installation

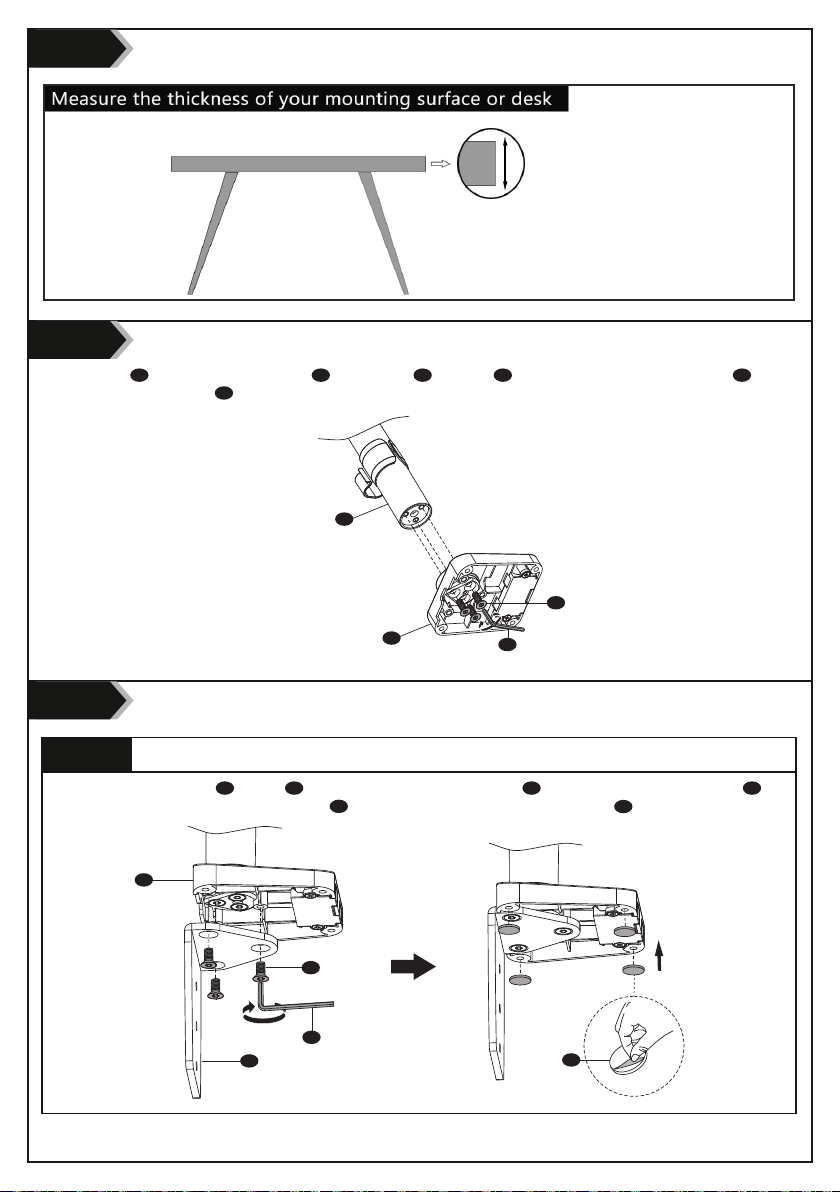

Place the Pole Bonto the top hole of Base C,connect Pole B and Base Cfrom the bottom using M6x16 Bolt Qand

tighten with Allen Key 4mm S.

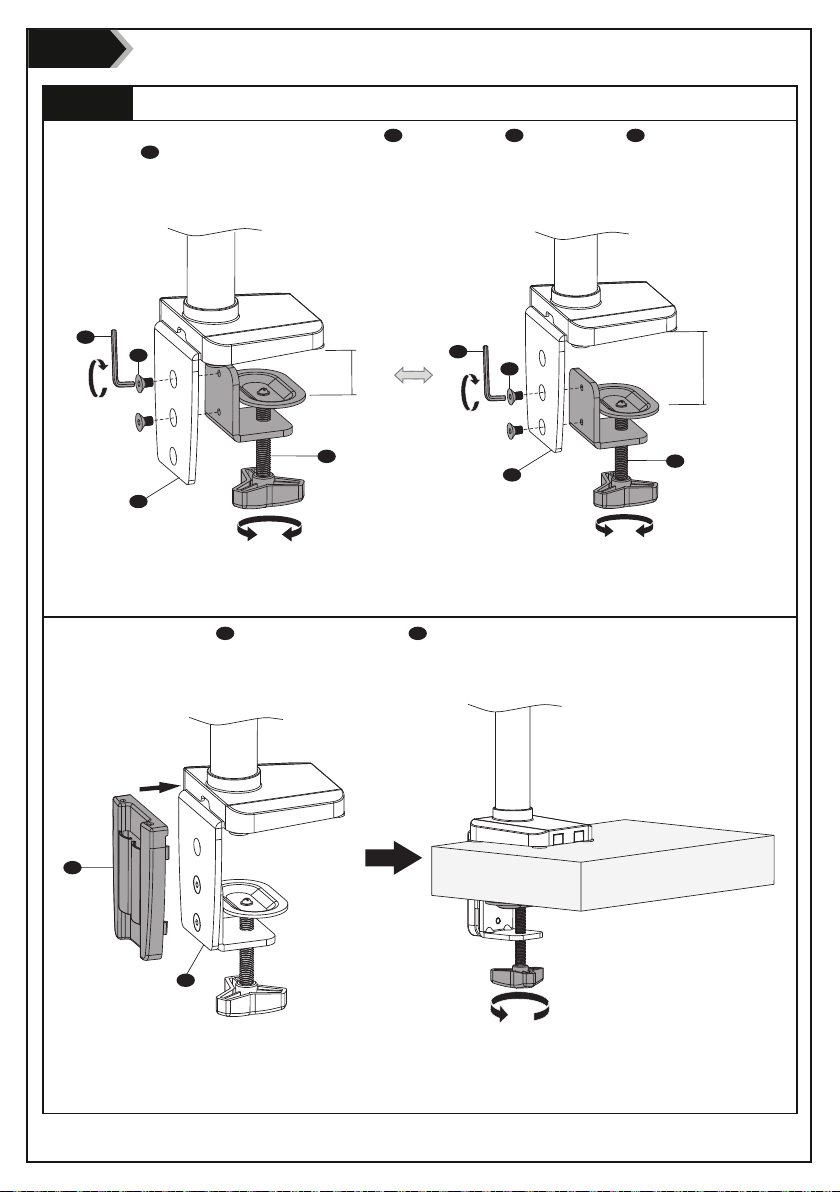

1. Connect C-Clamp Brace Eto Base Cfrom the bottom using M6x12 Bolt Pand tighten with Allen Key 4mm S.Tear

off the protect paper to attach Anti-Skid Pad Jto the bottom designated position of Base Cas image shown.

Step 3

0.4"-2.5"

Option A

Clamp Installation

3. Put on the Décor Cover Gto cover the C-Clamp Brace E, rotate the knob clockwise to fasten for stability.

F F

2. Select the preferred height firstly and connect C-Clamp Fto C-Clamp Brace Eusing M6x10 Bolt Oand tighten with

Allen Key 4mm S .

1.5"-3.3"

Step 3

Option B

Grommet Base Installation

1. Guide Support Plate I through Bolt Hand connect them to Base Cfrom the bottom using M6x12 Bolt Pand

tighten with Allen Key 4mm S. Tear off the protect paper to attach Anti-Skid Pad Jto the bottom designated

position of Base Cas image shown.

0.4”-3.1”

If the existing grommet hole comes with a plastic protector,remove it to ensure a flat surface before installing the desk

mount. Insert the assembled Pole through the desk hole, guide the Support Plate K,Washer Mand Nut Lthrough the

Bolt H, rotate the Nut Lclockwise to fasten for stability.

2a Existing Grommet Hole Installation

Step 3

Step 4

Option B

Grommet Base Installation

Mark the position of the hole on your mounting surface.Drill a 3/8"(10mm) diameter hole at the marked position through the

mounting surface.Insert the assembled Pole through the desk hole, guide the Support Plate K,Washer Mand Nut L

through the Bolt H, rotate the Nut Lclockwise to fasten for stability.

2b Self-drilled Grommet Hole Installation

ø 10 mm

(ø ")3/8

Put the Arm Athrough the Pole B, adjust the preferred height and tighten using Allen Key 6mm T.

0.4”-3.1”

Grommet Base Installation

Step 5

Step 6

Step 6.1

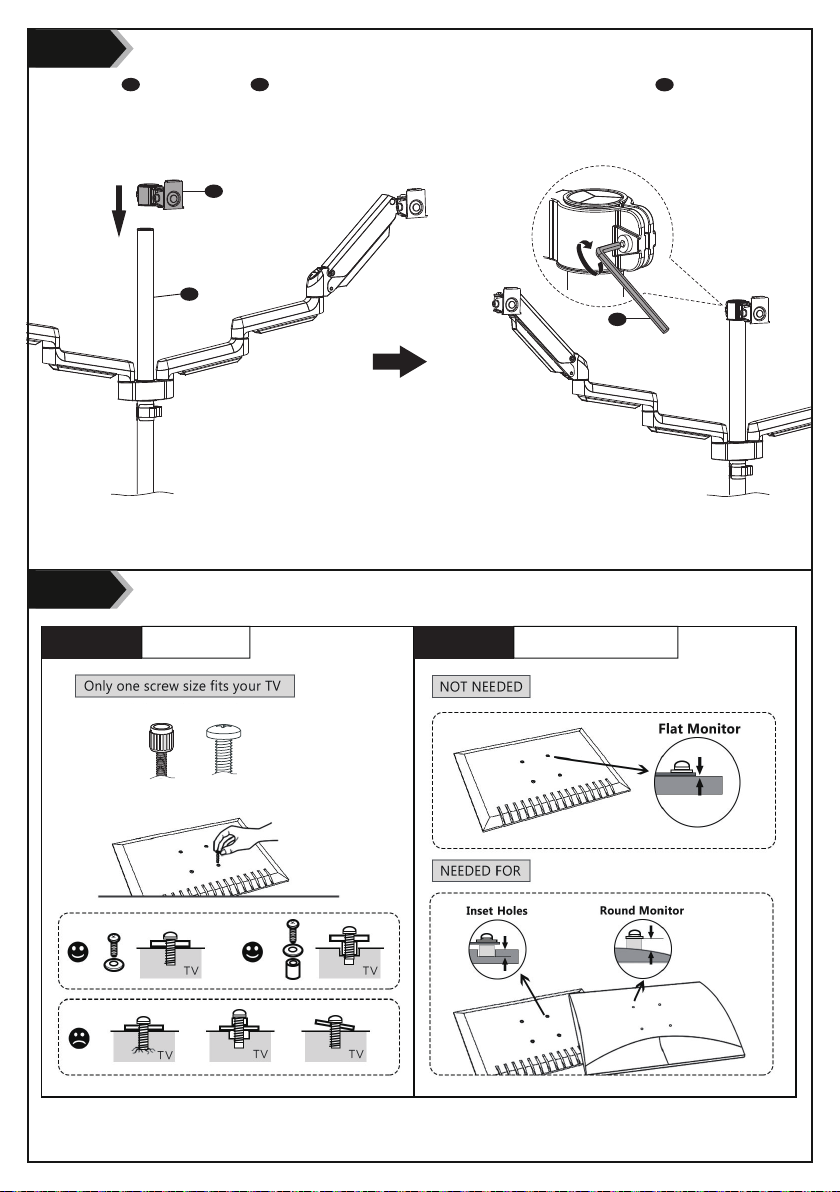

Select TV Screws

Step 6.2

Select Spacers ( if needed )

Hand thread screws

into the threaded

inserts on the back of

your TV to determine

which screw diameter

(M4 or M5) to use.

M4 M5

Put the ARM Rthrough the Pole B, adjust the preferred height and tighten using Allen Key 6mm T.

Step 6

Step 7

Put the assembled TV/Monitor onto the Arm Aand ensure the stability, tighten the VESA plate

using Top Screw N.

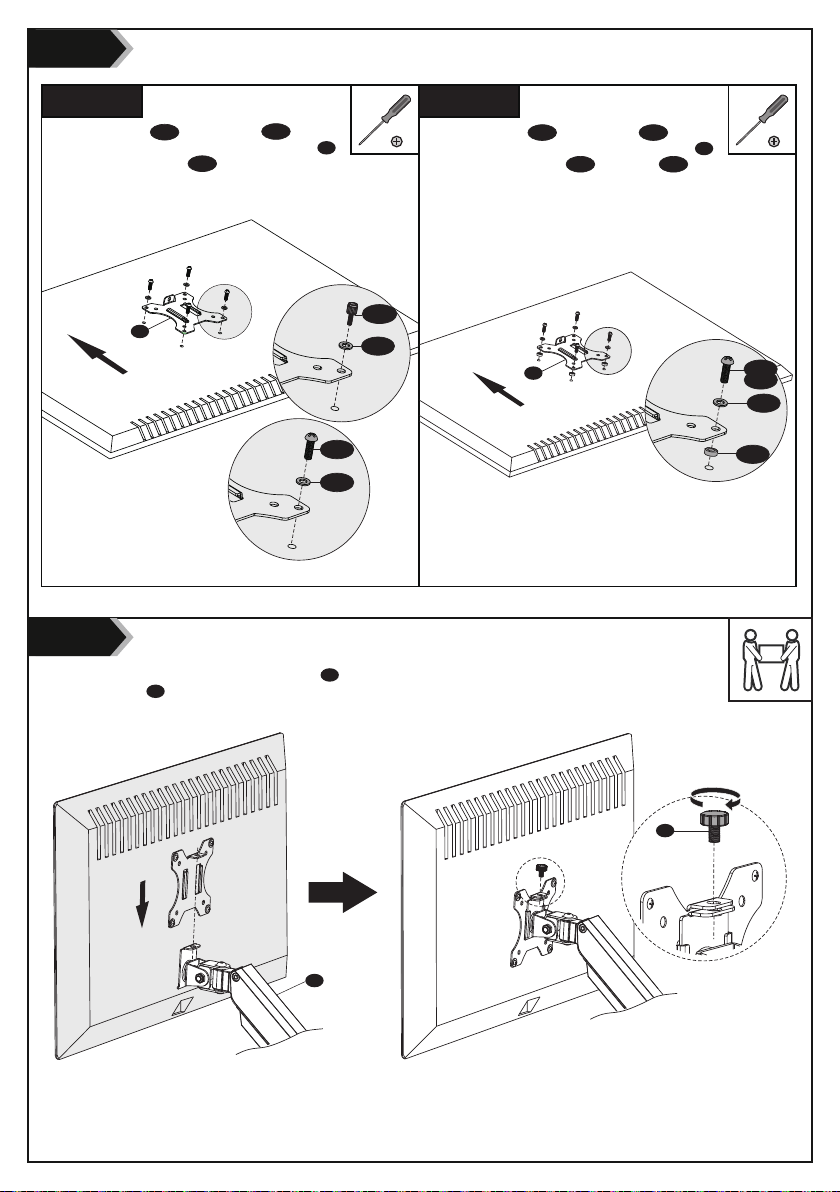

Step 6.3a Step 6.3b

Select M4x12 Bolt M-A or M5x12 Bolt M-C

according to your TV/Monitor,connect VESA Plate D

together with D5 Washer M-E into the mounting

holes on the back of TV/Monitor, tighten with

screwdriver.(Screwdriver needed but not included)

Select M4x16 Bolt M-B or M5x16 Bolt M-D

according to your TV/Monitor,connect VESA Plate D

together with D5 Washer M-E and Spacer M-F into

the mounting holes on the back of TV/Monitor,

tighten with screwdriver.(Screwdriver needed but not

included)

M-E

M-C

M-A

M-E

M-F

M-B

M-D

Step 8

Step 9

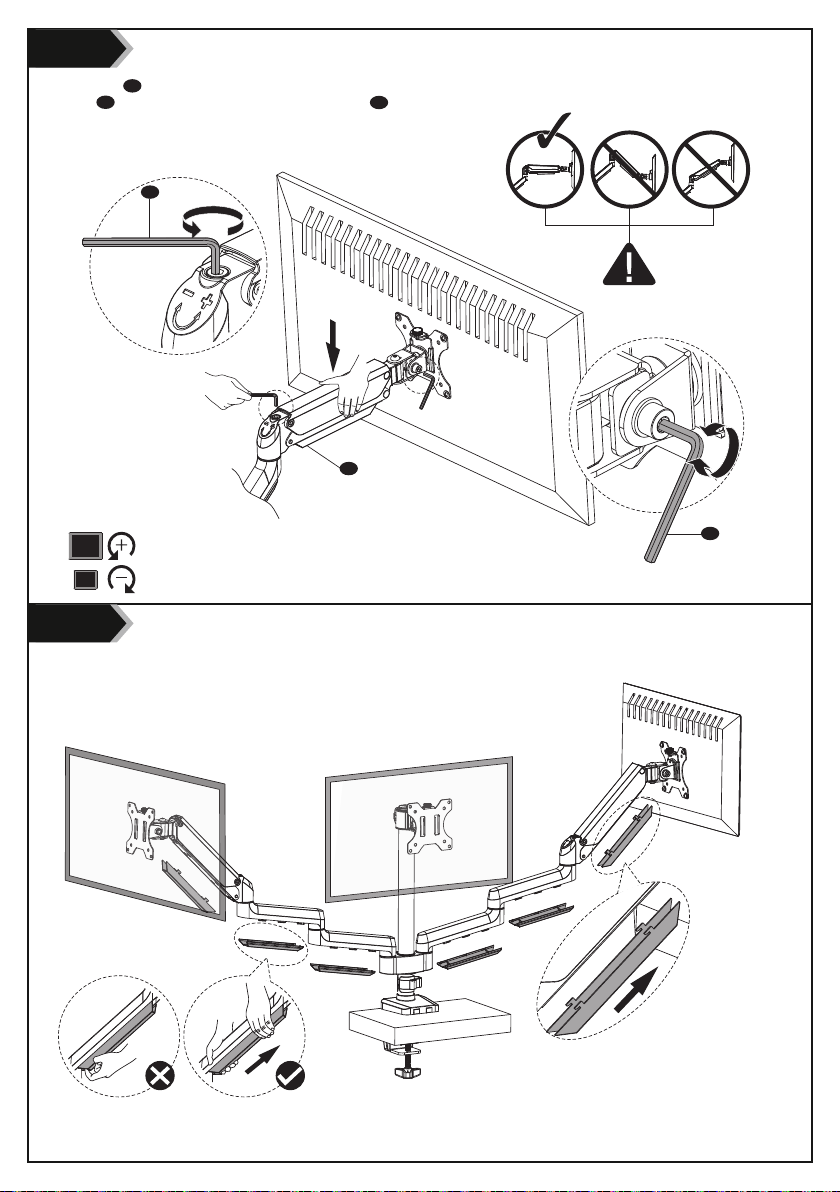

Slide the bottom two cable slot covers towards the VESA plate direction to detach it off the arm, slide and lift the four

corners of the top cable slot cover to detach it off.

Press the Arm Aon horizontal level as image shown, adjust gas spring tension to your personal preference using Allen

Key 6mm T, adjust the tilt tension using Allen Key 6mm T.

For Heavier Monitors

For Lighter Monitors
