Wali 1342LM Bedienungsanleitung

1342LM

WARNING

！

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.

SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

Do not exceed weight capacity. This product is designed to be installed on wood stud walls, solid concrete walls or brick

walls. Do not mount on drywall alone. We cannot be liable for damage or injury caused by improper mounting, incorrect

assembly or inappropriate use.

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

TV Wall Mount

75x75\100x100

100x200\200x200

M4x10 Bolt

e (x8)

Adapter

d (x2)

VESA Plate

b (x1)

Adapter

c (x2)

Wall Plate &

Articulating Arms

a (x1)

Bolt Cover

o (x2)

M4x6 Bolt

n (x2)

Cable Tie

t (x3)

M4 Nut

f (x8)

Lag Bolt Washer

q (x2)

Wrench

p (x1)

Concrete Anchor

s (x2)

Lag Bolt

r (x2)

M8x20 Bolt

k (x4)

INSTALLATION MANUAL

1-844-SATTLER (18447288537)

[email protected]

www.walielectric.com

(15kg/33lbs)

RATED

MAX 39”

TIPOVER WARNING

● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.

● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.

Supplied Parts List

Install the Wall Plate to the Wall

Option A : Brick Mount Option B : Wood Mount

65mm

4mm

60m m

65m m

10m m

M4x14 Bolt

h (x4)

M5x14 Bolt

i (x4)

M6x14 Bolt

j (x4)

D5 Washer

l (x4)

D8 Washer

m (x4)

3 4

5 6

7 8

2 0mm

200mm

100mm

Thi s w ay u p!

200mm

170mm

160mm

200mm

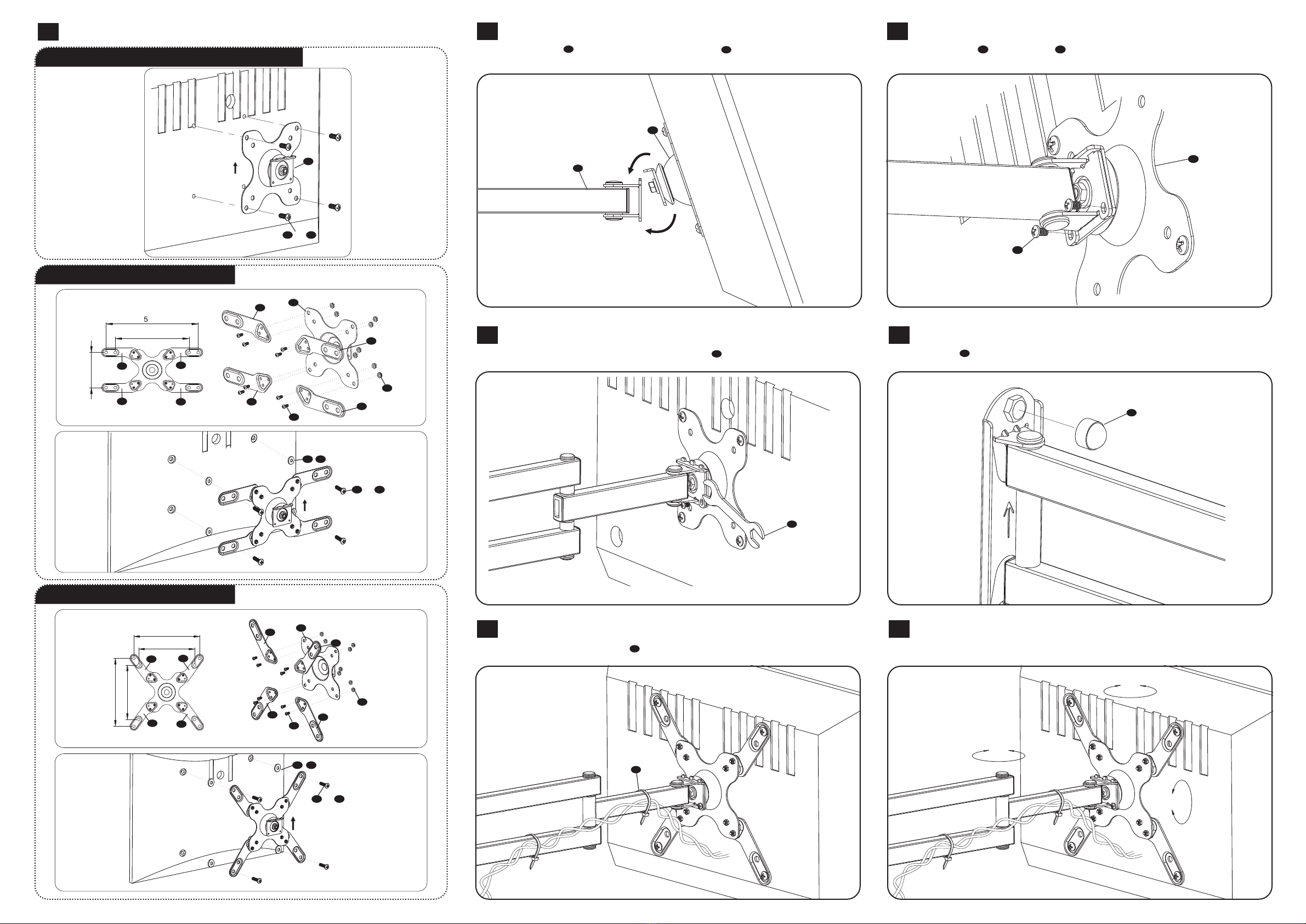

For VESA 200x200mm Mounting Holes

Attach VESA Plate to the Mounting Hole of TV

For VESA 75x75mm and 100x100mm Mounting Holes

For VESA 100x200mm Mounting Holes

For VESA 200x200mm Mounting Holes

h k

lm(if necessary)

h k

lm(if necessary)

Attach the VESA plate to the socket on the Articulating Arm and ensure the stability.

Loosen the nut (if needed) as the image shown with Wrench . Fix the Bolt Cover onto the front of the mount part.

Tighten the VESA plate using M4x6 Bolt .

Notice: Please do not rotate the monitor before you tighten the bolts.

3.1

3.2

This way up!

Ignore this step if you could adjust the tilt angle smoothly.

Manage wires with included Cable Ties .

360°

± 90°

Manually swivel, tilt, and rotate the monitor for the best viewing angle.

For Flat Back TV

h to

This way up!
