Wali MF002XLS Bedienungsanleitung

MF002XLS

WARNING

！

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.

SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect

assembly or inappropriate use.

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

Dual Monitor Desk Mount

INSTALLATION MANUAL

1-844-SATTLER (18447288537)

[email protected]

www.walielectric.com

TIPOVER WARNING

● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.

● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.

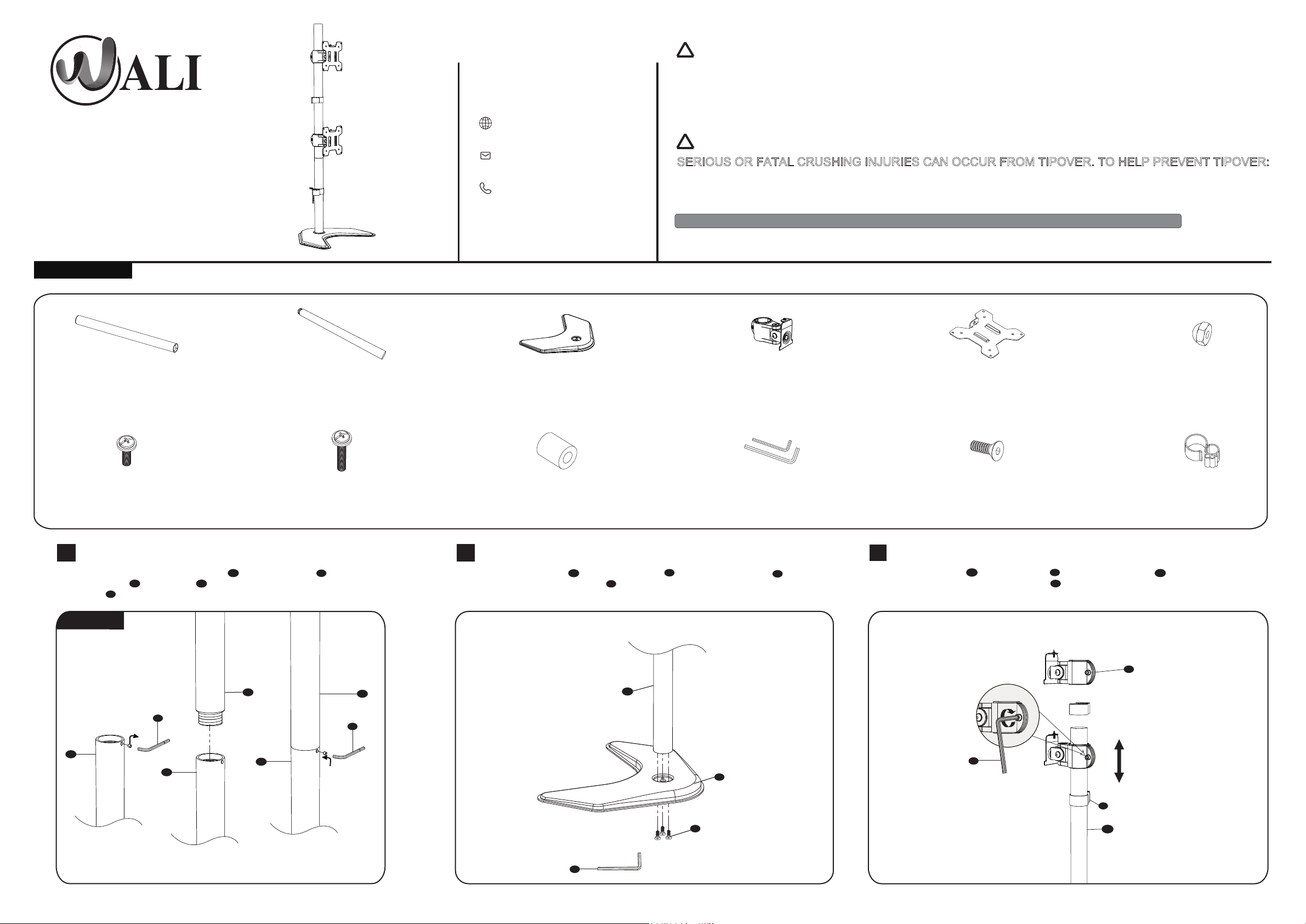

Supplied Parts List

Weighted Base

B (x1)

Install the Lower Pole a to the weighted Base b using 3pcs M5x14 Bolts e ,

and tighten with Allen key 3mm o .

A1 B

Option A : 31.5'' Pole Installation

Loosen the screw on the Lower Pole a1 with Allen key 3mm o . Connect

Lower Pole a1 to Upper Pole a2 and tighten the screw with Allen key

3mm o to fix the two poles.

Pre-Assembly

Put the Wire Clips k and Monitor Arms d through the Upper Pole a , adjust the preferred

height and tighten using Allen Key 5mm o .

KA2

K (x2)

Wire Clip

Nut

E (x2)

M5x14 Bolt

J1 (x3)

Allen Key

I (x1)

M4x30 Bolt

G (x8)

M4x12 Bolt

F (x8) H (x8)

M4~M6 Spacer

VESA Plate

D (x2)

Lower Pole

A1 (x1)

Upper Pole

A2 (x1)

Monitor Arm

C (x2)

7Manually swivel, tilt, and rotate the monitor for the best viewing angle.

6Guide the cable through the Wire Clips and store the Allen Keys o in the Wire Clips k .

Adjust the tilt angle using Allen Key 5mm n .

45°

Select bolts and spacers (if needed) according to your TV/Monitor. Attach the VESA Plate to the Monitor and tighten with a screwdriver. (Screwdriver not included)

Step 4.1

Select Monitor Screws

Step 4.3a

Flat Back Monitor

Step 4.3b

Curved or Recessed Back Monitor

M4x12 M4x30

Only one screw size fits your Monitor

Step 4.2

Select Spacers( if needed )

Hand thread screws into the

threaded inserts on the back

of your Monitor to determine

which screw (M4x12 orM4x30)

to use.

5Put the assembled TV/Monitor onto the Monitor Arms d and tighten the VESA Plate e with

Nut h for stability.

Notice: Please make sure the security nut is installed before you rotate the monitor.
