Wali MF003S Bedienungsanleitung

MF003S

WARNING

！

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.

SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect

assembly or inappropriate use.

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

Triple Monitor Desk Mount

75x75\100x100

VESA Plate

d (x3)

Swivel Arm

c1 (x1)

Monitor Arm

c2 (x1)

Weighted Base

b (x1)

Lower Pole

a1 (x1)

Upper Pole

a2 (x1)

Wire Clip

n2 (x4)

Wire Clip

n1 (x2)

Grommet Base Plate

m (x1)

M4 Spacer

s (x12)

Nut

h (x3)

M5x14 Bolt

e (x3)

Wrench

p (x1)

Allen Key

o (x1)

M4x30 Bolt

r (x12)

M4x12 Bolt

q (x12)

M10 Bolt

i (x1)

Support Plate

j (x1)

M10 Washer

k (x1)

Spring Washer

l (x1)

INSTALLATION MANUAL

1-844-SATTLER (18447288537)

[email protected]

www.walielectric.com

(10kg/22lbs)x3

RATED

MAX 27”

TIPOVER WARNING

● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.

● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.

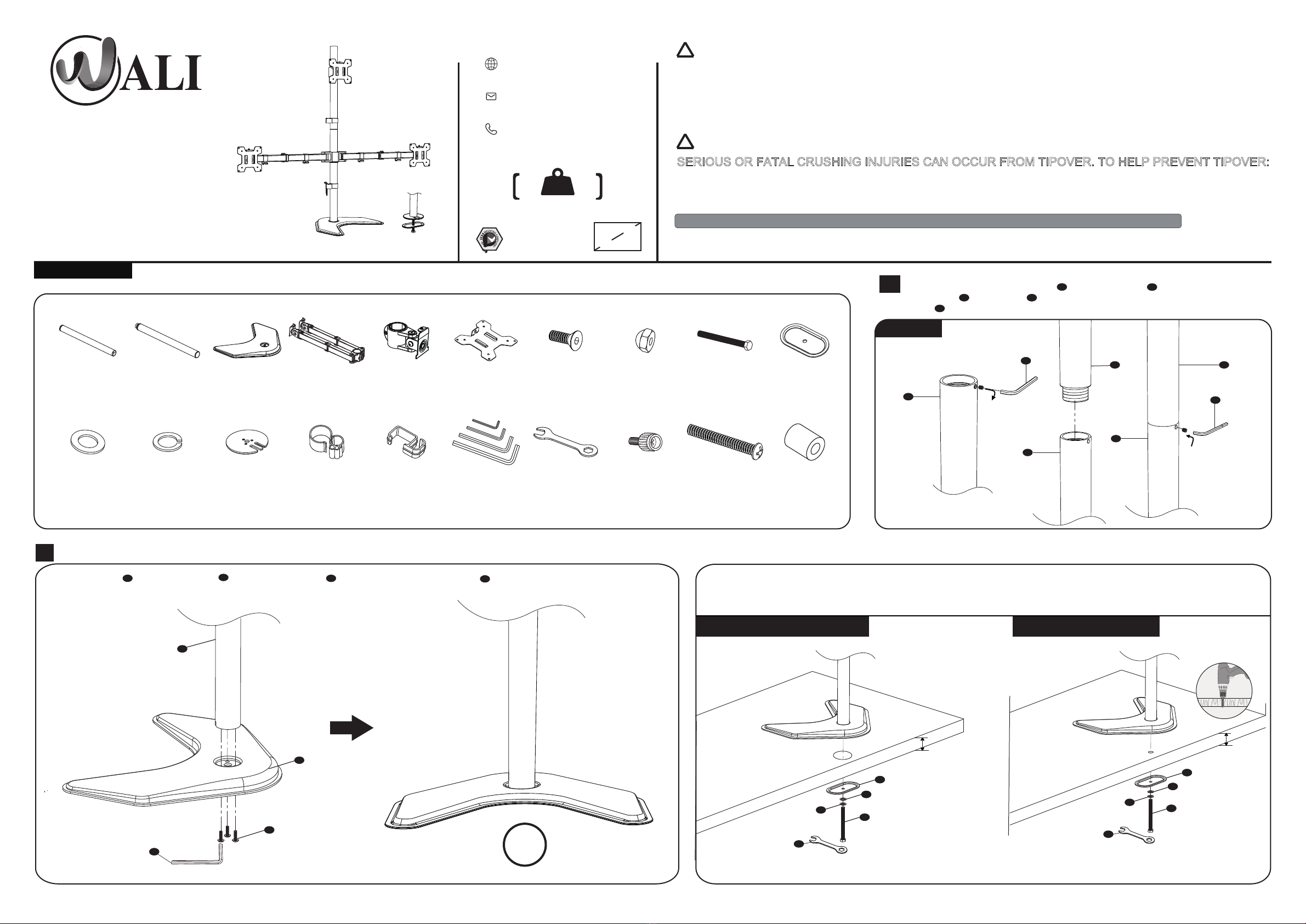

Supplied Parts List

Install the Pole a to the weighted Base b using 3pcs M5x14 Bolts e , and tighten with the Allen key 3mm o .

This step is depending on your personal preference

To provide stability for a heavier monitor, we may recommend install the mount to the hole in your desk.

a1 b

0.4‘’-3’’

b: Self-drilled Hole Installation

Option A: Free Standing Installation (Using V-vase)

a: Existing Grommet Hole Installation

ø 10m

0.4‘’-3”

(ø ")3/8

√

Pre-Assembly

Loosen the screw on the Lower Pole with Allen key 2mm o . Connect

Lower Pole to Upper Pole and tighten the screw with Allen key

2mm o to fix the two poles.

a1 a2

3Put the Wire Clip n1 and Arms & through the Poles & , adjust the preferred height

and tighten using Allen Key 6mm o . Attach the Wire Clips n1 to the Swivel Arm d .

6If one monitor is lower, remove the Nut h and turn the bolt counter-clockwise using

Allen key 3mm o to raise the monitor. Tighten the VESA Plate e with Nut h for stability

after the adjustment.

5Put the assembled TV/Monitor onto the Arms & and tighten the VESA Plate e with

Nut h for stability.

Select bolts and spacers (if needed) according to your TV/Monitor. Attach the VESA Plate to the Monitor and tighten with a screwdriver. (Screwdriver not included)

8Manually swivel, tilt, and rotate the monitor for the best viewing angle.

7Guide the cable through the Wire Clips ( n1, n2 ) and store the Allen Keys o in the Wire Clip n1 .

Adjust the tilt angle using Allen Key 5mm n .

n1 n1

on2

c1 c2

Step 4.1

Select Monitor Screws

90°

15°

Step 4.3a

Flat Back Monitor

Step 4.3b

Curved or Recessed Back Monitor

c1 c2

M4x12 M4x30

a1 a2

Ignore this step if monitors are level.

Only one screw size fits your Monitor

Step 4.2

Select Spacers ( if needed )

Hand thread screws into the

threaded inserts on the back

of your Monitor to determine

which screw (M4x12 or M4x30)

to use.

Notice: Please make sure the security nut is tightened before you rotate the monitor.

0.4‘’-3’’

a: Existing Grommet Hole Installation

Place Pole a onto Grommet Base Plate m .

Connect them from the bottom using M5x14

Bolt and tighten with Allen Key 3mm .

a1 m

b:Self-drilled Grommet Hole Installation

ø 10mm

(ø ")3/8

Option B: Grommet Base Installation (For saving more space)

0.4‘’-3’’
