WANHAO i3 All Metal Hotend w/ Slotted Cooling Block, Step by Step Installation Instructions

Included in the kit:

Wanhao i3 Cooling Block

MK10 Allmetal Thermal Barrier Tube

Nozzle for MK10 Allmetal Hotend Kit

3/32 Allen Key

Tools Needed:

Small Adjustable Wrench

9mm wrench

6mm wrench

2.5mm Allen Key

2.0mm Allen Key

3/32 Allen Key (included with kit)

1. Raise the Z axis to have enough clearance for disassembly.

2. Remove Cooling Fan Duct.

3. Preheat the extruder to 250C.

4. Remove original nozzle while supporting heater block with adjustable wrench. Be very careful,

nozzle is extremely hot. Use 9mm wrench for the nozzle.

5. Shut the power off. Let the machine and nozzle cool down before proceeding

6. Unplug Stepper motor connector.

7. Unscrew and remove fan/heatsink assembly while holding the stepper motor. Use 2.5mm Allen key.

8. Set it aside as shown.

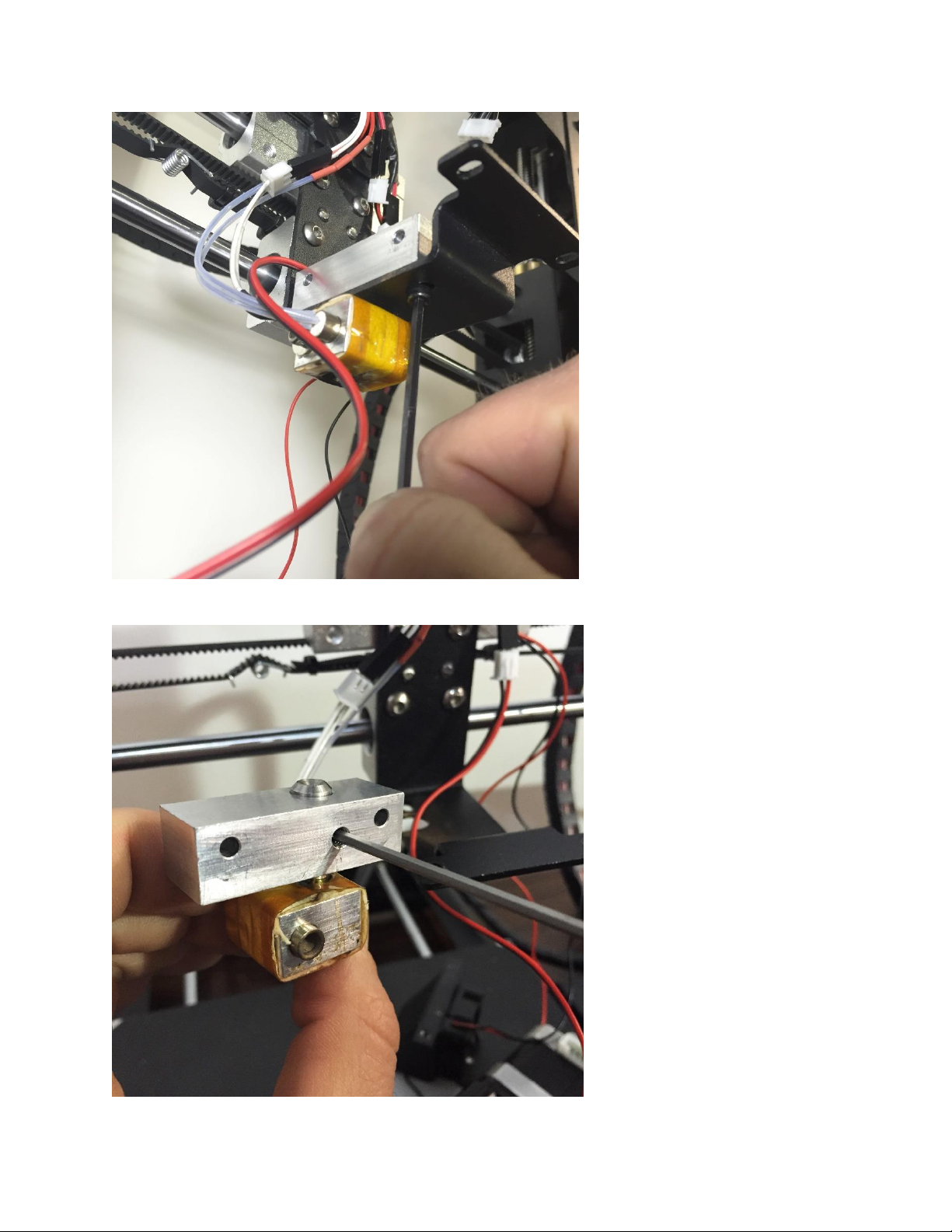

9. Remove original cooling block using 2.5mm Allen key.

10. Loosen the setscrew holding thermal tube in place.

11. Take the thermal tube out of cooling block and set it aside.

12. Remove thermal tube from the heater block. If plastic has leaked, it can be difficult to remove

thermal tube. You might have to use adjustable wrench and 6mm wrench to unscrew it. In worst case,

preheat the hotend a little bit. Be careful, don’t burn your hands.

13. Install Micro Siwss Allmetal Hotend Nozzle. Screw it in all the way in, until it bottoms out, then

back off ¼ of a turn.

14. Using finger pressure, screw in Allmetal thermal barrier tube, until it bottoms out. (make sure )

15. Install thermal tube into a cooling block. Notice the orientation of heater block with regard to

cooling block. Aluminum piece of thermal tube should be sticking out about 1.7mm from the top of

cooling block.

16. Tighten the slot with a 3/32 Allen key provided.

17. Install the assembly back on the carriage.

18. Install the fan, heatsink and stepper motor assembly and connect stepper motor cables.
