WE-EF ETC109 LED Bedienungsanleitung
Safety Notice
The manufacturer is discharged from liability when damage
is caused by improper use or installation.
If any luminaire and/or accessory is subsequently modi-
fied, the persons responsible for the modification shall be
considered as manufacturer.
ETC109_270422 / 006-0716
Technical specifications are subject to change.
© WE-EF 2022
we-ef.com
WE-EF LIGHTING USA
Tel +1 724 742 0030
WE-EF LIGHTING
Installation and
Maintenance Instructions for
Marker Lights
with Installation Blockout

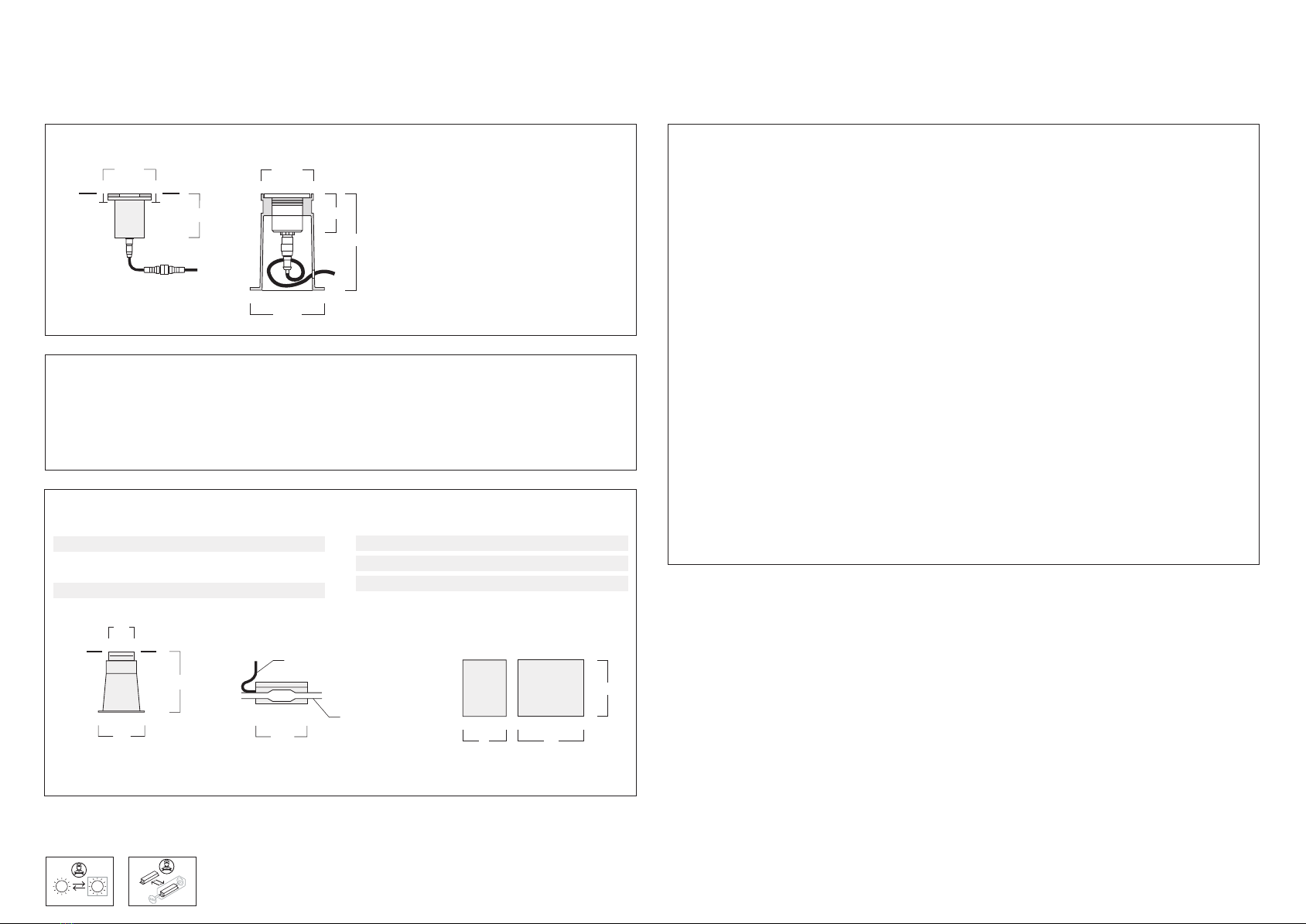

ETC109 LED
ø 3.62
ø 2.56
1.89
4.72
ø 2.56
1.97
D1
D2
H1
BET – 185-1855
B
TVE – 139-6900 / 139-6901 / 139-6902
ø 0.394 (max.)
ø 0.472 – 0.748
5.75
SJB130 – 185-1624
A
C1
ETC109
Marker Lights with Installation Blockout
IP68, IK09
Light Source
1 x 4 LEDs ....................... 0,5 VA / 12V DC
unicolour red, green, blue, yellow or white
3 x 4 LEDs ....................... 1,2 VA / 12V DC
tricolour red, green and blue
Class III, ta 35°C
Glass surface temperature approx. 3°C above
ambient temperature
Installation Accessories
Installation Blockout lb
185-1855 D1 = 2.56 / D2 = 3.74 / H = 4.72 0.66
Sealable junction box
185-1624 SJB130 0.88
Electronic converter A B C1
139-6900 TVE-DC – 12V / 12W 9.14 6.38 5.51
139-6901 TVE-DC – 12V / 25.5W 9.14 6.38 5.51
139-6902 TVE-DC – 12V / 60W 11.50 9.92 8.66
Installation
The luminaire should be installed and maintained by a
suitably qualified person in compliance with the latest
construction and electrical regulations and relevant
legislation.
During checking of the installation location the maxi-
mum temperature on the outer lens should be consi-
dered. The temperature is shown on the identification
label.
Suitable for Drive-over at low speeds and high
pressure tires, up to 5 tonnes.
The luminaire should not get covered partially or
completely. Dirt on the lens has to get removed.
Do not open the luminaire in humid conditions or
during rain. This will result in condensation forming
inside the luminaire.
Maintenance
Apart from cleaning the product’s exterior surfaces,
no special maintenance work is required. Do not use
high-pressure cleaners.
Protect our environment: Discard used LEDs in compli-
ance with the most recent environmental legislation.
Notice: If the luminaire is modified by anybody other
than the original manufacturer, then the warranty will
no longer be valid and shall become the full respon-
sibility of the modifying person/organisation. Claims
based on defects attributable to improper installation
and/or application, and the consequences thereof, are
excluded.
In case of component failure due to abnormal circum-
stances or at end of life, replacement must be carried
out by a suitably qualified and trained professional.
In case of questions please contact our technical hot-
line at +1 724 742 0030 (Monday - Friday from 08:00
until 16:00 hours).

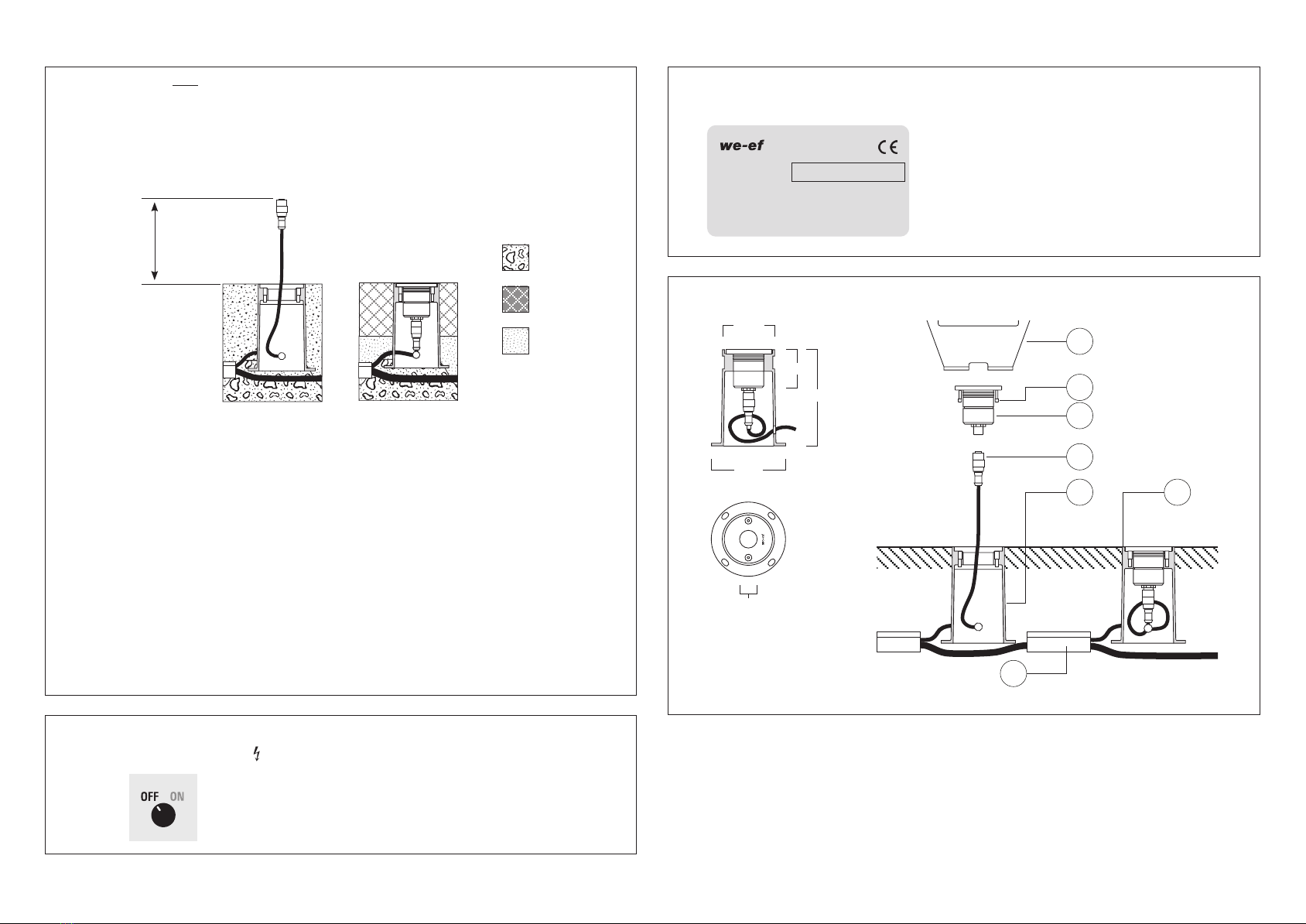

Installation Methods with BET
Ensure that proper drainage is provided for the
shown installation methods.
1) In landscaped areas (soil with gravel base), fig. 1
2) In paved areas (concrete with gravel base), fig. 2
3) Determine position of installation blockout A.
Ensure the following details:
a) the connecting cable Bmust be inserted into
the installation blockout Ain that way, that
the plug can get extracted out of the installa-
tion blockout for approx. 12 in for connection
of luminaire.
b) the upper rim installation blockout Emust be
installed in that way, that it is flush with the
soil, basement or similar.
Attention: In case tiles or paving blocks will
be paved at a later time, a respective admea-
sure has to be considered.
≈12 in
fig. 1 fig. 2
gravel (drainage)
concrete
soil
Phase Two (Electrical connection, aiming)
4) Switch off mains electrical supply.
02/19 IP68
ETC109 12V DC
185-XXXX SOE XXXXXXX
LED 0,5 - 1,5W item no. XXX
5) Check that rating shown on luminaire label
conforms with mains electrical supply.
E
A
B
C
F
G
D
ø 0.87
ø 3.62
ø 2.56
1.89
4.72

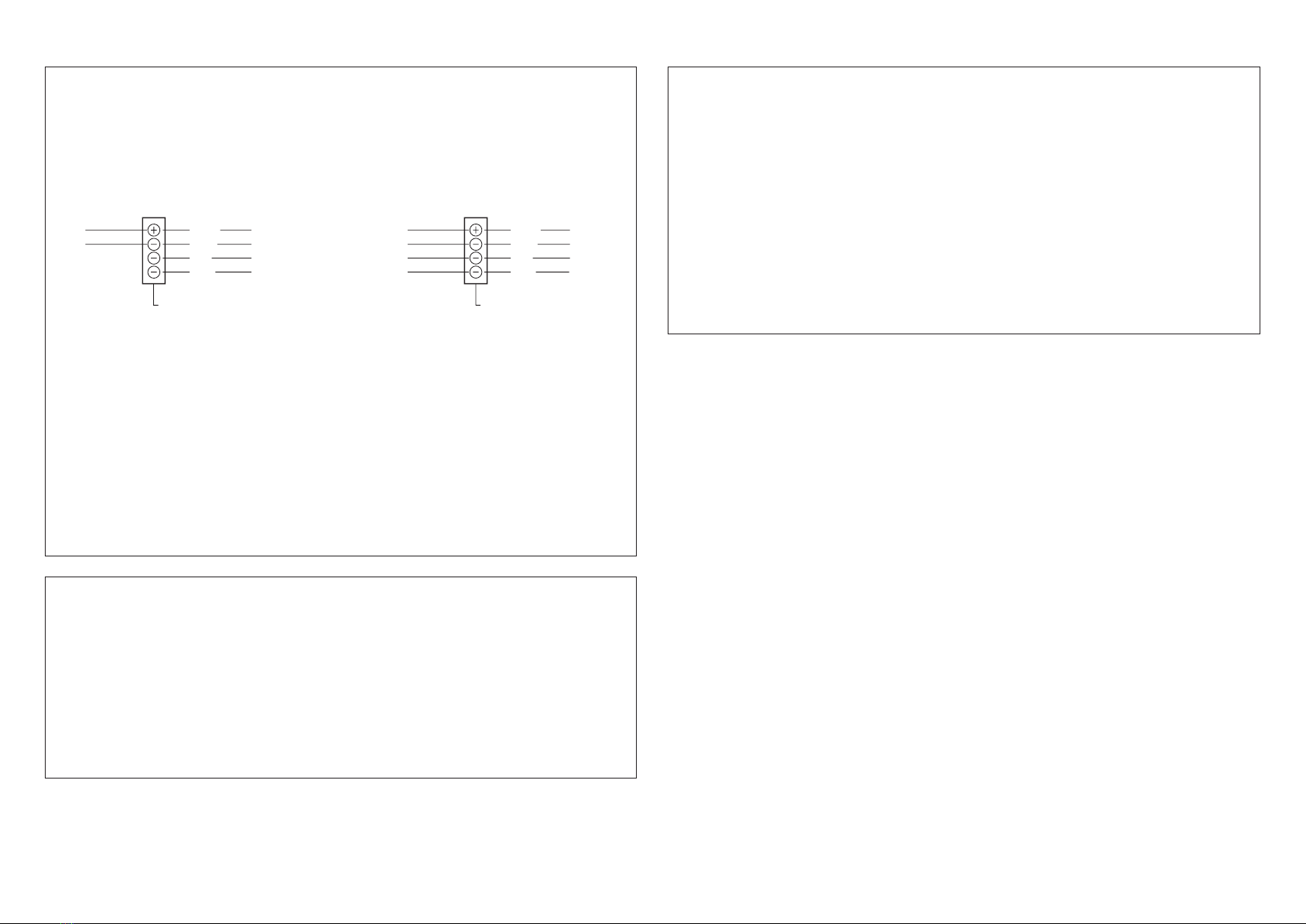

Wiring diagram uni-colour (W/R/R/B/Y)
Power supply
12VDC
brown
white
blue
black
Junction box
- W/R/G/B/
Y
Wiring diagram multicolour (RGB)
Power supply
Junction box
12VDC
brown
white
blue
black
- R
-
G
- B
6) Connect the connection cable Boutside of the
installation blockout with a sealable junction
box (WE-EF 185-1624). Hereby the service con-
duit gets connected according wiring diagram.
8) Ensure that installation blockout Ais protected
from damage during continuing earth or masonry
works. To avoid dirt close the blockout with the
provided blanking plug (WE-EF 185-1850). Only
an undamaged blockout guarantees a troub-
le-free installation of inground uplights.
7) Inground uplights with LED can get operated
with the light control WE-EF CONTROL in com-
bination with the control module UDM. Here
the power supply is done via the control module.
The luminaire 185-1562 (RGB) shall get opera-
ted generally with control module UDM!
All cables must get sealed in the junction box D
in any case.
In case a 12V DC power supply is available, no
power unit is necessary.
11)Insert the luminaire into the inground uplight A
in that way, that the fixing screws Flock in posi-
tion inside fixing holes of the inground uplight.
Push luminaire inside installation blockout and
hand tighten the fixing Fscrews.
Phase 3
(Installation of luminaire)
9) Inground uplights are supplied with integrated
circuit board, it is not necessary to open the
luminaire.
10)Remove safety cap from the connection plug
Band connect it to the luminaire C. While
tightening of the plug hold down luminaire at
knurling.
LED Replacement and Maintenance
Warning: Do not open luminaire while in operation
or while mains supply is switched on!
1) Switch off the mains electrical supply.
2) Loosen screws Fand pull luminaire out upwards
with help of a mounting lever G(WE-EF 185-1438).
Disconnect luminaire from connection cable B.
Equip connection cable with a corresponding
plug to protect it from dirt.
3) Open luminaire only in dry condition Disconnect
LEDs from the connection cable and carefully
take them out. Insert new circuit board.
4) Check gaskets of functionality and exchange if
necessary.
5) Close luminaire. Connect it to connection cable
B. Hold down luminaire at the knurling during
connection.
6) Insert luminaire into the installation blockout as
described under phase 3.
