WE-EF PIA240 LED Bedienungsanleitung

Safety Notice

The manufacturer is discharged from liability when damage

is caused by improper use or installation.

If any luminaire and/or accessory is subsequently modi-

fied, the persons responsible for the modification shall be

considered as manufacturer.

PIA240_LED_230522 / 006-1327

Technical specifications are subject to change.

we-ef.com

WE-EF LIGHTING USA

Tel +1 724 742 0030

[email protected]

WE-EF LIGHTING

Installation and

Maintenance Instructions for

Facade & Ceiling Washlight

surface mounted

PIA240 LED

Notice: In case the luminaire is equipped with an optio-

nal available surge protector, the function can get tested

if the signal LED is lit green when the supply voltage is

turned on.

In case the surge protector is defective, the LED device

gets automatically disconnected from the mains supply.

If the signal LED is not lit, the luminaire is not functioning.

Facade and Ceiling Washlight

IP66, IK08

120-

277 V

Installation

The product must be installed and maintained by

a suitably qualified professional in compliance with

latest building/construction and/or electrical regu-

lations and relevant legislation.

Attention: Do not open luminaire while mains

supply is switched on.

Notice: If the luminaire is modified by anybody

other than the original manufacturer, then the

warranty will no longer be valid and shall become

the full responsibility of the modifying person/

organisation. Claims based on defects attributable

to improper installation and/or application, and the

consequences thereof, are excluded.

In case of component failure, LED replacement

due to abnormal circumstances or at end of life,

replacement must be carried out by a suitably qua-

lified and trained professional.

In case of questions please contact our technical

hotline: +1 724 742 0030 (from Monday - Friday

from 08.00 until 16.00 hours).

Maintenance

Apart from cleaning the product’s exterior surfaces,

no special maintenance work is required. Do not

use high-pressure cleaners.

Protect our environment: Discard used LEDs in

compliance with the most recent environmental

legislation.

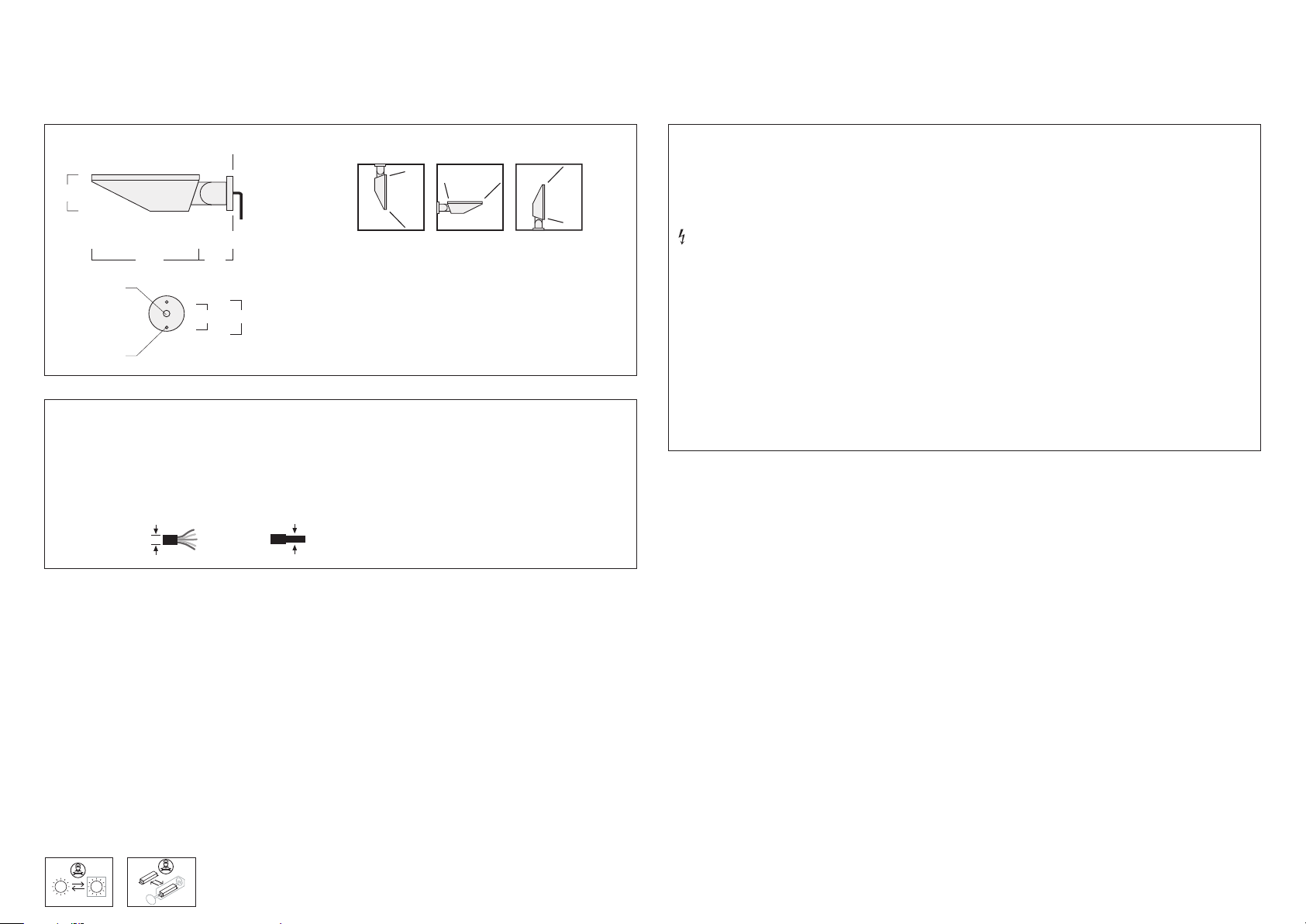

7.68

22.05 8.27

5.51 ø 7.0

ø 0.512

ø 0.787

PIA240 LED Mounting options

ø 0.217 – 0.472 in

Light source

18 LED 54W / 24 LED 72W

* Nominal power, for latest data refer to

www.we-ef.com

Class I, II, ta = 25 °C

Mounting height ..................... 15 –20 ft

Weight

PIA240 ................................ 47.4 lb

Windage area

PIA240 ........................... max. 1.61 ft²

16 AWG

5) Cut the connecting line and connect to the res-

pective terminals in the terminal connector H

(N = neutral, L1 = phase, = earthing).

Check that rating shown on the luminaire label

conforms with the mains electrical supply.

6) Close cover Eand firmly tighten screws D.

2) Loosen screws Band remove luminaire A. Lead

the connecting cable through the wall fixing and

fasten to the wall with suitable fixing material I

(not supplied by WE-EF).

3) Loosen screws Dand open cover E.

4) Lead the connecting cable through the cable

gland inside the luminaire. Attach luminaire on

to wall fixing Aand firmly tighten with screws B.

Firmly tighten cable gland C.

Installation Procedure

1) Switch off the mains electrical supply. H
