WE-EF KTX234 LED Bedienungsanleitung
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular socket
heads (ISO 10664). Installation requires the
use of matching tools.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Bollard
KTX234 LED
KTY234 LED
1
IP66, IK10, Class I, ta = 40°C
Bollard
ESV4
Weight H kg
for KTX234 270 4.5
for KTY234 600 6.8
for KTY234 1000 8.9
Accessories:
Planted root – Galvanised steel. kg
ESV4 for KTX234/KTY234 300-0461 4.4
KTY234
H = 600 mm
KTX234
H = 270 mm KTY234
H = 1000 mm
270
ø 180
2
Light Source
LED
Maintenance
Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.
Do not use high-pressure cleaners.
To remove the head of the luminaire during maintenance, loosen screw Jwith Torx T-20 tool and rotate it
anti-clockwise until it can be lifted up.
If the head of the luminaire is returned after maintenance, align it to the bollard post as shown below and
secure by tightening screw J.
In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out
by a suitably qualiƂed and trained professional.
Warning: Do not open luminaire while mains supply is switched on.
3
Installation
The product must be installed and maintained by a
suitably qualiƂed professional in compliance with latest
building/construction and/or electrical regulations and
relevant legislation.
Warning: Switch off mains electrical supply prior to
installing and connecting the luminaire.
Notice: If the luminaire is modiƂed by anybody other
than the original manufacturer, then the warranty will
no longer be valid and shall become the full respon-
sibility of the modifying person/organisation. Claims
based on defects attributable to improper installation
and/or application, and the consequences thereof, are
excluded.
Attention: The luminaire is factory-sealed and does
not need to be opened during installation.
The installation on site must comply with local and/or
national health and safety regulations.
4
Installation Procedure
The luminaire is suitable for installation directly on
to an even surface, however it is recommended to
incorporate the optional planted root to ensure
maximum stability.
Installation – KTX
1) Switch off mains electrical supply.
2) Check that rating shown on luminaire label conforms
with mains electrical supply.
3) A suitable recess to be provided for planted root A.
Ensure that a solid foundation as well as sufƂcient
mains cable length are provided.
Note: Planted root installation instruction is
available at the end of this document.
4) Remove head of luminaire Hfrom bollard post B
after loosening screw Jwith Torx T-20 tool and
rotating it anti-clockwise until it can be lifted up.
5) Set bollard post Bin position and secure by insert-
ing and tightening bolts I. The direction of light for
KTX [R65] is opposite the set screw J.
6) Connect luminaire cable Eto mains supply cable F
in watertight terminal connector G(not supplied by
WE-EF):
a) ON/OFF (L = Phase, N = Neutral, = Earthing)
b) 1-10V/DALI (L = Phase, N = Neutral,
= Earthing, DA/DA = DALI control line,
D-/D+ = 1-10V control line).
7) Place watertight terminal connector Gand excess
cable inside bollard post B.
8) Return head of luminaire Hto bollard post Band
secure by tightening screw J.
5
KTX234
6

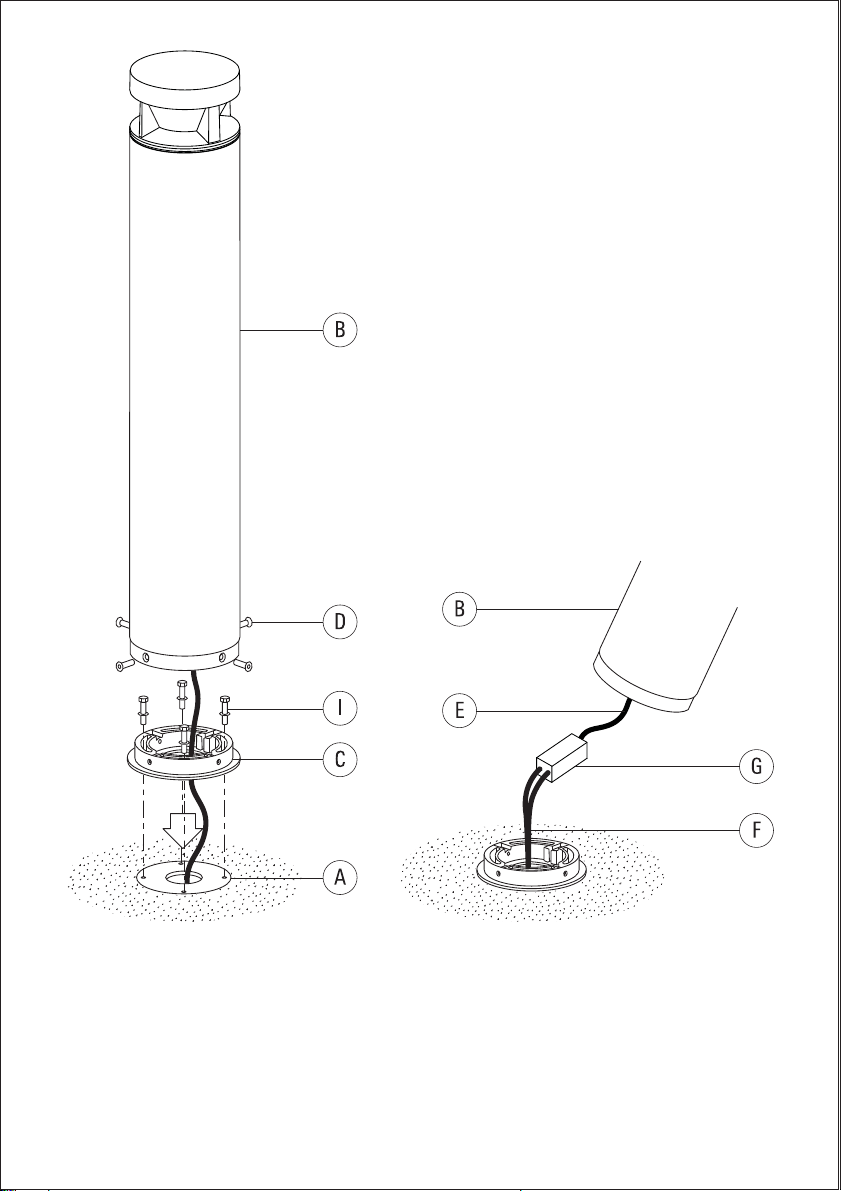

Installation – KTY
1) Switch off mains electrical supply.
2) Check that rating shown on luminaire label conforms
with mains electrical supply.
3) A suitable recess to be provided for planted root A.
Ensure that a solid foundation as well as sufƂcient
mains cable length are provided.
Note: Planted root installation instruction is
available at the end of this document.
4) Remove bollard post Bfrom cast base Cby loosen-
ing countersunk screws Dwith Torx T-40 tool.
5) Set cast base Cin position and secure by inserting
and tightening bolts I.
6) Connect luminaire cable Eto mains supply cable F
in watertight terminal connector G(not supplied by
WE-EF):
a) ON/OFF (L = Phase, N = Neutral, = Earthing)
b) 1-10V/DALI (L = Phase, N = Neutral,
= Earthing, DA/DA = DALI control line,
D-/D+ = 1-10V control line).
7) Place watertight terminal connector Gand excess
cable inside bollard post B.
8) Reposition bollard post Band secure by tightening
screws D. The direction of light for KTY [R65] is
opposite the set screw.
7
KTY234
8

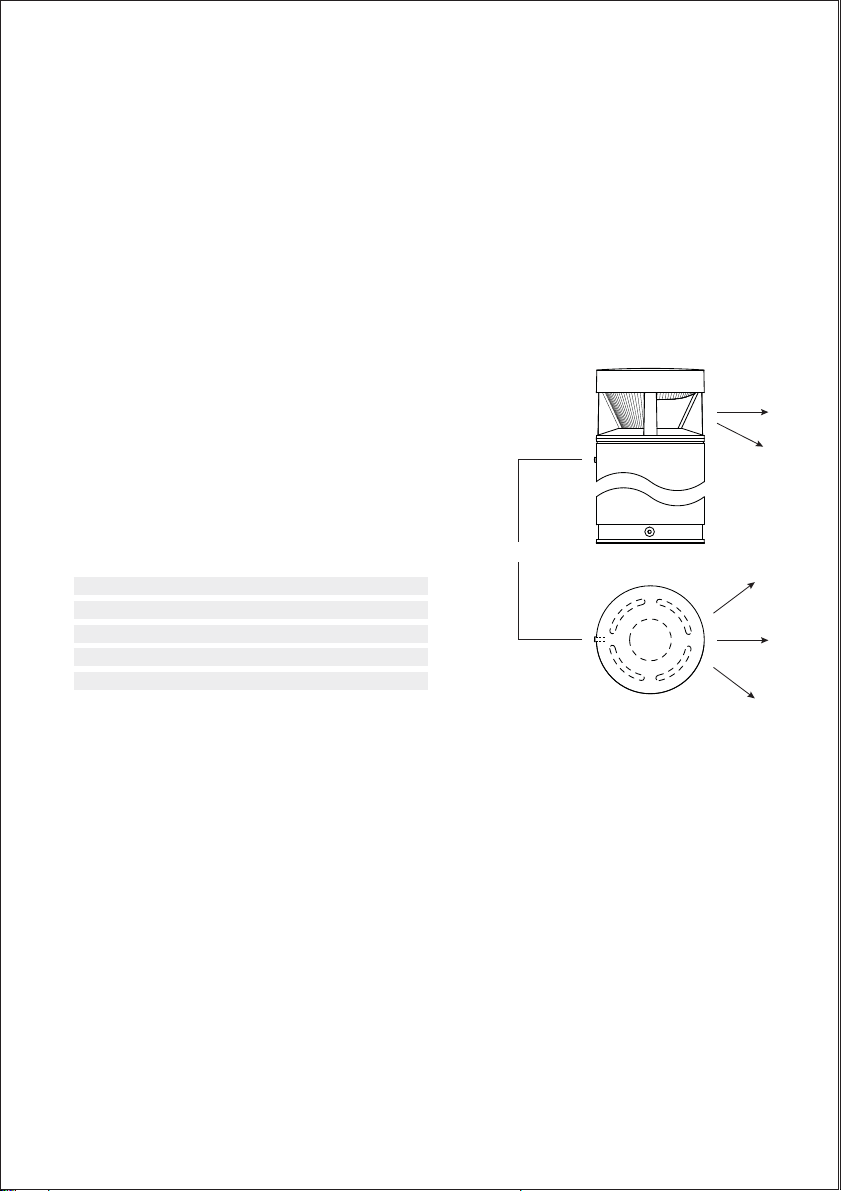

Direction of Light for [R65] One-sided
set screw
Torque:
Screw Torque
M4 max. 2.0 Nm
M5 max. 4.0 Nm
M6 max. 6.0 Nm
M8 max. 15.0 Nm
M16 max.100.0 Nm
www.we-ef.com
WE-EF LEUCHTEN
Germany
Tel +49 5194 909 0
Fax +49 5194 909 299
info.germany@we-ef.com
WE-EF LUMIERE
France
Tel +33 4 74 99 14 44
Fax +33 4 74 99 14 40
info.france@we-ef.com
WE-EF HELVETICA
Switzerland
Tel +41 22 752 49 94
Fax +41 22 752 49 74
info.switzerland@we-ef.com
WE-EF LIGHTING
Thailand
Tel +66 2 738 9610
Fax +66 2 175 2174
info.asiapaciƂc@we-ef.com
WE-EF LIGHTING
Australia
Tel +61 3 8587 0444
Fax +61 3 8587 0499
info.australia@we-ef.com
WE-EF LIGHTING
United States of America
Tel +1 724 742 0030
Fax +1 724 742 0035
info.usa@we-ef.com
TO9241W0520 © WE-EF 2020
Technical speciƂcations are
subject to change.
