WeiderPro 831.154020 Bedienungsanleitung

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manu-

al for future reference.

WEIGHT SYSTEM EXERCISER

User’s Manual

Model No. 831.154020

Serial No.

Write the serial number in the

space above for reference.

Serial Number Decal (under seat)

Sears, Roebuck and Co., Hoffman Estates, IL 60179

• Assembly

• Adjustments

• Troubleshooting

• Part List and Drawing

Patent Pending

WARNING DECAL PLACEMENT

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90-DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of

this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-

ning assembly.

TABLE OF CONTENTS

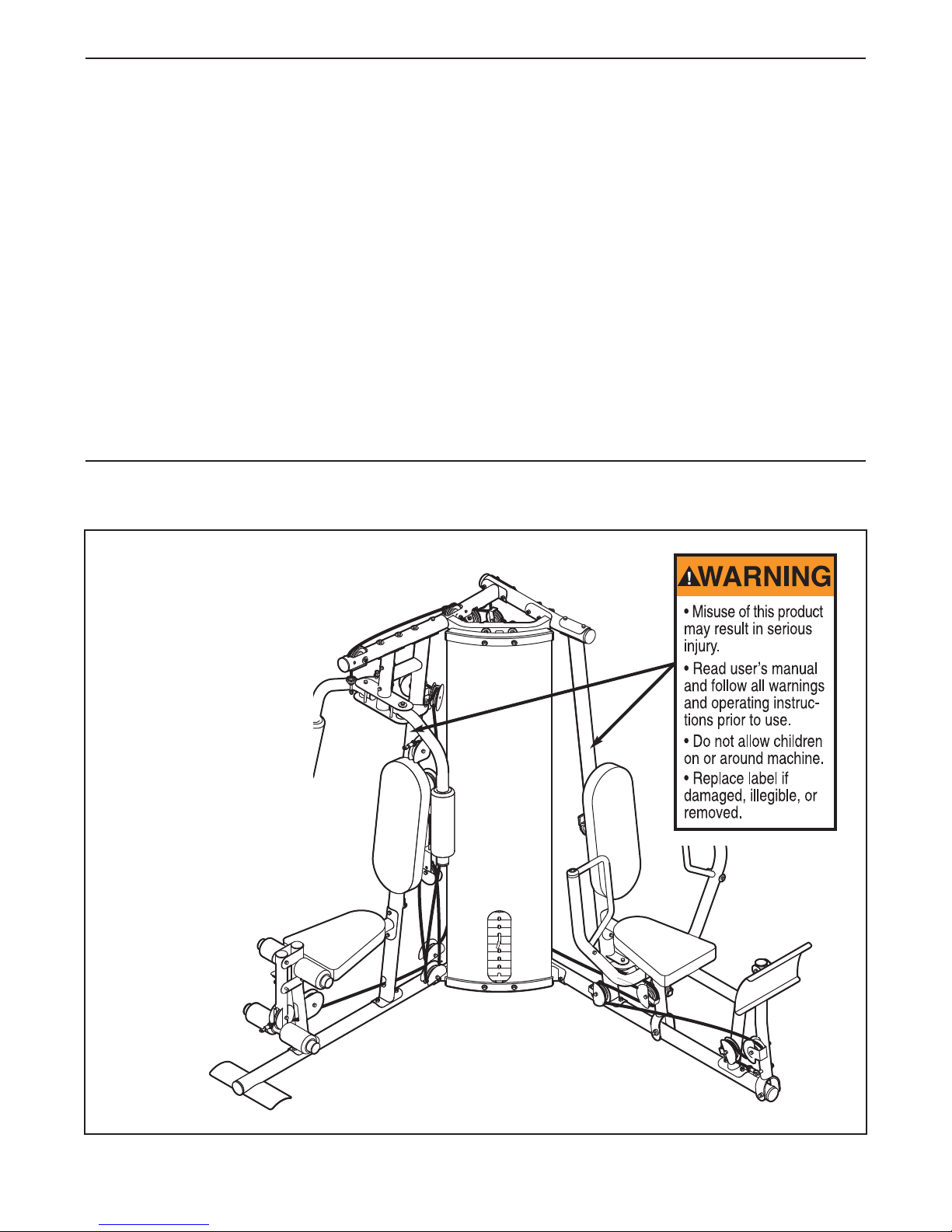

The decal shown here

has been placed on the

weight system. If the

decal is missing or illegi-

ble, please call toll-free

1-877-992-5999, Monday

through Friday, 6 a.m.

until 6 p.m. Mountain

Time, and order a free

replacement decal. Apply

the decal in the location

shown.

1. Read all instructions in this manual before

using the weight system. Use the weight sys-

tem only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the weight system are ade-

quately informed of all precautions.

3. The weight system is intended for home use

only. Do not use the weight system in any

commercial, rental, or institutional setting.

4. Use the weight system only on a level sur-

face. Cover the floor beneath the weight sys-

tem to protect the floor.

5. Make sure all parts are properly tightened

each time the weight system is used.

Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the weight system at all times.

7. The weight system is designed to support a

maximum user weight of 300 pounds.

8. Always wear athletic shoes for foot protec-

tion while exercising.

9. Keep hands and feet away from moving parts.

10. Make sure that the cables remain on the pul-

leys at all times. If the cables bind as you are

exercising, stop immediately and make sure

that the cables are on the pulleys. Replace all

cables at least every two years.

11. Always secure the weight stack with the lock

pin and lock after exercising to prevent

unauthorized use of the weight system (see

LOCKING THE WEIGHT STACK on page 24).

12. Always stand on the foot plate when per-

forming an exercise that could cause the

weight system to tip.

13. Never release the arms, leg lever, lat bar, leg

press, ab strap, or handle while weights are

raised. The weights will fall with great force.

14. Always disconnect the lat bar from the

weight system when performing an exercise

that does not use the lat bar.

15. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. Sears assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight system.

IMPORTANT PRECAUTIONS

Leg Press

High Pulley Station

Backrest

Ab Pulley Station

Press Arm

Weight

Stack

Right Side

Left Side

Note: The terms “right side” and “left side” are determined relative to a person sitting on a seat;

they do not correspond to right and left on the drawings in the manual.

Backrest

Low Pulley

Station

Leg Lever

Foot Plate

Seat

Butterfly Arm

BEFORE YOU BEGIN

Thank you for selecting the versatile WEIDER®PRO

4250 weight system. The weight system offers an

impressive array of weight stations designed to devel-

op every major muscle group of the body. Whether

your goal is to tone your body, build dramatic muscle

size and strength, or improve your cardiovascular sys-

tem, the weight system will help you to achieve the

specific results you want.

For your benefit, read this manual carefully before

using the weight system. If you have questions after

reading this manual, call 1-800-4-MY-HOME®

(1-800-469-4663). To help us assist you, please note

the product model number and serial number before

calling. The model number is 831.154020. The serial

number can be found on a decal attached to the

weight system (see the front cover of this manual for

the location of the decal).

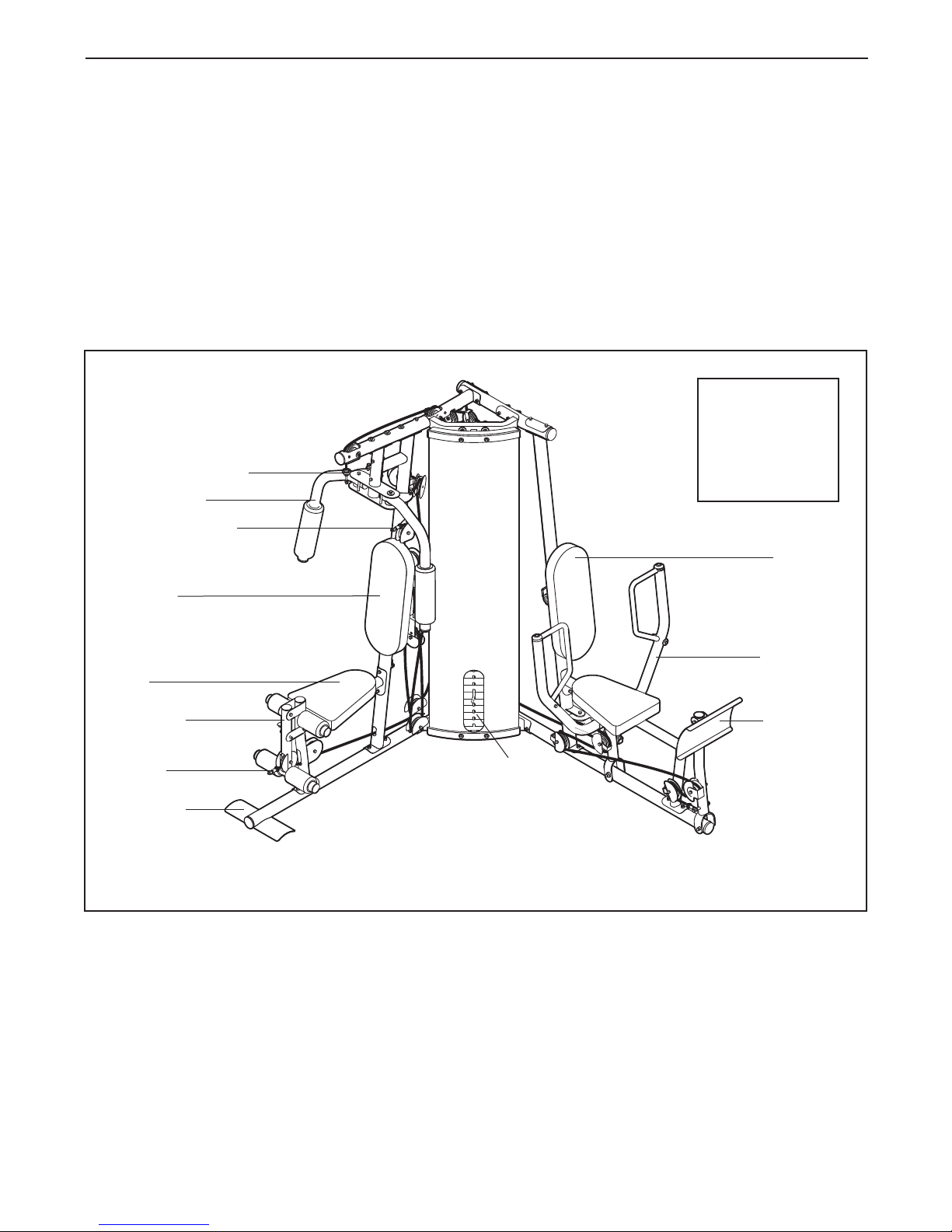

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

ASSEMBLED

DIMENSIONS:

Height: 77 in.

Width: 81 in.

Depth: 59 in.

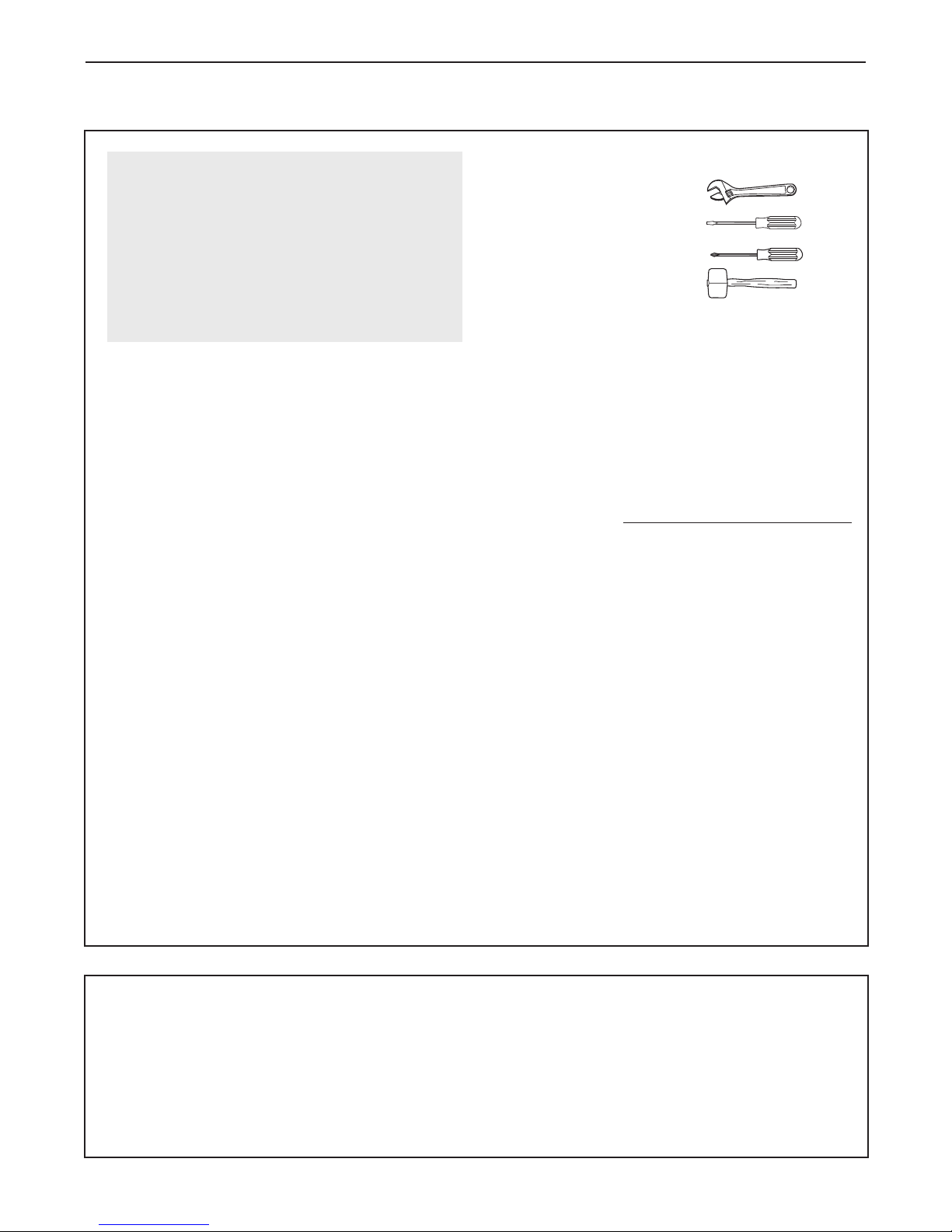

Make sure you have the following tools:

• Two adjustable wrenches

• One standard screwdriver

• One phillips screwdriver

• One rubber mallet

• You will also need grease or petroleum jelly, a

small amount of soapy water, and clear tape or

masking tape.

Note: Assembly will be more convenient if you have

a socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

How to Identify Parts

To help you identify the small parts used in assembly,

we have included a PART IDENTIFICATION CHART

in the center of this manual. Place the chart on the

floor and use it to easily identify parts during each

assembly step. Note: Some small parts may have

been pre-attached. If a part is not in the parts

bag, check to see if it has been pre-attached.

How to Orient Parts

As you assemble the weight system, make sure all

parts are oriented exactly as shown in the drawings.

Tightening Parts

Tighten all parts as you assemble them, unless

instructed to do otherwise.

Questions?

If you have questions after reading these assembly

instructions, please call 1-800-4-MY-HOME®(1-800-

469-4663).

Assembly Requires Two Persons

For your convenience and safety, assemble the

weight system with the help of another person.

Set Aside Enough Time

Due to the many features of the weight system, the

assembly process will require several hours. By

setting aside plenty of time and by deciding to

make the task enjoyable, assembly will go smoothly.

You may want to assemble the weight system over

a couple of evenings.

Select a Location for the Weight System

Because of its weight and size, the weight system

should be assembled in the location where it will be

used. Make sure that there is enough room to walk

around the weight system as you assemble it.

How to Unpack the Box

To make assembly as easy as possible, we have

divided the assembly process into four stages. The

parts needed for each stage are found in individual

bags. Important: Wait until you begin each stage

to open the parts bag for that stage. Place all

parts of the weight system in a cleared area and

remove the packing materials. Do not dispose of

the packing materials until assembly is completed.

Make Assembly Easier for Yourself

Everything in this manual is designed to

ensure that the weight system can be assem-

bled successfully by anyone. Before begin-

ning assembly, make sure to read the

information on this page. This brief intro-

duction will save you much more time than

it takes to read it.

The Four Stages of the Assembly Process

Frame Assembly—You will begin by assembling

the base and the uprights that form the skeleton of

the weight system.

Arm Assembly—During this stage you will

assemble the arms and the leg lever.

Cable Assembly—During this stage you will

attach the cables and pulleys that connect the

arms to the weights.

Seat Assembly—During the final stage you will

assemble the seats and the backrests.

ASSEMBLY

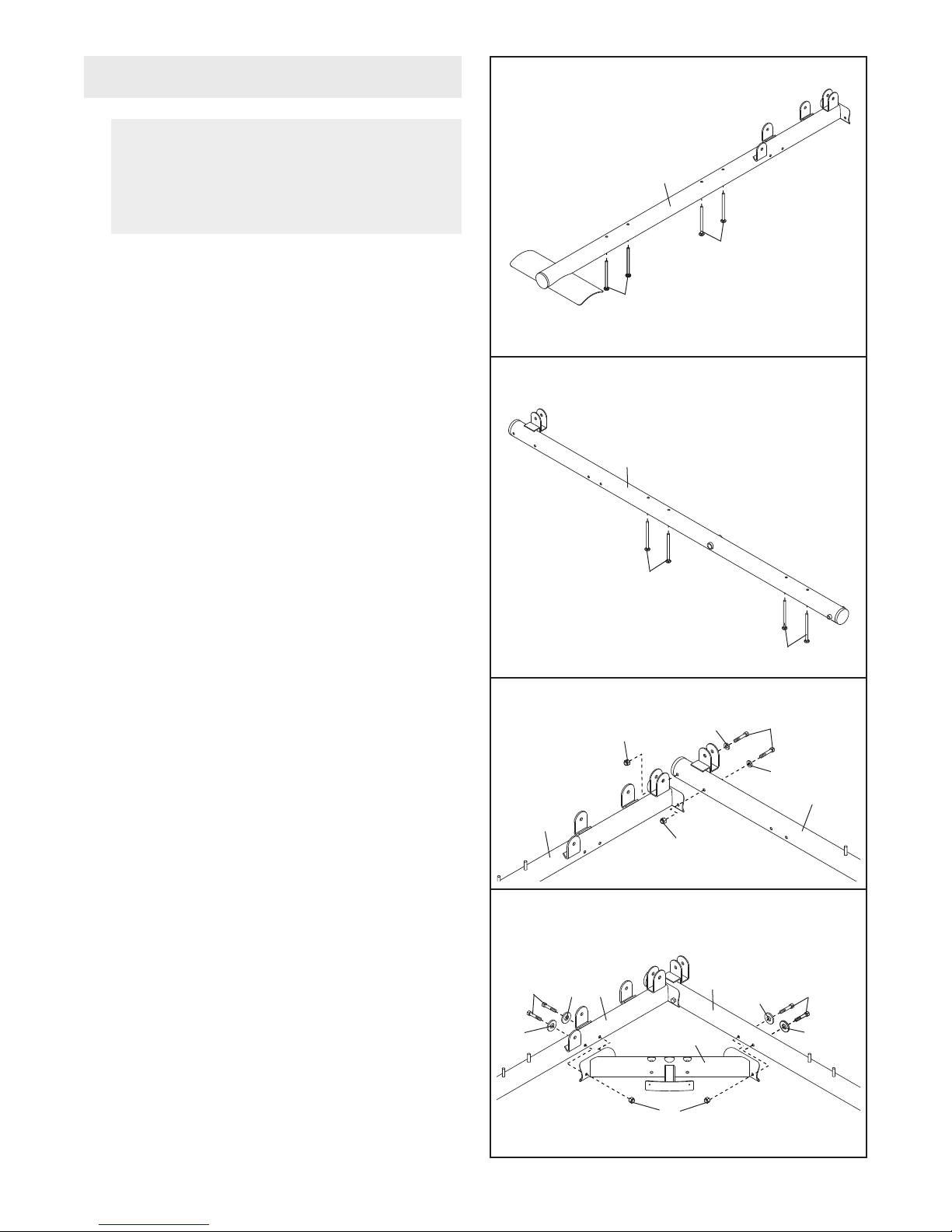

Insert four M8 x 75mm Carriage Bolts (69) up

through the Right Base (1). Note: It may be

helpful to place a piece of tape over each bolt

head to hold it in place.

3. Attach the Right Base (1) to the Left Base (25)

with two M8 x 78mm Bolts (82), two M8 Washers

(98), and two M8 Nylon Locknuts (91). Do not

tighten the Locknuts yet.

4. Attach the Center Base (52) to the Right Base (1)

with two M8 x 78mm Bolts (82), two M8 Washers

(98), and an M8 Nylon Locknut (91). Do not

tighten the Bolts yet.

Attach the Center Base (52) to the Left Base

(25) in the same manner.

2. Insert four M8 x 75mm Carriage Bolts (69) up

through the Left Base (25). Note: It may be help-

ful to place a piece of tape over each bolt

head to hold it in place.

98 82

82 98 98

Before beginning assembly, make sure you

understand the information in the box on

page 5. See the PART IDENTIFICATION

CHART in the center of this manual for help

identifying small parts.

Frame Assembly

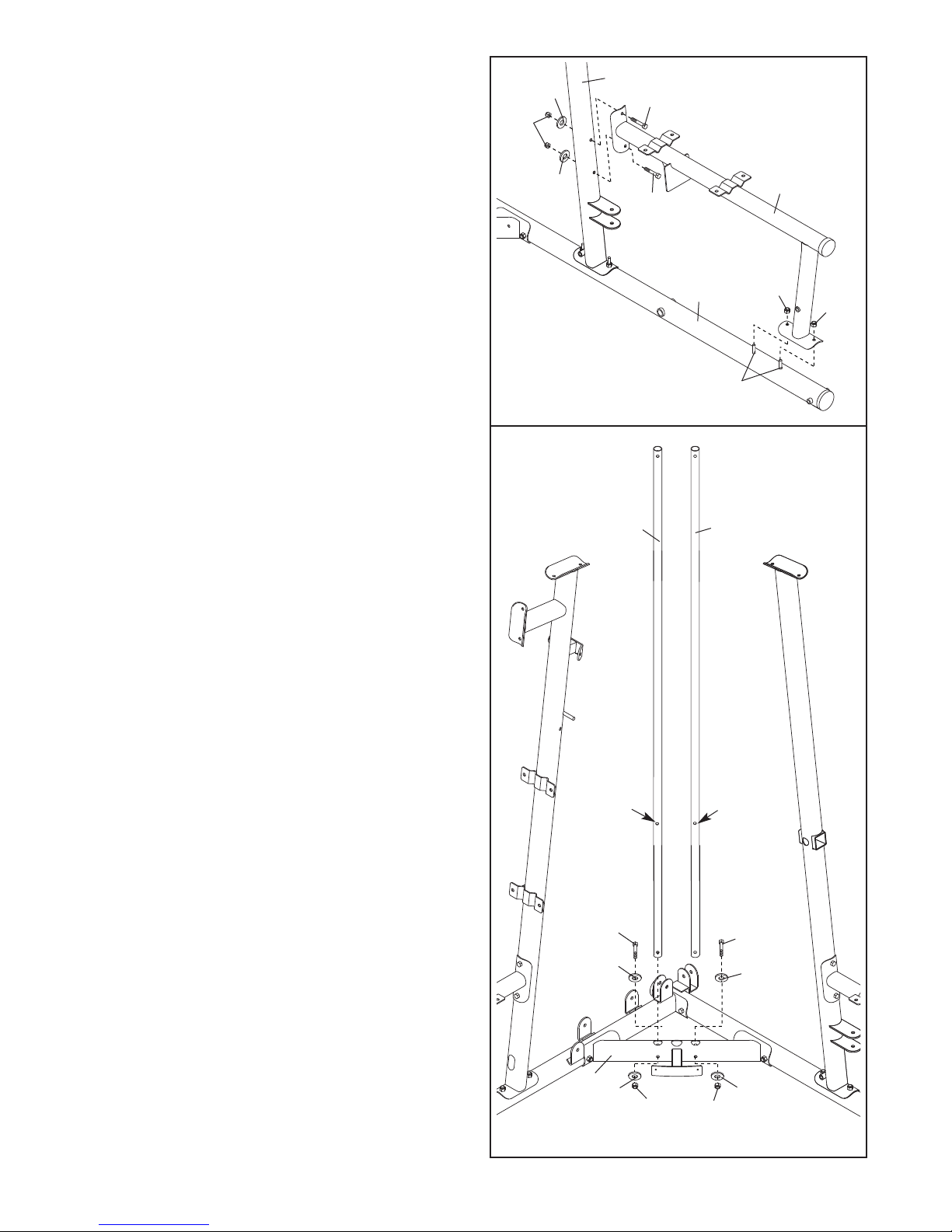

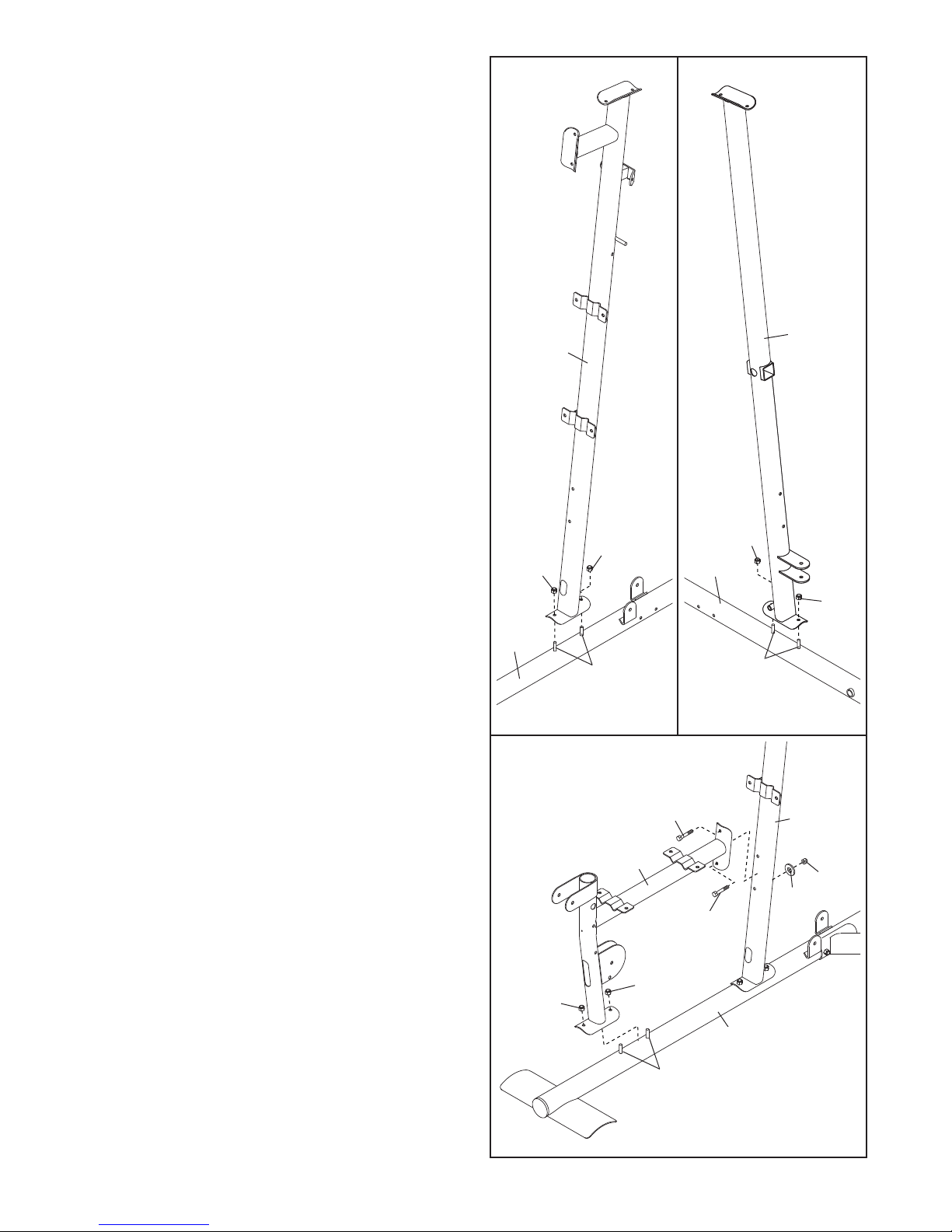

5. See drawing A. Attach the Right Upright (2) to

the Right Base (1) with the two indicated M8 x

75mm Carriage Bolts (69) and two M8 Nylon

Locknuts (91). Do not tighten the Locknuts yet.

See drawing B. Attach the Left Upright (26) to

the Left Base (25) with the two indicated M8 x

75mm Carriage Bolts (69) and two M8 Nylon

Locknuts (91). Do not tighten the Locknuts yet.

6. Attach the Right Seat Frame (3) to the Right

Base (1) with the two indicated M8 x 75mm

Carriage Bolts (69) and two M8 Nylon Locknuts

(91). Do not tighten the Locknuts yet.

Attach the Right Seat Frame (3) to the Right

Upright (2) with an M8 x 78mm Bolt (82), an M8 x

96mm Bolt (83), an M8 Washer (98), and an M8

Nylon Locknut (91). Do not tighten the Locknut

yet.

5A B

83 2

7. Attach the Left Seat Frame (27) to the Left Base

(25) with the two indicated M8 x 75mm Carriage

Bolts (69) and two M8 Nylon Locknuts (91). Do

not tighten the Locknuts yet.

Attach the Left Seat Frame (27) to the Left

Upright (26) with two M8 x 78mm Bolts (82), two

M8 Washers (98), and two M8 Nylon Locknuts

(91). Do not tighten the Locknuts yet.

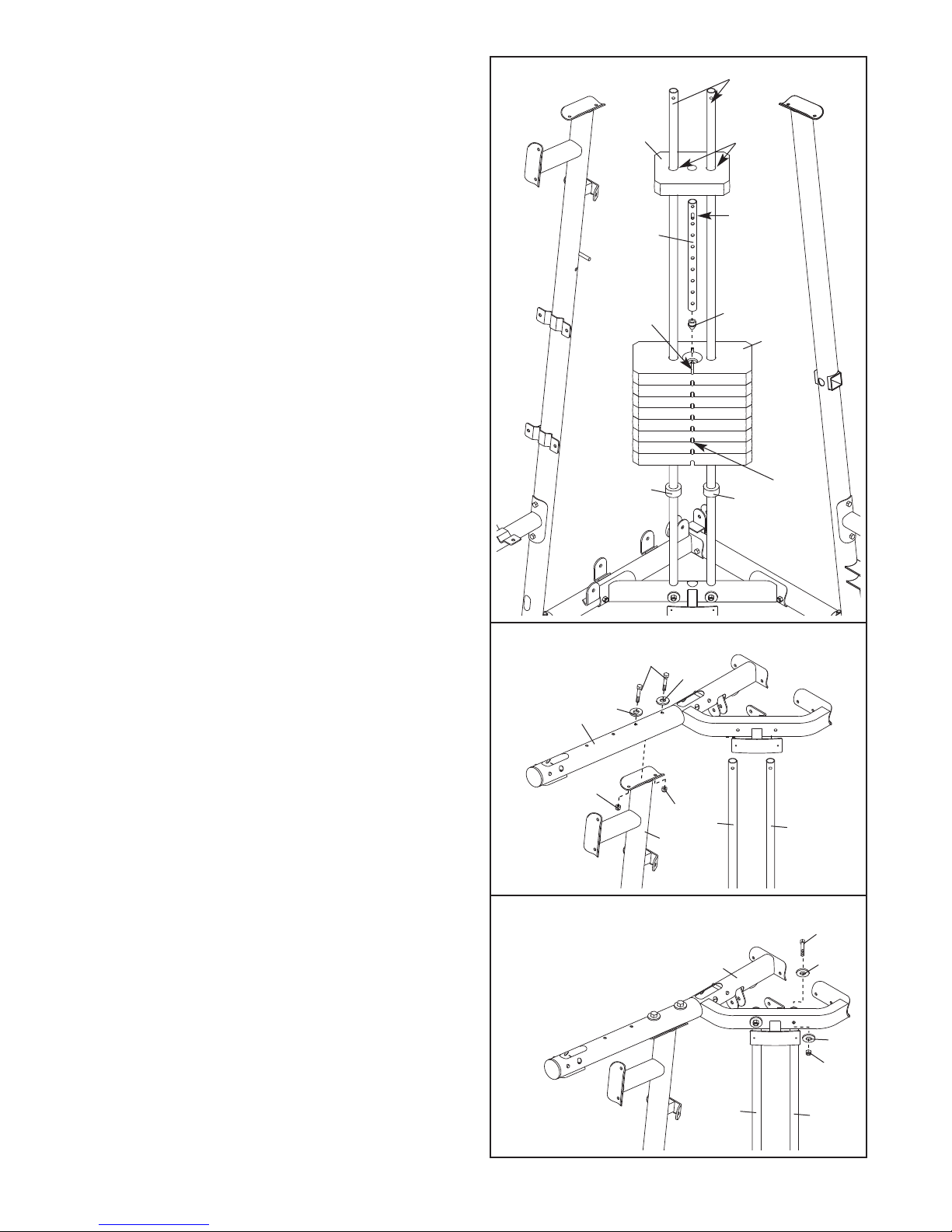

8. Orient the Weight Guides (44) with the indicated

holes closer to the bottom. Attach the Weight

Guides inside of the Center Base (52) with two

M8 x 78mm Bolts (82), four M8 Washers (98),

and two M8 Nylon Locknuts (91).

Hole Hole

82 82

98 98

9. Slide two Weight Bumpers (45) onto the Weight

Guides (44). Slide the eight Weights (55), with the

pin holes on the indicated side, onto the Weight

Guides.

Press the Weight Tube Bumper (46) into the

Weight Tube (47). Insert the Weight Tube into the

stack of Weights (55). Make sure the pin on the

Weight Tube sits in the groove in the top

Weight.

Grease the indicated holes in the Top Weight (56)

with an included grease pack. Slide the Top

Weight onto the Weight Guides (44).

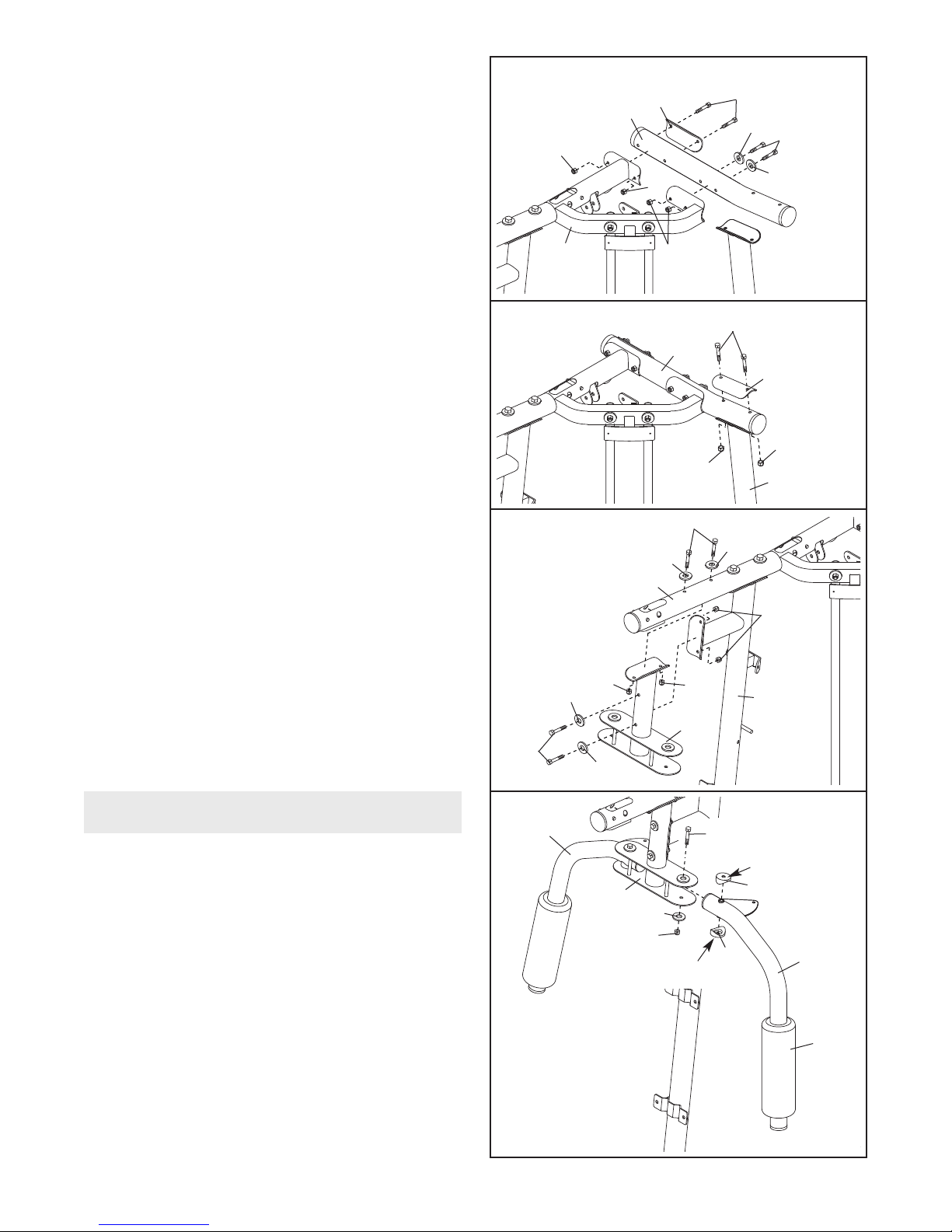

10. Attach the Right Top Frame (5) to the Right

Upright (2) with two M8 x 78mm Bolts (82), two

M8 Washers (98), and two M8 Nylon Locknuts

(91). Do not tighten the Locknuts yet. Make

sure the Weight Guides (44) are behind the

Right Top Frame.

11. Attach a Weight Guide (44) to the Right Top

Frame (5) with an M8 x 78mm Bolt (82), two M8

Washers (98), and an M8 Nylon Locknut (91). Do

not tighten the Locknut yet.

Repeat this step with the other Weight Guide

(44).

Grease

Holes

Groove

5 98

244

12. Attach the Left Top Frame (36) to the Right Top

Frame (5) with two M8 x 78mm Bolts (82), two

M8 Washers (98), two M8 x 83mm Bolts (112), a

Support Plate (31), and four M8 Nylon Locknuts

(91). Do not tighten the Locknuts yet.

14. Orient the Butterfly Frame (14) as shown. Attach

the Butterfly Frame to the Right Upright (2) with

two M8 x 72mm Bolts (85), two M8 Washers (98),

and two M8 Nylon Locknuts (91). Do not tighten

the Locknuts yet.

Attach the Butterfly Frame (14) to the Right Top

Frame (5) with two M8 x 78mm Bolts (82), two

M8 Washers (98), and two M8 Nylon Locknuts

(91).

Tighten the M8 Nylon Locknuts (91) used in

steps 3–14.

15. Wet the lower end of the Left Butterfly Arm (6)

with soapy water. Slide a Large Foam Pad (15)

onto the Left Butterfly Arm.

Grease an M10 x 90mm Bolt (74) and the indicat-

ed edges of two Arm Bushings (23) with a grease

packet. Attach the Left Butterfly Arm (6) to the

Butterfly Frame (14) with the Bolt (74), an M10

Large Washer (100), the two Arm Bushings, and

an M10 Nylon Locknut (90). Make sure the bolt

head fits inside of the hole in the Butterfly

Frame.

Repeat this step with the Right Butterfly Arm

(7).

13. Attach the Left Top Frame (36) to the Left Upright

(26) with two M8 x 83mm Bolts (112), a Support

Plate (31), and two M8 Nylon Locknuts (91). Do

not tighten the Locknuts yet.

31 112

5 91

112

74—Grease

Grease

100

Arm Assembly

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere WeiderPro Heim-Fitnessstudio Handbücher

WeiderPro

WeiderPro 30963.0 Bedienungsanleitung

WeiderPro

WeiderPro Pro 4500 Kurzanleitung

WeiderPro

WeiderPro Pro 435 Bench Kurzanleitung

WeiderPro

WeiderPro Pro 4500 Benutzerhandbuch

WeiderPro

WeiderPro 29829.1 Bedienungsanleitung

WeiderPro

WeiderPro 380 Zlx Bike Systemhandbuch

WeiderPro

WeiderPro 335 Bedienungsanleitung

WeiderPro

WeiderPro 831.15911.0 Bedienungsanleitung

WeiderPro

WeiderPro Pro 440 Dc Ybt Bench Bedienungsanleitung

WeiderPro

WeiderPro 831.150741 Bedienungsanleitung

WeiderPro

WeiderPro Pro 4500 Bedienungsanleitung

WeiderPro

WeiderPro 831.15891.0 Bedienungsanleitung

WeiderPro

WeiderPro 390 L Bedienungsanleitung

WeiderPro

WeiderPro Pro 420 Bench Benutzerhandbuch

WeiderPro

WeiderPro 831.159531 Bedienungsanleitung

WeiderPro

WeiderPro 831.14933.0 Bedienungsanleitung

WeiderPro

WeiderPro 831.15906.0 Bedienungsanleitung

WeiderPro

WeiderPro 831.15928.1 Bedienungsanleitung

WeiderPro

WeiderPro 831.15706.0 Bedienungsanleitung

WeiderPro

WeiderPro 831.14922.2 Bedienungsanleitung

WeiderPro

WeiderPro Pro 420 Bench Bedienungs- und Wartungshandbuch

WeiderPro

WeiderPro Pro 4300 Bedienungsanleitung

WeiderPro

WeiderPro Pro 420 Bedienungsanleitung

WeiderPro

WeiderPro Pro 435 Bench Benutzerhandbuch

Beliebte Heim-Fitnessstudio Handbücher anderer Marken

Horizon Fitness

Horizon Fitness OXFORD 6 Bedienungsanleitung

Energetics

Energetics Multi Trainer 5.1 Bedienungsanleitung

Matrix

Matrix MG-PL Series Bedienungsanleitung

Reebok

Reebok Tbr2i Bedienungs- und Wartungshandbuch

Weider

Weider 8300 Hard Drive Bedienungsanleitung

Pure Fitness

Pure Fitness 8526HE Bedienungsanleitung

Weider

Weider 8700 I Kurzanleitung

Bowflex

Bowflex Sport 001-6961 Bedienungsanleitung

NordicTrack

NordicTrack E8200 Competition Bench Kurzanleitung

Weider

Weider WEMC10161 Bedienungsanleitung

Body Solid

Body Solid GHYP-345 Bedienungsanleitung

Evo

Evo TAHOE 5105 Bedienungsanleitung

cardiobull

cardiobull RA17 Bedienungsanleitung

ParaBody

ParaBody 40 Bedienungsanleitung

JLL

JLL Ventus Pro Air Power Bedienungsanleitung

Trojan

Trojan Colorado 370 Bedienungsanleitung

Octane Fitness

Octane Fitness xRide xR650 Bedienungsanleitung

Precor

Precor Discovery Series Bedienungsanleitung
