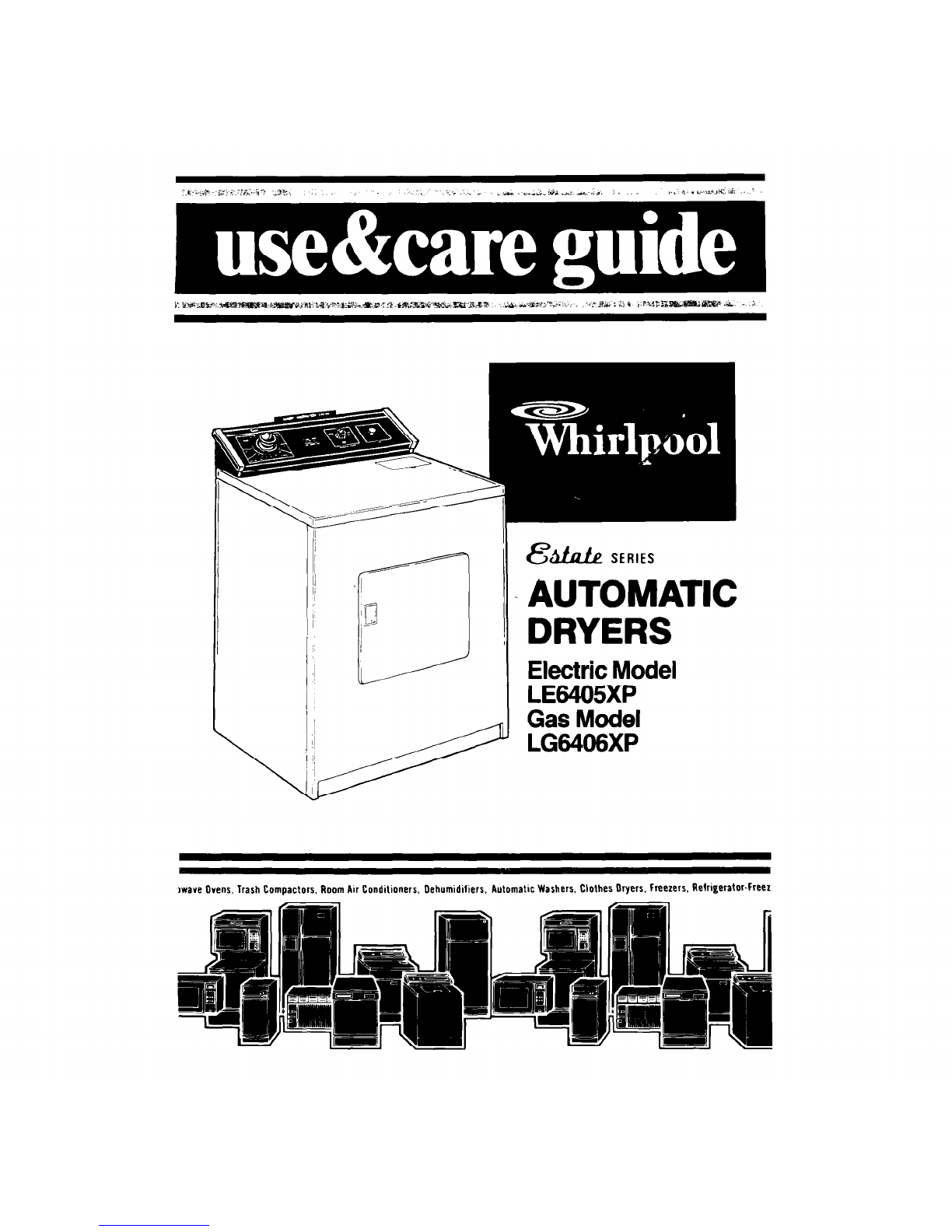

&ti SERIES

AUTOMATIC

DRYERS

Electric Model

LE6405XP

Gas Model

LG6406XP

wave Ovens. Trash Compactors, Room Au Conditioners. Dehumidifiers. Automatic Washers, Clolhes Dryers. Freezers. Refrigerator-Freez

Parts and features

CYCLE CONTROL KNOB

\ TEMPERATURE SELECTOR

\ LAUNDRY

FORMATION CENTER

START BUTTON

LINT SCREEN

DRYER DRUM

LOADING DOOR

Remove the Con-

sumer Buy Guide la-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

Complete Model Number

1. Complete

Model and Serial Numbers

(from-the plate located as shown).

2. Purchase date from sales slip.

Complete Serial Number

Copy this information in these spaces.

Keep this book, vour warrantv, sales slip

Purchase Date

and’“Dryer Guide” in the Laundry Infor-

mation Center on the back of the dryer

Service Company and

console.

Telephone Number

There is no warranty registration to re-

that is required for in-warranty service.

Contents

PARTSAND FEATURES..

YOUR RESPONSIBILITIES. . . .

SAFETYFIRST. . . . . . . . .

SELECTING A CYCLE AND

STARTING YOUR DRYER . .

Dryer Cycles and Settings

Cool Down Times . . . . . . . .

DRYING TIPS. . . . . . . . . . . . . . .

FLUFFAIR Setting . . . . . . . . .

TUMBLE PRESS@Setting . . .

Mixed Loads . . . . . . . . . . . .

Drying Times . . . . . . . .

Page

. :

. 7

. :

. 7

LINT SCREEN. . . . .

LINT REMOVAL . . .

CARING FOR YOUR DRYER.

Cleaning Dryer Interior

Vacation Care . . .

IF YOU NEEDSERVICE OR

ASSISTANCE. . . . . .

1. Before Calling for

Assistance . . .

2. If You Need Assistance

3. If You Need Service .

4. If You Have a Problem

Page

;

. 10

. 11

01985 Whirlpool Corporation

Your

Responsibilities

Read this “Use and Care Guide”

and your “Dryer Guide” carefully for

important use and safety information.

You are personally responsible for

making sure that your dryer...

is installed by a qualified installer.

is properly maintained.

is installed in an area protected

from the weather.

is properly installed and leveled in

a well ventilated room’ on a floor

that can support the weight.

is located in an area where the tem-

perature is above 45°F (7.2”C).

is connected to the right kind of out-

let, electric supply and grounding:

is properly connected to fuel and

exhaust systems.*

is used only for jobs normally ex-

pected of home clothes dryers.

is not run where there may be explo-

sive fumes.

is not used by children or anyone

unable to operate it properly

*See the “Installation Instructlons” for

complete informatlon.

. FOR YOUR SAFETY

IF YOU SMELLGAS:

OPEN WINDOWS.

2. DON’T TOUCH ELECTRI-

CAL SWITCHES.

;~~;~lJlSH ANY OPEN

4. IMMEDiATELY CALL

YOUR GAS SUPPLIER.

FOR YOUR SAFETY

DO NOT STORE OR USE

GASOLINE OR OTHER

FLAMMABLE VAPORS AND

LIQUIDS IN THEVICINITY

OF THIS OR ANY OTHER

APPLIANCE.

TYPEOF LOAD

COTTONS - LINENS

EXTRA HEAVY - Bedspreads,

mattress pads, quilts. . .

HEAVYWEIGHT FABRICS - Towels,

jeans, corduroys, work clothes .

MEDIUMWEIGHT COTTONS -

Sheets, pillowcases, cotton

underwear, diapers

LIGHTWEIGHT COTTONS

-&i&s:

’

organdles, lingerie . . . . . . . .

PERMANENT PRESS,SYNTHETICS

AND BLENDS

HEAVYWEIGHT FABRICS -Work clothes,

jackets, raincoats . . . .

MEDIUMWEIGHT FABRICS - Shirts, play

clothes, sheets, slacks .

LIGHTWEIGHT FABRICS - Lingerie,

blouses, dresses . .

KNITS

HEAVYWEIGHT - Cottons, rayons,

blends, T-shirts, slacks, shirts . . . .

LIGHTWEIGHT - Synthetics (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses . . . . . . . . . . .

SUGGESTED SUGGESTED

CYCLE TEMPERATURE

EX HEAVY

HEAVY

MEDIUM

PERMIT

PRESS

HEAVY

HIGH

LIGHT

PERM’T PRESS

40-50 MINS.

30-40 MINS.

PERMIT

PRESS

HEAVY

HIGH

20-30 MINS.

PERMIT PRESS PERMIT PRESS

40-50 MINS. HEAVY HIGH

KNITS GENTLE

LOW

30-40 MINS.

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels) PERM’T PRESS KNITS GENTLE

. . . . 20-30 MINS.

Gauze, lace, etc. 15-20 MINS. LOW

. . . . . . . . . . . . . . .

RUBBER,PLASTIC, HEAT-SENSITIVE

PERMIT PRESS

FABRICS

FOAM RUBBER - Pillows, bras,

stuffed toys . . . . . . . . . . . . 20-30 MINS.

PLASTIC - Shower curtains,

tablecloths . . . . . . . . . . . . . 20-30 MINS.

RUBBER-BACKED RUGS . . . . . . . 40-50 MINS.

OLEFIN, POLYPROPYLENE, SHEER NYLON 15-20 MINS.

FLUFF

AIR

Select a

1. CYCLE

Turn the Control Knob either way to

point to the cycle and settin.g you

want. See page 6 for information on

the cycles.

Push the

3. START Button

The dryer will start tumbling when

you push the START Button.

Set TEMPERATURE

SELECTOR

Turn the Temperature Selector to the

needed drying temperature.

To stop and restart

the dryer

To stop

the dryer, open the door (or

turn the Control Knob to OFF].

To restart

the dryer, close the door,

select cycle, if necessary, and push

START.

The Cycle Control Knob should point to OFFwhen the dryer is not In use.

Operating instructions

Dryer cycles and settings

The PERMANENT PRESS Cycle helps

provide the special care that perma-

nent press and synthetic fabrics

need...a period of heated drying

followed by a 10 minute cool down.

The chart on page 4 suggests time

and temperature settings for different

kinds of loads.

The

EX HEAVY,HEAVY,MEDIUM

and

LIGHT

cycles describe the loads

they are designed to dry The chart

on page 4 tells what is meant by

EX HEAVY, HEAVY MEDIUM and LIGHT

loads.

At each setting, the dryer will run

about long enough to dry the load

described by the setting. Example:

The HEAVY Cycle is designed to be

long enough to dry a load of heavy

fabrics (towels, jeans, corduroys, etc.)

when the Temperature Selector is set

on PERM’T PRESS/HEAVY HIGH.

I C

MOPETIME LESS TIME + I

If the load is not as dry as you want,

set the dial more to the leff the next

time you dry that kind of load.

If the load is dryerthan you want,

set the dial more to the

right

the next

time you dry that kind of load.

Cool down times

In all cycles, the heat shuts off

before the dryer stops tumbling. This

cool dowh time helps:

keep wrinkles from setting in.

make handling the hot load items

easier.

The PERMANENT PRESS Cycle has

10 minutes of cool down time at the

end of the cycle.

All other cycles have 5 minutes of

cool down time.

Drying tips

FLUFF AIR

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

bedding, plastic tablecloths, foam

rubber pillows, stuffed toys, sneakers,

etc.

1. Turn the Temperature Selector to

FLUFFAIR.

2. Turn the Control Knob to the num-

ber of minutes you want in the

TIMED DRYING Cycle.

3. Push the START Button.

Mixed loads

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest

fabrics. When the dryer stops, remove

dry items and reset the control.

TUMBLE PRESS” Setting

The TUMBLE PRESS setting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

Set Temperature Selector to PERMIT

PRESS/HEAVY HIGH.

2. Set Control Knob to TUMBLE PRESS.

3. Push START Button.

The load will tumble in heated air

for 5 minutes. The heat shuts off and

the dryer continues to tumble the

load for 10 more minutes.

For best results, TUMBLE PRESSonly

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops.

Drying times

Drying times will vary depending on:

amount of moisture in the clothes.

type and weight of the fabric.

size of the load.

room temperature around the

dryer.

temperature of the wash rinse

water.

amount of lint in the lint screen.

dryertemperature selection.

See page 6 in your”Dryer Guide”

for more information.

Lint screen

Open the lid and pull the lint screen

straight out.

Clean the lint screen betore each load.

A screen blocked by lint can

increase drying time and may be a FIRE HAZARD.

ROLL

the lint off the screen

with your fingers.

DO NOT rinse or wash the screen.

Lint removal

Lint can gather inside the dryer and create a fire hazard.This

lint

should be removed every 2 to 3 years, or more otten, dependlng on

dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

WARNING:

l Avoid electrical shock

hazard - unplug power

SUDDIVcord or turn off

electrtcal p&tier.

l Avold InJury or damage - do not

put hands lnslde cabinet.

l Make sure dryer Is cool.

Remove back panel [electric)

or lower access panel (gas].

2. Avoid damaging wires,

thermostats, funnel or igniter.

Remove lint from shaded area -

see art - with a soft brush or

vacuum cleaner.

4. Replace panel; reconnect and

re-level dryer.

Caring for your dryer

Remove loose and sharp objects

from pockets and cuffs before drying -

pins, buckles, etc.

Close metal

zippers.

Some pretreatment products

can

damage dials, consoles and finish

Do not use these products on or

near your dryer.

Wlpe off all spills

with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never

leave wet or damp laundry

in your dryer.

Sharp or heavy objects

should

never be put on or in the dryer.

Check pockets for bolts, nuts, etc.

Cleaning dryer interior

WARNING: Before

cleaning interior, unplug

power supply cord, or

turn off electrical power to

avoid electrlcal shock hazard.

Garments which contain unstable dyes,

such as denim blue jeans or bright-

ly colored cotton items, may discolor

the dryer interior. If the interior

is discolored, clean with one of the

following methods to avoid staining

later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until all

excess dye is removed. Wipe thor-

oughly with a damp cloth. Tumble

a load of rags.

-OR-

liquid spray household cleaner

Spray on stained area. Rub with a

cloth until all excess dye is re-

moved. Tumble a load of rags.

Vacation care

Unplug power cord or turn off elec-

trical power.

For gas dryers, close gas valve.

0 Clean lint screen.

. . . “”

If you need service or assistance, we suggest

you follow these four steps:

L Before calling for

assistance...

Performance problems often result

from little things you can find and fix

yourself without tools of any kind.

If your dryer does not run:

Is the power supply cord plugged

into a live circuit with the proper volt-

age?

Is the door closed tightly?

Did you push the STARTButton?

Have you checked your home’s

main fuses or circuit breaker box?

If your dryer does not heat:

The AIR setting is without heat.

The last minutes of heat settings are

without heat.

Is the gas turned on? If not, turn the

Control Knob to OFF. Turn on gas.

Wait 5 minutes. Reset controls and

start.

An electric dryer uses a circuit

breaker or 2 fuses. If one fuse is

blown, the dryer may run, but not

heat.

If drying time seems long:

Is the lint screen clean?

See page 7 of this book and page 6

of your “Dryer Guide!’

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool duet 8578185 Bedienungsanleitung

Whirlpool

Whirlpool LG5701XS Bedienungsanleitung

Whirlpool

Whirlpool 859991636290 Bedienungsanleitung

Whirlpool

Whirlpool Duet YGEW9200LQ0 Bedienungsanleitung

Whirlpool

Whirlpool Duet W10049540 Bedienungsanleitung

Whirlpool

Whirlpool LER5848EQ4 Bedienungsanleitung

Whirlpool

Whirlpool CGM2941TQ0 Bedienungsanleitung

Whirlpool

Whirlpool W11356336A Bedienungsanleitung

Whirlpool

Whirlpool XCEM2765 Bedienungsanleitung

Whirlpool

Whirlpool Duet sport YWED8410SW2 Bedienungsanleitung

Whirlpool

Whirlpool Duet WGD9400SB0 Bedienungsanleitung

Whirlpool

Whirlpool WED9600TA0 Bedienungsanleitung

Whirlpool

Whirlpool LE9680XW Bedienungsanleitung

Whirlpool

Whirlpool WED6600VW0 Bedienungsanleitung

Whirlpool

Whirlpool LE-7680XM Bedienungsanleitung

Whirlpool

Whirlpool LGR4634PQ Bedienungsanleitung

Whirlpool

Whirlpool GEC9858HQ0 Bedienungsanleitung

Whirlpool

Whirlpool ELECTRIC DRYER Bedienungsanleitung

Whirlpool

Whirlpool W10150630A Bedienungsanleitung

Whirlpool

Whirlpool W10305728B Bedienungsanleitung

Whirlpool

Whirlpool LE6800XS Bedienungsanleitung

Whirlpool

Whirlpool 3RAWZ481EML2 Bedienungsanleitung

Whirlpool

Whirlpool W10240879B - SP Bedienungsanleitung

Whirlpool

Whirlpool YGEW9250SU0 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
