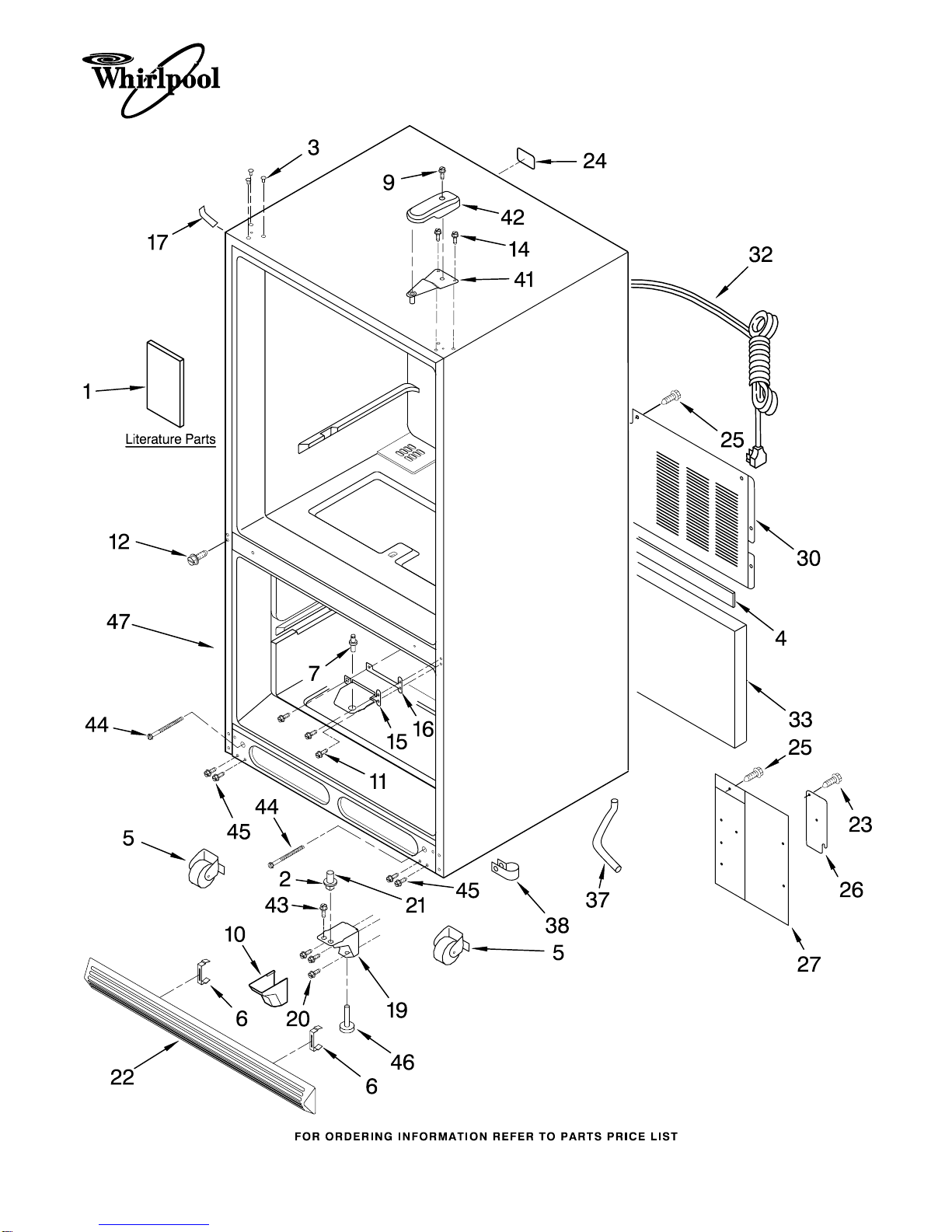

CABINET PARTS

For Models: GB9SHKXMQ00, GB9SHKRMS00

(White) (Stainless Steel)

8−04 Litho In U.S.A. (kdr) Part No. 8199126

REFRIGERATOR

CABINET PARTS

For Models: GB9SHKXMQ00, GB9SHKRMS00

(White) (Stainless Steel)

8199126

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8171264 Tech Sheet

8171266 Use & Care Guide

8171265 Energy Tag

2 Shim, Bottom

Hinge

4344200 White

4344201 Black

3 Plug, Button (3)

4344209 White

4344208 Black

4 8170924 Gasket

5 8170886 Roller Assembly

6 8170869 Clip, Grille

7 4344177 Pin, Center Hinge

9 8171215 Screw

10 Hinge Cover, Bottom

8171004 White

8171002 Black

11 4344186 Screw

12 8170373 Screw

14 4344198 Screw

15 Hinge, Center

8170980 Black

8170981 White

16 Shim, Center Hinge

4344187 White

4344188 Black

17 Cover, Corner

8170858 Black

8170860 White

19 Hinge Bottom

8170864 White

8170863 Black

20 8171202 Screw

21 4344178 Pin, Bottom Hinge

22 Grille Assembly

(Includes Clips)

8170996 White

8171224 Black

23 4343694 Screw

24 8170928 Plug, I/M

25 4344167 Screw

26 8170921 Plate, Cover

27 8170898 Cover, Water Valve

30 8170910 Cover, Unit

32 8170925 Power Cord

33 8171247 Insulation, Sound

37 8170861 Tube, Drain

38 8170862 Clip, Drain Tube

41 8170974 Hinge, Top

42 Cover, Hinge

8170977 White

8170975 Black

43 8170878 Plug, Button

44 8170972 Screw

45 4343782 Screw

46 4344298 Foot Break

47 Cabinet (Not A

Serviceable Part)

FREEZER LINER PARTS

For Models: GB9SHKXMQ00, GB9SHKRMS00

(White) (Stainless Steel)

8199126

FREEZER LINER PARTS

For Models: GB9SHKXMQ00, GB9SHKRMS00

(White) (Stainless Steel)

8199126

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 8170897 Gasket, Foam

4 8170847 Cover, Control

6 8170839 Light Socket

9 4343660 Light Bulb

10 8170838 Housing, Frz. Light

11 8171006 Cover, Evaporator

12 4344167 Screw

14 8170848 Housing, Light

15 8171238 Clip, Evap. Motor

16 8170842 Switch, Light

17 8170922 Cover, Plug

20 8171007 Gasket, Bottom

22 8170881 Cover, Fan Shroud

25 8171153 Shroud, Evap.Fan

27 8170544 Fan, Evaporator

29 8171086 Grommet(2)

30 8170894 Motor, Evaporator

37 8171222 Knob, Control

39 8170849 Cover, Frz. Control

41 8170850 Thermostat

47 4344385 Funnel−Drain

(Includes 48 & 49,

seal & gasket)

48 4344311 Seal

49 4344310 Gasket

FREEZER DOOR PARTS

For Models: GB9SHKXMQ00, GB9SHKRMS00

(White) (Stainless Steel)

8199126

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Freezer Door

Panel (Includes

Insulation)

8170960 White

8171260 Stainless Steel

2 Handle

8170990 White

8170963 Black

6 8170988 Basket, Freezer

7 8170829 Endcap (Left)

8 Door Gasket,

Magnetic

8171262 White

8171261 Black

9 8170830 Endcap (Right)

11 Plug, Handle Hole

4344535 White

4344533 Black

12 Door, Stop

8171205 White

8171214 Black

13 4344333 Screw

14 Plug, Button

8170978 White

8170979 Black

17 Bushing

4344362 White

8171213 Black

18 Plug, Button

8170953 White

4343926 Black

REFRIGERATOR LINER PARTS

For Models: GB9SHKXMQ00, GB9SHKRMS00

(White) (Stainless Steel)

8199126

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 8171026 Housing, Ref.

Light

3 8170833 Overlay

4 4344571 Light Switch

5 8170832 Cover, Ref. Light

6 8170834 Housing, Timer

7 8170835 Knob, Damper

8 8170836 Knob, Gear

9 8170837 Gear, Belt

10 8170838 Housing, Light

11 4344395 Screw (2)

12 8170709 Egg Bin

14 8170841 Gear, Damper

15 8170845 Control, Damper

16 8170846 Insulation, Damper

18 8170839 Socket, Light

20 4343660 Light Bulb

24 8170840 Timer, Defrost

25 8170843 Cover, Control

27 8170844 Belt, Damper

REFRIGERATOR DOOR PARTS

For Models: GB9SHKXMQ00, GB9SHKRMS00

(White) (Stainless Steel)

8199126

REFRIGERATOR DOOR PARTS

For Models: GB9SHKXMQ00, GB9SHKRMS00

(White) (Stainless Steel)

8199126

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

Panel (Includes

Insulation)

8170959 White

8171258 Stainless Steel

3 8171204 Door, Compartment

4 8170793 Tray, Dairy

5 8171166 Shelf Bin

(Medium)

6 Plug, Handle Hole

4344535 White

4344533 Black

8 Door Gasket,

Magnetic

8171256 White

8171257 Black

9 Door Handle

8170776 White

8170961 Black

12 8171251 Shelf Bin

(Small)

13 Trim, Handle

8170752 White

8170785 Black

14 8170984 Trim, Door Shelf

15 4344333 Screw

17 Stop, Door

8171205 White

8171214 Black

18 Plug, Button

8170978 White

8170979 Black

21 8170499 Screw

23 Bushing

4344362 White

8171213 Black

24 Plug, Button

8170953 White

4343926 Black

25 8170797 Nameplate

UNIT PARTS

For Models: GB9SHKXMQ00, GB9SHKRMS00

(White) (Stainless Steel)

8199126

UNIT PARTS

For Models: GB9SHKXMQ00, GB9SHKRMS00

(White) (Stainless Steel)

8199126

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4343865 Screw

2 8170909 Blade, Fan

3 8171252 Base

4 4344167 Screw

7 8171200 Harness, Evap.

Heater

8 8170911 Drain Pan

9 8171209 Grommet (3)

10 8171009 Evaporator Heater

11 8170724 Strap

12 8171210 Overload

(Includes Relay)

13 8170914 Gasket

14 8170904 Bi−Metal

15 8170912 Grommet (7)

17 8170462 Capacitor

18 8171255 Condenser

20 8171005 Tray, Drip

22 8171161 Evaporator

23 Dam

8170891 Right Side

8170890 Left Side

24 8170704 Motor, Fan

25 4343918 Clip, Heater

26 8171241 Harness, Unit

27 4344268 Drier

28 8171208 Compressor

(Includes Items

11, 12, 15,

17 & 27)

31 8170906 Shroud

32 8171239 Bracket, Fan Motor

34 8170901 Clip, Drier

36 8170916 Roller

39 4343845 Grommet (4)

40 4344562 Screw

41 8170917 Axle, Roller

42 4344219 Clip, Evaporator

43 8170902 Screw

44 8171253 Screw

53 4344292 Screw

55 8171254 Tube, Drain

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.00 Ozs.

(R−134A)
