Whispbar K089 Bedienungs- und Installationshandbuch

K089W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema de transporte.

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de transporte.

RU Установочные Инструкции для Поперечных Балок

x 4

Revision No: 3C 1

Fitting Kit K089W

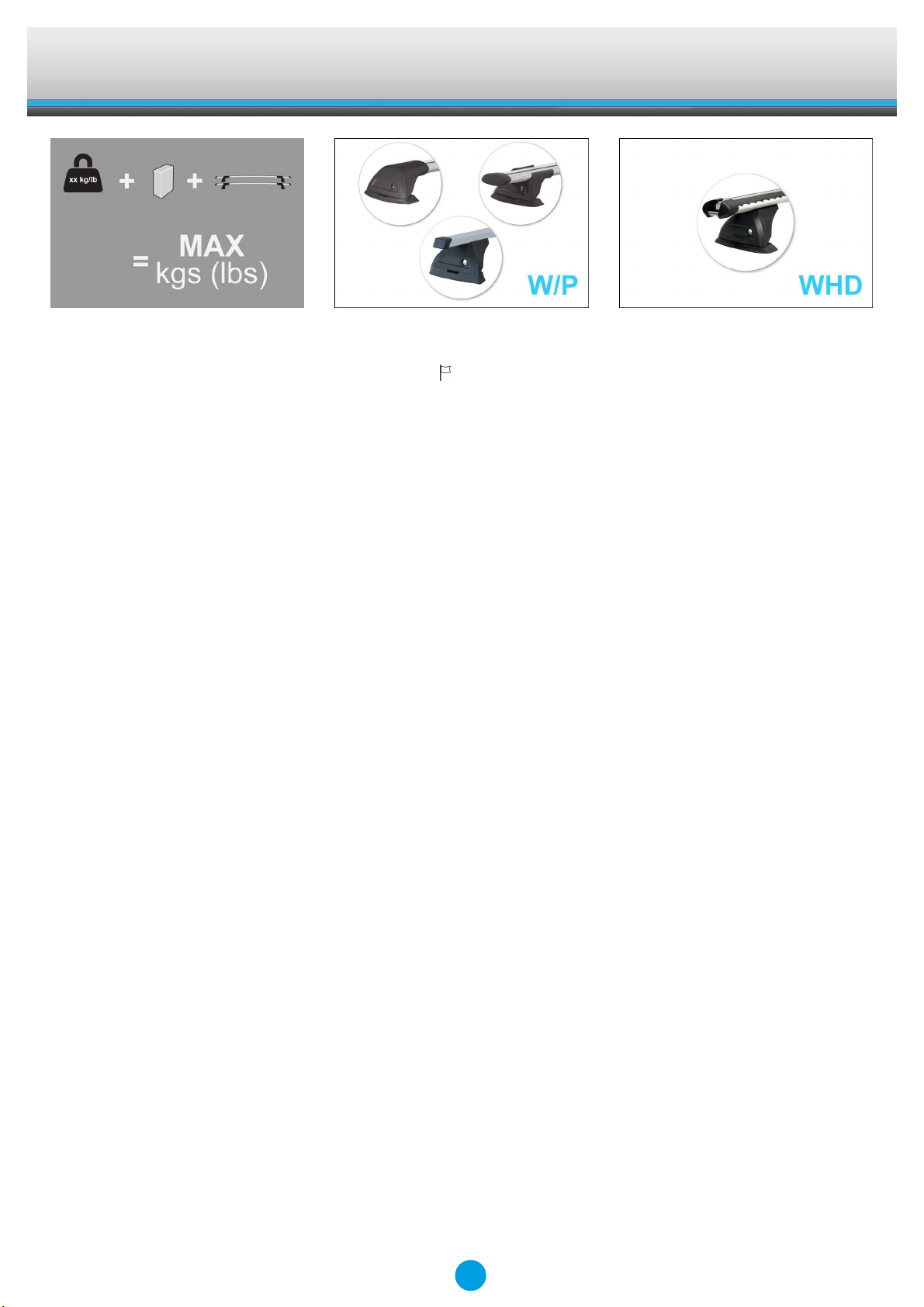

MAX kgs (lbs)

W/P WHD

Saab

900 , 5dr Hatch 94-98 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

900 , 5dr Hatch Feb 94-98 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

900 , 5dr Hatch Feb 94-Jan 98 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

9000 , 4dr Sedan 92-98 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

9000 , 4dr Sedan 92-98 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

9000 , 4dr Sedan Feb 92-Dec 98 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Vauxhall

Cavalier , 4dr Sedan 89-95 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Vectra , 4dr Sedan 95-01 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Vectra , 5dr Hatch 95-01 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Opel

Vectra , 4dr Sedan 89-95 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Vectra , 4dr Sedan 89-95 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Vectra , 4dr Sedan 95-01 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Vectra , 5dr Hatch 95-01 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Holden

Vectra , 4dr Sedan 96-Feb 03 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Vectra , 4dr Sedan 96-Mar 03 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Vectra , 5dr Hatch 96-Feb 03 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Vectra , 5dr Hatch 96-Mar 03 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Citroen

Xantia , 5dr Hatch 93-01 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Fitting Kit K089W

Xantia , 5dr Hatch Nov 93-01 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Xantia , 5dr Hatch Sep 93-Jan 01 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Fitting Kit EN

K089W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K089W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K089W

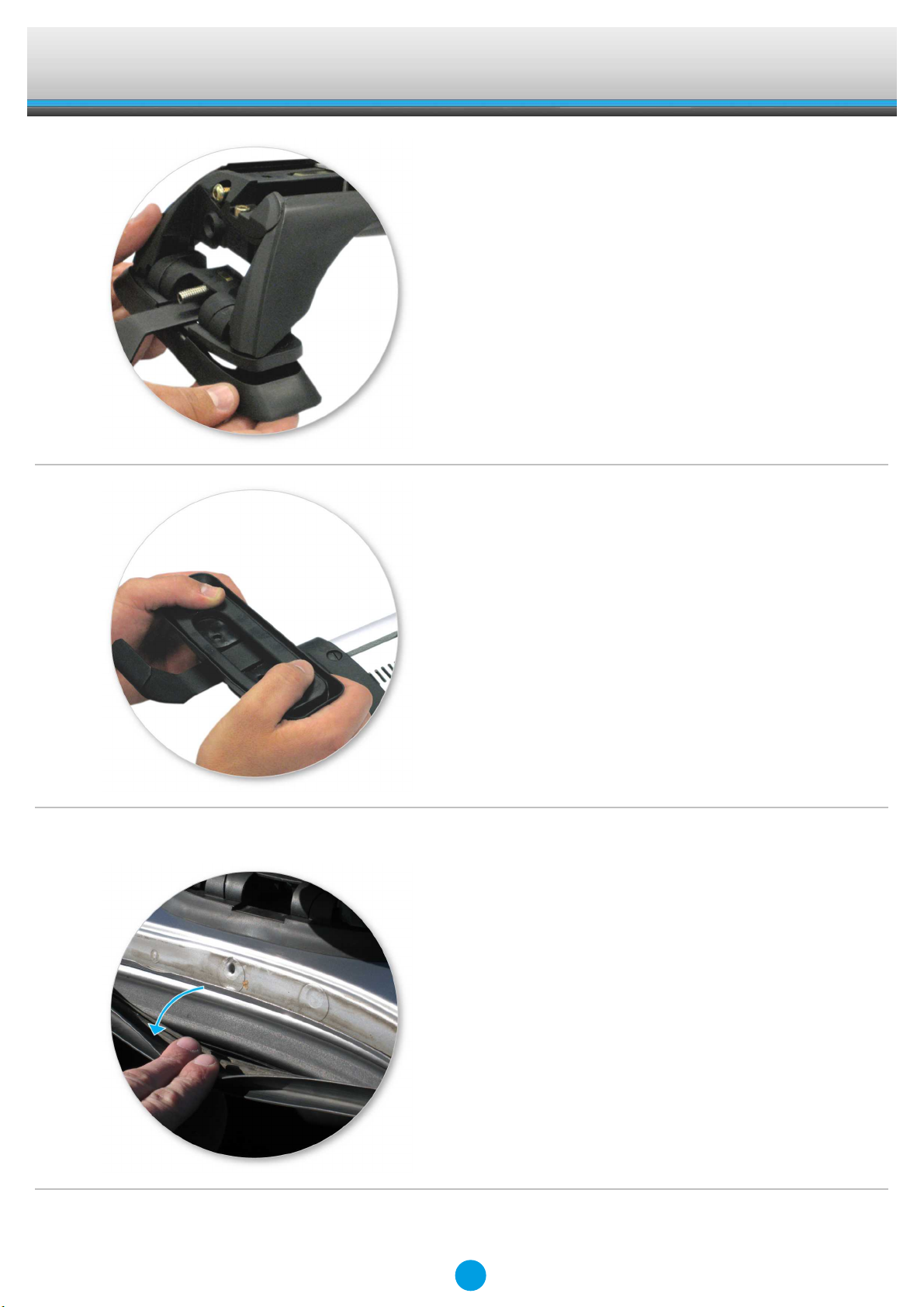

●Remove locking screw.

●Fit clamp into clamp block at an angle as

shown.

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

Fitting Kit EN

K089W

●Fit rubber pad (supplied with crossbar) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Pull back rubber seal to expose fixed points

on vehicle body.

●Reveal the fixed points. They may be

concealed behind a painted sticker.

Fitting Kit EN

K089W

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Ensure that the crossbar is adjusted evenly

at both ends.

●Ensure the clamp pin is inserted into the

fixed point and the clamp sits flat to the

body side.

●Repeat for all four positions.

●Refit rubber seal over the clamp.

●Tighten adjusting screw to 5 Nm (3.7 ft lb).

Fitting Kit EN

K089W

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K089W

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
