Whispbar K1009W Bedienungsanleitung

K1009W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 6 x 1 x 1 x 1

x 1 x 4 x 2 x 1

Revision No: 1A 1

Fitting Kit K1009W

x 1 x 1 x 6 x 6

x 6

Fitting Kit K1009W

MAX kgs (lbs)

W/P WHD

Volkswagen

Caddy SWB 3 Bar, 4dr Van 15-+ EU 100 kgs (220 lbs) 100 kgs (220 lbs)

Caddy SWB 3 Bar, 4dr Van Dec 15-+ AU 100 kgs (220 lbs) 100 kgs (220 lbs)

Caddy SWB 3 Bar, 4dr Van Dec 15-+ NZ 100 kgs (220 lbs) 100 kgs (220 lbs)

Caddy Trendline 3 Bar, 4dr Van 15-+ ZA 100 kgs (220 lbs) 100 kgs (220 lbs)

Fitting Kit K1009W

A B C 1 2 3

Caddy SWB 3 Bar, 4dr Van 15-+ (EU) 70mm 835mm 1450mm 818mm 780mm 770mm

2 3/4ths" 32 7/8ths" 57 1/16ths" 32 3/16ths" 30 11/16ths" 30 5/16ths"

Caddy SWB 3 Bar, 4dr Van Dec 15-+ (AU) 70mm 835mm 1450mm 818mm 780mm 770mm

2 3/4ths" 32 7/8ths" 57 1/16ths" 32 3/16ths" 30 11/16ths" 30 5/16ths"

Caddy SWB 3 Bar, 4dr Van Dec 15-+ (NZ) 70mm 835mm 1450mm 818mm 780mm 770mm

2 3/4ths" 32 7/8ths" 57 1/16ths" 32 3/16ths" 30 11/16ths" 30 5/16ths"

Caddy Trendline 3 Bar, 4dr Van 15-+ (ZA) 70mm 835mm 1450mm 818mm 780mm 770mm

2 3/4ths" 32 7/8ths" 57 1/16ths" 32 3/16ths" 30 11/16ths" 30 5/16ths"

Fitting Kit EN

K1009W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K1009W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K1009W

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K1009W

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-216A (Pads with Bars)

B = 11-04-226A

C = 11-04-227A

D = 11-04-225A

E = 11-04-224A

●Fit rubber pads to foot. Pad may vary in

shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K1009W

Fitment

●Remove fixed-point cover screws with 5mm

Hex Key.

●Use the following grubscrew lengths for

each position:

A = M8 x 65mm (2 1/2")

B = M8 x 80mm (3 1/8")

●Select grubscrews and screw into the

vehicle's fixed points.

●Apply silicon sealant.

Fitting Kit EN

K1009W

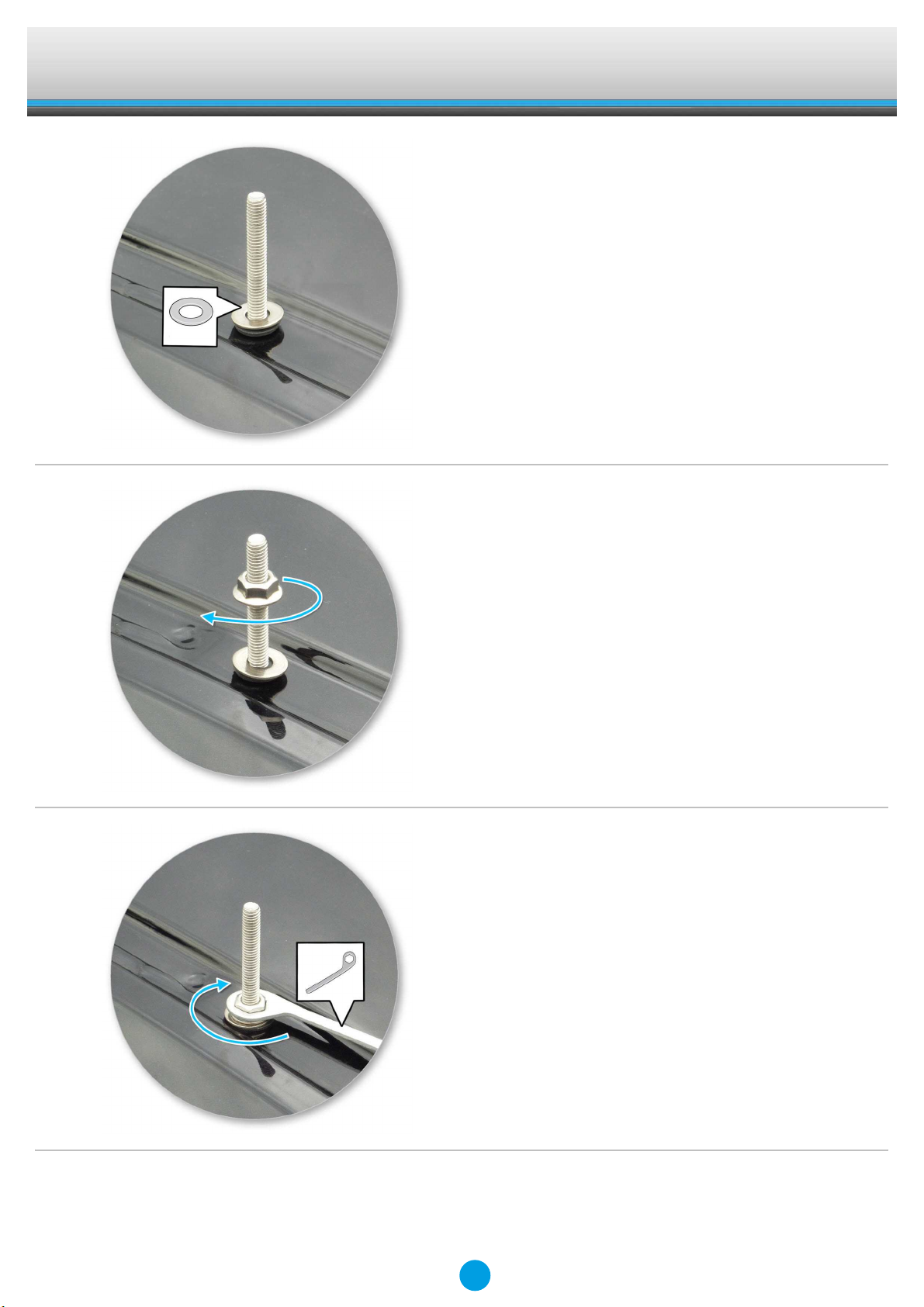

●Place M8 washer over grubscrew.

●Screw flange nut onto hex bolt.

●Tighten flange nut using 13mm (1/2")

spanner provided.

●Do not over tighten.
