Whispbar K412W Bedienungsanleitung
K412W
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 2 x 2 x 4
x 4 x 1
Revision No: 7D 1
Fitting Kit K412W
MAX kgs (lbs)
W/P WHD
Citroen
C4 Grand Picasso, 5dr MPV 07-13 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
C4 Picasso, 5dr MPV 07-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
C4 Picasso, 5dr MPV 07-12 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
C4, 3dr Hatch 04-10 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
C4, 3dr Hatch 06-09 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
C4, 5dr Hatch 04-10 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
C4, 5dr Hatch 04-10 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
C4, 5dr Hatch 04-10 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
C4, 5dr Hatch 05-10 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
C4, 5dr Hatch 06-09 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Ford
Focus, 3dr Hatch 08-11 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Focus, 3dr Hatch 08-11 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Focus, 3dr Hatch 08-11 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Focus, 3dr Hatch 08-11 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K412W

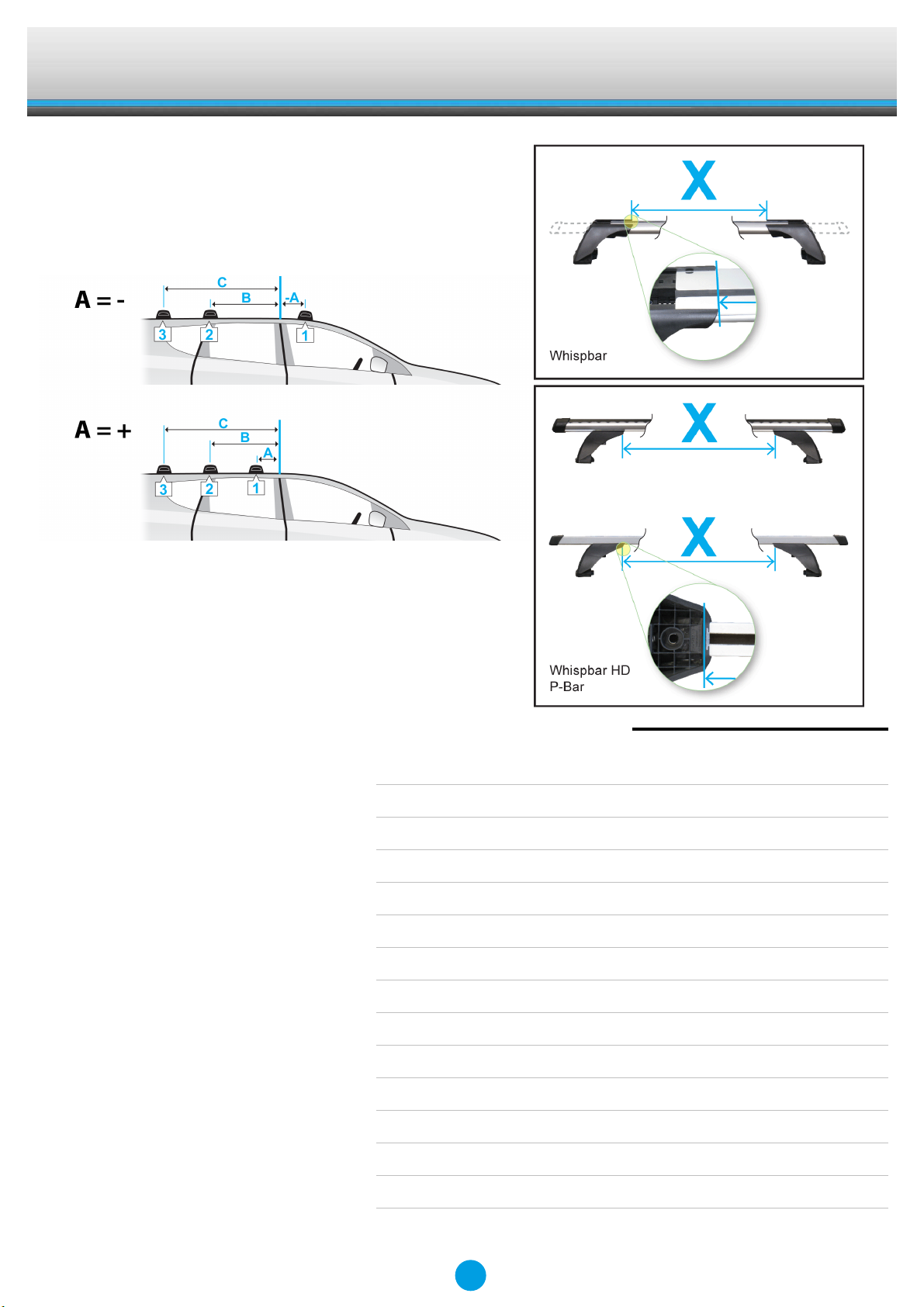

X
A B C 1 2 3
C4 Grand Picasso, 5dr MPV 07-13 (ZA) 240mm 470mm - 838mm 881mm -
9 7/16ths" 18 1/2ths" - 33" 34 11/16ths" -
C4 Picasso, 5dr MPV 07-+ (ZA) -240mm 470mm - 938mm 881mm -
-9 -7/16ths" 18 1/2ths" - 36 15/16ths" 34 11/16ths" -
C4 Picasso, 5dr MPV 07-12 (EU) -240mm 470mm - 938mm 881mm -
-9 -7/16ths" 18 1/2ths" - 36 15/16ths" 34 11/16ths" -
C4, 3dr Hatch 04-10 (EU) -300mm 400mm - 824mm 756mm -
-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -
C4, 3dr Hatch 06-09 (CN) -300mm 400mm - 824mm 756mm -
-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -
C4, 5dr Hatch 04-10 (AU) -300mm 400mm - 824mm 756mm -
-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -
C4, 5dr Hatch 04-10 (EU) -300mm 400mm - 824mm 756mm -
-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -
C4, 5dr Hatch 04-10 (NZ) -300mm 400mm - 824mm 756mm -
-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -
C4, 5dr Hatch 05-10 (ZA) -300mm 400mm - 824mm 756mm -
-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -
C4, 5dr Hatch 06-09 (CN) -300mm 400mm - 824mm 756mm -
-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -
Focus, 3dr Hatch 08-11 (NZ) -410mm 280mm - 875mm 850mm -
-16 -1/8ths" 11" - 34 7/16ths" 33 7/16ths" -
Focus, 3dr Hatch 08-11 (AU) -410mm 280mm - 875mm 850mm -
-16 -1/8ths" 11" - 34 7/16ths" 33 7/16ths" -
Focus, 3dr Hatch 08-11 (EU) -410mm 280mm - 875mm 850mm -
-16 -1/8ths" 11" - 34 7/16ths" 33 7/16ths" -
Focus, 3dr Hatch 08-11 (ZA) -410mm 280mm - 875mm 850mm -
-16 -1/8ths" 11" - 34 7/16ths" 33 7/16ths" -
3
Fitting Kit EN
K412W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K412W

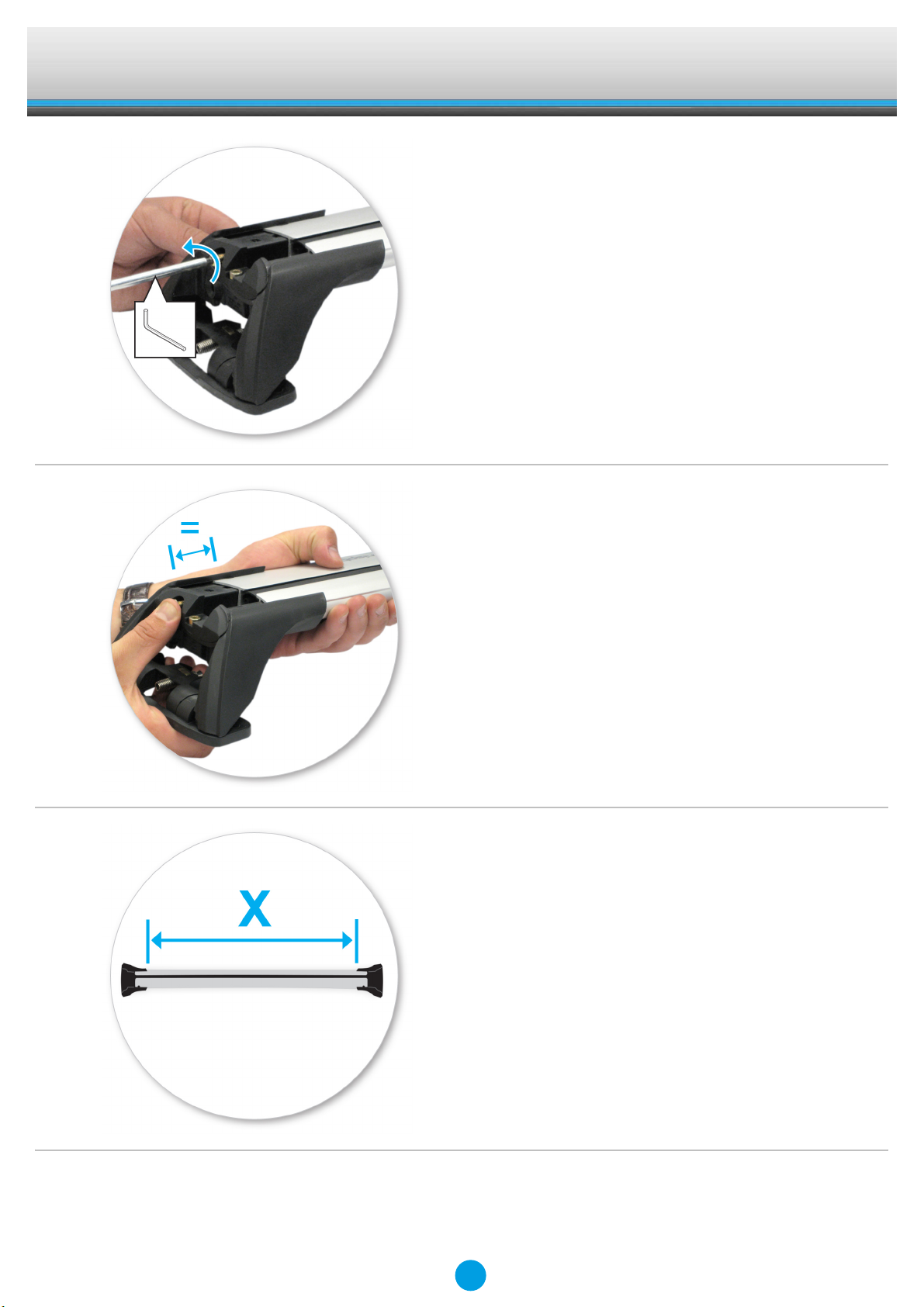

●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
5
Fitting Kit EN
K412W
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6
Fitting Kit EN
K412W
Fitment
●Open or remove fixed-point covers.
●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
●Refer to the underside of the pad for the
part number.
7
Fitting Kit EN
K412W
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-224
B = 11-04-225
●Ensure the fixed-point covers sit vertically
in the recess in the pads.
●NOTE: Citroen C4 Picasso only
●This product has two different bar
lengths.The longer bar should be used on
the front of the vehicle and the shorter bar
used on the rear.
8
Fitting Kit EN
K412W
●Place crossbars on pads ensuring the pads
fit into the holes underneath the foot and
the grubscrew passes through the hole in
the foot.
●Repeat for all four positions.
●Tighten the plastic knob. The side with the
nut showing should be facing up.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all legs.
9
Fitting Kit EN
K412W

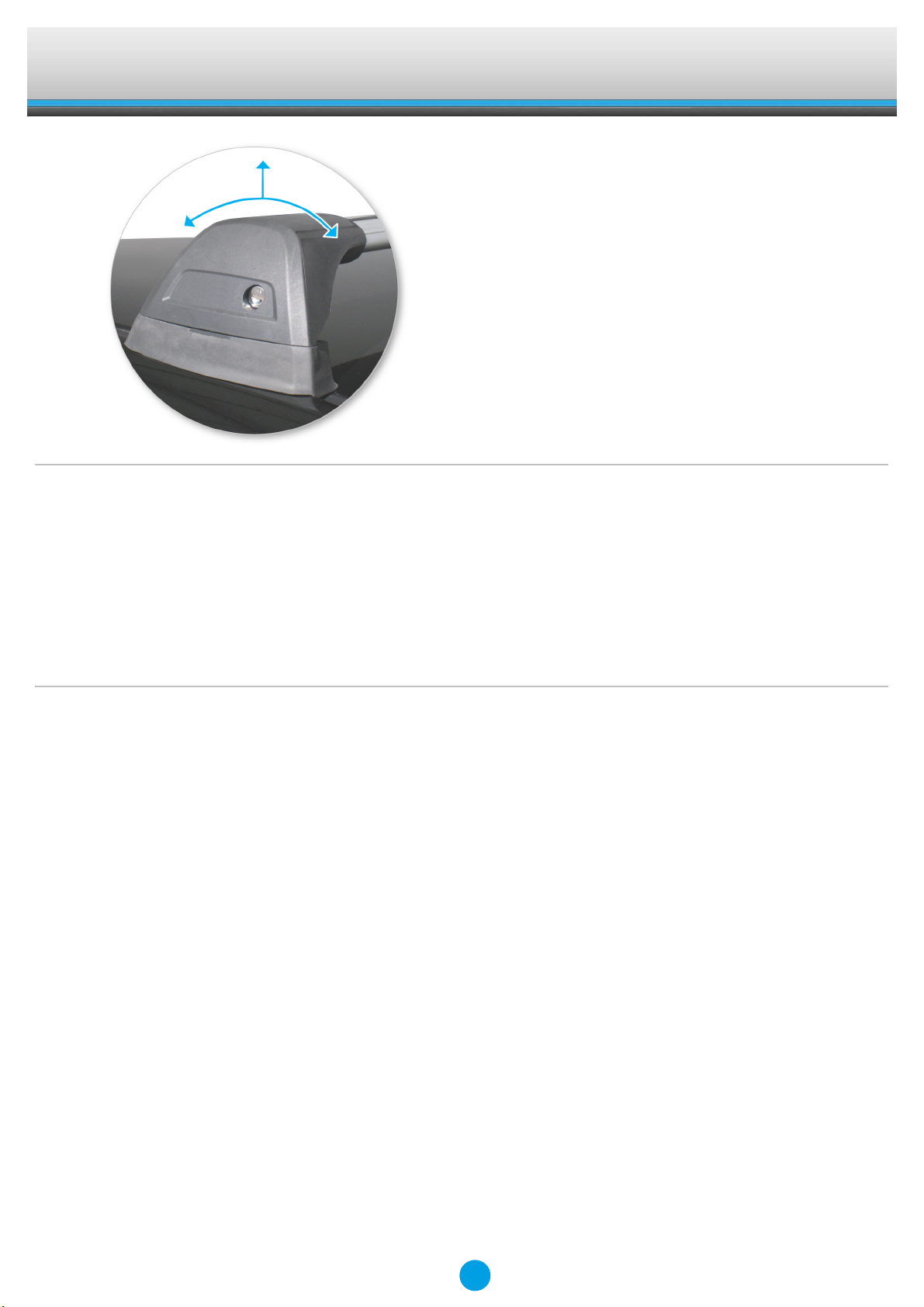

●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
