K649W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 1 x 1 x 1 x 1

x 1 x 1 x 1 x 1

Revision No: 6F 1

Fitting Kit K649W

x 1 x 1 x 1 x 1

x 2 x 2

2

Fitting Kit K649W

MAX kgs (lbs)

W/P WHD

Hyundai

Elantra, 4dr Sedan 11-15 ZA 65 kgs (143 lbs) 65 kgs (143 lbs)

Elantra, 4dr Sedan 11-15 EU 65 kgs (143 lbs) 65 kgs (143 lbs)

Elantra, 4dr Sedan 11-15 US 65 kgs (143 lbs) 65 kgs (143 lbs)

Elantra, 4dr Sedan 12-+ CN 65 kgs (143 lbs) 65 kgs (143 lbs)

Elantra, 4dr Sedan 15-16 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Elantra, 4dr Sedan 15-16 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Elantra, 4dr Sedan 15-16 US 75 kgs (165 lbs) 75 kgs (165 lbs)

Elantra, 4dr Sedan Jan 14-Jan 16 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Elantra, 4dr Sedan Jan 14-Jan 16 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Elantra, 4dr Sedan Jul 11-Dec 13 AU 65 kgs (143 lbs) 65 kgs (143 lbs)

Elantra, 4dr Sedan Jul 11-Dec 13 NZ 65 kgs (143 lbs) 65 kgs (143 lbs)

3

Fitting Kit K649W

X

A B C 1 2 3

Elantra, 4dr Sedan 11-15 (ZA) -310mm 340mm - 930mm 905mm -

-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -

Elantra, 4dr Sedan 11-15 (EU) -310mm 340mm - 930mm 905mm -

-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -

Elantra, 4dr Sedan 11-15 (US) -310mm 340mm - 930mm 905mm -

-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -

Elantra, 4dr Sedan 12-+ (CN) -310mm 340mm - 930mm 905mm -

-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -

Elantra, 4dr Sedan 15-16 (EU) -310mm 340mm - 930mm 905mm -

-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -

Elantra, 4dr Sedan 15-16 (ZA) -310mm 340mm - 930mm 905mm -

-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -

Elantra, 4dr Sedan 15-16 (US) -310mm 340mm - 930mm 905mm -

-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -

Elantra, 4dr Sedan Jan 14-Jan 16 (AU) -310mm 340mm - 930mm 905mm -

-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -

Elantra, 4dr Sedan Jan 14-Jan 16 (NZ) -310mm 340mm - 930mm 905mm -

-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -

Elantra, 4dr Sedan Jul 11-Dec 13 (AU) -310mm 340mm - 930mm 905mm -

-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -

Elantra, 4dr Sedan Jul 11-Dec 13 (NZ) -310mm 340mm - 930mm 905mm -

-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -

4

Fitting Kit EN

K649W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

5

Fitting Kit EN

K649W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

6

Fitting Kit EN

K649W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A = Clear

B = Grey

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = A290

B = A291

C = A292

D = A293

7

Fitting Kit EN

K649W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

8

Fitting Kit EN

K649W

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 295A

B = 296A

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

9

Fitting Kit EN

K649W

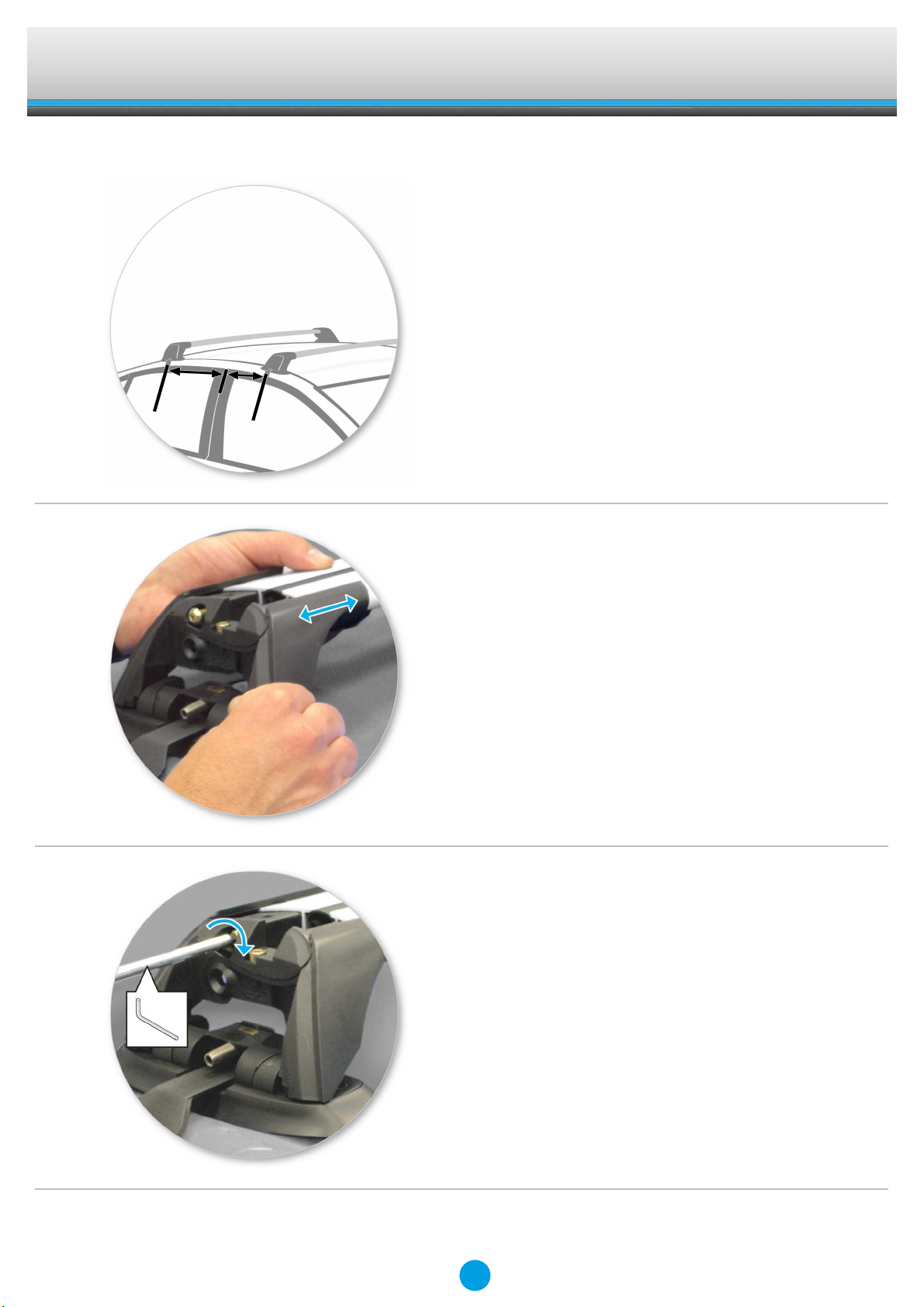

Fitment

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

10
