Whispbar K751W Bedienungsanleitung

K751W

Fitting Kit

EN Fitting Instructions for Basic Carrier

CZ Pokyny pro montáž základních nosičů

HU Felszerelési útmutató a

tetőcsomagtartóhoz

SK Pokyny pre montáž základných nosičov

x 2 x 2 x 4 x 4

x 1 x 1 x 1 x 1

Revision No: 2B 1

Fitting Kit K751W

MAX kgs (lbs)

W/P WHD

Opel

Astra, 4dr Sedan 13-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

New Astra, 4dr Sedan 13-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K751W

A B C 1 2 3

Astra, 4dr Sedan 13-+ (EU) -175mm 525mm - 795mm 760mm -

-6 -7/8ths" 20 11/16ths" - 31 5/16ths" 29 15/16ths" -

Astra, 4dr Sedan 13-+ (EU) -175mm 525mm - 795mm 760mm -

-6 -7/8ths" 20 11/16ths" - 31 5/16ths" 29 15/16ths" -

New Astra, 4dr Sedan 13-+ (ZA) -175mm 525mm - 795mm 760mm -

-6 -7/8ths" 20 11/16ths" - 31 5/16ths" 29 15/16ths" -

Fitting Kit EN

K751W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K751W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K751W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K751W

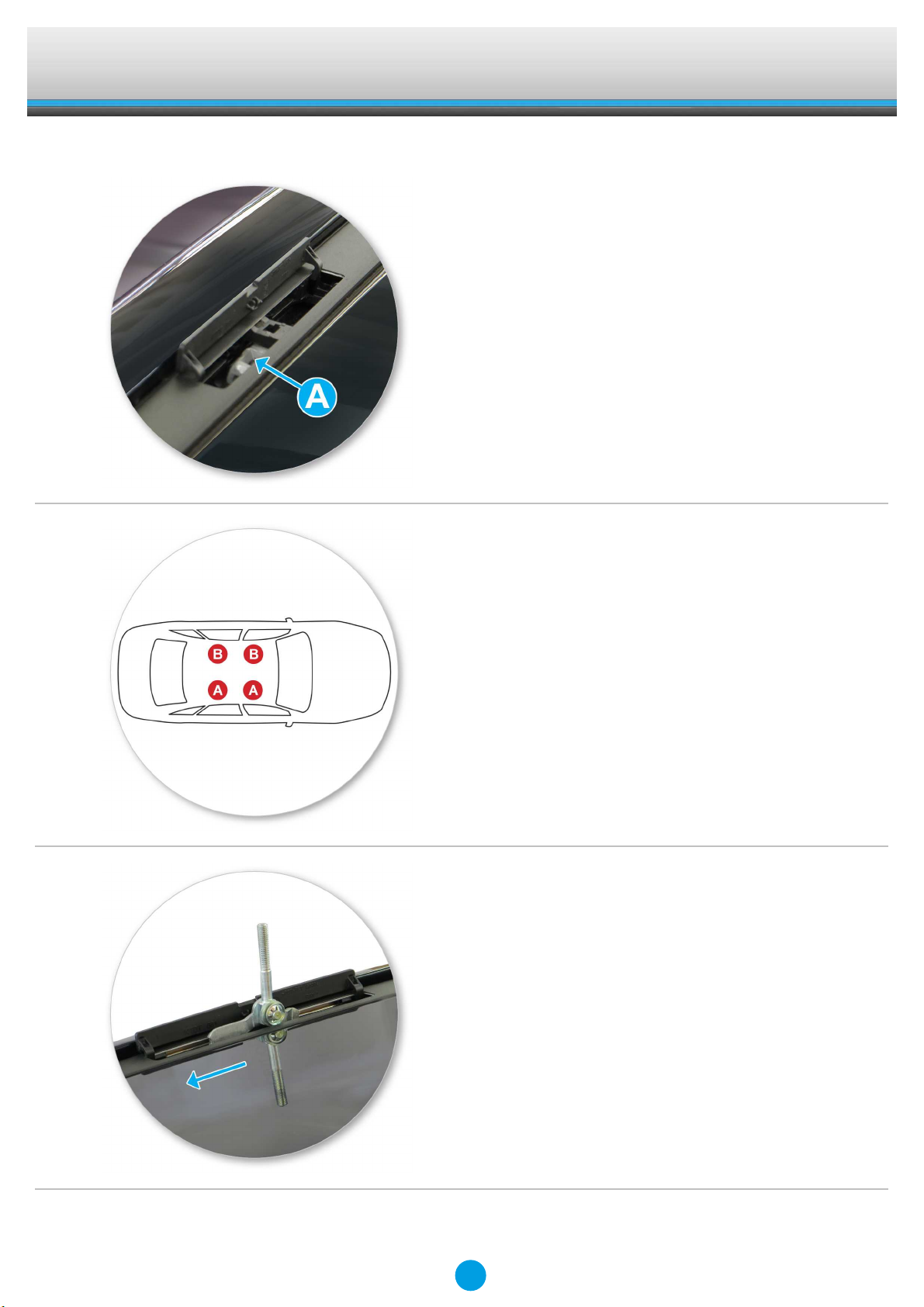

Fitment

●Open or remove fixed-point covers.

●Locate fixed clamping block A

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 095

B = 096

●Hook small claw into rear of the clamping

block

●Hook large claw into front of the clamping

block

Fitting Kit EN

K751W

●Refer to the underside of the pad for the

part number.

●Letters refer to the pad part numbers and

position.

●It is important to put the pads in the correct

position on the vehicle.

●Pad Part Number:

A = 233

B = 234

C = 267

D = 268

●Ensure internal clamp sits upright.

●Fit pad carefully over fixed point and clamp

screw.

Fitting Kit EN

K751W

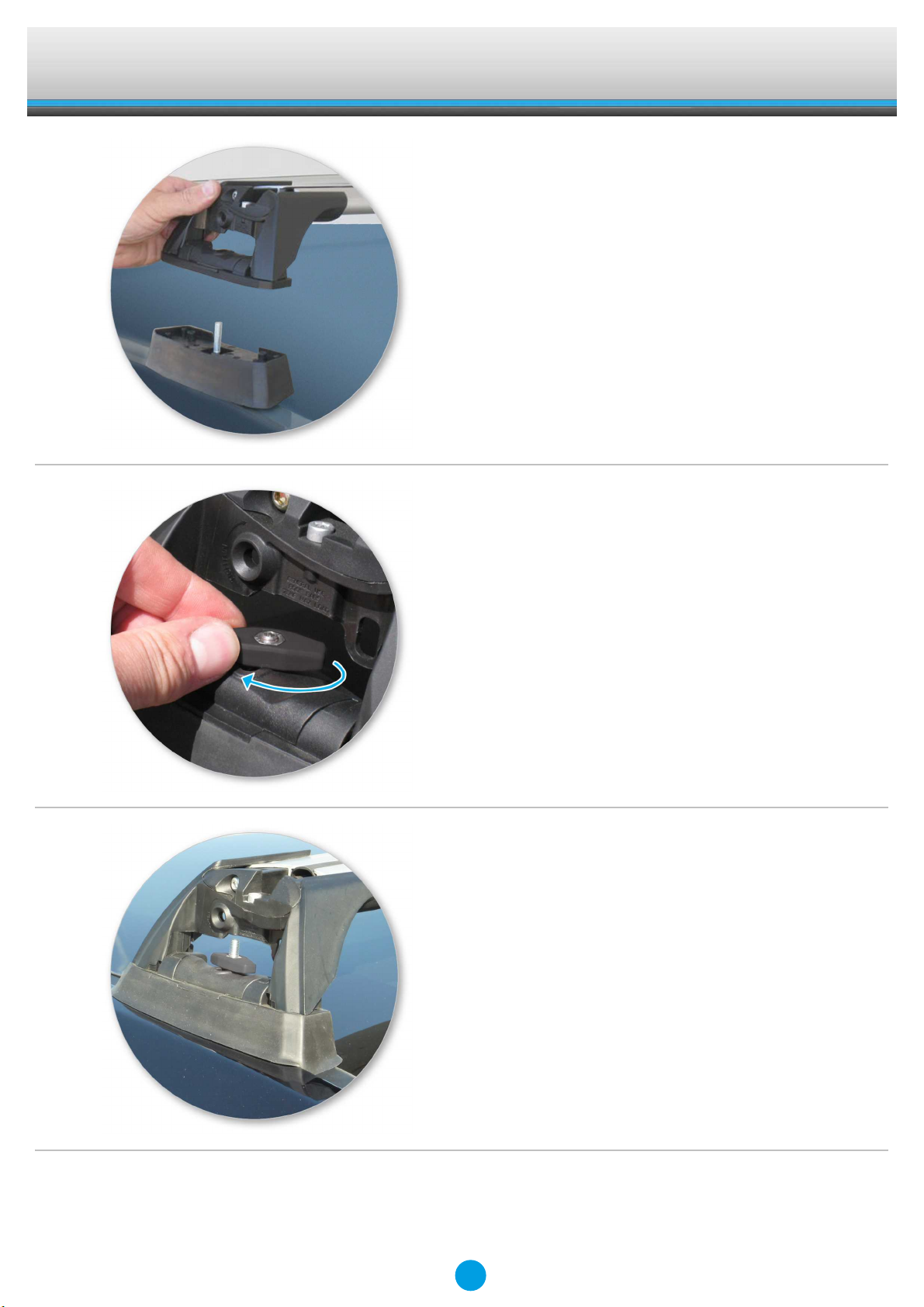

●Mount crossbars over clamps.

●Repeat for all legs.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all four positions.

Fitting Kit EN

K751W

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
