Whispbar K1004W Bedienungsanleitung

K1004W

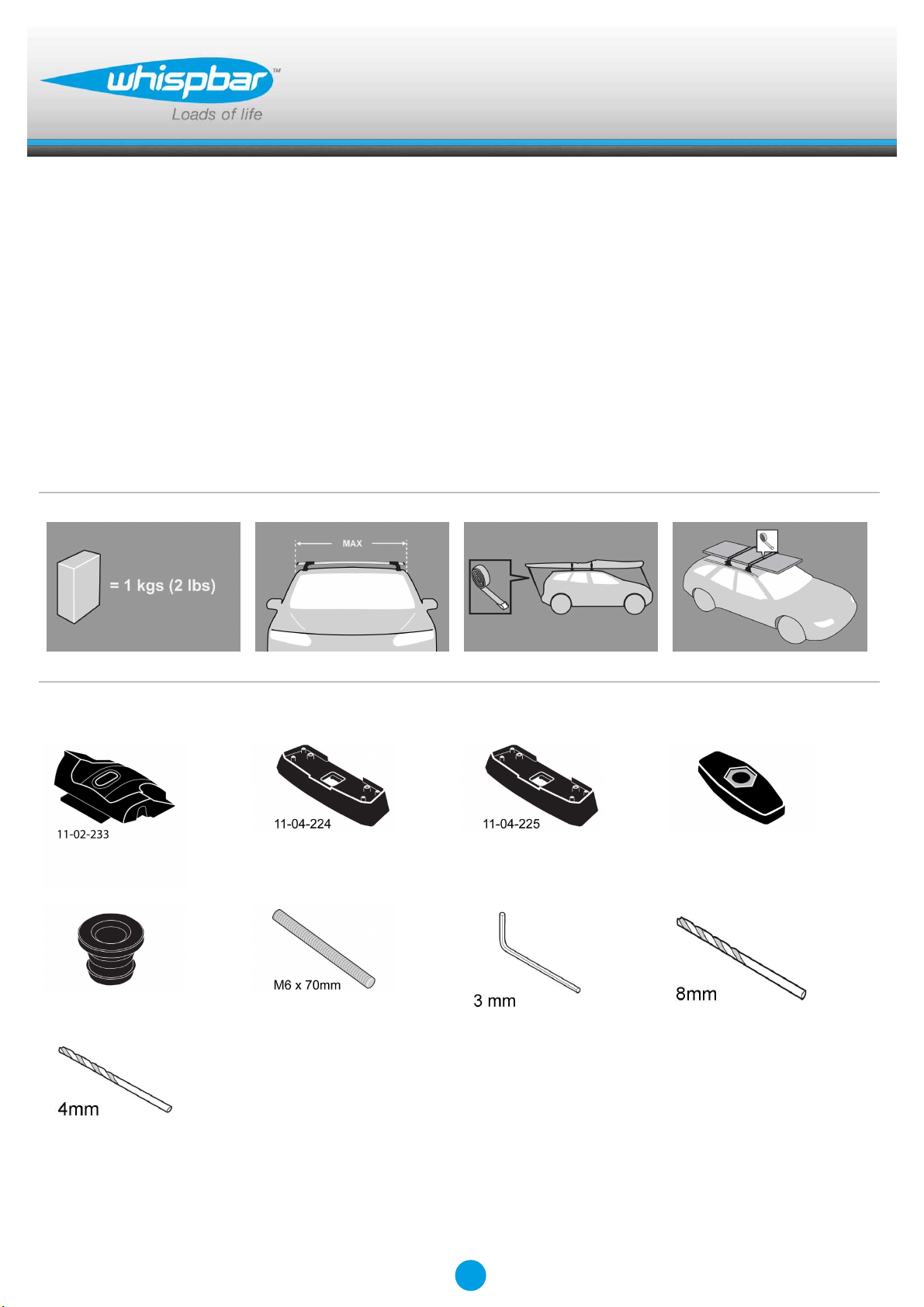

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 2 x 2 x 4

x 4 x 4 x 1 x 1

x 1

Revision No: 1A 1

Fitting Kit K1004W

MAX kgs (lbs)

W/P WHD

Fiat

500X, 5dr Hatch 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

500X, 5dr Hatch 15-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

500X, 5dr Hatch 15-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

500X, 5dr Hatch 16-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K1004W

A B C 1 2 3

500X, 5dr Hatch 15-+ (AU) -210mm 515mm - 850mm 810mm -

-8 -1/4ths" 20 1/4ths" - 33 7/16ths" 31 7/8ths" -

500X, 5dr Hatch 15-+ (EU) -210mm 515mm - 850mm 810mm -

-8 -1/4ths" 20 1/4ths" - 33 7/16ths" 31 7/8ths" -

500X, 5dr Hatch 15-+ (ZA) -210mm 515mm - 850mm 810mm -

-8 -1/4ths" 20 1/4ths" - 33 7/16ths" 31 7/8ths" -

500X, 5dr Hatch 16-+ (NZ) -210mm 515mm - 850mm 810mm -

-8 -1/4ths" 20 1/4ths" - 33 7/16ths" 31 7/8ths" -

Fitting Kit EN

K1004W

Items you will require:

●Tape measure

Pen

Cordless drill

4mm drill bit

8mm drill bit

Masking tape

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

Fitting Kit EN

K1004W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K1004W

●Attaches to factory-fitted mounting points

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

Fitting Kit EN

K1004W

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitment

●Locate ditch mouldings on roof.

●Measure from the front of the ditch mould.

●A = 465mm (18 1/4")

B = 1210mm (47 5/8")

Fitting Kit EN

K1004W

●Apply masking tape to ditch in all four

positions.

●Mark reference point on masking tape with

a pen.

●A = 465mm (18 1/4")

B = 1210mm (47 5/8")

●Mark reference point on masking tape with

a pen.

●C = 12mm (1/2").

Fitting Kit EN

K1004W

●Carefully remove centre section of ditch

mould with flat-head screwdriver.

●Locate vehicle's fixed points.

●Position as shown.

Fitting Kit EN

K1004W

●Use the 4mm drill bit (supplied), to drill

holes in marked positions.

●Use the 8mm drill bit (supplied), to drill

holes in marked positions.

●Repeat for all four positions.

●Vacuum and clean swarf from channel.

●Re-install rubber ditch mould in roof

channel.

●Align holes.

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.
