Whispbar K751W Bedienungsanleitung

K751W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema

de transporte

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

x 2 x 2 x 4 x 4

x 1 x 1 x 1 x 1

Revision No: 2B 1

Fitting Kit K751W

MAX kgs (lbs)

W/P WHD

Opel

Astra, 4dr Sedan 13-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

New Astra, 4dr Sedan 13-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K751W

A B C 1 2 3

Astra, 4dr Sedan 13-+ (EU) -175mm 525mm - 795mm 760mm -

-6 -7/8ths" 20 11/16ths" - 31 5/16ths" 29 15/16ths" -

Astra, 4dr Sedan 13-+ (EU) -175mm 525mm - 795mm 760mm -

-6 -7/8ths" 20 11/16ths" - 31 5/16ths" 29 15/16ths" -

New Astra, 4dr Sedan 13-+ (ZA) -175mm 525mm - 795mm 760mm -

-6 -7/8ths" 20 11/16ths" - 31 5/16ths" 29 15/16ths" -

Fitting Kit EN

K751W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K751W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K751W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K751W

Fitment

●Open or remove fixed-point covers.

●Locate fixed clamping block A

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 095

B = 096

●Hook small claw into rear of the clamping

block

●Hook large claw into front of the clamping

block

Fitting Kit EN

K751W

●Refer to the underside of the pad for the

part number.

●Letters refer to the pad part numbers and

position.

●It is important to put the pads in the correct

position on the vehicle.

●Pad Part Number:

A = 233

B = 234

C = 267

D = 268

●Ensure internal clamp sits upright.

●Fit pad carefully over fixed point and clamp

screw.

Fitting Kit EN

K751W

●Mount crossbars over clamps.

●Repeat for all legs.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all four positions.

Fitting Kit EN

K751W

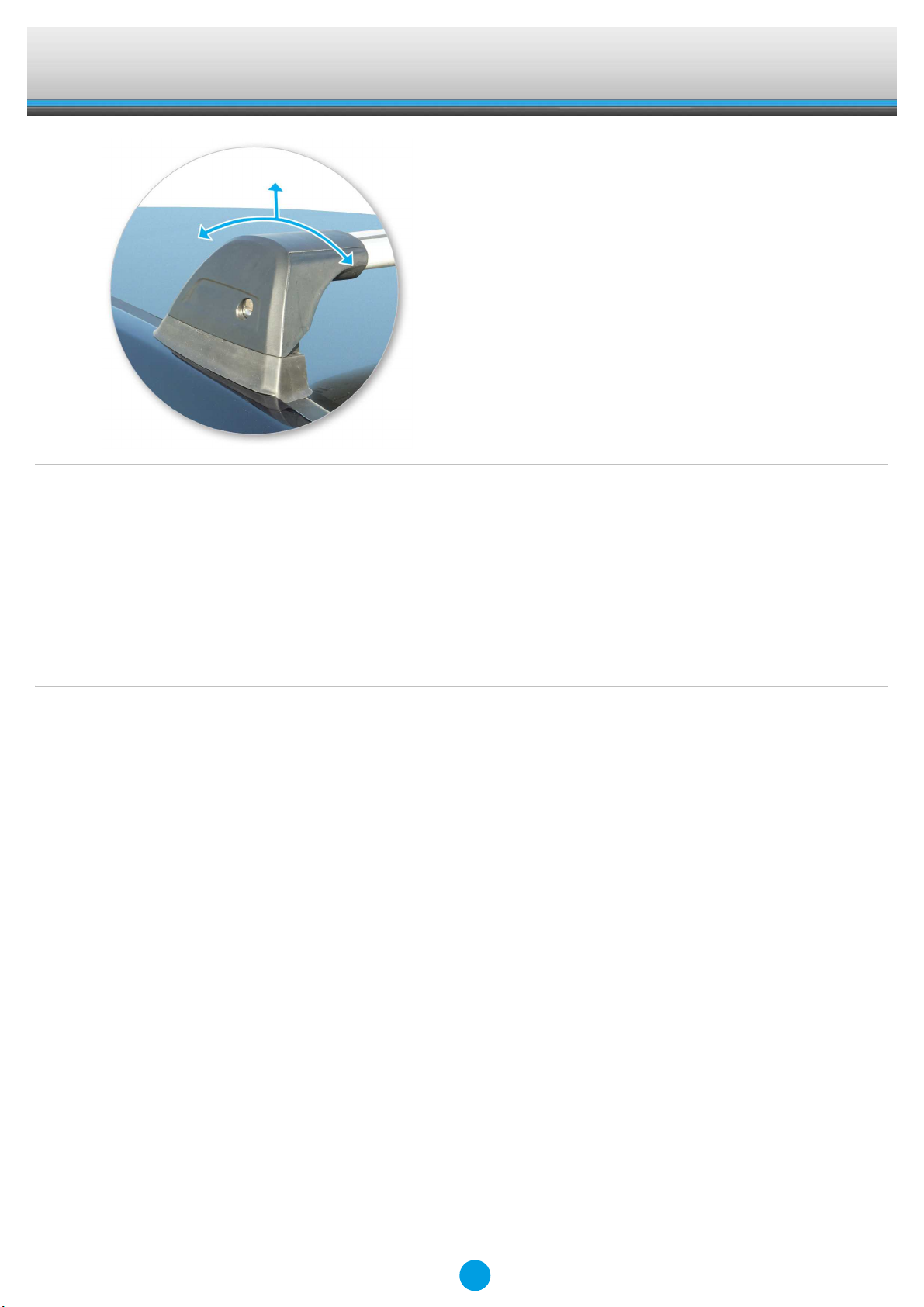

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
