K868W

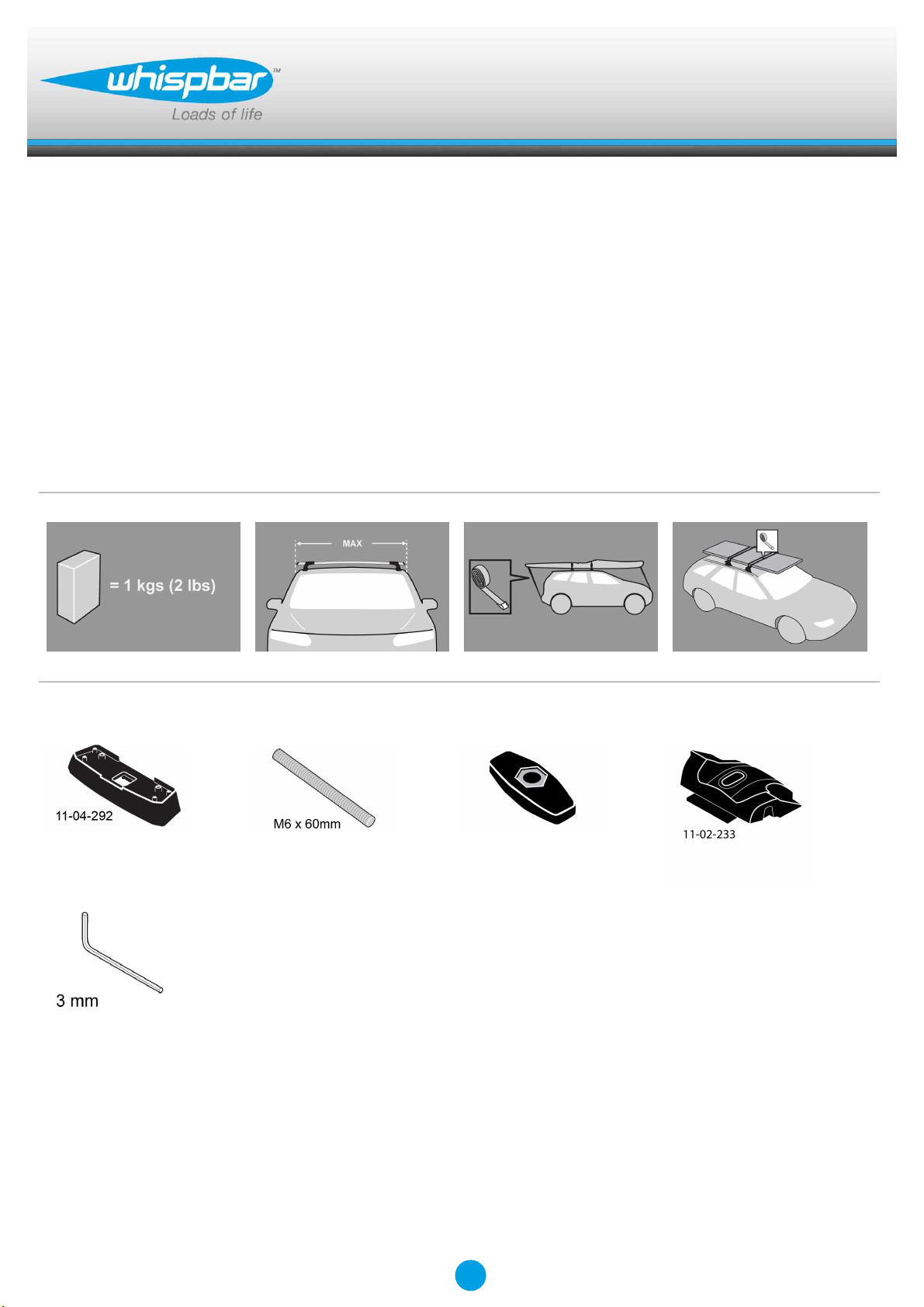

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 4

x 1

Revision No: 2B 1

Fitting Kit K868W

MAX kgs (lbs)

W/P WHD

Mercedes-Benz

Tourer, 5dr Van 14-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Tourer, 5dr Van 15-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Valente, 5dr Van 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Valente, 5dr Van 15-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Vito 2 Bar, 4dr Van 14-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Vito 2 Bar, 4dr Van 14-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Vito 2 Bar, 4dr Van 14-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Vito 2 Bar, 4dr Van 15-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Vito 2 Bar, 4dr Van Aug 15-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Vito 2 Bar, 4dr Van Jul 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Vito, 4dr Van 04-14 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K868W

X

A B C 1 2 3

Tourer, 5dr Van 14-+ (EU) 245mm 1085mm - 1105mm 1125mm -

9 5/8ths" 42 11/16ths" - 43 1/2ths" 44 5/16ths" -

Tourer, 5dr Van 15-+ (ZA) 245mm 1085mm - 1105mm 1125mm -

9 5/8ths" 42 11/16ths" - 43 1/2ths" 44 5/16ths" -

Valente, 5dr Van 15-+ (AU) 245mm 1085mm - 1105mm 1125mm -

9 5/8ths" 42 11/16ths" - 43 1/2ths" 44 5/16ths" -

Valente, 5dr Van 15-+ (NZ) 245mm 1085mm - 1105mm 1125mm -

9 5/8ths" 42 11/16ths" - 43 1/2ths" 44 5/16ths" -

Vito 2 Bar, 4dr Van 14-+ (EU) 330mm 1080mm - 1115mm 1135mm -

13" 42 1/2ths" - 43 7/8ths" 44 11/16ths" -

Vito 2 Bar, 4dr Van 14-+ (ZA) 330mm 1080mm - 1115mm 1135mm -

13" 42 1/2ths" - 43 7/8ths" 44 11/16ths" -

Vito 2 Bar, 4dr Van 14-+ (CN) 330mm 1080mm - 1115mm 1135mm -

13" 42 1/2ths" - 43 7/8ths" 44 11/16ths" -

Vito 2 Bar, 4dr Van 15-+ (US) 330mm 1080mm - 1115mm 1135mm -

13" 42 1/2ths" - 43 7/8ths" 44 11/16ths" -

Vito 2 Bar, 4dr Van Aug 15-+ (NZ) 330mm 1080mm - 1115mm 1135mm -

13" 42 1/2ths" - 43 7/8ths" 44 11/16ths" -

Vito 2 Bar, 4dr Van Jul 15-+ (AU) 330mm 1080mm - 1115mm 1135mm -

13" 42 1/2ths" - 43 7/8ths" 44 11/16ths" -

Vito, 4dr Van 04-14 (EU) 250mm 1090mm 2120mm 1120mm 1140mm 1145mm

9 13/16ths" 42 15/16ths" 83 7/16ths" 44 1/8ths" 44 7/8ths" 45 1/16ths"

3

Fitting Kit EN

K868W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K868W

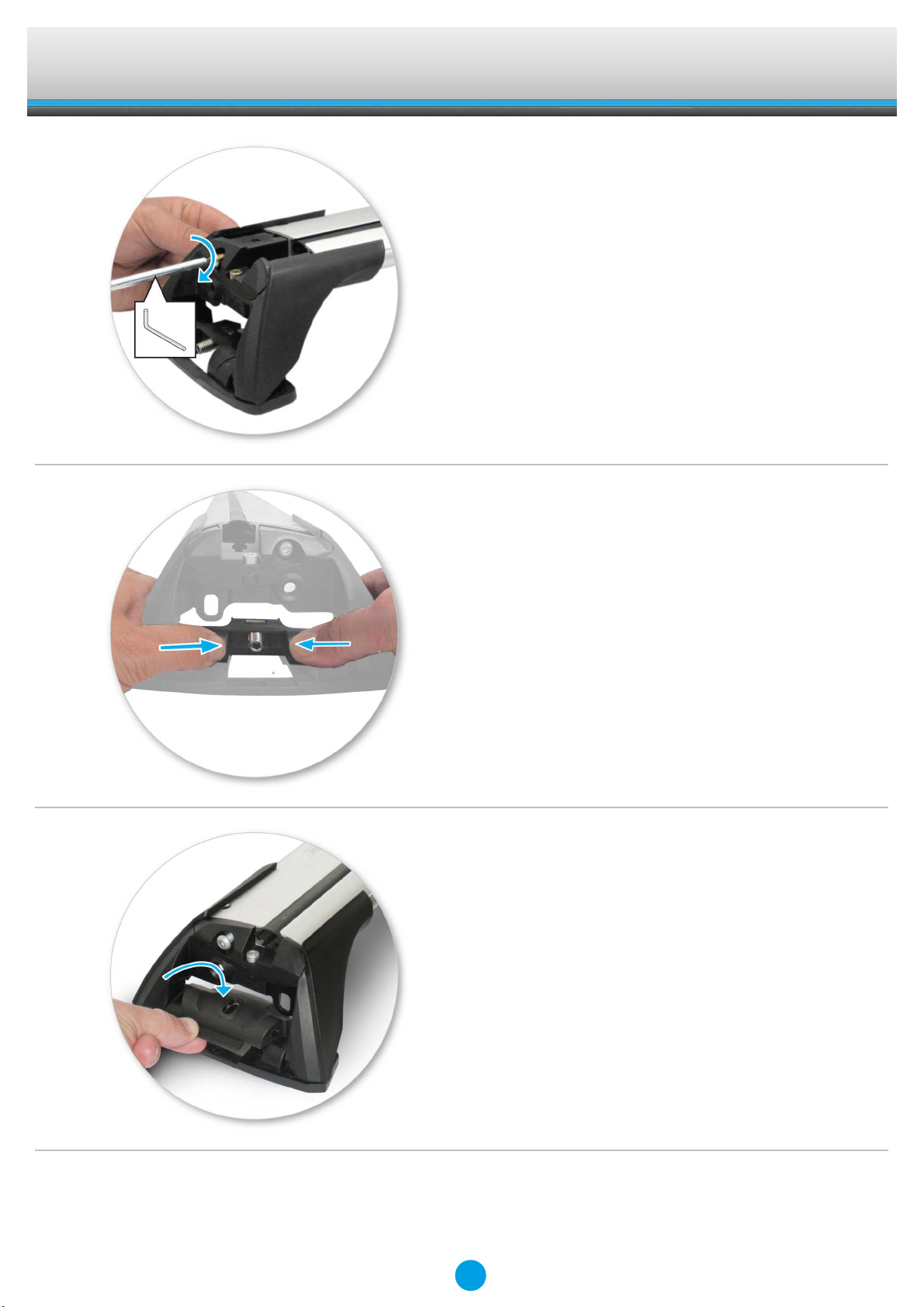

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

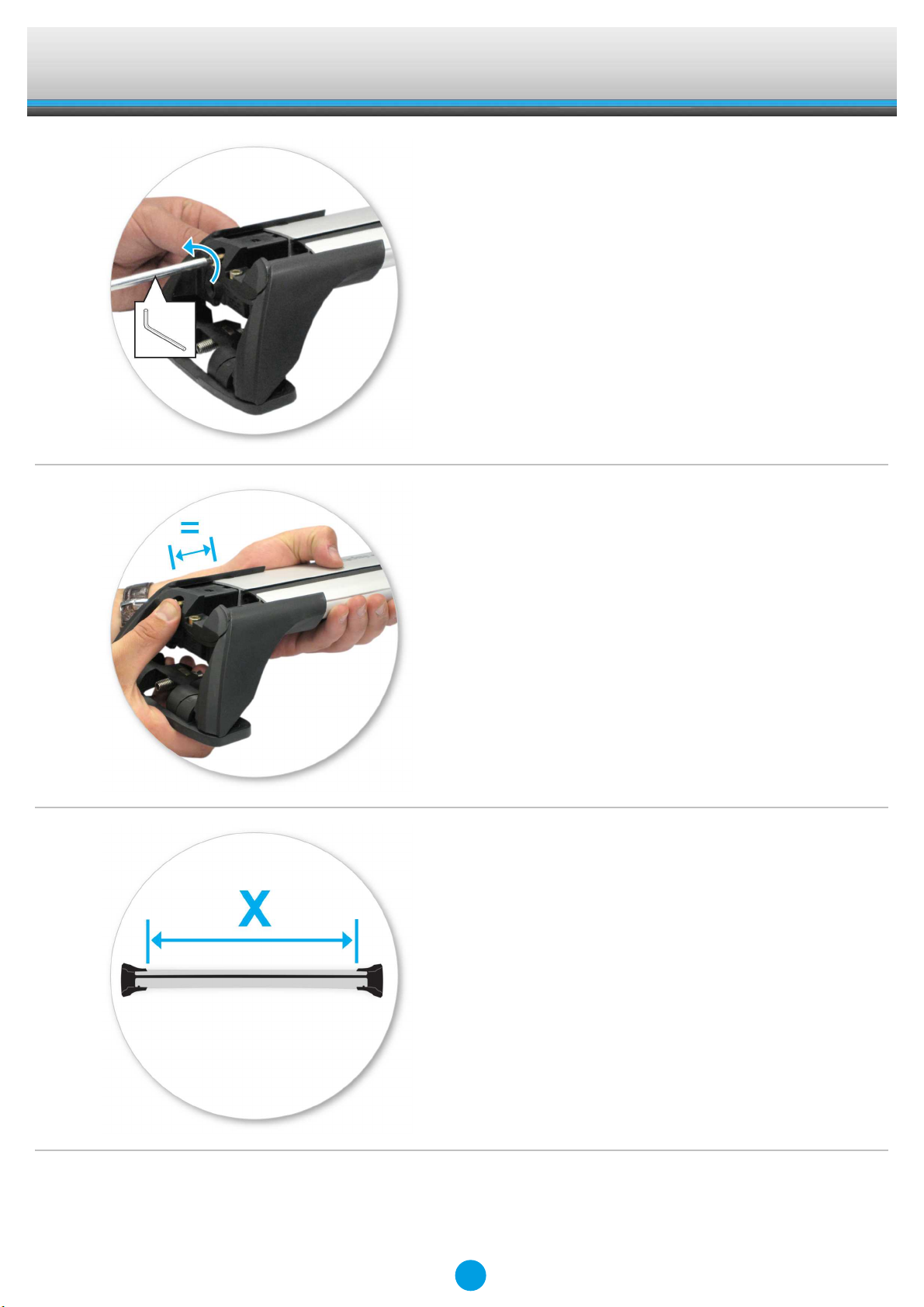

●Ensure each end of the crossbar is

adjusted equally.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Please check the front of this manual for

information relating specifically to your

vehicle.

5

Fitting Kit EN

K868W

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

6

Fitting Kit EN

K868W

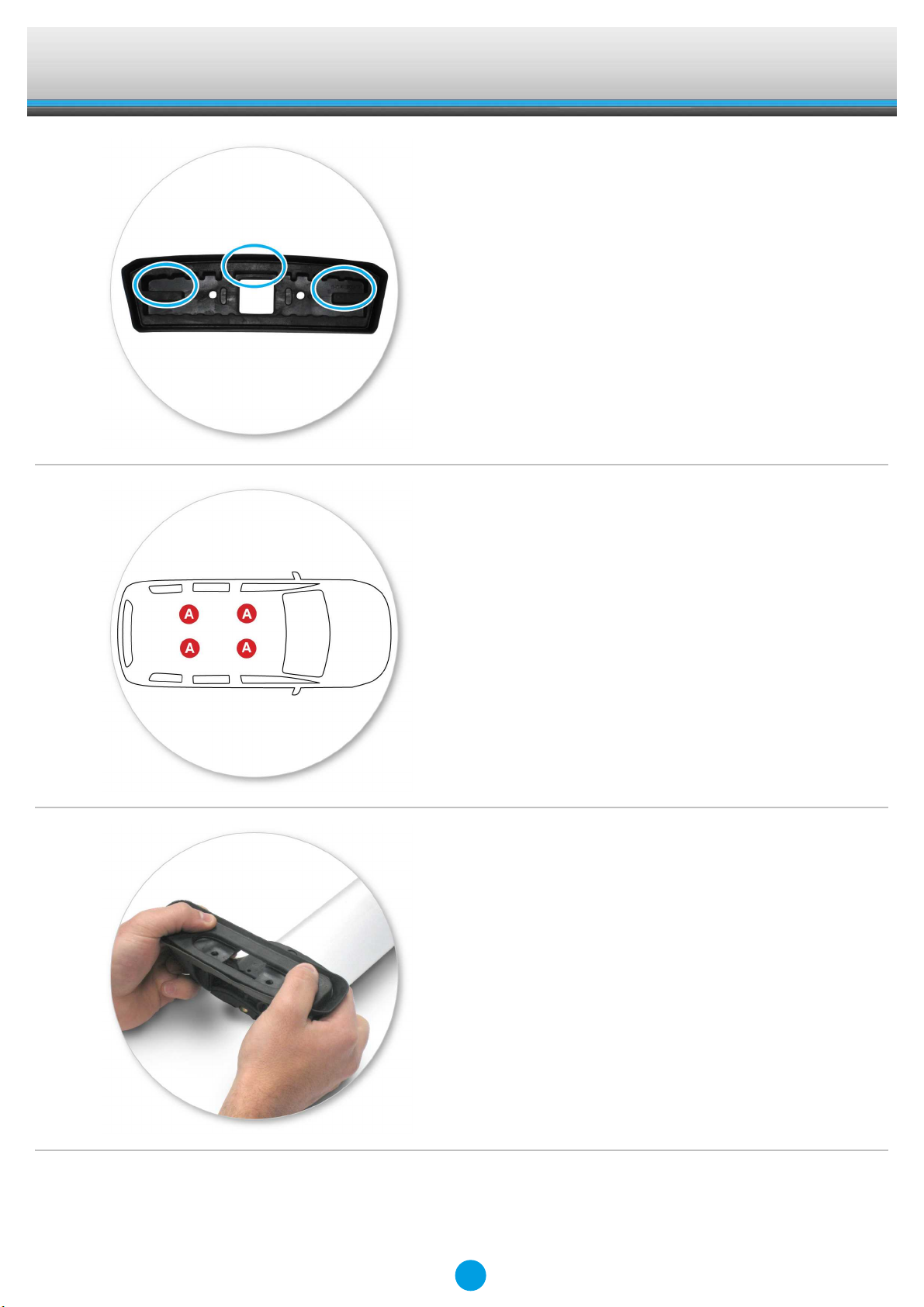

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 292A

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

7

Fitting Kit EN

K868W

Fitment

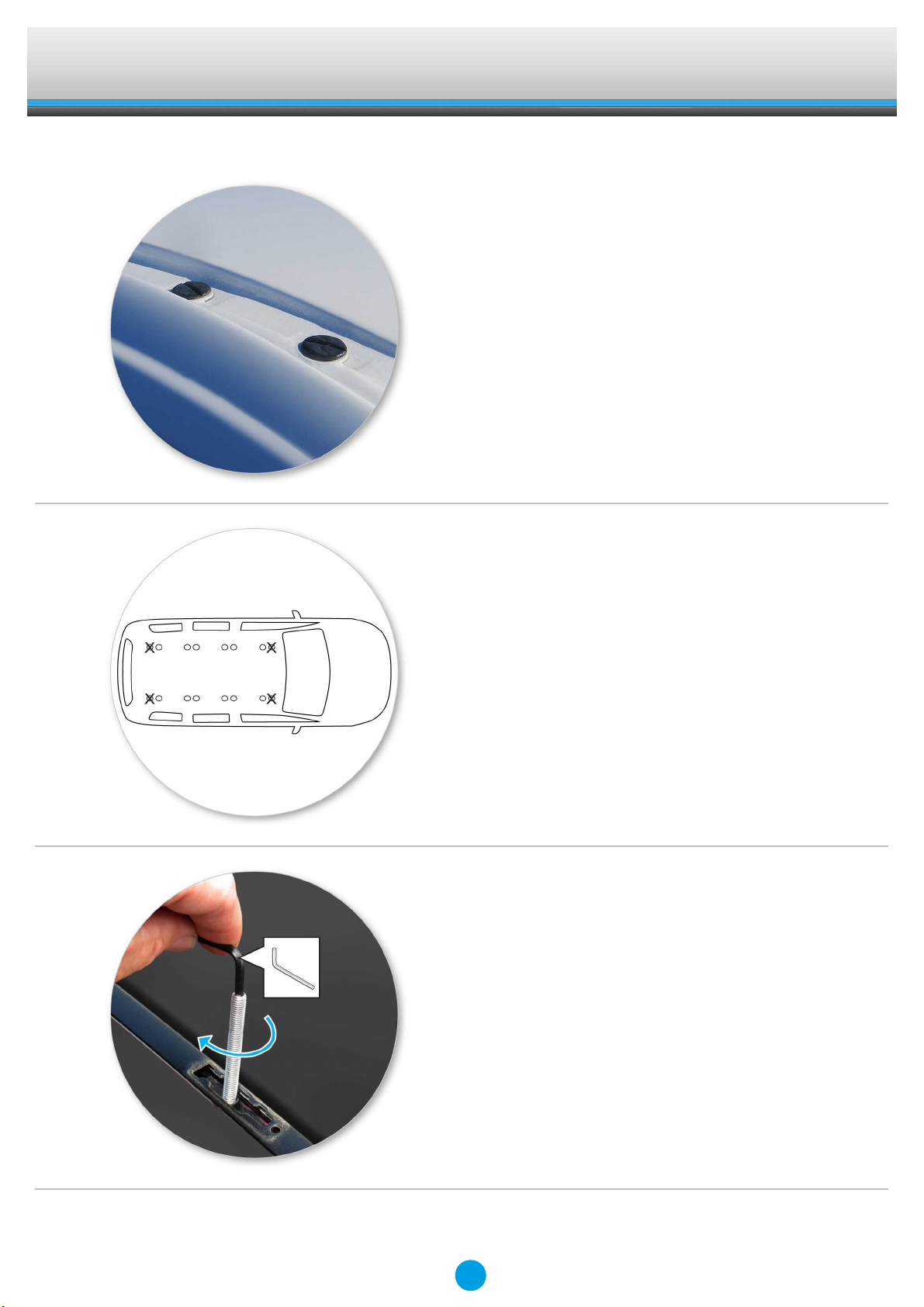

●Open or remove fixed-point covers.

●Attaches to factory-fitted mounting points.

Do not use mounting points with "X".

●Remove fixed-point covers by turning the

plastic screw with flat-head screw driver.

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

8

Fitting Kit EN

K868W

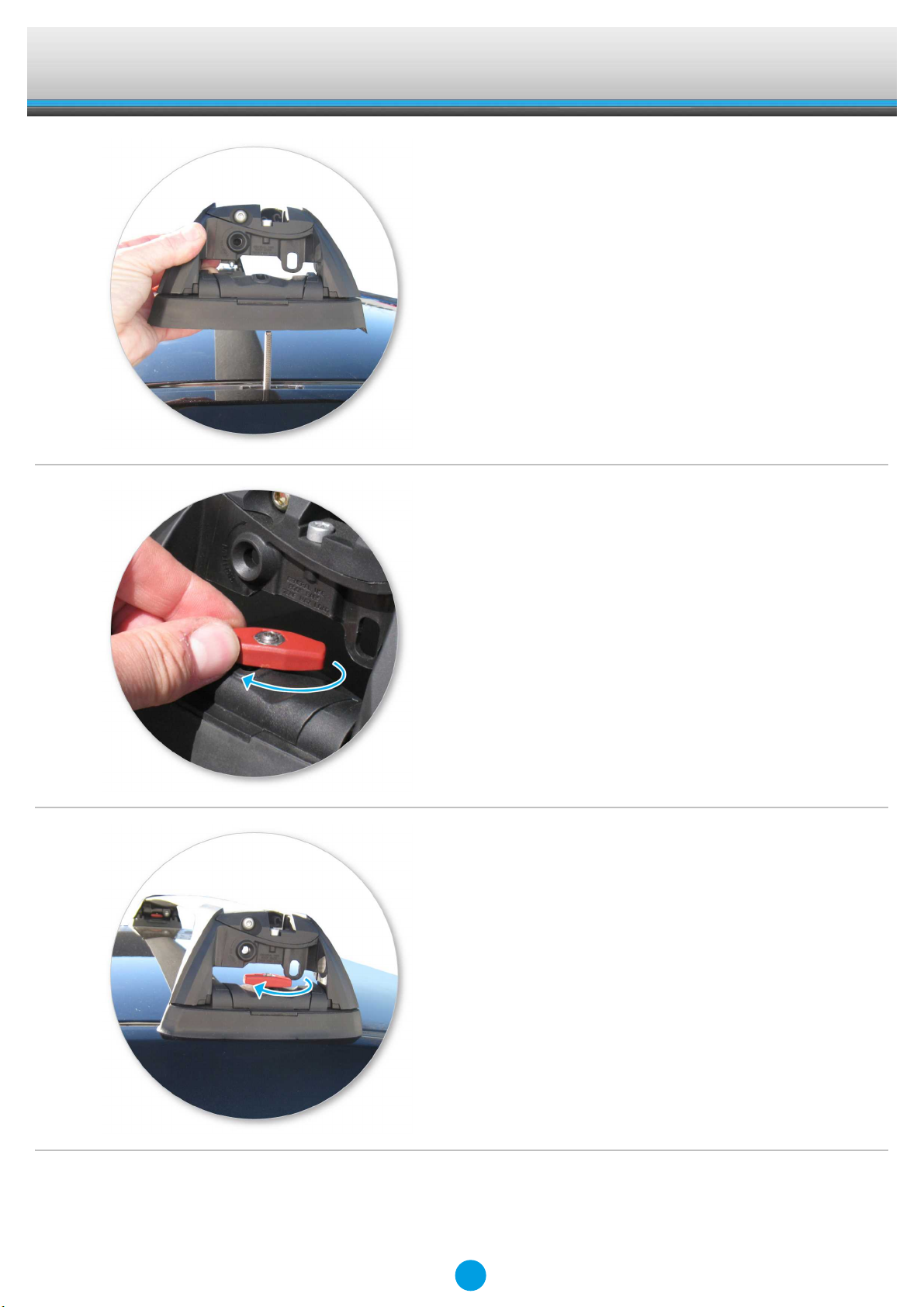

●Place crossbar foot over grubscrews.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●In the fully tightened position, the knobs

should be parallel with the vehicle.

●Repeat for all four positions.

9

Fitting Kit EN

K868W

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

10
