Whispbar K945W Bedienungsanleitung

K945W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 6 x 6 x 6 x 6

Revision No: 1A 1

Fitting Kit K945W

MAX kgs (lbs)

W/P WHD

Iveco

Daily Low Roof, 4dr Van 15-+ NZ 100 kgs (220 lbs) 100 kgs (220 lbs)

Daily Low Roof, 4dr Van 15-+ ZA 100 kgs (220 lbs) 100 kgs (220 lbs)

Daily Low Roof, 4dr Van May 15-+ AU 100 kgs (220 lbs) 100 kgs (220 lbs)

Daily Mid Roof, 4dr Van 15-+ AU 100 kgs (220 lbs) 100 kgs (220 lbs)

Daily Mid Roof, 4dr Van 15-+ NZ 100 kgs (220 lbs) 100 kgs (220 lbs)

Daily Mid Roof, 4dr Van 15-+ ZA 100 kgs (220 lbs) 100 kgs (220 lbs)

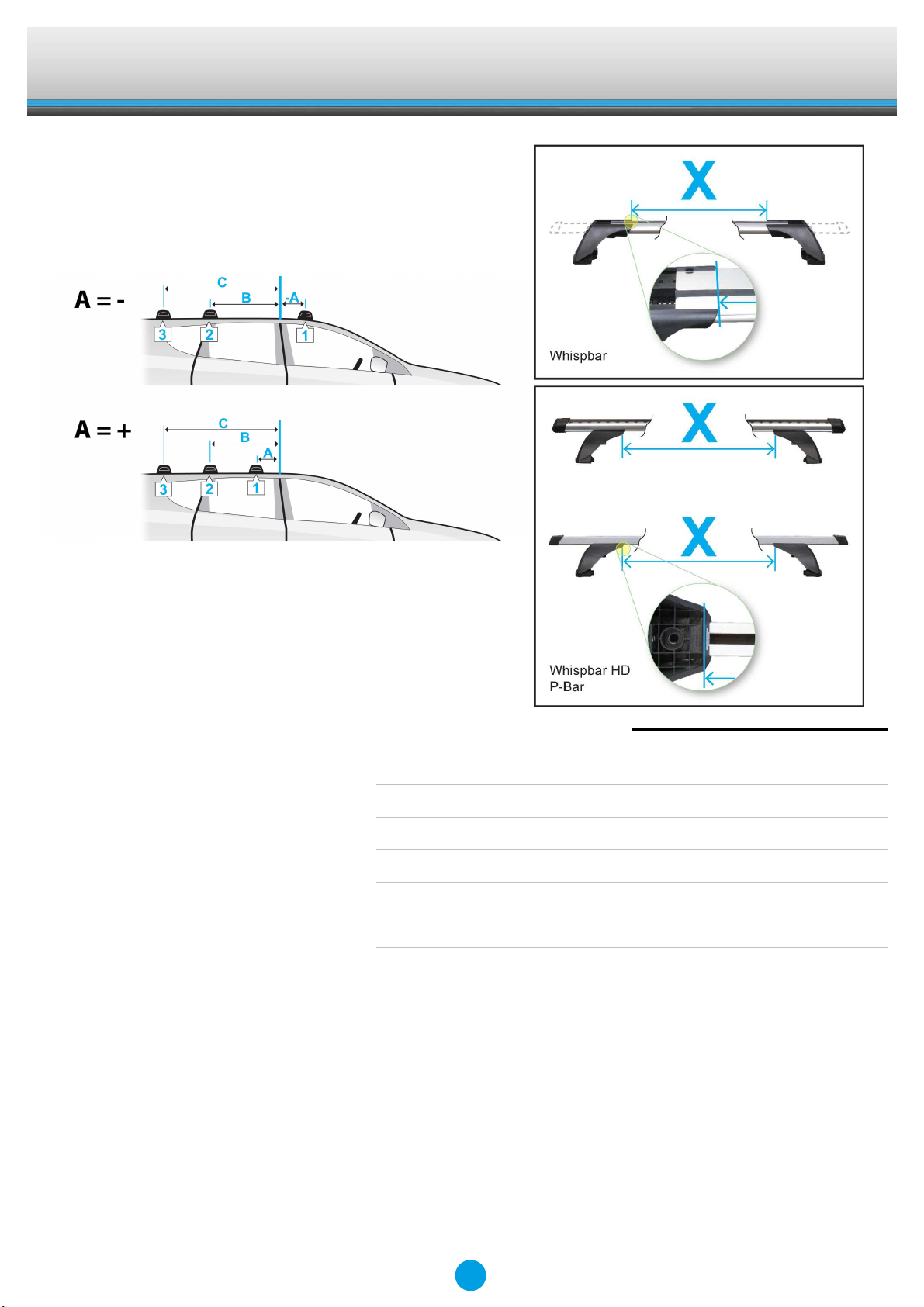

Fitting Kit K945W

A B C 1 2 3

Daily Low Roof, 4dr Van 15-+ (NZ) 1060mm 1860mm 2660mm 1050mm 1050mm 1050mm

41 3/4ths" 73 1/4ths" 104 3/4ths" 41 5/16ths" 41 5/16ths" 41 5/16ths"

Daily Low Roof, 4dr Van 15-+ (ZA) 1060mm 1860mm 2660mm 1050mm 1050mm 1050mm

41 3/4ths" 73 1/4ths" 104 3/4ths" 41 5/16ths" 41 5/16ths" 41 5/16ths"

Daily Low Roof, 4dr Van May 15-+ (AU) 1060mm 1860mm 2660mm 1050mm 1050mm 1050mm

41 3/4ths" 73 1/4ths" 104 3/4ths" 41 5/16ths" 41 5/16ths" 41 5/16ths"

Daily Mid Roof, 4dr Van 15-+ (AU) 1400mm 2300mm 3200mm 735mm 735mm 735mm

55 1/8ths" 90 9/16ths" 126" 28 15/16ths" 28 15/16ths" 28 15/16ths"

Daily Mid Roof, 4dr Van 15-+ (NZ) 1400mm 2300mm 3200mm 735mm 735mm 735mm

55 1/8ths" 90 9/16ths" 126" 28 15/16ths" 28 15/16ths" 28 15/16ths"

Daily Mid Roof, 4dr Van 15-+ (ZA) 1400mm 2300mm 3200mm 735mm 735mm 735mm

55 1/8ths" 90 9/16ths" 126" 28 15/16ths" 28 15/16ths" 28 15/16ths"

Fitting Kit EN

K945W

Items you will require:

●Tape measure

Pen

Flat-head screwdriver

Craft knife

Side cutters or tin snips

Hammer

8mm (3/8") punch

Cordless drill

Depth stop

Vacuum cleaner

Rust inhibitor

Small paint brush

Neutral cure silicon sealant

Rivet gun

Attention:

●Attaches with permanent tracks riveted to

roof. Bar can be removed

●Professional installation recommended.

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

Fitting Kit EN

K945W

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Assemble front and rear plugs to tracks.

Note: Rear plug shown in picture.

●Carefully select position on vehicle roof

making sure that your crossbar lengths will

match selected positions for the tracks.

●Apply long lengths of masking tape to

vehicle roof in both positions.

●Make sure there is no interference between

what you intend to carry with aerials,

sunroof or tailgate.

Fitting Kit EN

K945W

●Tracks can be fitted either parallel or

tapered to match vehicle roof shape.

●Parallel Tracks:

A1 & A2 are equal

B1 & B2 are equal

C1 & C2 are equal

D1 & D2 are equal

●Tapered Tracks:

A1 & A2 are different

B1 & B2 are equal

C1 & С2 are equal

D1 & D2 are equal

●With help from another person, carefully lay

tracks over the masking tape and mark

rivet hole positions with a pencil or pen.

●Take care not to move the tracks until the

holes are marked out.

●Use drill bit supplied, to drill rivet holes in

marked positions.

●Take care not to drill too deep.

●Vacuum and clean swarf from channel.

●Treat holes to prevent corrosion.

Fitting Kit EN

K945W

●Remove masking tape and apply silicon

sealant around drilled holes.

●Sit tracks on roof and line up tracks with

drilled holes.

●Insert rivets through the tracks and into

drilled holes.

●Fit pop rivet nozzle supplied with tracks to

your rivet gun.

Note: It is a standard thread to fit most rivet

guns. Use low pressure on air rivet guns.

●Ensure that the front plugs are at the front

of the track and rear plugs at the rear.

●Rivet tracks to roof.

●Slide metal T-bolt into the track channel via

the entrance on the rear end plug.

Fitting Kit EN

K945W

Fitment

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K945W

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K945W

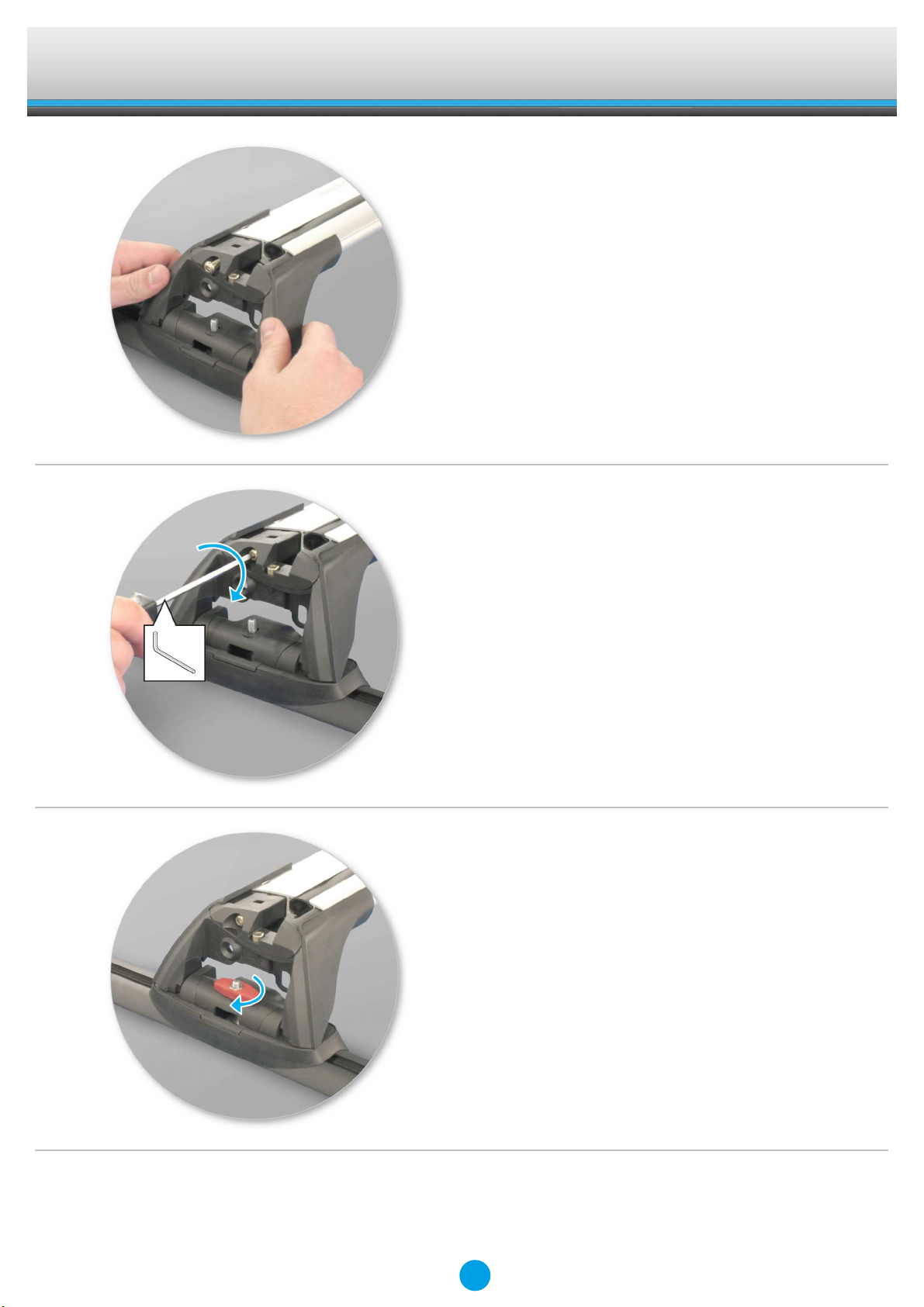

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Ensure that the crossbar is adjusted evenly

at both ends.

●Mount crossbar over metal T-bolt.

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

●Tighten the plastic knob.

●Ensure the plastic knob is in the position

shown when fully tightened.
