Whispbar K988W Bedienungsanleitung

K988W

Fitting Kit

EN Fitting Instructions for Basic Carrier

PL Instrukcja systemu montażu

x 4 x 1 x 1 x 2

x 4 x 4 x 4

Revision No: 1A 1

Fitting Kit K988W

MAX kgs (lbs)

W/P WHD

Toyota

Alphard, 5dr MPV 02-08 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Alphard, 5dr MPV 02-08 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Fitting Kit K988W

A B C 1 2 3

Alphard, 5dr MPV 02-08 (NZ) 200mm 900mm - 985mm 965mm -

7 7/8ths" 35 7/16ths" - 38 3/4ths" 38" -

Alphard, 5dr MPV 02-08 (AU) 200mm 900mm - 985mm 965mm -

7 7/8ths" 35 7/16ths" - 38 3/4ths" 38" -

Fitting Kit EN

K988W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K988W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K988W

●Remove locking screw.

●Attaches to factory-fitted mounting points

under sliding doors

●Remove plastic screws as shown.

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K988W

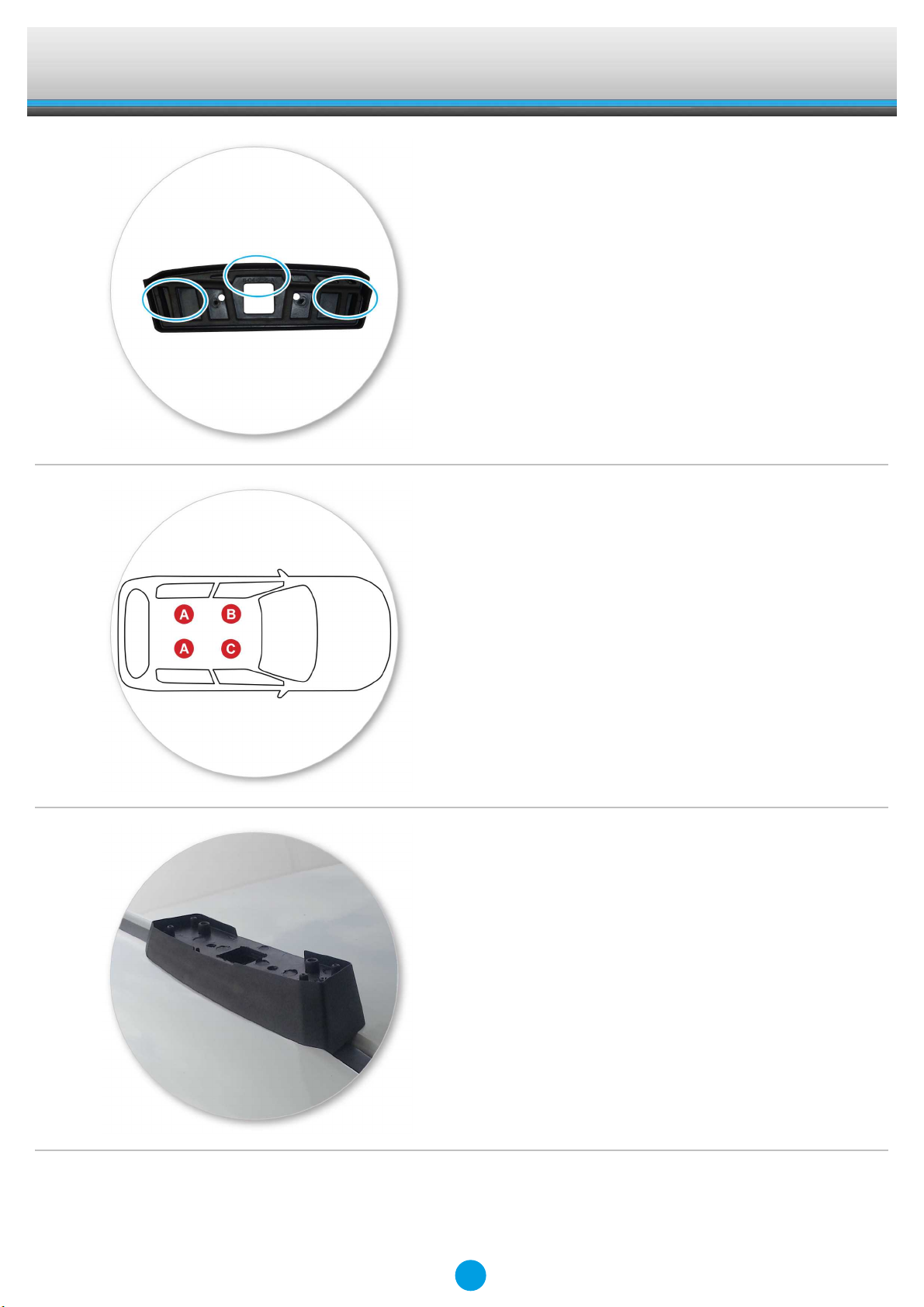

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 220

B = 223

C = 224

●Place rubber pads (supplied with fitting kit)

on the vehicle roof. Pad may vary in shape

to that shown.

Fitting Kit EN

K988W

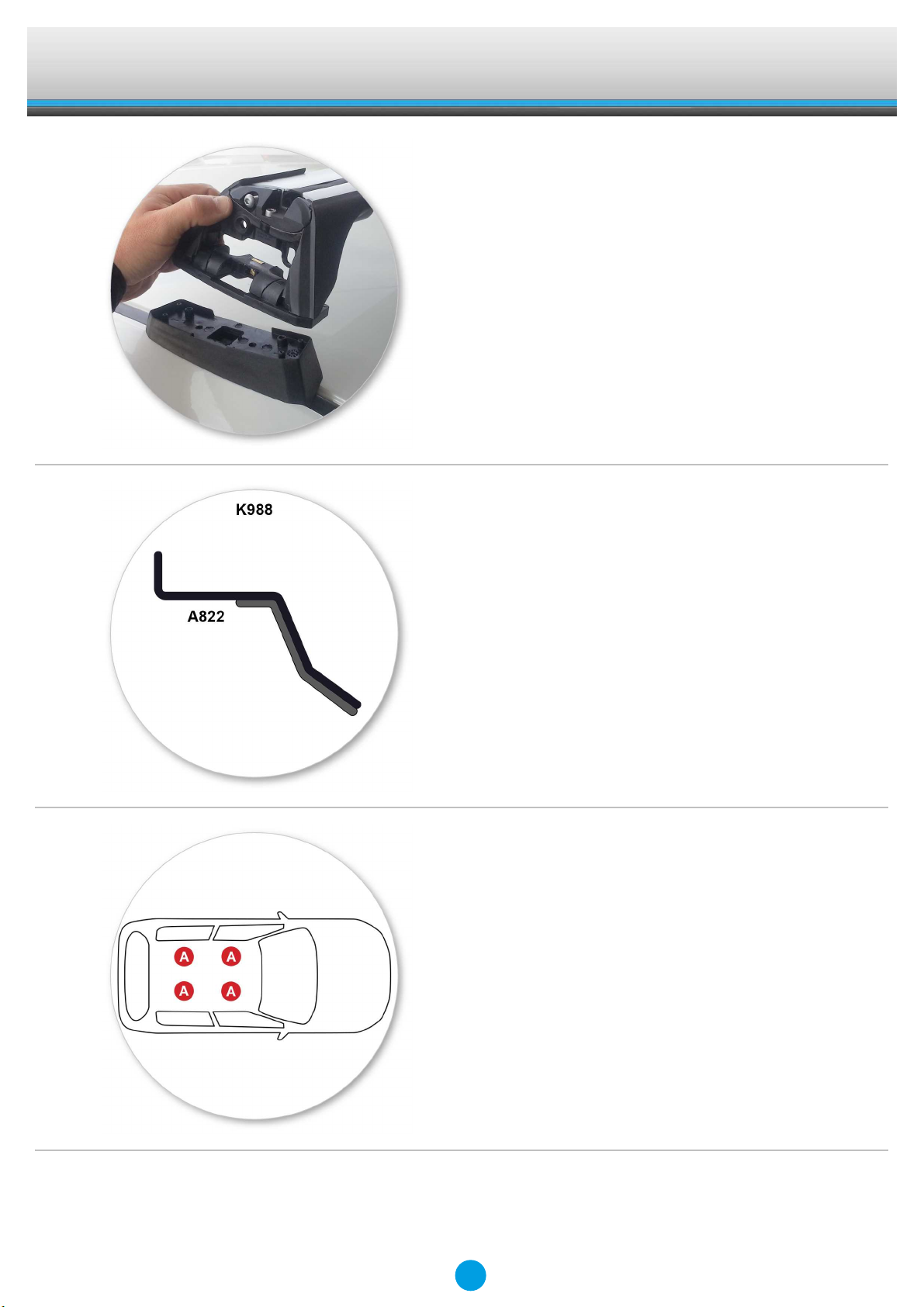

●Make sure the pad fits into the holes

underneath the foot.

●Apply protective strip as shown.

Trim if required.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = A822

Fitting Kit EN

K988W

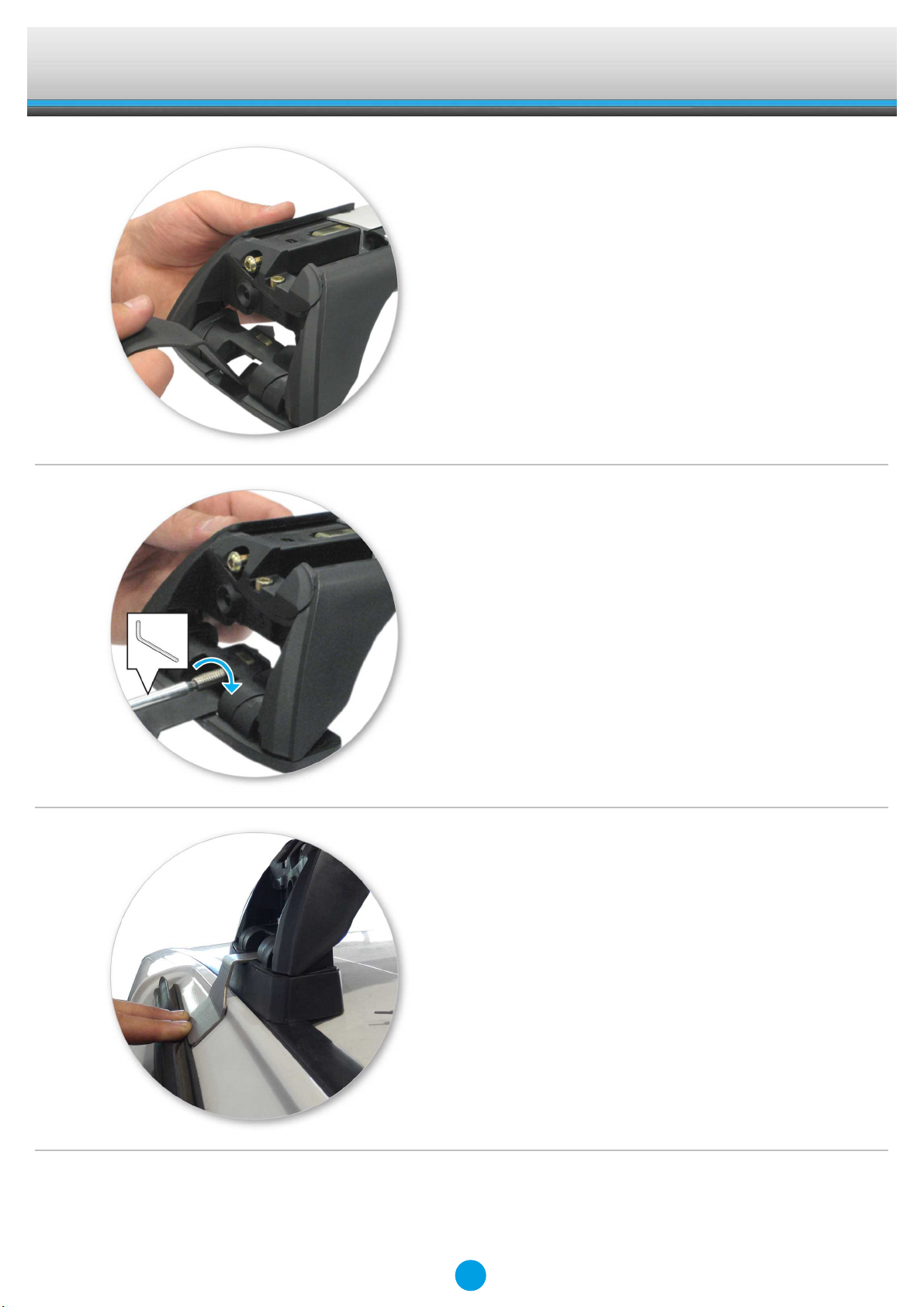

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

Fitting Kit EN

K988W

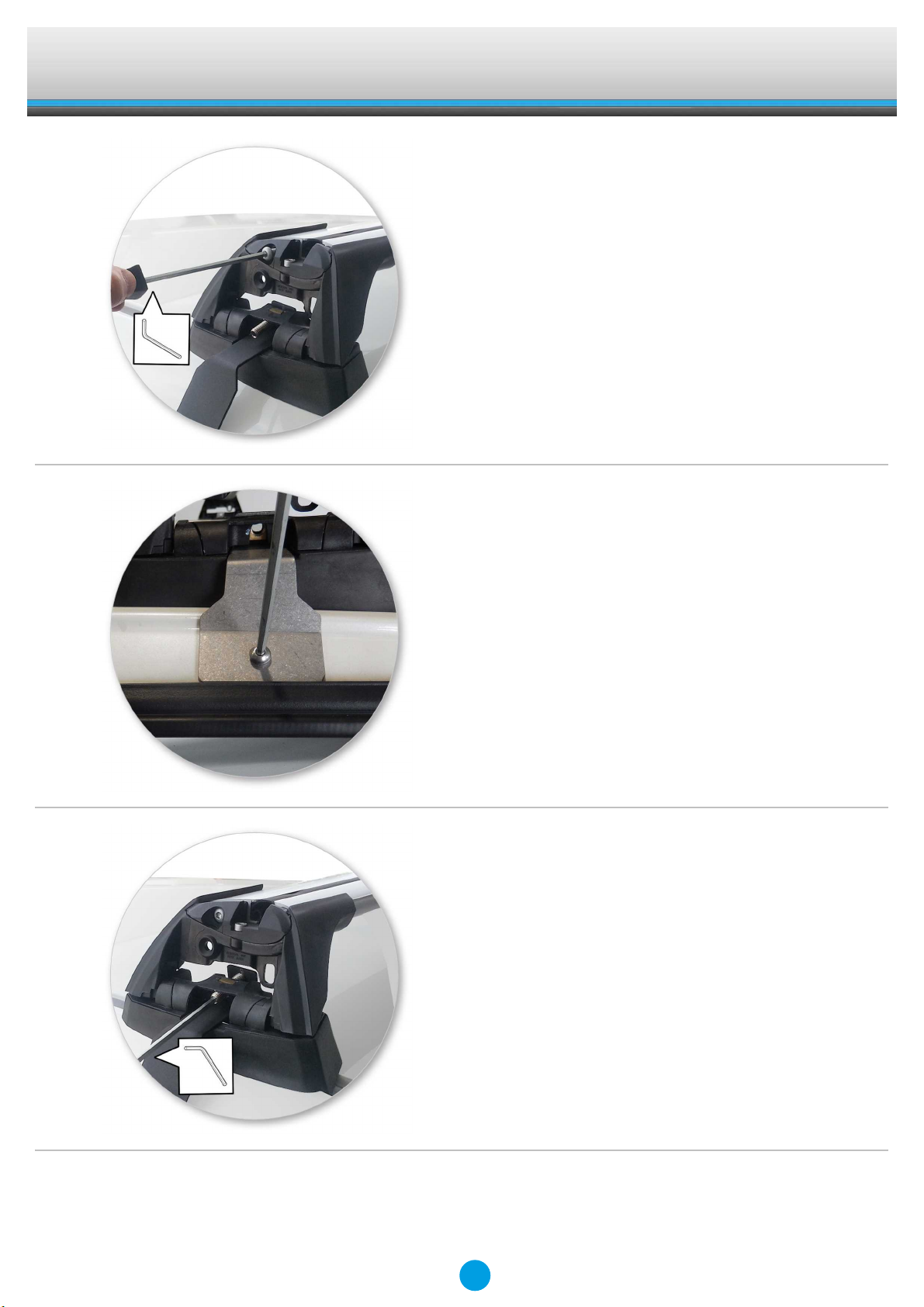

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

●Ensure spring washer is between clamp

and the head of the screw.

●Tighten clamp to roof.

●2.5Nm

●Tighten locking screw on both legs evenly,

2.5 Nm (1.8 ft lb).
