Whispbar S56 Bedienungsanleitung

WHISPBAR RAIL BAR

S56

ESES

Instrucciones de montaje para el

sistema de transporte.

Instructions de montage pour Basic

Carrier

GBGB

Fitting Instructions for Basic Carrier

x 1 x 1 x 2

Revision No: 1.1B

WHISPBAR RAIL BAR

S56

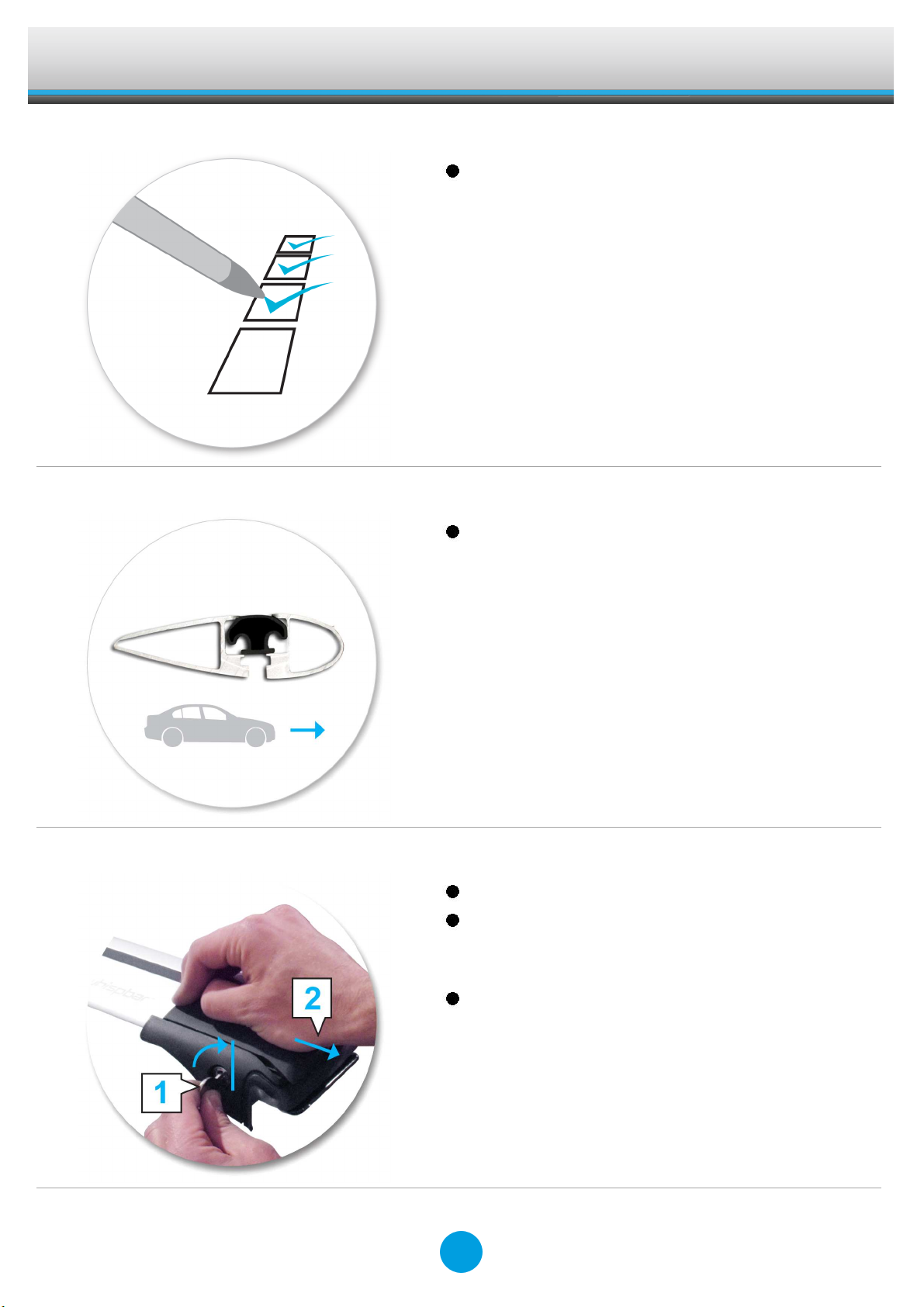

First Time Installation

Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

Ensure the roof rack face towards the front of

vehicle.

Use keys to remove covers.

While holding the key in the vertical position,

pull the cover towards you to remove the

cover.

Repeat for all legs.

WHISPBAR RAIL BAR

S56

Locate the Hex Key in one of the roof rack

legs.

Extend the leg out.

Remove Hex Key by lifting and sliding out.

Using Hex Key, reverse the leg screw 10

turns.

WHISPBAR RAIL BAR

S56

Fitment

This product has two different bar

lengths.The longer bar should be used on

the front of the vehicle and the shorter bar

used on the rear.

Position one end of crossbar on the opposite

roof rail and swing the free end so that the

clamp is under the rail and the rubber gasket

sits on top.

Repeat on other crossbar.

Crossbars should be parallel to each other

and sit perpendicular to the roof rails.

Pull legs out evenly until both rubber gasket

seal on roof rail.

Ensure each end of the crossbar is adjusted

equally.

Note that legs can pivot slightly to

accommodate for roof rail taper.

Once crossbars are in position, tighten screw

to 5 Nm (3.7 ft lb).

Repeat for all legs.

Slide Hex Key back into position into one of

the roof rack legs.

Ensure the locks on the legs are in the

locked position (horizontal).

Slide cover into the leg, You will hear a 'click'

when the cover is securely locked.

Repeat for all four positions.

WHISPBAR RAIL BAR

S56

Check crossbar is securely attached to the

vehicle.

CAUTION:

CAUTION:CAUTION:

CAUTION:

Recheck all fasteners immediately after a load is

Recheck all fasteners immediately after a load is Recheck all fasteners immediately after a load is

Recheck all fasteners immediately after a load is

applied to the crossbars.

applied to the crossbars.applied to the crossbars.

applied to the crossbars.

Regularly check screws are tight.

Regularly check screws are tight.Regularly check screws are tight.

Regularly check screws are tight.

WHISPBAR RAIL BAR

S56

Maintenance

Long loads should be secured with non-

elastic straps to the front and rear of the

vehicle.

Objects with pointed ends (skis) should be

carried with the pointed ends to the rear of

the vehicle.

Remove all loose or removable objects from

the load prior to loading.

Make sure all loads are securely fastened

with non-elastic straps. Check regularly

during longer journeys.

A loaded roof rack system can alter the

performance of your vehicle. Be especially

aware of the effects of side winds, changing

of direction, and braking performance. Avoid

rapid acceleration and deceleration. Drive

carefully.

Note that the total height of the vehicle

increases when upright loads are carried.

Products should be locked during transport if

they have locks fitted.

Check and replace worn out or defective

parts.

Keep the product clean and maintained.

Never drive into a car wash with the roof rack

system fitted.

Lubricate locks and adjusting screws at

regular intervals.

Remove the products from the vehicle when

not in use. Make sure all loose parts are

stored safely.

Clean the car roof and surfaces of the

product that will be in contact with the car

roof.

Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps

are carried out in order.

WHISPBAR RAIL BAR

S56

Set crossbars a minimum distance of 700mm

(27 4/8") apart where no other distance is

specified in the fitting instructions. This is

especially important when carrying long

loads.

Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels

loose, refer to the fitting instructions and

readjust.

Some sunroofs and radio antennae cannot

be used when the product is fitted.

Do not modify this product.

Refer to the maximum permitted load

capacity specified in the fitting instructions.

Do not exceed the vehicle manufacturers

roof load rating if it is lower than the

maximum load capacity specified in the fitting

instructions.

Loads should not overhang the sides of the

product and be evenly distributed with the

lowest possible centre of gravity.

Accessories Available for this Product:

Roof Box

Ski, Snowboard Carrier

Canoe, Kayak Carrier

Bicycle Carrier

For more accessories please see our product

catalogue.

WHISPBAR RAIL BAR

S56

Yakima Products, Inc.

15025 SW Koll Pkwy.

Beaverton, OR 97006-6056

USA

www.whispbar.com

WHISPBAR RAIL BAR

S56

Première installation

Retirer les pièces de contenu de l'emballage

et vérifier. Contactez votre revendeur si

certaines pièces sont manquantes ou

endommagées.

Veiller à ce que les barres de toit soient

tournées vers l'avant du véhicule.

Utiliser les clés pour retirer les caches

Tout en maintenant la clé en position

verticale, tirer le couvercle vers vous pour

l'enlever.

Répéter l'opération pour tous les pieds.
