Installation Instructions for the Following Wilson Ampliers
Direct Connection Dual-Band Amplier with GPS – Model # 2B1401 - Part #811200
Contains 1575 MHz bypass to allow for GPS reception.
FCC ID: PWO2B1401SA IC: 4726A-2B1401SA
The term “IC” before the radio certication number only signies that Industry Canada
technical specications were met.

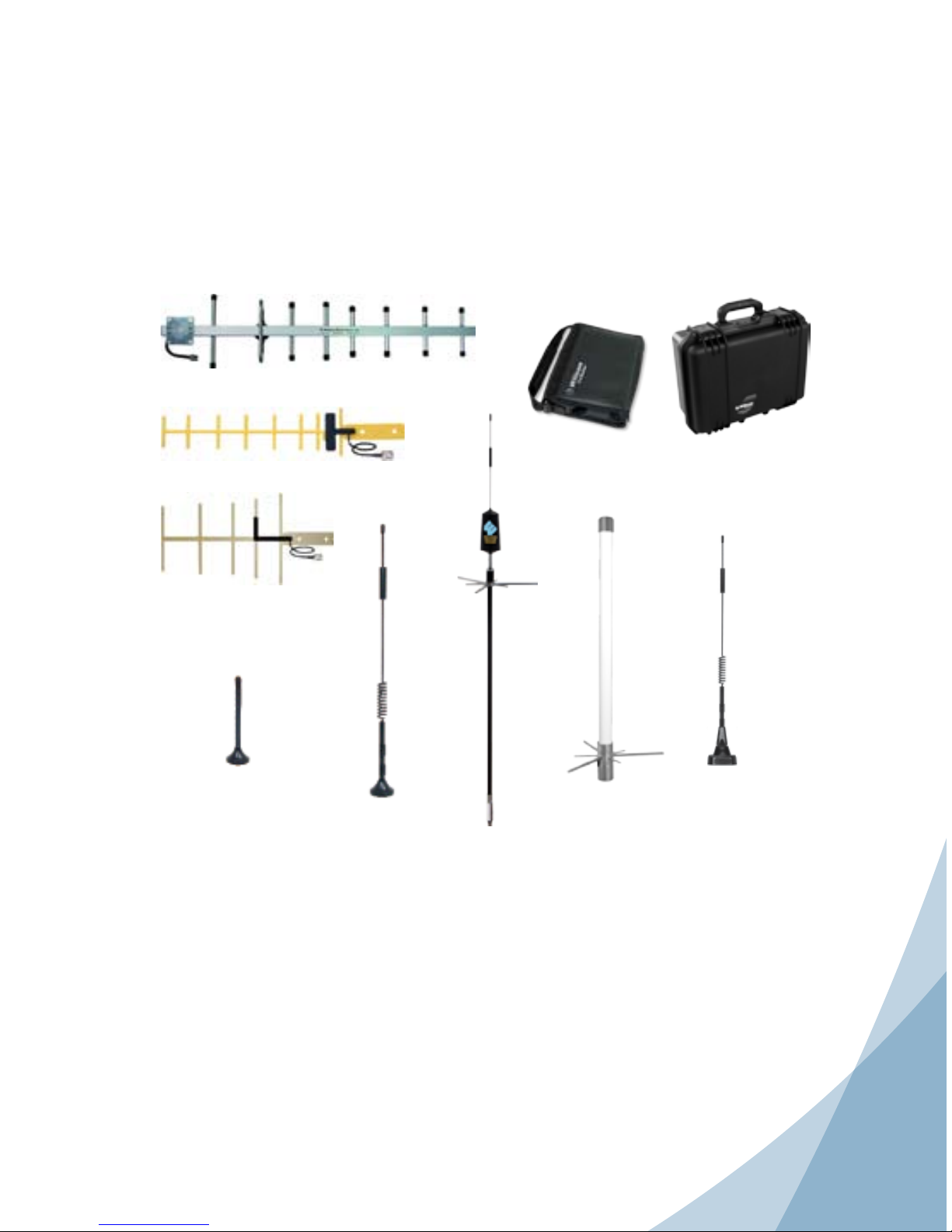

Antenna Options and Accessories
Mini
Magnet
Dual-Band Magnet
Mount
Dual-Band
NMO
Mount
Dual-Band
Marine
Antenna
Dual-Band
Trucker
Mount
Dual-Band
Amplier
Soft
Cases
Amplier
Hard Kit
Cases
800 MHz Yagi Cellular Antenna
1900 MHz Yagi PCS Antenna
800 MHz Yagi
Cellular Antenna
3
Before Getting Started
This guide will help you properly install Wilson’s direct connection ampliers in both in-
vehicle and in-building applications. It is important to read through all of the installation
steps for your particular application prior to installing any equipment. Read through
the instructions, visualize where all the equipment will need to be installed and do a soft
installation before mounting any equipment. If you do not understand the instructions in
full, seek professional help, or contact Wilson Technical Support at 866-294-1660.
Inside this Package
• Direct connection amplier
• DC plug-in power supply with On/Off switch
• 6 ‘ extension cable
Additional Equipment
• Outside antenna for in-vehicle or in-building use (required)
(NOTE: specically tuned iDEN antennas available)
• Cell phone-specic external antenna adapter (required)
• AC/DC power supply (optional – for in-building use)
How it Works
Wilson ampliers are small, portable, bi-directional devices that deliver service levels
consistent with what would be expected in areas of high cell network coverage. They
amplify a weak or shadowed signal in mobile, marine and in-building applications.
When using a Wilson amplier in conjunction with Wilson antennas, the outside antenna
will collect the cell tower signal and send it through the cable to the amplier. Cell phones
and cellular data cards (laptops) then communicate with the improved signal. When a cell
phone or cellular data card transmits, the signal is amplied by the amplier and broadcast
back to the cell tower through the outside antenna.
Direct connection
amplier
6‘ extension
cable
DC plug-in power
supply
4
The outside antenna must be installed
vertically. Signal performance will be
degraded if the antenna is not vertical.
The antenna cable may be run through the
door to the amplier.
NOTE: See RF Safety Warnings (p. 10)
The antenna cable is small enough to easily
tuck under the door seal or plastic molding.
For a more professional-looking installation,
the antenna cable may be run under the
door seal. Carefully pull down the door
seal. Run the cable through the seal
and push the seal back into place. This
prevents constant wear and tear on the
cable as the door opens and closes.
Optional Magnet-
Mount Antenna
Shown
Carefully
Pull Down
Door Seal
Run Cable
Under
Seal
Tuck Cable
Under Seal
Installing a Wilson Outside Antenna
To receive the best cell signal, select a location in the center of the vehicle’s roof at least 12
inches away from any other antennas and free of obstructions.
Follow the specic antenna installation instructions included with the outside antenna (sold
separately).
In-Vehicle
5
Select a location to install the amplier that
is away from excessive heat, direct sunlight,
moisture and that has proper ventilation.
Recommended installation locations for
in-vehicle are:
• Under the seat
• In the trunk
• Under the dash
Run the cable from the outside antenna and
attach it to the FME-Male connector labeled
“outside antenna” on the amplier.
Installing a Wilson Amplier
Outside
Antenna
Amplier
DC Power
Supply
Cell Phone
Warning: Do not plug in the DC power
supply until the outside antenna and external
adapter cables are attached to the amplier.
!
In-Vehicle
6
Installing a Wilson External Adapter
An 18-inch external adapter is required to connect the cell phone or cellular data card to
the amplier. The external adapter is cell phone/data card-specic and may be purchased
through a local retailer.
Refer to Wilson’s Adapter Guide to identify
the right adapter for your cell phone or
cellular data card. The adapter guide is
available through a local retailer or visit
www.wilsonelectronics.com.
The external adapter plugs into the included antenna extension cable and directly into a
socket on the cell phone or cellular data card as shown in Figure 1.
The external adapter and the included extension cable are long enough to reach the
amplier location. This allows for ease and convenience of use.
Run the extension cable from the external adapter and attach it to the FME-Male connector
labeled “cellular phone” on the amplier.
Sample
adapter
NOTE: Depending on your specic cell phone, the
adapter socket may be located beneath a rubber
plug.
Figure 1
In-Vehicle
7
Installing a Wilson Outside Antenna – In-Building
Select a location on the roof of the building to install the outside antenna that has the most
unobstructed line of sight to the cell tower.
Follow the specic antenna installation instructions included with the outside antenna.
Lightning protection is recommended for all in-building installations. Take extreme care to
ensure neither you nor the antenna come in contact with any electrical power lines.
A Yagi antenna must be installed horizontally with the elements vertical and the drip hole
on the bottom. Ensure there are three feet of clearance in all directions surrounding the
antenna.
To obtain maximum performance, the antenna should point toward the cell tower. Follow
the instructions included with the outside antenna.
Installing a Wilson Amplier
Select a location to install the amplier that is away from excessive heat, direct sunlight,
moisture and that has proper ventilation. Ensure the amplier is installed within six feet
Cell Tower RF Signal
Yagi External Antenna
NOTE: See RF Safety Warnings (p. 10)
of where the cell phone or cellular data card will be used (to accommodate the six-foot
adapter extension cable). Run the cable from the outside antenna and attach it to the
FME-Male connector labeled “outside antenna” on the amplier. Connect the AC/DC power
supply (sold separately) to the power input labeled “DC 12 V IN” on the amplier.
Recommended installation locations for
in-building are:
• On a wall
• On the ceiling
• Near a power outlet
In-Building
8
Installing a Wilson External Adapter
An 18-inch external adapter is required to connect the cell phone or cellular data card to
the amplier. The external adapter is cell phone/data card-specic and may be purchased
through a local retailer.
Refer to Wilson’s Adapter Guide to identify
the right adapter for your cell phone or
cellular data card. The adapter guide is
available through a local retailer or visit
www.wilsonelectronics.com.
The external adapter plugs into the included six-foot extension cable and directly into a
socket on the cell phone or cellular data card as shown in Figure 1 on page 6. (NOTE: See
the user’s manual for your specic phone or data card to determine the socket location.)
Run the extension cable from the external adapter on the cell phone or cellular data card
and attach it to the FME-Male connector labeled “cellular phone” on the amplier.
Extension Cable Chart
The following Wilson extension cables are available to help you customize your installation
for peak performance.
951101 5’ Extension Cable RG58U
Low Loss Coax 0.6 dB loss
951102 10’ Extension Cable RG58U
Low Loss Coax 1.2 dB loss
951103 15’ Extension Cable RG58U
Low Loss Coax 1.8 dB loss
951104 20’ Extension Cable RG58U
Low Loss Coax 2.4 dB loss, N-Male to FME-Female
951108 20’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
Only use 9913 Equivalent Low Loss Coax for
extensions 20’ or longer, 0.8 dB loss
951105 30’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax 1.2 dB loss
951106 50’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax 2.0 dB loss
951117 75’ Extension 9913 Equivalent
Ultra Low Loss Coax 3.0 dB loss
951107 100’ Extension 9913 Equivalent
Ultra Low Loss Coax 4.0 dB loss
951113 2’ Extension 9913 Equivalent Ultra Low
Loss Coax (N-Male to N-Male Ends)
0.08 dB loss, Jumper Coax - Can be used to
connect a splitter behind an amplier.
951110 2’ Extension RG58U Low
Loss Coax (N-Male to FME-Female)
Used with the Yagi antenna to help nd the
optimum signal strength
(for installation purposes only).
RG58U - FME connectors / 9913 - N connectors
Sample
adapter
In-Building
9
Powering up a Wilson Amplier
For in-vehicle, rst connect the power cable
to the amplier input marked “DC 12 V IN”
and then insert the large end into a 12 V DC
power socket or cigarette lighter outlet.
The amplier may remain on all the time;
however, leaving the amplier on in a
vehicle when it is not running can discharge
the battery in a day or two.
A good option is to power the amplier
through the ignition switch so that the
amplier turns off and on with the vehicle.
For in-building, rst connect the optional
AC/DC power supply to the amplier input
labeled “DC 12 V IN” and then into a wall
outlet.
Carefully insert the power cable.
In-vehicle 12-volt DC power supply (included)
Warning: Use only a Wilson power
supply. Use of a non-Wilson product could
damage your equipment.
!
Testing a Wilson Amplier
To test your amplier, go to a weak signal area where your cell phone registers only 1-2
bars without the amplier turned on. Then, connect the amplier to the phone and you
should see a signal improvement of 2 or more bars. Note: many phones take up to 20
seconds to reset the bar indicator.
Warning: Verify that both the outside
antenna and the adapter extension cable are
connected to the amplier before powering up
the amplier.
!
In-building AC/DC power supply (optional)
Andere Handbücher für 2B1401
2
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Wilson Electronics Verstärker Handbücher
Wilson Electronics
Wilson Electronics 801306 Bedienungsanleitung
Wilson Electronics
Wilson Electronics WILSONPRO ENTERPRISE 4300R Bedienungsanleitung
Wilson Electronics
Wilson Electronics WilsonPro ENTERPRISE A8000 Bedienungsanleitung
Wilson Electronics
Wilson Electronics WILSONPRO PRO 140i Bedienungsanleitung
Wilson Electronics
Wilson Electronics 801230 Bedienungsanleitung
Wilson Electronics
Wilson Electronics 811101 Bedienungsanleitung
Wilson Electronics
Wilson Electronics BD800AM Bedienungsanleitung
Wilson Electronics
Wilson Electronics SIGNALBOOST 811210 Bedienungsanleitung
Wilson Electronics
Wilson Electronics 271245 Bedienungsanleitung
Wilson Electronics
Wilson Electronics SignalBoost DT Bedienungsanleitung
Wilson Electronics
Wilson Electronics PRO 710i Bedienungsanleitung
Wilson Electronics
Wilson Electronics iDEN Bedienungsanleitung
Wilson Electronics
Wilson Electronics SignalBoost DT Bedienungsanleitung
Wilson Electronics
Wilson Electronics IoT 5-Band Bedienungsanleitung
Wilson Electronics
Wilson Electronics 271247-50 Bedienungsanleitung
Wilson Electronics
Wilson Electronics SIGNALBOOST U-Booster 2B5225 Bedienungsanleitung
Wilson Electronics
Wilson Electronics SIGNALBOOST 811210 Bedienungsanleitung
Wilson Electronics
Wilson Electronics 271245 Bedienungsanleitung
Wilson Electronics
Wilson Electronics 814001 Bedienungsanleitung
Wilson Electronics
Wilson Electronics 271247-75 Bedienungsanleitung
