Wilson Electronics Weboost DRIVE REACH OTR FLEET Bedienungsanleitung

Cell Signal Booster For Fleet Trucks

DRIVE REACH OTR FLEET

A WILSON ELECTRONICS BRAND

Use our weBoost App to guide you through the installation.

See inside page for more details.

Installation Guide

NEED HELP? support.weboost.com 1-866-294-1660

Download the weBoost App

Use our app to guide you through setting up a weBoost cell phone

signal booster in your home, business, or vehicle. Boost every

network, including 5G, right away.

Download the weBoost App

Videos to guide you

through installation

Antenna positioning guide

for optimal performance

Before and after cell

signal readings

______

Index

Package Contents 1

STEP 1: Select Mounting Location 2

STEP 2: Assemble The Antenna 3

STEP 3: Mount Outside Antenna 5

STEP 4: Mount Inside Antenna 7

STEP 5: Hardwiring To Power 8

STEP 6: Connect Coax Cables To Booster 10

STEP 7: Connect Power Supply To Booster 11

Light Patterns 12

Troubleshooting 13

Safety Guidelines 14

Antenna Kit Options 15

Speciﬁcations 16

Warranty 17

1CELL SIGNAL BOOSTER DRIVE REACH OTR FLEET

________

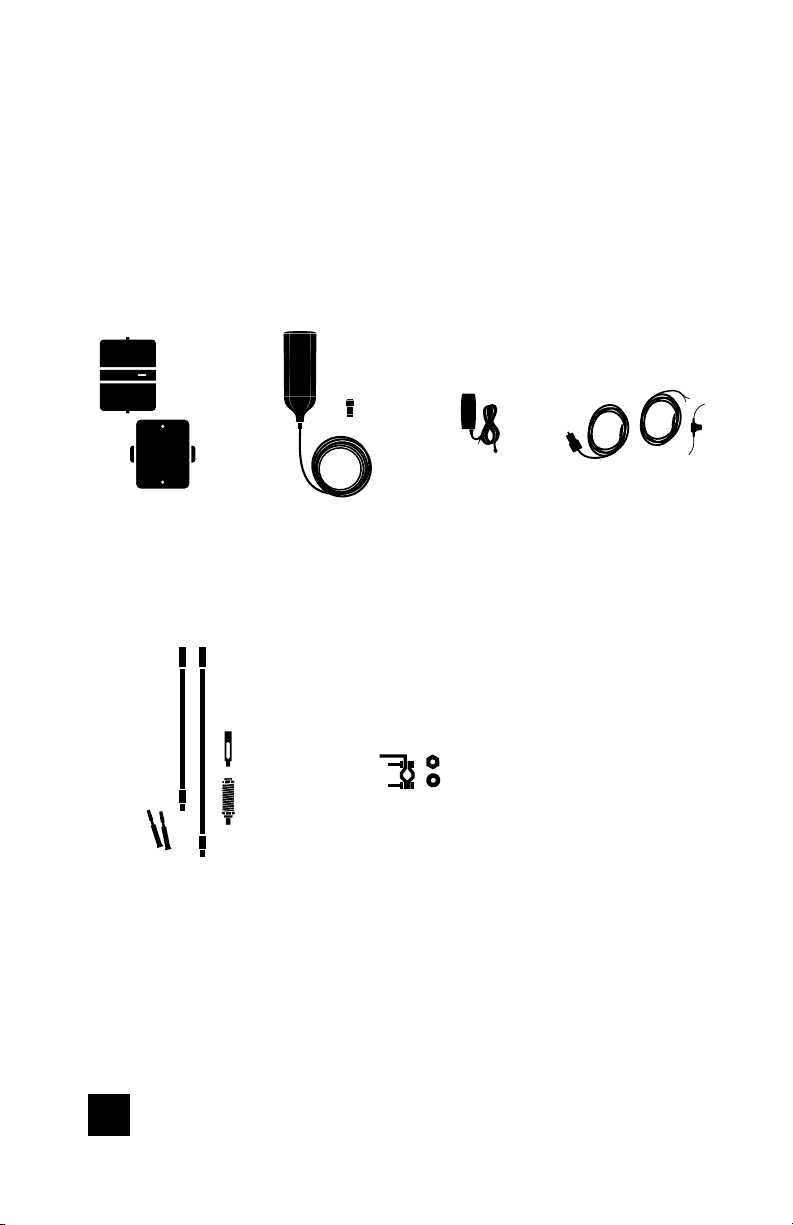

Package

Contents

Drive Reach

Signal Booster

& Bracket

Outside Antenna

& Cable Adapter

Inside

Antenna

13 in. & 18 in.

Mast Extensions,

Side-Exit Adapter, Spring,

& Thread Lock Packs

3-Way Antenna

Mount

Power Supply,

Hardwire Power

Supply & In-line

Fuse Holder

Typical Antenna

Mounting Points

DRIVE REACH OTR FLEET CELL SIGNAL BOOSTER 2

______

Step 1: Select Mounting

Location

Depending on the type of truck, there may be built-in antenna

mounting points. If the vehicle does not have built-in mounting

points, the antenna includes a three-way mount that will work

on vehicles with mirror rails. The antenna will also work with

third party CB antenna mounts.

Select mounting location on vehicle. The antenna can be

mounted in any CB mount or antenna mounting point on the

vehicle. For best performance mount the antenna above the

metal cab (it does not need to be above cab wind deﬂector).

Typical Antenna

Mounting Points

NOTE: Mount at least 12 inches from any other antennas. Free of obstructions.

NOTE: If the vehicle is using two CB antennas co-phase wiring, removing one

antenna will cause reduced performance of the remaining CB antenna.

3CELL SIGNAL BOOSTER DRIVE REACH OTR FLEET

______

Step 2: Assemble The

Antenna

Mast

Extension

Mast

Extension

Mast

Extension

antenna

Side Exit

Adapter

cable

from antenna

antenna

Once you have determined the

best location for the antenna

and have determined if mast

extensions are needed, insert

cable through mast.

If using mast extension(s) add

thread locker (provided) to thread

point(s). Screw into place.

Add thread locker (provided) to

thread point and screw on the

side exit adapter.

NOTE: Mast extensions may not be

needed depending on your mounting

point.

NOTE: Be sure the antenna is the correct

height before applying thread locker.

NOTE: When adding the side exit adapter

hold the antenna vertically and screw the

adapter from the bottom up. This reduces

cable twisting.

DRIVE REACH OTR FLEET CELL SIGNAL BOOSTER 4

______

(STEP 2 cont.)

13” Mast13” Mast13” Mast

18” Mast

Side Exit

Adapter

Antenna Spring

(can be used

optionally)

DO NOT USE

Antenna Spring with

2 Mast Extensions

5CELL SIGNAL BOOSTER DRIVE REACH OTR FLEET

______

Step 3: Mount Outside

Antenna

The cable is strong enough

that it may be shut in most

vehicle doors without

damaging the cable.

Top of Mirror Mirror ArmUpper Side

3-Way Mount

on bird perch

These are some typical antenna mounting points. If the vehicle

does not have built-in mounting points, a 3-way mount is

included that will work on vehicles with mirror rails.

3-Way Antenna

Mount

connect cable

to a signal

booster

Side Exit

Adapter

Mast Extension

add thread locker

Mount disc washer

with lip in the

DOWN position

Fasten nut with lip in

the UP position

mirror rail

or bird perch mount

DRIVE REACH OTR FLEET CELL SIGNAL BOOSTER 6

______

(STEP 3 cont.)

Side Exit Adapter must be

used with Antenna Spring

Add thread lock on

all threads with tube

provided

If installing with the antenna spring, assemble the 3-way

mount as shown below.

3-Way Antenna Mount

with hardware

Side Exit Adapter

Antenna

Spring

add Thread

Locker

add Thread

Locker

Mount disc washer

with lip in the

DOWN position

Fasten nut with lip

in the UP position

3-Way

Antenna Mount

7CELL SIGNAL BOOSTER DRIVE REACH OTR FLEET

______

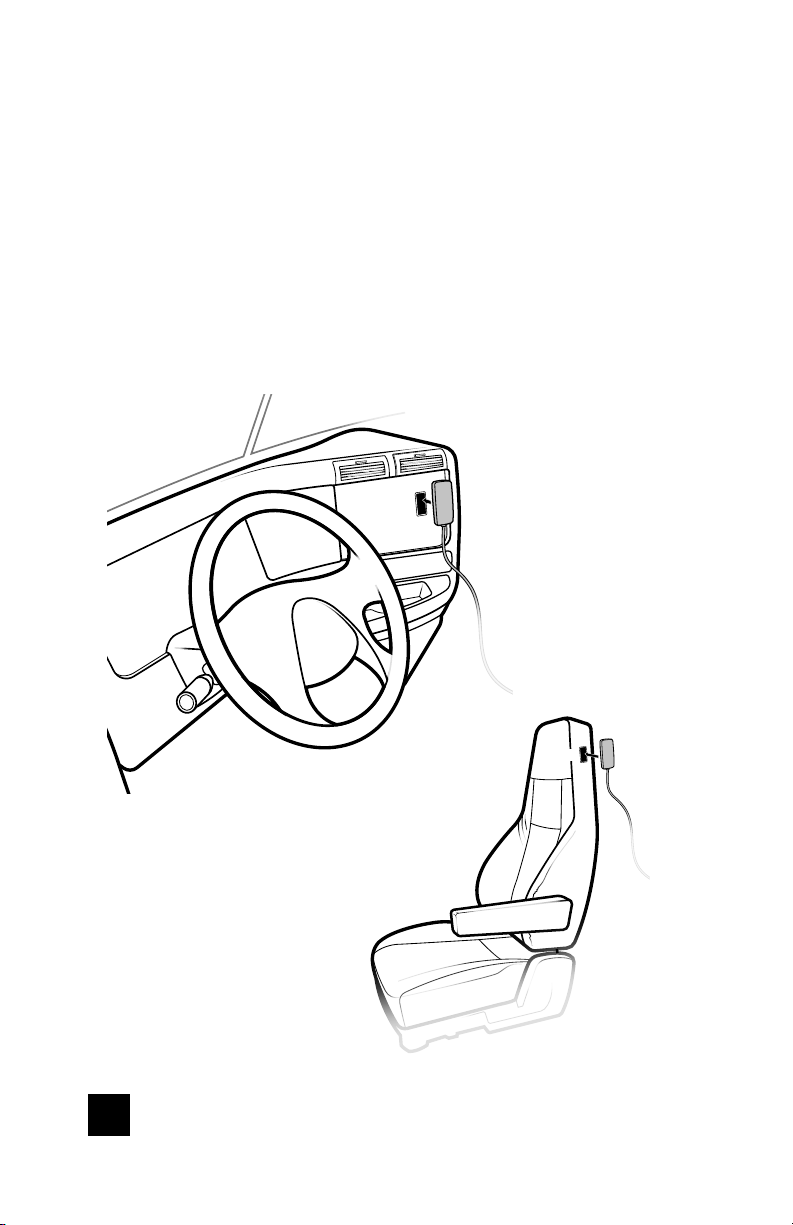

Step 4: Mount Inside Antenna

Identify a place to mount the inside antenna, either on the side

of the seat or on the dash and mount. The location should be

at least 18 inches but no more than 36 inches from where the

cellular device will be used. Use the Velcro® adhesive strip/

adhesive strip provided and attach to desired location.

Inside

Antenna

Inside

Antenna

Velcro®
