In-Building

Wireless

Smart Technology™

Signal Booster

Contents:

Antenna Options and Accessories. . . . . . . . . . . . . . . . . . . 1

Before Getting Started / How It Works . . . . . . . . . . . . . . . 2

Installation Overview .............................3

Installing a Wilson Electronics Outside Antenna ........4

Installing a Wilson Electronics Inside Antenna . . . . . . . . . 5

Installing a Wilson Electronics Signal Booster. . . . . . . . . . 6

Powering Up a Wilson Electronics Signal Booster . . . . . . 7

Understanding the Signal Booster Lights . . . . . . . . . . 8-10

Warnings and Recommendations ..................11

Factor Conversions .............................12

Distance Coverage Chart . . . . . . . . . . . . . . . . . . . . . . . . 13

Guarantee and Warranty .........................14

Signal Booster Specifications . . . . . . . . . . . . . .Back Cover

Wilson

Electronics, Inc.

Note: This manual contains important safety and operating information.

Please read and follow the instructions in this manual. Failure to do so

could be hazardous and result in damage to your signal booster.

Appearance of device and accessories may vary.

1Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

Installation Instructions for the Following Wilson Electronics

Signal Boosters:

In-Building Wireless Cellular 50 dB Smart Technology™ Signal Booster

Model # 801105

FCC ID: PWO8011SB IC: 4726A-8011SB

In-Building Wireless Cellular 60 dB Smart Technology™ Signal Booster

Model # 801106 & 801108

FCC ID: PWO8011SB IC: 4726A-8011SB

In-Building Wireless PCS 60 dB Smart Technology™ Signal Booster

Model # 801306 FCC ID: PWO8013SB IC: 4726A-8013SB

Model # 801365 FCC ID: PWO8013SB Not for sale in Canada

In-Building Wireless iDEN 50 dB Smart Technology™ Signal Booster

Model # 804005

FCC ID: PWO8040SB IC: 4726A-8040SB

In-Building Wireless iDEN 60 dB Smart Technology™ Signal Booster

Model # 804006

FCC ID: PWO8040SB IC: 4726A-8040SB

In-Building Wireless EGSM 900 MHz 60 dB Smart Technology™ Signal Booster

Model # 801506 FCC ID: PWO274106SB IC: 4726A-274106SB

Model # 801606 Not for sale in U.S. and Canada

In-Building Wireless 800 MHz 70 dB Smart Technology™ Signal Booster

Model # 801170 & 801370 Not for sale in the U.S. and Canada.

Model # 801176 FCC ID: PWO8011SB Not for sale in Canada

The term “IC” before the radio certification number only signifies that Industry Canada

technical specifications were met.

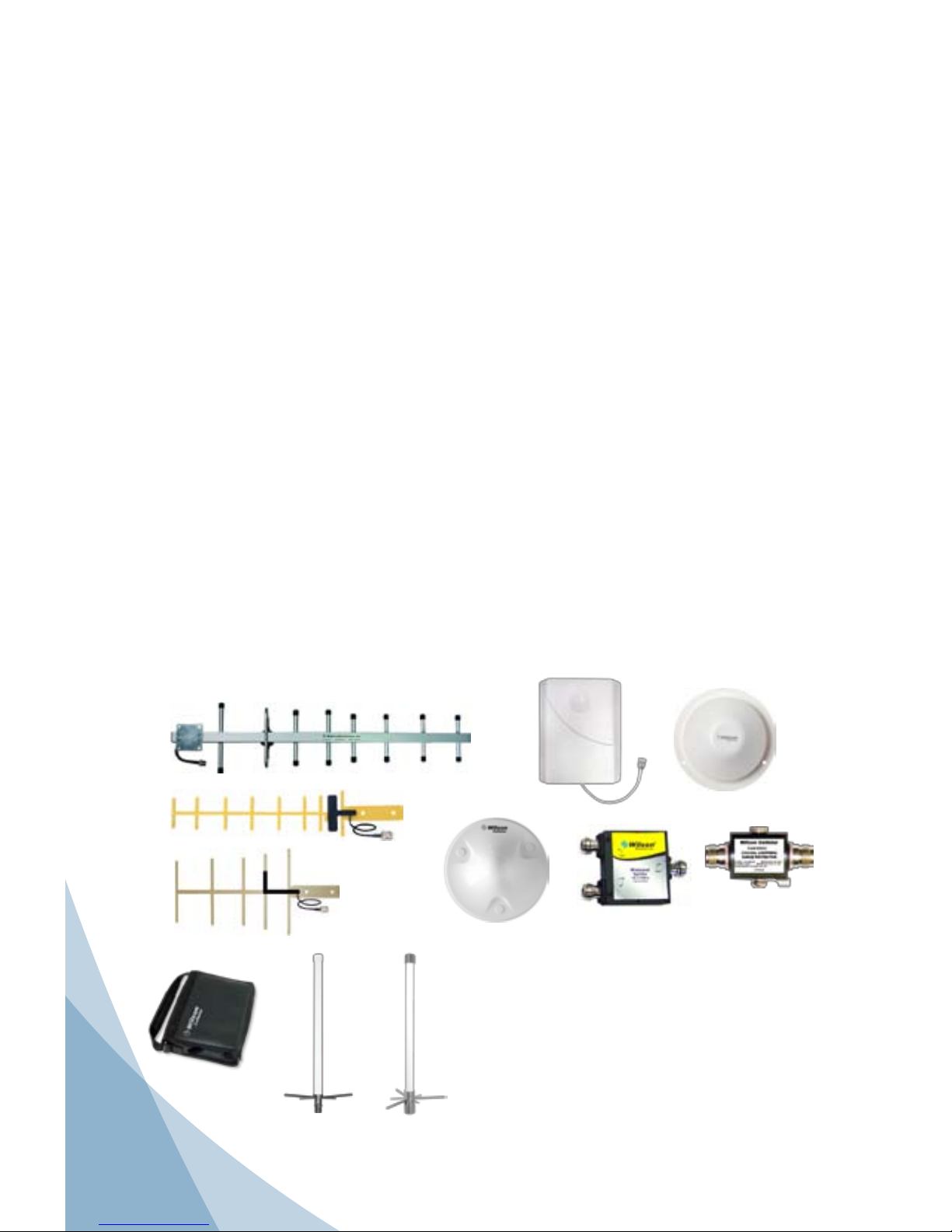

A13 dB 800 MHz Yagi Cellular Antenna (301111)

B1900 MHz Yagi PCS Antenna (301124)

C800 MHz Yagi Cellular Antenna (301129)

DWide-Band Panel Antenna (301135)

EDual-Polarity Dome Antenna (301123)

FDual-Band Dome Antenna (301121)

GSplitters (see page 5)

H 50 Ohm Lightning Surge Protector (859902)

ISignal Booster Soft Cases (859909)

J Omni-Directional Antenna (301201)

K Marine Antenna (301130)

Antenna Options & Accessories

D E

IJ K

B. 50 Ohm Lightning Surge Protector with N-Connector (859902)

Splitter options on page 8

Appearance of device and accessories may vary.

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

A13 dB 800 MHz Yagi Cellular Antenna (301111)

B1900 MHz Yagi PCS Antenna (301124)

C800 MHz Yagi Cellular Antenna (301129)

DWide-Band Panel Antenna (301135)

EDual-Polarity Dome Antenna (301123)

FDual-Band Dome Antenna (301121)

GSplitters (see page 5)

H 50 Ohm Lightning Surge Protector (859902)

ISignal Booster Soft Cases (859909)

J Omni-Directional Antenna (301201)

K Marine Antenna (301130)

Before Getting Started

This guide will help you properly install Wilson Electronics In-Building Wireless Smart

Technology™Signal Boosters. It is important to read through all of the installation steps

for your particular application prior to installing any equipment. Read through the

instructions, visualize where all the equipment will need to be installed and do a soft installation

before mounting any equipment. If you do not understand the instructions in full, seek

professional help, or contact Wilson Electronics Technical Support at 866-294-1660.

Inside this Package

Additional Required Equipment (sold separately)

• Outside Antenna (Yagi recommended)

• Inside dome, panel or low-profile antenna

• Antenna cable

How it Works

Wilson Electronics Signal Boosters are small, portable, bi-directional devices that deliver service

levels consistent with what would be expected in areas of high cell network coverage. They

amplify a weak or shadowed signal in mobile, marine and in-building applications.

When using a Wilson Electronics Signal Booster in conjunction with Wilson Electronics

antennas, the Outside Antenna will collect the cell tower signal and send it through the

cable to the Signal Booster. The signal is then amplified and transmitted from the Inside

Antenna to the surrounding area. Cell phones and cellular data cards in that area then

communicate with the improved signal. When a cell phone or cellular device transmits, the

signal is received by the Inside Antenna, amplified by the Signal Booster and transmitted

back to the cell tower through the Outside Antenna.

In-Building Wireless

Signal Booster

AC/DC power supply

(sold separately in 801175)

3Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

Installation Overview

The following steps provide a summary of the Signal Booster/antenna installation process.

However, they are not a substitute for the complete installation instructions on the following

pages, which you should read thoroughly. Contact Wilson Electronics Technical Support

Department with any questions at 866-294-1660.

STEP 1: Install the Outside Antenna

Mount the Yagi antenna so that it points toward the cell tower and away from where the

Inside Antenna will be located. Depending on your Signal Booster model, the two antennas

will need 50-75 feet of separation (see illustrations on pages 5 and 6). Lightning Surge

Protection is recommended for all in-building installations (see page 6).

STEP 2: Install the Inside Antenna

Select a location in the center of where the signal needs to be amplified. Refer to the

instructions included with the Inside Antenna. (See illustration on page 5.)

STEP 3: Install the Signal Booster

Position the Signal Booster in a well-ventilated location near a power outlet. Attach the

Outside and Inside Antennas to the Signal Booster using Wilson 400 low loss cable

(available from Wilson Electronics). See page 6 for more information.

STEP 4: Power up the Signal Booster

IMPORTANT! Before connecting the power supply, ensure that both the Inside and Outside

Antenna cables are connected. Also ensure that all cell phones and cellular data cards

within 50 feet of the Inside Antenna are turned off. Plug in the supplied power supply

into the Signal Booster and then into a AC power strip (power supply sold separately in

801175). See page 7 for more information. Wilson Electronics recommends that all AC

power supplies for home electronics be plugged into a AC Power Strip with at least a 1000

Joule rating.

STEP 5: Check the Signal Booster Lights

The PWR light should be green, indicating that the Signal Booster has power. If all other

lights are also green, the Signal Booster is operating properly; however, if you do not have

the desired signal coverage area, refer to pages 5, 6, 8, 9 and 10.

Note: If you are using an outdoor Yagi Antenna, it must be adjusted for maximum signal.

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

Warning: The Outside Antenna must

be installed on an outdoor

permanent structure with a

separation of at least 20 feet

from all persons during

normal operation.

Cell Tower RF Signal

Yagi External Antenna

Warning: Never point the front of the Yagi Antenna

toward the Inside Antenna - oscillation will

result, causing amber light and gain reduction.

NOT

CORRECT

Pointing toward

cell tower

Lightning

Surge Protector

(sold separately)

Signal Booster

Surge Protector

Power Strip recommended for all AC power supplies

To Outside

Antenna

Ground Wire

(not included)

To Inside

Antenna

Select a location on the roof of the building to install the Outside Antenna. Take extreme

care to ensure neither you nor the antenna come in contact with any electrical power lines.

Using a cell phone in test mode to find the strongest signal from the cell tower. For test

mode help, visit www.WilsonElectronics.com or call Technical Support at 866-294-1660.

Follow the specific antenna installation instructions included with the Outside Antenna.

A Yagi Antenna must be installed horizontally with the elements vertical and the drip hole on

the bottom. Ensure there is three feet of clearance in all directions surrounding the antenna.

Installing a Wilson Electronics Outside Antenna

Installing Lightning Protection

(sold separately)

Install the Lightning Surge Protector (LSP) close

to the Signal Booster. Attach the cable from the

Outside Antenna to the surge protector, using a

short length of low loss cable; attach one end to

the LSP and the other to the Outside Antenna

connector on the Signal Booster. Ensure

the LSP is properly grounded. LSP may be

purchased at www.WilsonElectronics.com or

call 800-204-4104 (part #859902).

5Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

Installing a Wilson Electronics Inside Antenna

Select a suitable location for the Inside Antenna, preferably in the center of where the signal

needs to be amplified. To determine signal strength and coverage distance, refer to page

12 of this installation guide.

Follow the specific antenna installation instructions included with the Inside Antenna.

Wilson Electronics has several Inside Antenna options. The dome and Panel Antennas are

the most popular for in-building applications.

For a square room, a Dome Antenna will provide better coverage. (A)

For a rectangular room, a Panel Antenna will provide better coverage. (B)

In some cases, multiple Inside Antennas may be required (C & D). A signal may be “split”

by using a splitter. If using more than one Inside Antenna, a separation of at least 20 feet is

necessary between Inside Antennas.

Connect the cable from the Signal Booster to the Inside Antenna. For distances of 20 feet or

more, use Wilson 400 low loss cable to prevent significant signal loss.

= Dome Antenna

= Panel Antenna = Splitter

= Signal Booster

Warning: An Inside Antenna must have a separation distance from all persons that is

at least 12 inches for the 5.2 dBi Dome Antenna and 15 inches for the

7 dBi Panel Antenna.

Splitter Options:

2-way

(859957)

(sold separately)

3-way

(859980)

4-way

(859981)

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

Installing a Wilson Electronics Signal Booster

Select a location to install the Signal Booster that is away from excessive heat, direct

sunlight, moisture and that has proper ventilation. Do not place the Signal Booster in an

air-tight enclosure.

Recommended installation locations for in-building Signal Boosters are:

In a closet, on a shelf and near a power outlet.

Run the Outside Antenna cable to the Signal Booster and attach it to the connector labeled

“Outside Antenna” on the Signal Booster. Run the Inside Antenna cable to the Signal

Booster and attach it to the connector labeled “Inside Antenna” on the Signal Booster.

Note: Be careful when plugging the connector in so as not to damage the center pins on

the connectors.

Connect the Outside Antenna to the Signal Booster with Wilson 400 low loss cable

(available from Wilson Electronics). Place the Inside Antenna in the center of the area

needing the amplified signal. It is important to have at least 50 feet of separation between

the Inside and Outside Antennas for the 50 dB Signal Boosters, 68 feet of separation

distance for the 60 dB PCS Signal Boosters and at least 75 feet of separation distance for

the 65 dB Signal Boosters.

AC/DC

Power Supply

Surge Protector Powerstrip (recommended)

Signal Booster

Lightning

Surge Protector

(sold separately)

Cell

Site

Supports

Multiple

Users

Inside Antenna

Optional Dome

Antenna Shown

Point Yagi antenna

away from Inside

Antenna

Outside

Antenna

1900 MHz Yagi

Antenna Shown

50 feet minimum

separation between Inside

and Outside Antenna for

50 dB cellular Signal Booster

68 feet for 60 dB PCS

Signal Booster

75 feet for 65 dB cellular Signal Booster

Antenna Separation

Warning: Connecting the Signal Booster directly to the cell phone with use of an

adapter will damage the cell phone.

Warning: Lightning protection is recommended for all installations (sold separately).

Take extreme care to ensure that neither you nor the antenna comes near

any electric power lines.

7Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

Powering up a Wilson Electronics Signal Booster

1. IMPORTANT! Ensure that all cell phones and cellular data cards within 50 feet of the

Inside Antenna are turned off.

2. To verify proper installation of the Signal Booster and antennas, make sure that the

distance between the Inside and Outside Antennas is a minimum of 50 feet for the 50 dB

Signal Booster, 68 feet of separation distance for the 60 dB PCS Signal Booster, and 75

feet for the 65 dB cellular Signal Booster.

3. If you are using an outside Yagi Antenna, never point the front of the Yagi toward the

Inside Antenna.

4. Ensure that both the Outside Antenna cable and the Inside Antenna cable are connected

to the Signal Booster before powering up the Signal Booster.

5. Plug the power supply into the Signal Booster input marked “POWER” (carefully, to avoid

damaging the center pin) and then into a AC Power Strip.

NOTE: The aluminum casing of a Wilson Electronics Signal Booster will adjust very

quickly to the ambient temperature of its environment. For example, in the

summer, when the attic of a house can easily exceed 140 degrees Fahrenheit,

the Signal Booster temperature may be 10 or more degrees higher. The casing

will be hot to the touch. Such high temperatures will not damage the Signal

Booster, nor do they pose a fire risk. As recommended in these instructions,

install the Signal Booster in a location with adequate ventilation. Keep the area

free of items that could block air flow to the Signal Booster.

Warning: Use only the power supply provided in this package. Use of a non-Wilson

Electronics product may damage your equipment (power supply sold

separately in 801175).

Warning: Verify that both the Outside Antenna and the Inside Antenna are connected

to the Signal Booster before powering up the Signal Booster.

IMPORTANT NOTICE

It is very important to power your Signal Booster using a•

surge protected AC Power Strip with at least a 1000 Joule

rating.

Failure to do this will void your warranty in the• event of a

power surge or lightning strike.

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

The Signal Booster is equipped with sensitive electronics designed to detect Signal Booster

oscillation or cell phone overload, both of which can hamper Signal Booster performance.

The Signal Booster is designed to automatically reduce gain or, if necessary, shut down

to prevent or compensate for these conditions. Oscillation or overload can be caused by

improper equipment installation -- understanding the Signal Booster lights will help you

identify and solve potential problems.

OSC 40 50 60 When the Signal Booster is initially powered on, the 60 light

will turn green. This indicates the Signal Booster is working at

the proper gain level.

If the 50 light is green, an oscillation has been detected and

the Signal Booster is powering down. Verify that the outside

Yagi Antenna is pointed away from the Inside Antenna and

not across the roof of the building. If need be, redirect the

Yagi Antenna so that it is pointing away from the Inside

Antenna. Then, reset the Signal Booster by disconnecting and

reconnecting the power supply.

If the 40 light is green, the Signal Booster is continuing to

power down. Try operating the cell phone farther away from

the Inside Antenna. If need be, redirect the Yagi Antenna so

that it is pointing away from the Inside Antenna. Then, reset

the Signal Booster by disconnecting and reconnecting the

power supply.

If the OSC light is solid red, the Signal Booster has shut

down to prevent oscillation. Try operating the cell phone

farther away from the Inside Antenna. Verify that the outside

Yagi Antenna is pointed away from the Inside Antenna and

not across the roof of the building. If need be, redirect the

Yagi Antenna so that it is pointing away from the Inside

Antenna. Then, reset the Signal Booster by disconnecting and

reconnecting the power supply.

If the OSC light is blinking red, the Signal Booster has shut

down to prevent a receive overload. Try moving the Outside

Antenna farther away from the cell tower.

OSC 40 50 60

If your Signal Booster has this

light configuration refer to the

instructions below.

Understanding the Signal Booster Lights

OSC 40 50 60

9Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

The Signal Booster is equipped with sensitive electronics designed to detect Signal Booster

oscillation or cell phone overload, both of which can hamper Signal Booster performance.

The Signal Booster is designed to automatically reduce gain or, if necessary, shut down

to prevent or compensate for these conditions. Oscillation or overload can be caused by

improper equipment installation, understanding the Signal Booster lights will help you identify

and solve potential problems.

OSC 45 55 65 When the Signal Booster is initially powered on, the 65 light

will turn green. This indicates the Signal Booster is working at

the proper gain level.

If the 55 light is green, an oscillation has been detected and

the Signal Booster is powering down. Verify that the outside

Yagi Antenna is pointed away from the Inside Antenna and

not across the roof of the building. If need be, redirect the

Yagi Antenna so that it is pointing away from the Inside

Antenna. Then, reset the Signal Booster by disconnecting

and reconnecting the power supply.

If the 45 light is green, the Signal Booster is continuing to

power down. Try operating the cell phone farther away from

the Inside Antenna. If need be, redirect the Yagi Antenna so

that it is pointing away from the Inside Antenna. Then, reset

the Signal Booster by disconnecting and reconnecting the

power supply.

If the OSC light is solid red, the Signal Booster has shut down

to prevent osciallation. Try operating the cell phone farther

away from the Inside Antenna. Verify that the outside Yagi

Antenna is pointed away from the Inside Antenna and not

across the roof of the building. If need be, redirect the Yagi

Antenna so that it is pointing away from the Inside Antenna.

Then, reset the Signal Booster by disconnecting and

reconnecting the power supply.

OSC 45 55 65

If your Signal Booster has this

light configuration refer to the

instructions below.

Understanding the Signal Booster Lights

OSC 45 55 65 If the OSC light is blinking red, the Signal Booster has shut

down to prevent a receive overload. Try moving the Outside

Antenna farther away from the cell tower.

Andere Handbücher für 801105

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Wilson Electronics Extender Handbücher

Wilson Electronics

Wilson Electronics weboost 472061 Bedienungsanleitung

Wilson Electronics

Wilson Electronics 271220 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost DRIVE REACH OTR FLEET Bedienungsanleitung

Wilson Electronics

Wilson Electronics Sleek Bedienungsanleitung

Wilson Electronics

Wilson Electronics Signal 4G 460019 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost DRIVE REACH FLEET Bedienungsanleitung

Wilson Electronics

Wilson Electronics WilsonPro A500 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost Home Complete Bedienungsanleitung

Wilson Electronics

Wilson Electronics 463005 Bedienungsanleitung

Wilson Electronics

Wilson Electronics WilsonPro A1000 Bedienungsanleitung

Wilson Electronics

Wilson Electronics Sleek 4G Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost Home Complete 530045 Bedienungsanleitung

Wilson Electronics

Wilson Electronics 2B1216 Bedienungsanleitung

Wilson Electronics

Wilson Electronics SLEEK 2B5225 Bedienungsanleitung

Wilson Electronics

Wilson Electronics AG Pro Quint 461104 Bedienungsanleitung

Wilson Electronics

Wilson Electronics AG Pro 75 Bedienungsanleitung

Wilson Electronics

Wilson Electronics 460113 MobilePro Bedienungsanleitung

Wilson Electronics

Wilson Electronics Tri-Band 4G-A Bedienungsanleitung

Wilson Electronics

Wilson Electronics Weboost AM100-PRO Bedienungsanleitung

Wilson Electronics

Wilson Electronics WeBoost Drive Reach Flex Fleet Bedienungsanleitung

Wilson Electronics

Wilson Electronics iDEN 800 MHz 274080 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost Drive Reach RV Installationsanleitung

Wilson Electronics

Wilson Electronics signalboost dt 271265 Bedienungsanleitung

Wilson Electronics

Wilson Electronics WILSON PRO 4000 Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
