X-Vision XUSB4DVR Bedienungsanleitung

CCTV

Model:

XUSB4DVR

4Camera 25fps USB DVR Card

and Software

Beforeyou begin

•Please unpack all boxes carefully and identify that all the parts are present.

•Do not cut the cables, this will void the warranty.

Model: XUSB4DVR

4Camera25fps USB DVR Card

and Software

Quick Guide

Thank you for choosing the Xvision USB 4 Camera CCTV DVR and

SmartDVR Software. Please make sure you operate this product in

accordance with the manual, to ensure optimum performance.

1. Introduction......................................................................................2

2. Installation Notes............................................................................2

3. Specification.....................................................................................3

4. System Requirements.......................................................................3

5. Hardware installation.......................................................................4

6. Software Installation........................................................................4

1. Introduction

This product is a high speed device, which connects via USB to a

Windows PC/Laptop and turns it into a powerful 4 camera CCTV

recorder with remote viewing, including all the features of an

advanced CCTV DVR system.

2. Installation Notes

1. For Software use, please refer to the electronic manual on the

CD-Rom supplied.

2. The XUSB4DVR is equipped with precision components. Take care

when moving or installing this product.

3. Make sure that your PC has a USB 2.0 port (this product will not

operate on USB 1.0 ports)

4. If you need to remove the XUSB4DVR, follow these steps:

Right click the taskbar > stop device > remove the XUSB4DVR.

5. Using the Xvision XUSB4DVR with other USB devices

simultaneously may cause a conflict and the computer may not

recognise the XUSB4DVR. Do not use more than one XUSB4DVR or

use with any other Video capture devices.

6. For technical support, please contact your local distributor.

3. Specification

PCI Card: USB 4 Camera CCTV DVR

Video format: PAL/NTSC

Resolution: 352x288, 704x576 (PAL)

Maximum Frame 25fps (PAL)

Rate:

Video Channels: 4

Audio channels: 4

Data format: MPEG4

4. System Requirements

Operating System: Windows XP or Vista

CPU: Pentium 4, 1.7GHz or above

Graphics: Nvidia Geforce 2/ATI Rage 128

compatible or similar

RAM: 256MB

Direct X: Version 9 or above

USB 2.0 Sockets required: 1

5. Hardware Installation

1. Connect the XUSB4DVR to your PC/laptop.

2. Connect camera(s) to the yellow phono connectors for video and

the white phono connectors for audio.

6. Software Installation

After you have completed the hardware installation, turn on your

computer, your system may prompt you that it has ‘Found new

hardware’. Insert the CD in to your PC and run ‘setup.exe’ and the

installation interface appears as shown opposite.

Camera 1

(No Audio)

Camera 2

(No Audio)

Camera 3

(Audio)

Camera 4

(Audio)

Click ‘next’

Select the desired video format (for european countries this should be

PAL) and click ‘next’:

Select ‘next’ or browse to choose a new destination folder

Select ‘next’ to select program folder

Click ‘Finish’ to complete installing

After completing the software installation, please restart the

computer and launch the SmartDVR software application. A shortcut

to the program is created on the desktop.

CCTV

Manufactured exclusively for:

Xvision (Europe) Group,

Head Office: London, U.K.

Email: [email protected].uk

Web: www.x-vision.co.uk

TECHNICAL SUPPORT:

For Technical Support for any Xvision product please contact your local

distributor.

LIMITED WARRANTY:

This product is supplied with a 1 Year warranty. The Warranty excludes

products that have been misused, (including accidental damage) and

damage caused by normal wear and tear. In the unlikely event that you

encounter a problem with this product, it should be returned to the place

of purchase.

Andere Handbücher für XUSB4DVR

Inhaltsverzeichnis

Andere X-Vision DVR Handbücher

X-Vision

X-Vision XPR16H Bedienungsanleitung

X-Vision

X-Vision HDVR Bedienungsanleitung

X-Vision

X-Vision X32D1H Bedienungsanleitung

X-Vision

X-Vision HDVR Bedienungsanleitung

X-Vision

X-Vision XHR1080D16 Bedienungsanleitung

X-Vision

X-Vision Professional XR960D4 Merkblatt

X-Vision

X-Vision XDVR Bedienungsanleitung

X-Vision

X-Vision XPR8/16P Bedienungsanleitung

X-Vision

X-Vision XP4SW25 Bedienungsanleitung

X-Vision

X-Vision X16D1H Bedienungsanleitung

X-Vision

X-Vision EVD4E-3 Bedienungsanleitung

X-Vision

X-Vision Elite 9004P Bedienungsanleitung

X-Vision

X-Vision X32D1H Bedienungsanleitung

X-Vision

X-Vision X2RxN Bedienungsanleitung

X-Vision

X-Vision XRN0808E Bedienungsanleitung

X-Vision

X-Vision EVD16NCF Bedienungsanleitung

X-Vision

X-Vision XPR16P Bedienungsanleitung

X-Vision

X-Vision EVD8P Bedienungsanleitung

X-Vision

X-Vision Digital Video Recorder Bedienungsanleitung

X-Vision

X-Vision SDC4 Bedienungsanleitung

X-Vision

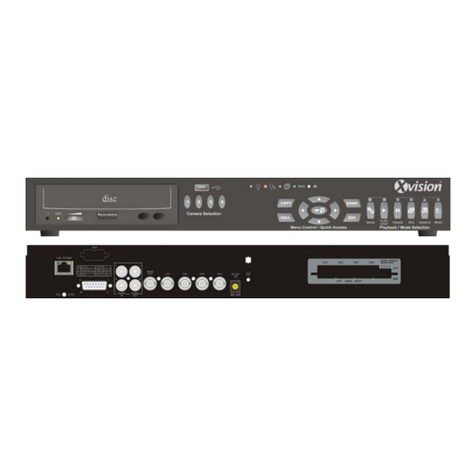

X-Vision X4 Bedienungsanleitung
