Mi Vacuum Cleaner Light

User Manual

Safety Instructions

This appliance can be used by children aged from 8 years and above and persons

with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance shall not be made by

children without supervision.

The vacuum cleaner is not a toy. Children may not play with or operate this

product. Please exercise caution when using the vacuum cleaner near children. Do

not allow children to clean or maintain the vacuum cleaner unless supervised by a

parent or guardian.

Only use the vacuum cleaner on dry indoor surfaces. Do not install, charge, or use

this product outdoors, such as in bathrooms, or near a pool.

Do not touch the plug or any part of the vacuum cleaner with wet hands.

To reduce the risk of fire, explosion, or personal injury, check to make sure the

lithium-ion battery and charger are undamaged before use. Do not use the vacuum

cleaner if either the battery or charger is damaged.

The electric floor brush, extension rod, and the vacuum cleaner are electrically

conductive and should not be immersed in water or other liquid. Make sure all

parts are thoroughly dry after you carry out cleaning on them.

To prevent injury caused by moving parts, turn off the vacuum cleaner before

cleaning the Electric floor brush. The Electric floor brush, dust compartment, and

filter must all be properly installed before using the vacuum cleaner.

If the power adaptor becomes damaged, it must be replaced with a genuine

component purchased from the manufacturer or after-sales service department.

Do not use the vacuum cleaner to pick up flammable or combustible liquids, such

as gasoline, bleach, ammonia, or drain cleaners; nor other liquids like water.

Do not use the vacuum cleaner to pick up drywall particles, ashes like fireplace

ash, or smoking or burning materials such as coal, cigarette butts or matches.

Do not use the vacuum cleaner to pick up sharp or hard objects, such as glass,

nails, screws, or coins, which may damage the product.

Keep hair, loose clothing, fingers, and other parts of the body away from the

vacuum cleaner's openings and moving parts. Do not point the suction opening,

extension rod, or other accessories at your eyes or ears or put them in your mouth.

Do not put any object into the vacuum cleaner's openings, nor use the vacuum

cleaner with any opening blocked. Keep free of dust, lint, hair, or other items which

may reduce airflow.

This product is for household use only. Read this manual carefully before use, and

retain it for future reference.

Do not rest the vacuum cleaner against a chair, table, or other unstable surfaces,

as this may cause damage to the product or personal injury. If the vacuum cleaner

malfunctions because of being knocked over or damaged, please contact the

authorized service department. Never attempt to disassemble the vacuum cleaner

on your own.

Only use the original charger to charge the product in environments with an

ambient temperature of 0°C to 35°C. Otherwise, the battery may damage.

The dust compartment cover, pre-filter, cyclone assembly, and HEPA filter must all

be properly installed prior to using the vacuum cleaner.

Make sure the vacuum cleaner is unplugged when not used for extended periods

as well as prior to performing any maintenance or repairs.

Please be extra careful when using the vacuum cleaner to clean stairs.

Fire Hazard Warning: Do not apply any type of fragrance to the vacuum cleaner's

filter. These types of products are known to contain flammable chemicals which

may cause the vacuum cleaner to catch fire.

DO NOT expose the appliance to fire as it may cause explosion.

DO NOT expose or submerge the appliance in any water, salt water, or other liquids.

This appliance contains batteries that are non-replaceable.

Please strictly follow the instructions in this user manual when using the vacuum

cleaner. Users are responsible for any loss or damage that may arise from

improper use of the vacuum cleaner.

We Guangdong Deerma Technology Co., Ltd., hereby, declare that this

equipment is in compliance with the applicable Directives and

European Norms, and amendments. The full text of the EU declaration

of conformity is available at the following internet address:

http://www.mi.com/global/service/support/declaration.html

Package Contents

Equipped with a high-speed brushless motor, the Mi Vacuum Cleaner Light boasts

the features including the powerful suction and a high-efficiency filtration system.

High-speed brushless motor: Run rapidly with a stable output of strong suction for

quick vacuuming.

Powerful suction: Fast suction of small and large particles with high efficiency to

deep clean the whole house.

High-efficiency filtration: The cyclonic separation system which is composed of

fine steel mesh, filter cotton, and a HEPA filter, separates the large particle dust

from the fine dust, then traps the dust so that it doesn't come back out to prevent

secondary pollutants.

Lightweight and multi-purpose: The compact and lightweight vacuum cleaner

works with accessories such as a light metal extension rod, electric floor brush,

flat nozzle, and long nozzle to clean the whole house easily and efficiently.

Product Overview

QuantityName

Vacuum cleaner

Extension rod

Electric floor brush

Flat nozzle

Long nozzle

User manual

Wall Mount

Power adapter

Wall plug

Screw

Product Overview

1 On/Off Button 2 Suction Level Button 3 MAX Indicator

4Battery Level Indicator 5Dust Compartment 6 Extension Rod Release Button

7 Extension Rod 8 Electric Floor Brush Release Button

9Floor Brush Window 10 Wheels 11 Roller Brush

12 Cleaning Soft Brush 13 Roller Brush Button

16 Anti-slip Strip

14 Dust Compartment Window

15 Vacuum Cleaner Charging Port

1Power Adapter 2Dust Compartment 3HEPA Filter

4Filter Cotton Cyclone Separator5Cyclone Separator Handle6

7Long Nozzle 8 Flat Nozzle 9Wall Mount

How to Install

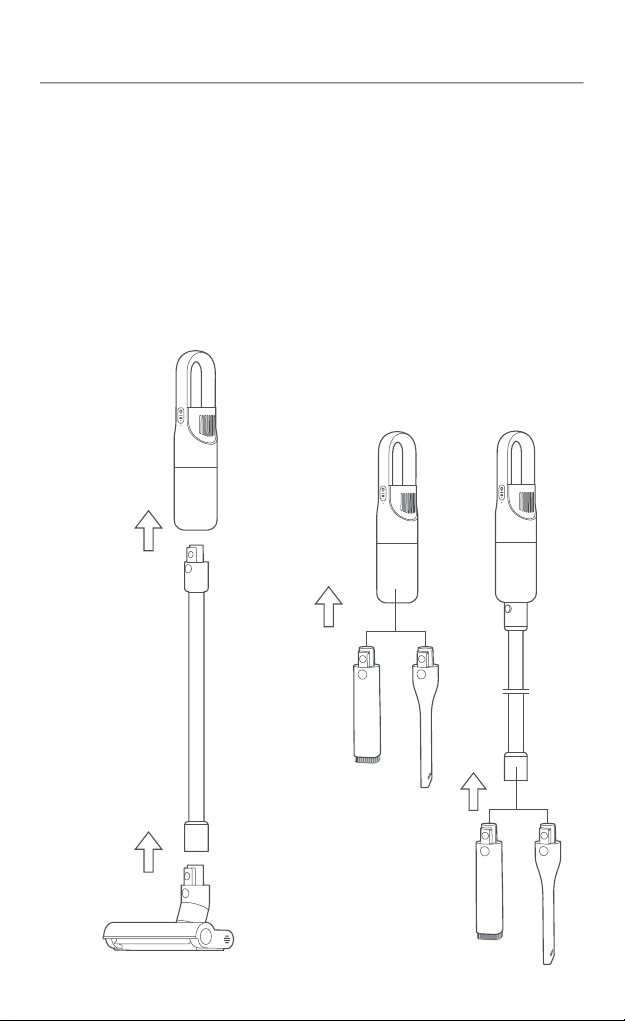

Assembling the Vacuum Cleaner

1. Connect the extension rod to the

vacuum cleaner, as illustrated, until you

hear a click.

2. Connect the electric floor brush to the

extension rod, as illustrated, until you

hear a click.

Installing the Accessories

1. The long nozzle and flat nozzle can

be connected directly to the vacuum

cleaner or the extension rod.

2. Insert the long nozzle or flat nozzle

into the vacuum cleaner or extension

rod vertically, as illustrated, until you

hear a click.

Note: The long nozzle is suitable for

cleaning dust from narrow gaps such

as doors, windows, stairs and corners.

The flat nozzle is perfect for cleaning

dust from sofa seats, cabinets, and

desk or console surfaces.

Fixing the Wall Mount

1.Drill two holes with each diameter of 6 mm on the wall at the height of

99.8–101.8 cm above the ground, and ensure there is a distance of 56 mm between

two holes, then insert two wall plugs into the holes.

2. Align the screw holes in the wall mount with the wall plugs, then use two screws

(4×20 mm) to firmly secure the wall mount to the wall.

Note: It is recommended to fix the wall mount near an electrical outlet so that it can

easily connect to the power.

Screw Holes

Align the screw holes

with the wall plugs

Wall Plugs Wall Plugs

99.8-101.8cm

56mm

Tuning on/off: Press and hold the on/off button for 1 second, then the vacuum

cleaner starts working and it runs on the standard mode by default. Press the

on/off button again to stop the vacuum cleaner. Press and hold the button for 5

seconds to turn off the vacuum cleaner.

Switch mode: When the vacuum cleaner

is running, press the suction level

button to switch to the turbo mode

(MAX level); meanwhile, the MAX

indicator will be white. Press the suction

level button again to switch to the

standard mode.

Battery level indicator: When the battery

level is sufficient, the battery level

indicator is white. When the vacuum

cleaner runs at a low battery level, the

indicator is red; if so, the vacuum

cleaner cannot be switched to the turbo

mode. When the battery runs out, the

vacuum cleaner automatically turns off.

Charging method

1.Before charging, make sure that the

power adapter is well connected to the

electrical outlet and the vacuum cleaner.

2.When charging, the battery level

indicator is breathing. Once the battery is

fully charged, the battery level indicator

goes off.

3.If you charge the vacuum cleaner while

its battery is full, the battery level indicator

will breath 20 seconds then go off.

MAX Indicator

Battery level Indicator

How to Use

Connect to an AC

Electrical Outlet

MAX Indicator

Battery level Indicator

On/Off Button

Press and hold the on/off button for 1 second, then the vacuum cleaner starts

working and it runs on the standard mode by default. You can switch the mode as

needed.

Hold the handle of the vacuum cleaner by pushing it back and forth to vacuum and

clean the floor with the floor brush. You can also use the long nozzle or flat nozzle

according to your needs.

Press the on/off button again to stop the vacuum cleaner.

Turning On/Off & Vacuuming
