Yakima HalfBack 62633.01 Bedienungsanleitung

BOTTOM

HalfBack

PURCHASE

SEPARATELY:

TubeTop

Required for bikes with

step-through/Ladies

frames or bikes with

slanted top tubes.

Part #8002531

HalfBack

1035039B-1/39

1X 1X

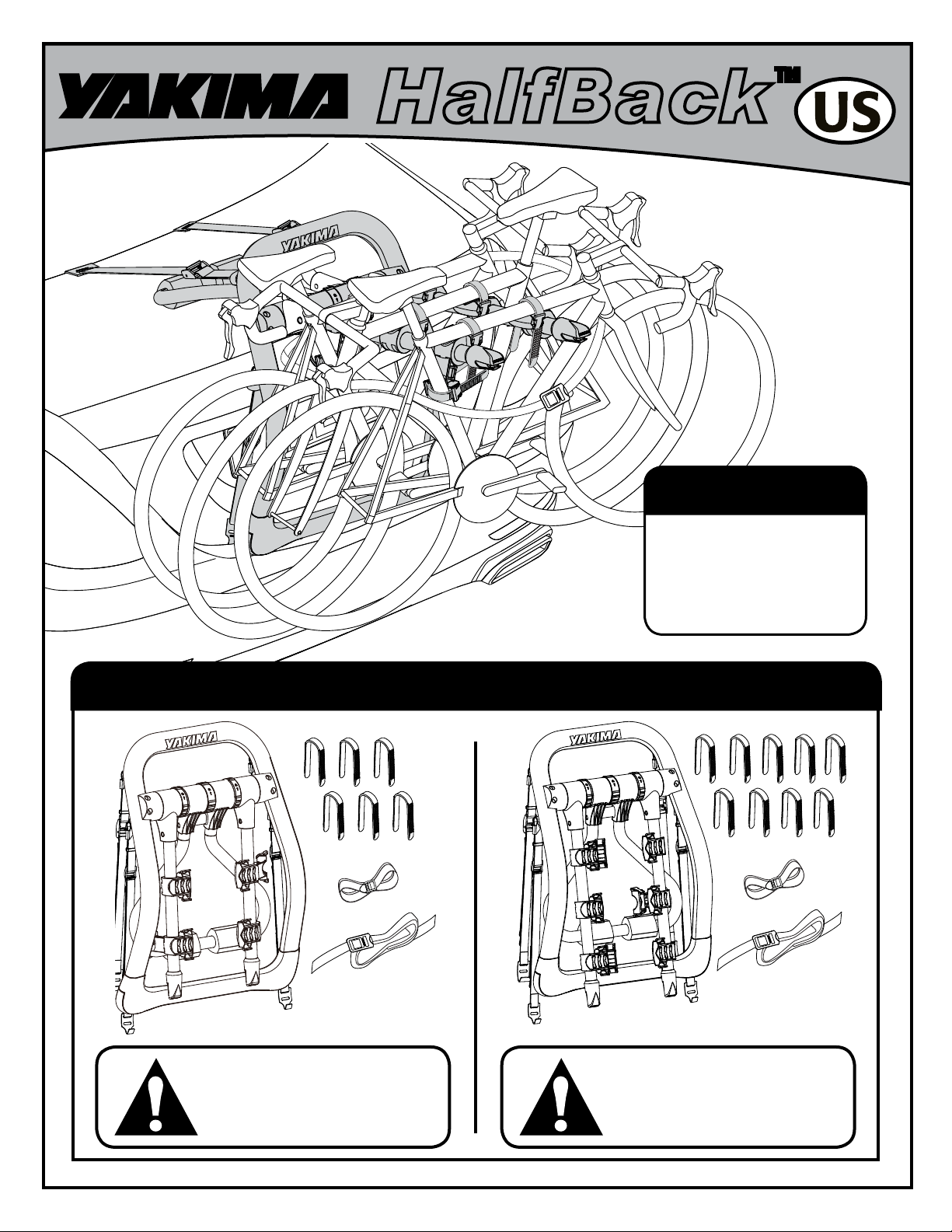

CONTENTS • CONTENU • CONTENIDO

HalfBack (2 Bike)

35 lbs / 15.9 kg max per bike.

70 lbs / 31.75 kg total.

HalfBack (3 Bike)

30 lbs / 13.6 kg max per bike.

90 lbs / 40.8 kg total.

PURCHASE

SEPARATELY:

TubeTopTM

Required for bikes with step-

through/Ladies frames or

bikes with slanted top tubes.

Part #8002531

www.fitlookup.yakima.com 2

1035039B-2/39

INSTALLATION • MONTAGE • INSTALLATION

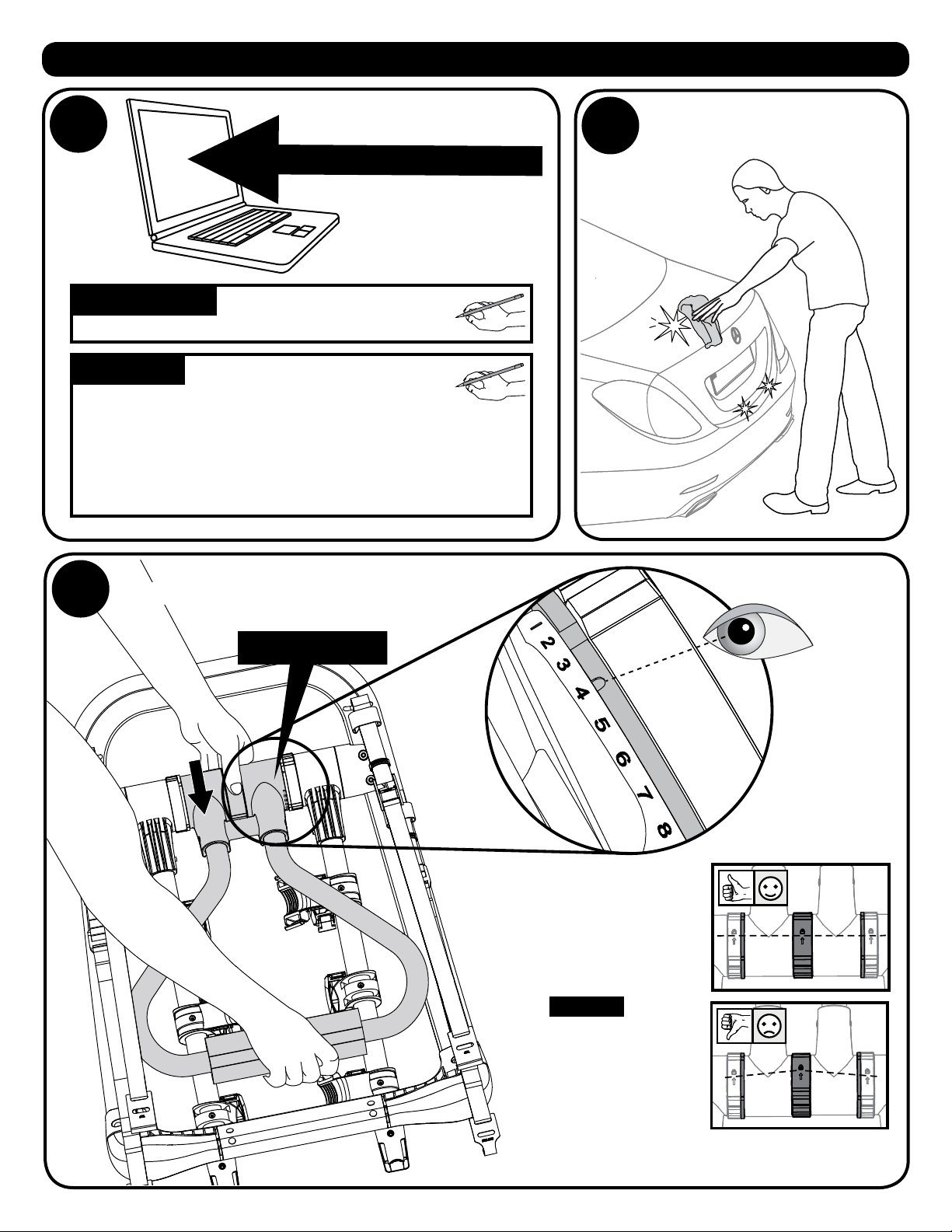

• Rotate the center dial

toward the unlock icon

and raise the upper

frame arm.

• Set its position to

the HUB SETTING you

determined in step 1.

• Ensure that the center

dial returns to the

aligned position.

• Ensure that the upper

frame arm is locked into

the correct position.

Set the hub

Clean the vehicle

HUB SETTING

FIT NOTES

HUB SETTING

1035039B-3/39

Upper Frame:

• The position is relative to the lower frame and will depend

on vehicle shape.

• Any contact with a spoiler is not acceptable

Lower Frame:

•LOWER SUPPORT FRAME LOCATION IS EXTREMELY

IMPORTANT IN SUPPORTING THE LOAD!

• A common location is just above the bumper on the

bottom edge of the trunk or hatch.

•Use area with the greatest support.

• Do not place the lower frame on glass, plastic, or thin

metal.

• Many vehicle trunks and liftgates have a large section of

poorly supported metal that will dent under weight.

•Do not place HalfBack on vehicle’s emblem.

TO AVOID DAMAGE, ALWAYS POSITION

HALFBACK WHERE DETERMINED BY

YOUR VEHICLE SPECIFIC FIT NOTES .

Position the HalfBack

DID YOUR FIT NOTES

INDICATE YOU NEED

TO USE ANCHORS FOR

THE TOP HOOKS?

YES

SKIP STEP 5 AND

PROCEED TO PAGE 4.

PROCEED TO STEP 5.

PROCEED TO PAGE 5.

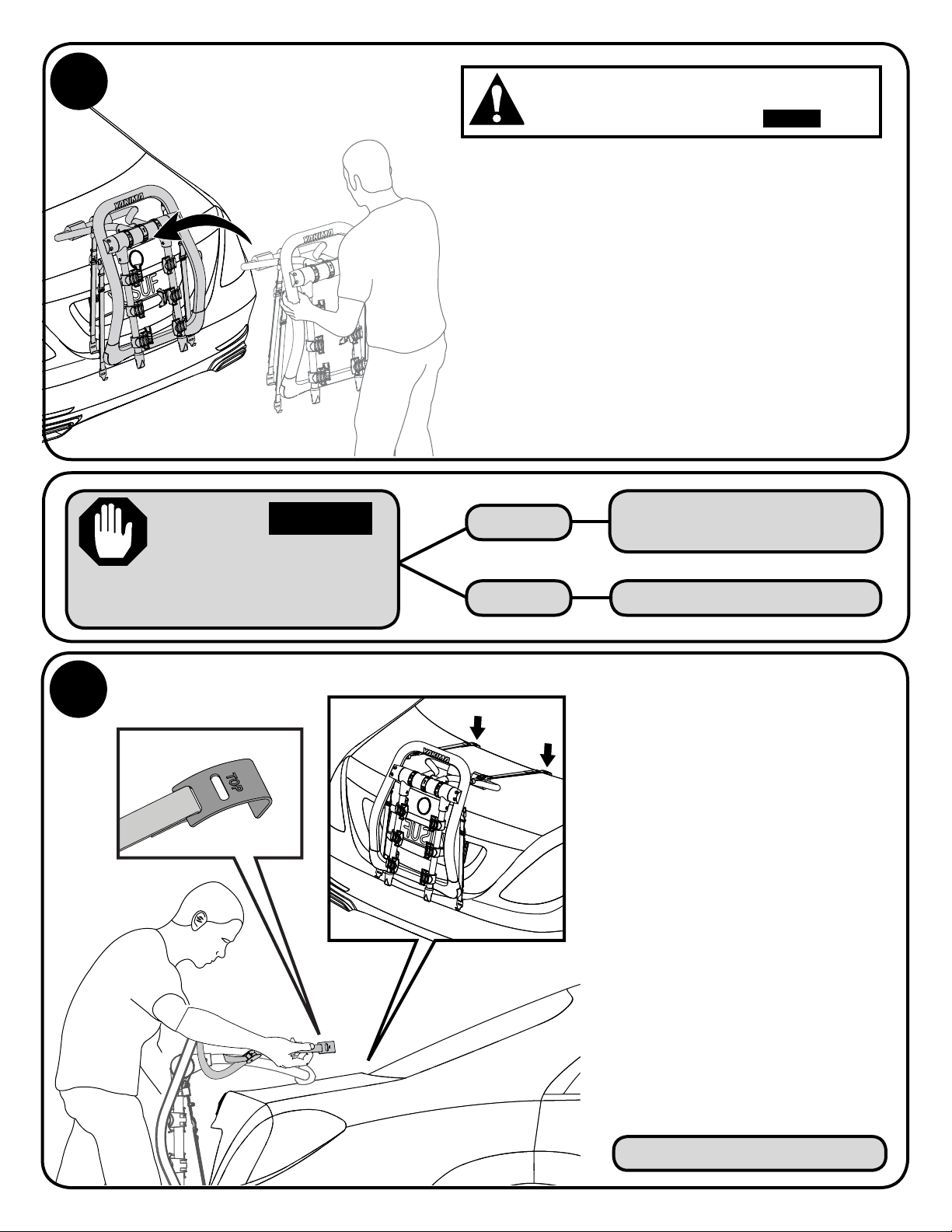

• Using your body to help support the HalfBack

attach both top strap hooks around the top

edge of the trunk lid, hatch lid or rear door.

Tighten top straps until HalfBack is held in

place.

• You may need to attach hooks at a wider

section of the seam and then slide them into

their recommended place on the vehicle.

• Straps should be parallel, and no wider than

the body of the HalfBack. Route the straps

over the HalfBack frame.

•Not able attach the top hook? Use the anchor

conﬁguration. Follow Anchor installation

instructions on PAGE 4.

•DO NOT ATTACH THE TOP HOOKS TO

PLASTIC OR TO A SPOILER. Use the Anchor

conﬁguration instead. Follow Anchor

installation instructions on PAGE 4.

•DO NOT ATTACH THE TOP HOOKS TO GLASS.

Use the Glass Hatch Hooks (sold separately -

Yakima Part Number 8002612).

•REMOVE HOOKS BEFORE OPENING THE

HATCH OR TRUNK! Opening the hatch

or trunk with hooks installed could cause

damage to the vehicle.

Attach top hooks

1035039B-4/39

WARNING:

DO NOT REST

THE ANCHORS

AGAINST GLASS.

Make sure the anchor

is free from contact

between hatch door

and vehicle’s frame

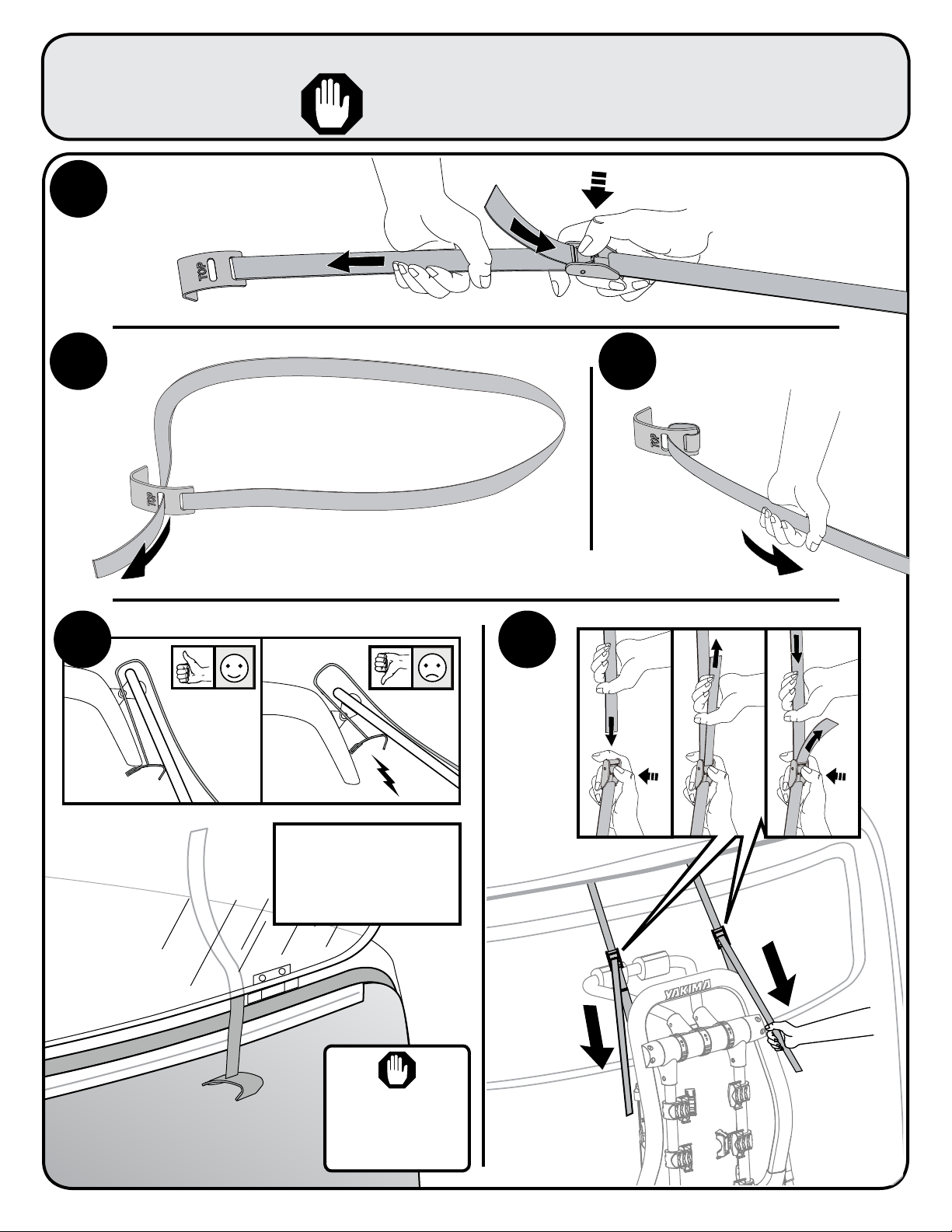

TOP HOOKS: Anchor installation instructions

Confirmed your vehicle does not

require Anchors? Skip this page.

1035039B-5/39

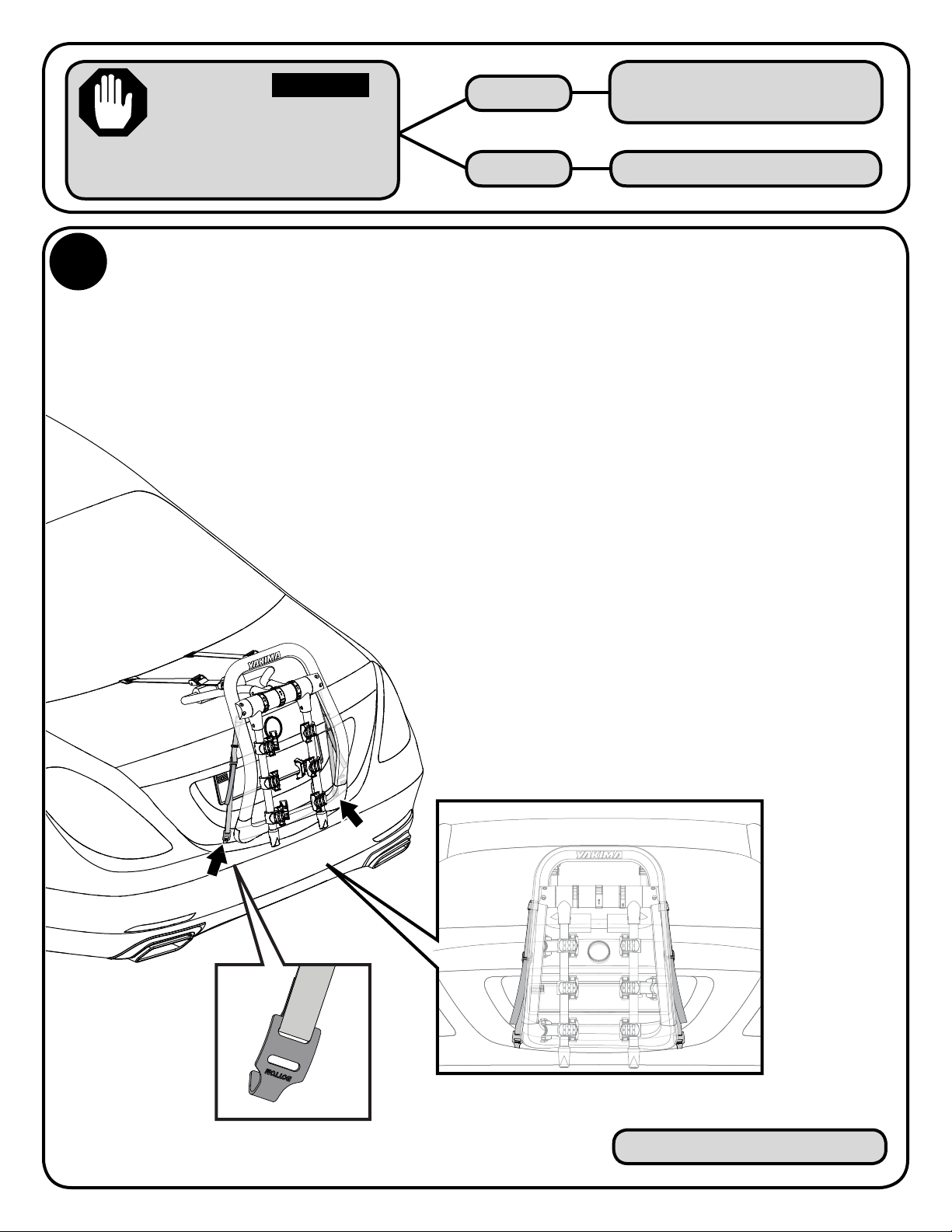

• Not able to attach the bottom hooks? Use the Anchor

conﬁguration. Follow Anchor installation instructions on page 6.

Attach bottom hooks

•REMOVE HOOKS BEFORE OPENING THE HATCH

OR TRUNK! Opening the hatch or trunk with

hooks installed could cause damage to the

vehicle.

• Acceptable attachment points may include the bottom edge of the trunk, hatch lid or

rear door. Additionally, the tie-down hooks underneath the vehicle or the metal ledge

of the bumper are acceptable. Only attach hooks to areas with sufﬁcient support.

• You may need to attach hooks at a wider section of the seam and then slide

them into their recommended place on the vehicle.

•DO NOT ATTACH THE BOTTOM HOOKS TO PLASTIC OR TO

A SPOILER. Use the Anchor conﬁguration instead. Follow

Anchor installation instructions on page 6.

• DO NOT ATTACH THE BOTTOM HOOKS TO GLASS.

Use the Glass Hatch Hooks (sold separately -

(Yakima Product Number 8002612).

PROCEED TO PAGE 7.

DID YOUR FIT NOTES

INDICATE YOU NEED

TO USE ANCHORS FOR

THE BOTTOM HOOKS?

YES

SKIP STEP 6 AND

PROCEED TO PAGE 6.

PROCEED TO STEP 6.

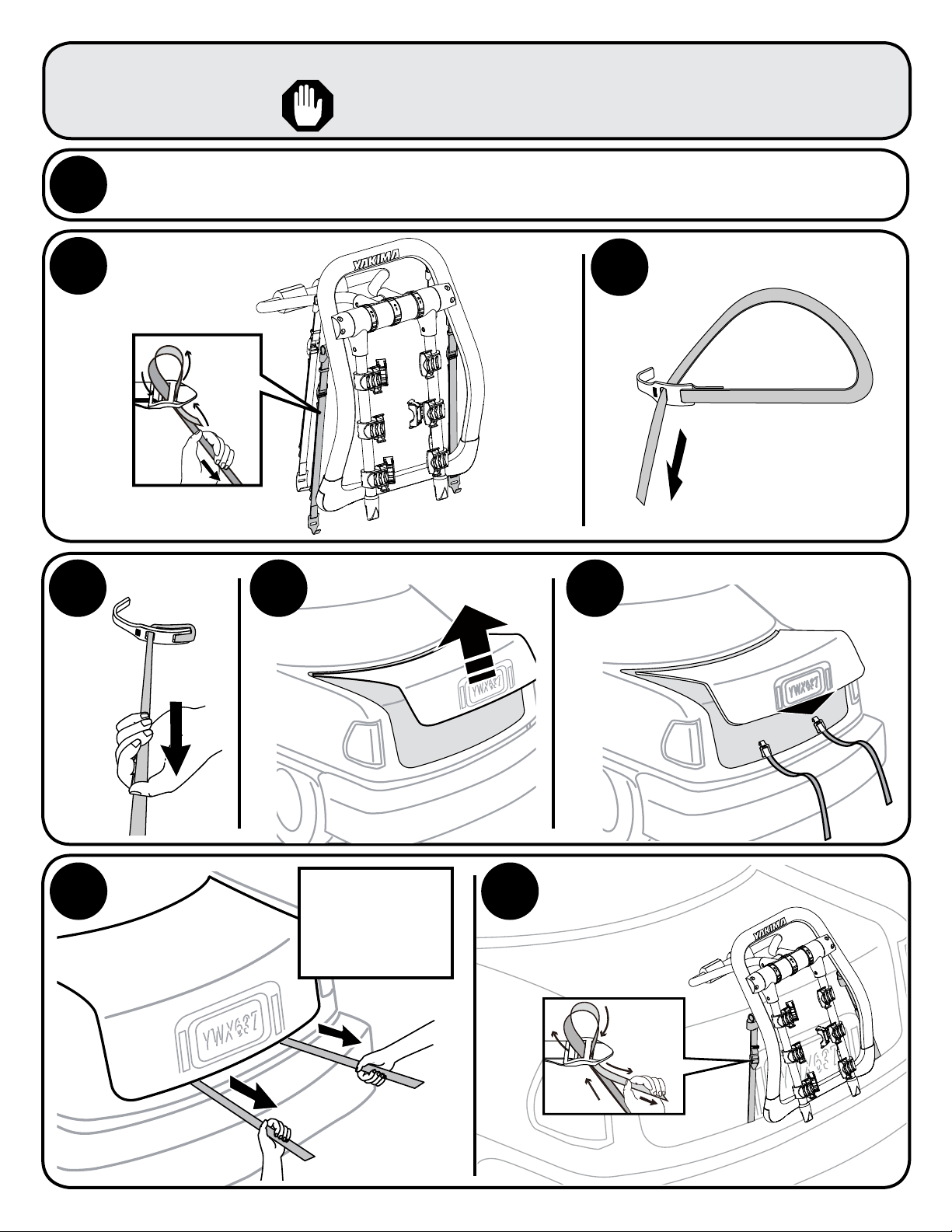

BOTTOM HOOKS: Anchor installation instructions

Confirmed your vehicle does not require

Anchors? Skip this page.

E FD

1035039B-6/39

G H

BOTTOM HOOKS: Anchor installation instructions

Confirmed your vehicle does not

require Anchors? Skip this page.

REMOVE THE CARRIER FROM THE CAR.

BEFORE CLOSING

THE TRUNK:

Be sure the pads are

free from contact

between trunk door

and vehicle’s frame.

1035039B-7/39

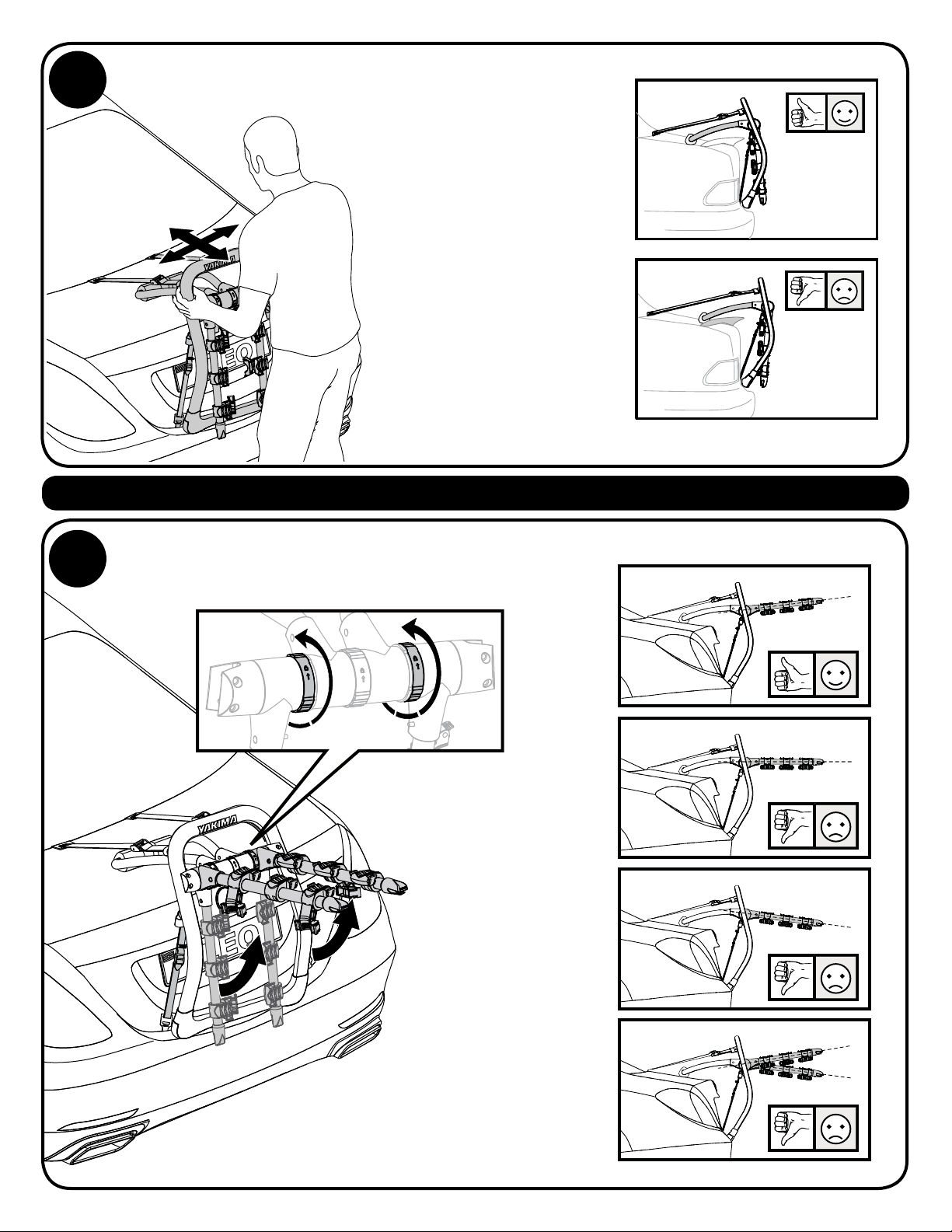

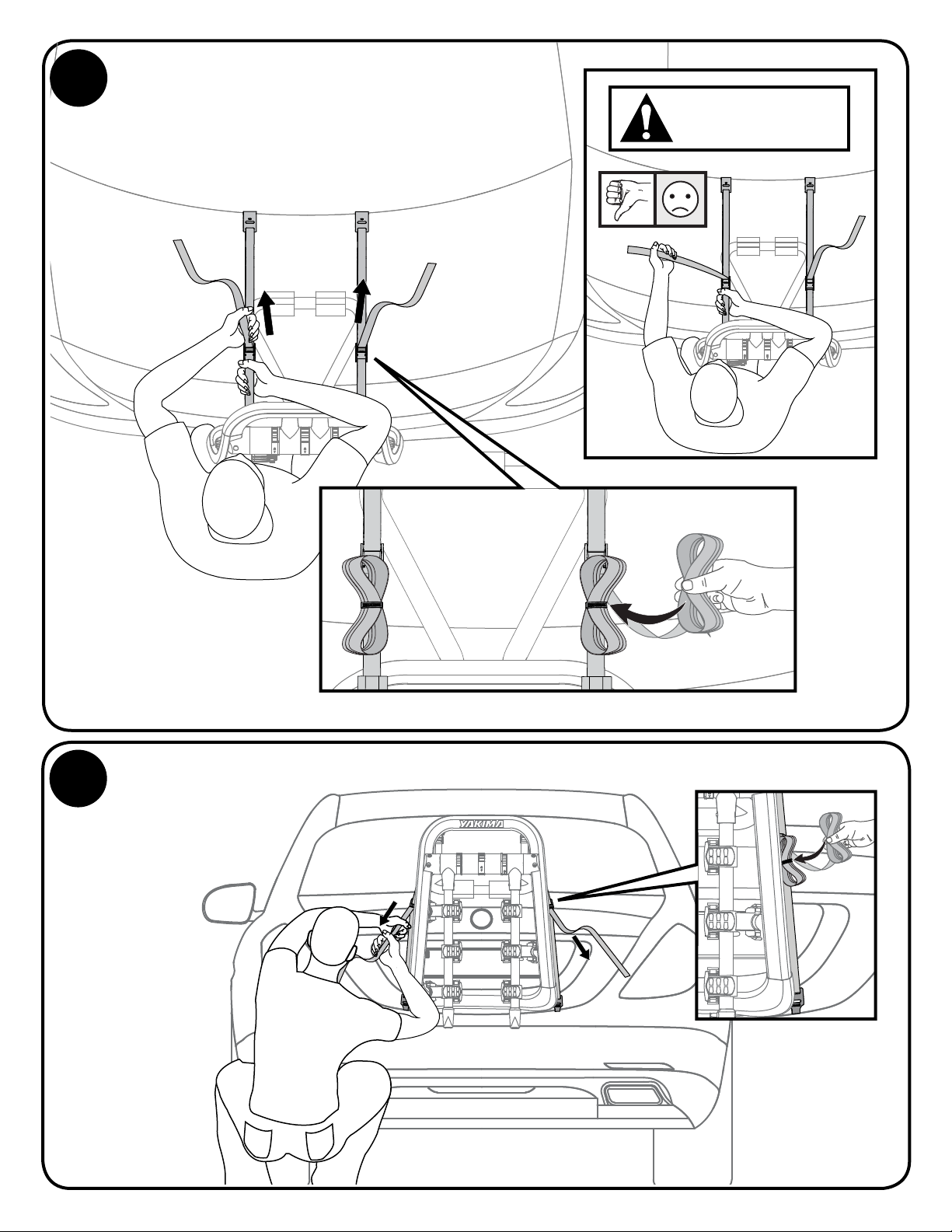

• Using ample force pull both top straps toward the

front of the vehicle to fully tighten the top straps.

• Store the extra straps

using the rubber strap

storage bands.

Do not pull upper

straps sideways!

Fully Tighten bottom straps

Fully Tighten top straps

• Using ample

force pull both

bottom straps

down toward

the ground to

fully tighten the

bottom straps.

• Store the extra

straps using

the rubber

strap storage

bands.

1035039B-8/39

LOADING • CHARGEMENT • CARGA

Test installation

• Grasp the HalfBack

and test that it’s

securely fastened

to the vehicle by

trying to move it in all

directions. HALFBACK

SHOULD NOT MOVE!

• Any Contact

with a spoiler is

unacceptable.

Raise the support arms

• Rotate the left and right dials

toward the unlock icon and

raise the support arms.

• Support arms must be

parallel to one another, and

angled slightly upward.

• Ensure that the left and

right dials return to

their locked positions.

You should hear an

audible “click” .

• Pull downward on both support

arms to ensure they are locked

into position. The lock icons will

be aligned when locked.

1 2

1035039B-9/39

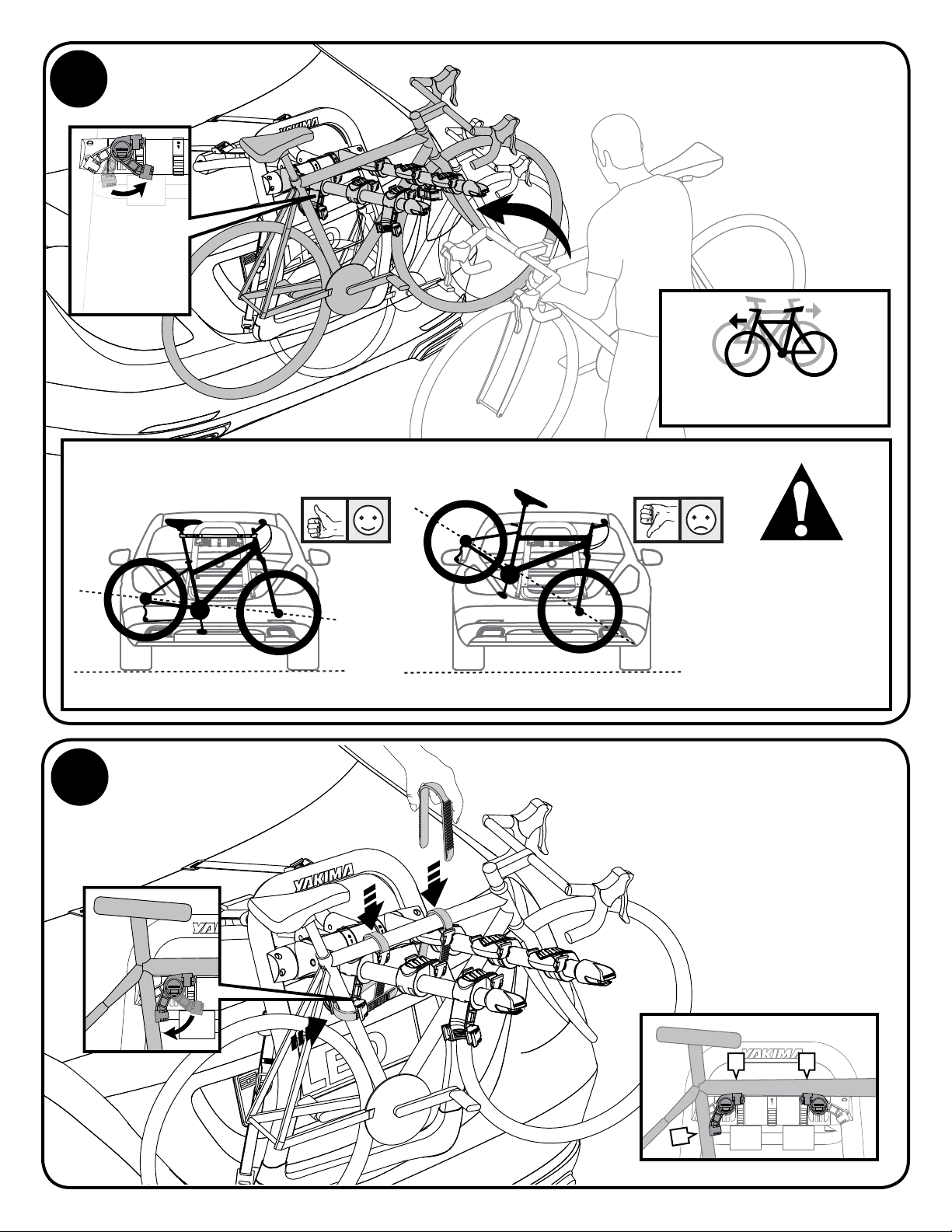

A Yakima TubeTopTM (see cover page) may be required to carry your bike safely.

Bikes should be as level as possible to avoid ground clearance issues and possible ejections.

Failure to load

bikes properly can

result in property

damage, personal

injury, or death.

Alternate bike directions

to avoid interference.

• Each bike requires

three ZipStripsTM.

• Always load ﬁrst bike with

chain away from vehicle.

• Rotate anti-sway cradle against

the seat tube.

• Insert ZipStripsTM into cradles and

push against bike frame until snug.

Secure the bikes

Load Bikes

Rotate anti-

sway cradles

out of the way

for easier

• Bikes are to be loaded in the position closest to the vehicle.

• Use Wheel Strap to

secure bike’s front

wheel to its frame.

• Load heaviest bike ﬁrst.

UNLOADING•DÉCHARGEMENT•DESCARGA

1035039B-10/39

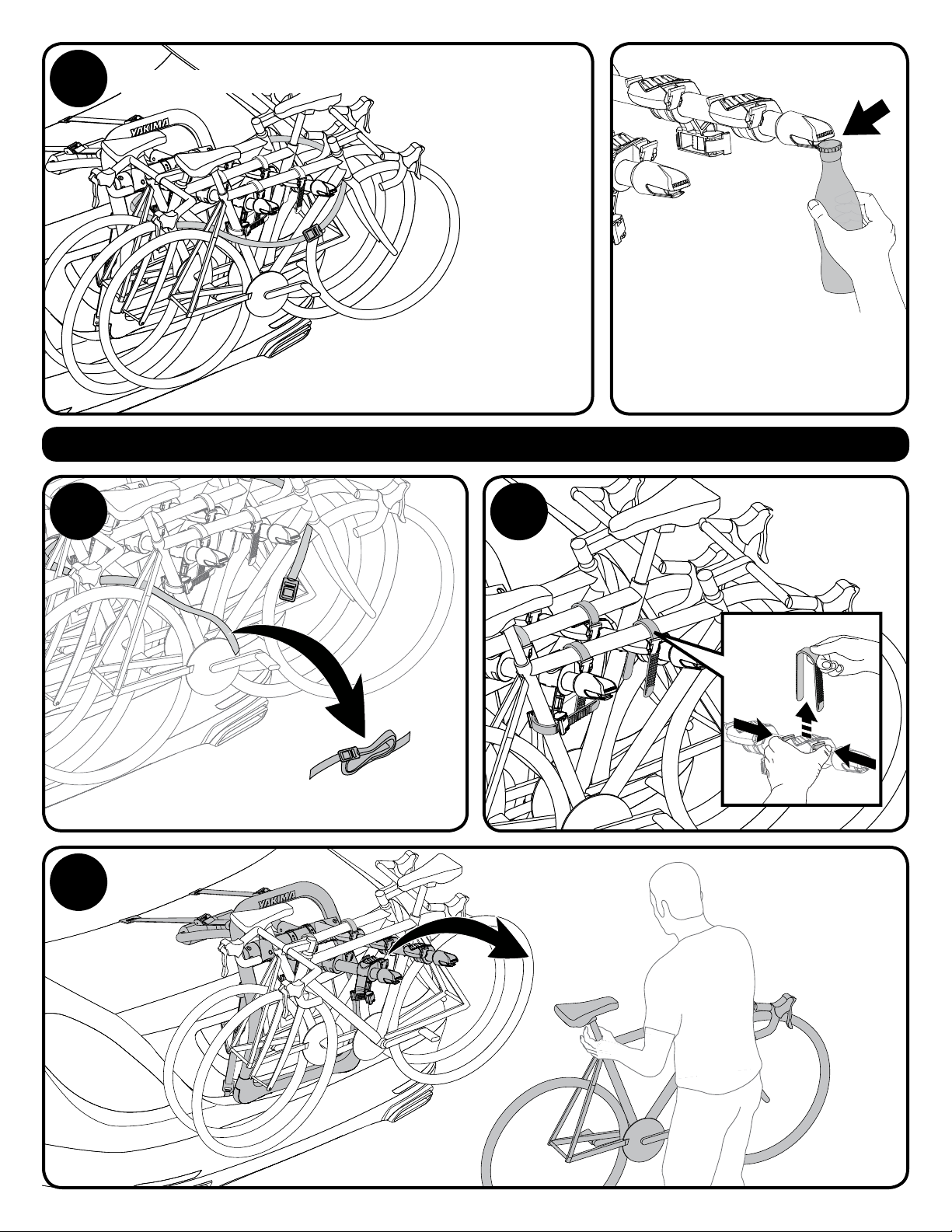

• Secure loose strap end.

• Use the safety

strap to secure

bike frames to

HalfBack frame.

Now that you’ve

installed your Yakima

HalfBack take a moment

to enjoy the beverage

of your choice. Use the

built in bottle openers to

crack open a cold one!

Install safety strap.

• Remove the

safety strap.

• Remove the

ZipStripsTM.

• Unload the bikes.
