Yakima LOCKN'LOAD Bedienungsanleitung

09-13-592-Rev2 1/4

• Please read instructions carefully before installation.

• Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.

• Clean your Platform prior to itting the YAKIMA LockNLoad High Lift Jack Holder.

• Place these instructions in the vehicle’s glove box after installation is complete.

FIRST TIME INSTALLATION

KIT CONTENTS

ITEM COMPONENT QTY

1. High Lift Jack Holder

Clamp Bracket

2. High Lift Jack Holder

Padlock Bracket

3. Clamp x1

4. M8 Spring Nut x4

5. M8 Socket Head

Capscrew 25 mm

(Crossbars only)

6. M8 Spring Washer x4

7. M8 Washer x4

8. M10 Washer x2

9. M10 Spring Washer x2

10. M10 x 40 mm

Hex Screw

11. M10 x 30 mm

Hex Screw

12. Allen Key 6 mm x1

13. M8 Socket Head

Capscrew 20 mm

(Platform only)

PLATFORM SOLD SEPARATELY

HIGH LIFT JACK HOLDER

LockNLoad

™

09-13-592-Rev2 2/4

INSTALLATION

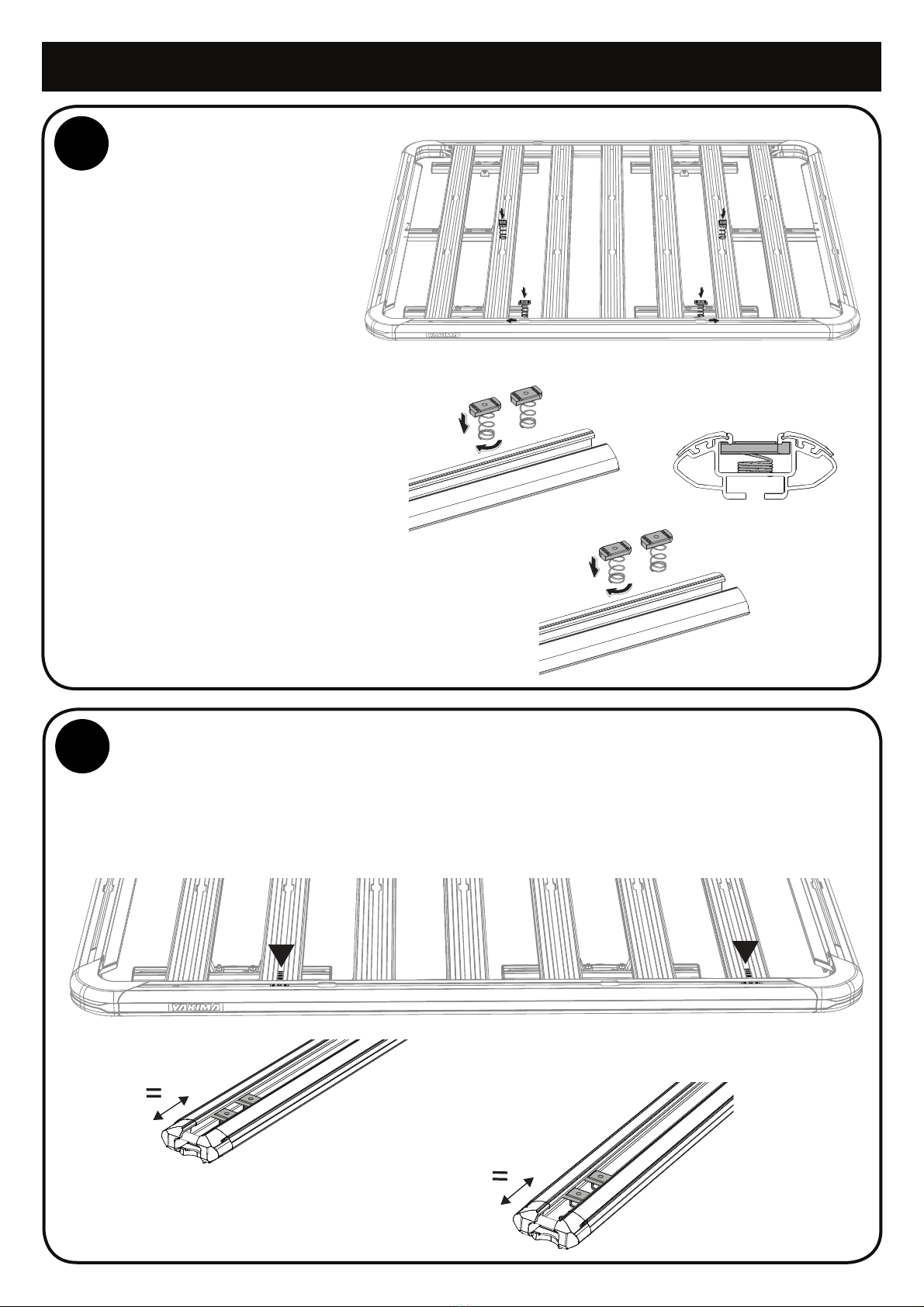

INSERT SPRING NUTS

- PLATFORM

Insert 4x M8 Spring Nuts

into Platform sides and

slats via the cut outs as

shown. Determine the

best slat spacing for the

High Lift Jack Brackets

based on the length of

Jack you will be carrying.

The Spring Nuts

do not need to be

rotated into place.

POSITION SPRING NUTS IN CHANNELS

Slide Spring Nuts along channels so they are positioned as close to the

Platform edge/end of crossbars as possible. The Brackets can be used

as a guide for spacing. Ensure nuts are equally spaced as shown. The

Allen Key can be used to assist nut movement within channel.

INSERT SPRING NUTS

- LockNLoad BAR

Insert 4x M8 Spring Nuts into

crossbar channels as shown.

Push Spring Nuts down into crossbar

channels and twist to lock into place.

09-13-592-Rev2 3/4

SECURE HIGH LIFT JACK

Secure your high lift jack

onto the Padlock Bracket

using the M10 x 40 mm Hex

Screw, M10 Spring Washer

and M10 Washer as shown.

With the high lift

jack securely in place,

swing the clamp down

over the jack arm and

tighten the M10 x

30 mm Hex Screw.

The jack can be secured with a padlock

(not supplied) as shown for added security.

NOTE - Padlock Bracket shown

SECURE BRACKETS - PLATFORM

Secure both Brackets onto the Platform via the Spring

Nuts using 2 x M8 Socket Head Capscrews 20 mm, 2 x M8

Spring Washers and 2 x M8 Washers per bracket as shown.

Tighten all Capscrews with supplied Allen Key to 4-5 Nm

SECURE BRACKETS - LockNLoad BAR

Secure both Brackets onto the Platform via

the Spring Nuts using 2 x M8 Socket Head

Capscrews 25 mm, 2 x M8 Spring Washers

and 2 x M8 Washers per bracket as shown.

Tighten all Capscrews with

supplied Allen Key to 4-5 Nm

09-13-592-Rev2 4/4

www.yakima.com.au

YAKIMA PRODUCTS, INC.

4101 Kruse Way

Lake Oswego, OR

97035-2541

USA

888 925 4621

YAKIMA AUSTRALIA PTY. LTD

17 Hinkler Court

Brendale, QLD 4500

Australia

1800 143 548
