Yale YRC216 Technische Daten

P/N - - - Rev BYRL EMICL PBINSTL FUL

Retroﬁtting or modifying this product may impact ﬁre rating, safety features and warranty.

Consult with code speciﬁcations to ensure compliance with all codes and ratings.

4" Touchscreen Shown - 5.5" Available

Inside

of Door

Yale Assure Lock

®®

Installation and Programming Instructions

(YRC216)

Electronic Interconnected Push Button

Network Module

(Optional)

Before you begin

for step-by-step installation

instructions & to register

your product

DOWNLOAD

THE BILT APP

Outside

of Door

P/N - - - Rev BYRL EMICL PBINSTL FUL

Before You Begin

1-3/8" (35mm) Min to

1-3/4" (44.5mm) Max

4-1/2"

(114) Min

x1x2 x8

Network Module

(Optional)

3/32"1/8"

Template

x2 x2 x2

1/8" 2-1/8"

P/N - - - Rev BYRL EMICL PBINSTL FUL

Mark Door Reference Lines

Template

EXISTING

2-3/8" or 2-3/4"

Backset

P/N - - - Rev BYRL EMICL PBINSTL FUL

1Preparing Door

(if necessary)

Drill holes 1/2 way thru

door then complete

from other side to

prevent splitting.

Ø2-1/8" 2-3/8"

2-3/4"

Ø1"

Template

5.5"

P/N - - - Rev BYRL EMICL PBINSTL FUL

2Installing Strike Plates

Door Frame

Inside

of Door

Frame

1" Dia. x

1"Deep

1" Dia. x

1/2"Deep

Frame

7-16 / 8-32 x 1" UNCWS

Left Hand “ ”, Hinges Left.LH

Open Inward.

Left Hand Reverse " ", Hinges Left.LHR

Open Outward.

Right Hand " ", Hinges Right.RH

Open Inward.

Right Hand Reverse " ", Hinges Right.RHR

Open Outward.

The hand of a door is determined from the secure side of the

door. The term "secure" means the side from which you initially

unlock and enter.

Determining Handing

P/N - - - Rev BYRL EMICL PBINSTL FUL

3Changing Handing

(if necessary)

4-24 x 1/4" PPHMS

4" Left Hand to 4" Right Hand Shown

DO NOT TAMPER

WITH OR LOOSEN

E-CLIP AND ITS

ASSEMBLY

DO NOT LOOSEN

THESE 6 SCREWS

OR REMOVE

COVER

Changing Handing

(if necessary)

continued

P/N - - - Rev BYRL EMICL PBINSTL FUL

Lockset Handing Conﬁgurations

4" Left Hand

For 5.5"

For 4"

4" Right Hand

For 5.5"

For 4"

After handing is changed, check that lever and thumbturn rotate freely.

Test Lever and Thumbturn

P/N - - - Rev BYRL EMICL PBINSTL FUL

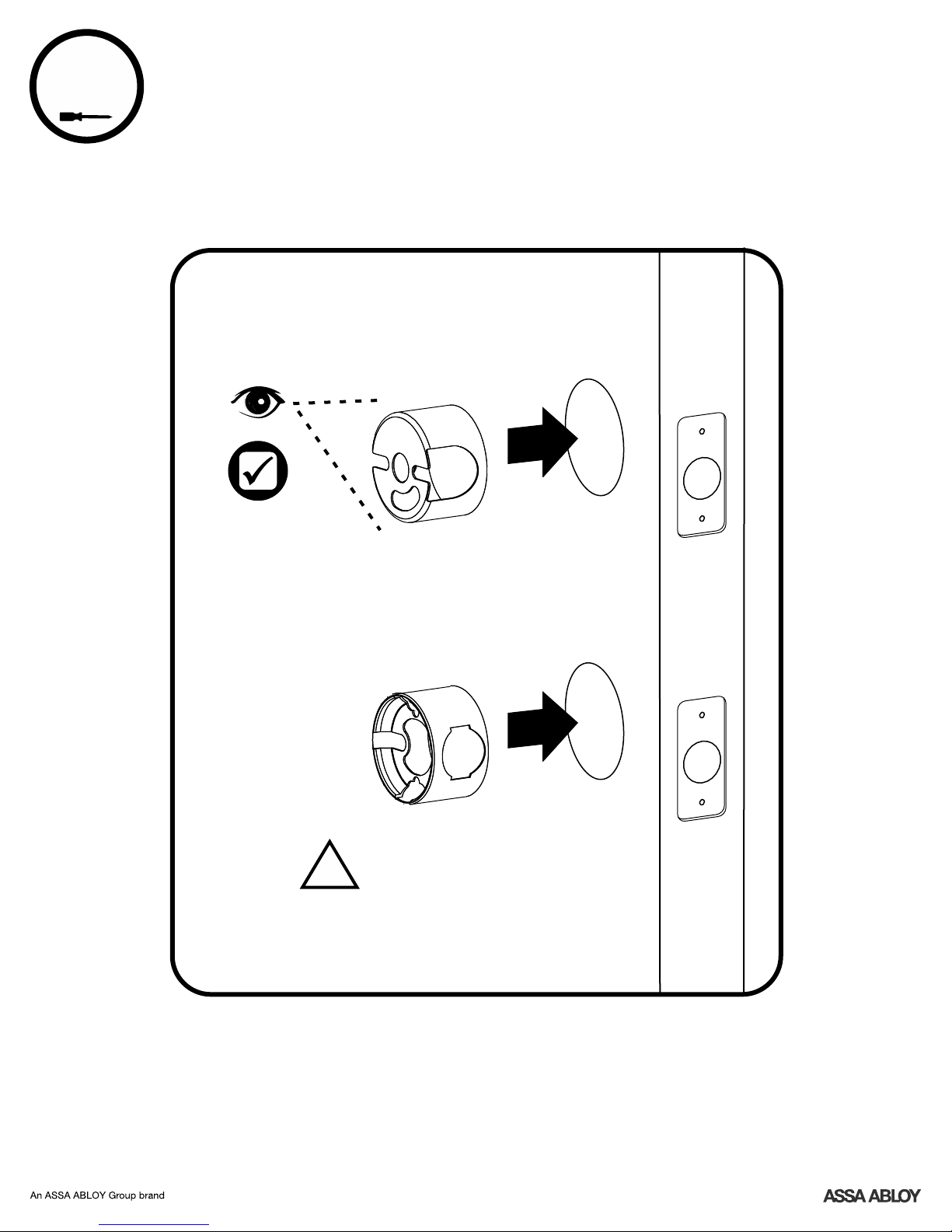

4Installing Fire Cups

Inside of Door

Both Fire Cups and a markedUL

Latchbolt must be used to

qualify for listing.UL
