Zavio B8210 Quick Installation Guide
Please follow the installation steps below to set up your B8210 Bullet IP Camera.
Check the package contents against the list below. See P.1
Physical overview. See P.2
I/O Terminal Block Circuit. See P.3
I/O Terminal Block Pin Definition. See P.3
LED Indicator Definition. See P.4
Power mode. See P.4
Install the hardware and connect all cables. See P. 5
Microsoft OS: Use the software CD to install Intelligent IP Installer. See P. 8
Access the IP Camera using Intelligent IP Installer. See P. 8
Mac OS using Safari Broswer. See P. 11
Lighting environment. See P.11
Change the Web Interface into your preferred language. See P.12
Application of IP Camera. See P.12
For more information, please check the User Manual available in the Software CD or you can download
the latest software from http://www.zavio.com
Package Contents
Camera
B8210 IR Bullet Network Camera
Quick Installation Guide
Brief product information and quick installation
Software CD
IP Surveillance Software
Intelligent IP Installer
User Manuals
Language Packs
Accessory
Sun shield and screws
Wall mount bracket and wrench
Metal plate for wall mount bracket
Screw pack for wall and ceiling mounting
Alignment sticker
Body adapter
Wrench for front&back cover
Waterproof Connector
Moisture Absorber
Foam tape
2 pin terminal blocks for power
Cat 5e Female Coupler
1
Physical overview
－Front －
Warning:
The IR LED is classified as class 3B laser IR. It’s hazardous and harmful if the eye is exposed directly.
Please don’t look straight at the LEDs during operation.
－Rear －
2
Light Sensor
Lens
IR LED
SD card/ Network Link
status indicator
Video out
Reset
I/O Terminal Block:
1: Ground,
2: +12VDC,
3: Audio in,
4: Audio out,
5: Digital Output 1,
6: Digital Output 2,
7: Digital Input 1,
8: Digital Input 2,
9: RS-485+,
10: RS-485-
Power status indicator
NTSC/ PAL switch
SD card slot
DC 12V Power
Smart Focus control
I/O Terminal Block Circuit
I/O Terminal Block Pin Definition
PIN
Definition
Description
Max. V/A
1
Ground
-
2
+ 12VDC
12V DC
1.2 W
3
Audio In
Unbalanced, 1.4Vp-p, 1Vrms, terminal block
-
4
Audio Out
Unbalanced, 1.4Vp-p, 1Vrms, terminal block
-
5
Digital Output 1
Uses an NPN transistor with the emitter connected to
the GND pin. If used with an external relay, a diode
must be connected in parallel with the load for
protection against voltage transients.
100 mA
24V
6
Digital Output 2
Uses an NPN transistor with the emitter connected to
the GND pin. If used with an external relay, a diode
must be connected in parallel with the load for
protection against voltage transients.
100 mA
24V
7
Digital Input 1
Connected to GND to activate, or leave floating (or
unconnected) to deactivate.
30V DC
8
Digital Input 2
Connected to GND to activate, or leave floating (or
unconnected) to deactivate.
30V DC
9
RS-485 +
-
10
RS-485 -
-
3
LED Indicator
LED
Color
Indication
Network
Blue
Steady blue for Network link
Flash blue while Network activity
Power
Red
Steady red for booting up process
Blue
Steady blue for booting up completion
Unlit
when reset button pressed for at least 5 sec.
to factory default
SD Card
Yellow
Steady yellow means SD card ready
Flashes yellow while accessing SD card
Power Mode
PoE
Mode
at
Power
Requirement
PoE (IEEE802.3at) with Class 4
Power
Consumption
3.3 W, without IR/ Heater/ Fan
11.4 W, with max. IR on
12.8 W, with max. IR and Fan on
7.9 W, with max. Heater and Fan on
4.7 W, with max. Fan on
15.9 W, with max. IR/ Heater/ Fan
af
Power
Requirement
PoE (IEEE802.3af) with Class 3
Note: While IR on, Heater and Fan will be disabled.
Power
Consumption
3.6 W, without IR/ Heater/ Fan
11.7 W, with max. IR on
Adaptor
Mode
Power
Requirement
12V/1.5A Adaptor
Power
Consumption
3.5 W, without IR/ Heater/ Fan
11.9 W, with max. IR on
13.2 W, with max. IR and Fan on
7.8 W, with max. Heater and Fan on
4.9 W, with max. Fan on
Note: Heater and Fan will be activated while the inner temparature drops under 5℃and will be inactived
while it above 10℃. Fan will be actived while the inner temparature above 50℃and will be inactived
while it drops under 45℃.
4
Install the hardware and connect all cables
A. Hardware installation
a. Assembling sun shield and camera with two supplied screws (M5*6L).
Note: Please move the sun shield to secure the first screw on the fourth scale. (See figure 1)
b. Use T25 wrench to loosen the back cover.
c. Take out the screw plug and change to M12 waterproof connector. Insert all cables (power cord/
DIDO/ video out) into the connector.
d. Feed all cables to the back manual plate and connect them to the specific sockets then secure
waterproof connector tightly.
e. Attach the foam tape and moisture absorber on the back cover then secure the back cover back.
(Please change a new moisture absorber if open the front/ back covers afterwards.)
f. Feed all cables through adapter and wall mount bracket if you use B8210 bracket, or let the cable
through out the hole on right side of adapter if you use standard bracket. (Please see B. Two way
bracket installing.) Then secure the screws (M3*12L).
5
Figure 1
Figure 1
B. Two ways bracket installation
a. Use B8210 supplied bracket
RJ45, power, DIDO, video out cables can be fed through the supplied adapter and bracket with cable
management protected installation. (See figure 1)
b. Use standard bracket
Through our supplied adapter, there’s alternatived to use your selected standard bracket. Cables will
be passed through the right side hole of adapter. (See figure 2)
C. Connect Ground wire
Connect the ground wire to the IP camera’s adapter and secure with supplied ground screw.
6
Figure 1
Figure 2
D. Wall mounting and Ceiling mounting
a. Attached the alignment sticker to the wall. Drill five holes into the wall, which four for screws and one
for cable. Then hammer the supplied plastic anchors into the screw holes and secure the mounting
plate with supplied screws (T1/4”*32).
b. Hang the wall mount bracket on the mounting plate and fix it with the supplied screws.
c. Adjust the angle of the wall mount bracket to aim the shooting area.
E. Connect all cables
a. Without Power over Ethernet (PoE) connection
1. Connect the power adaptor to the IP Camera.
2. Using a standard RJ-45 network cable, connect the
IP Camera to a normal Hub/ Switch/ Router.
b. Power over Ethernet (PoE)
Using a standard RJ-45 network cable, connect the IP
Camera
to a PoE-enabled Hub/ Switch/ Router.
7

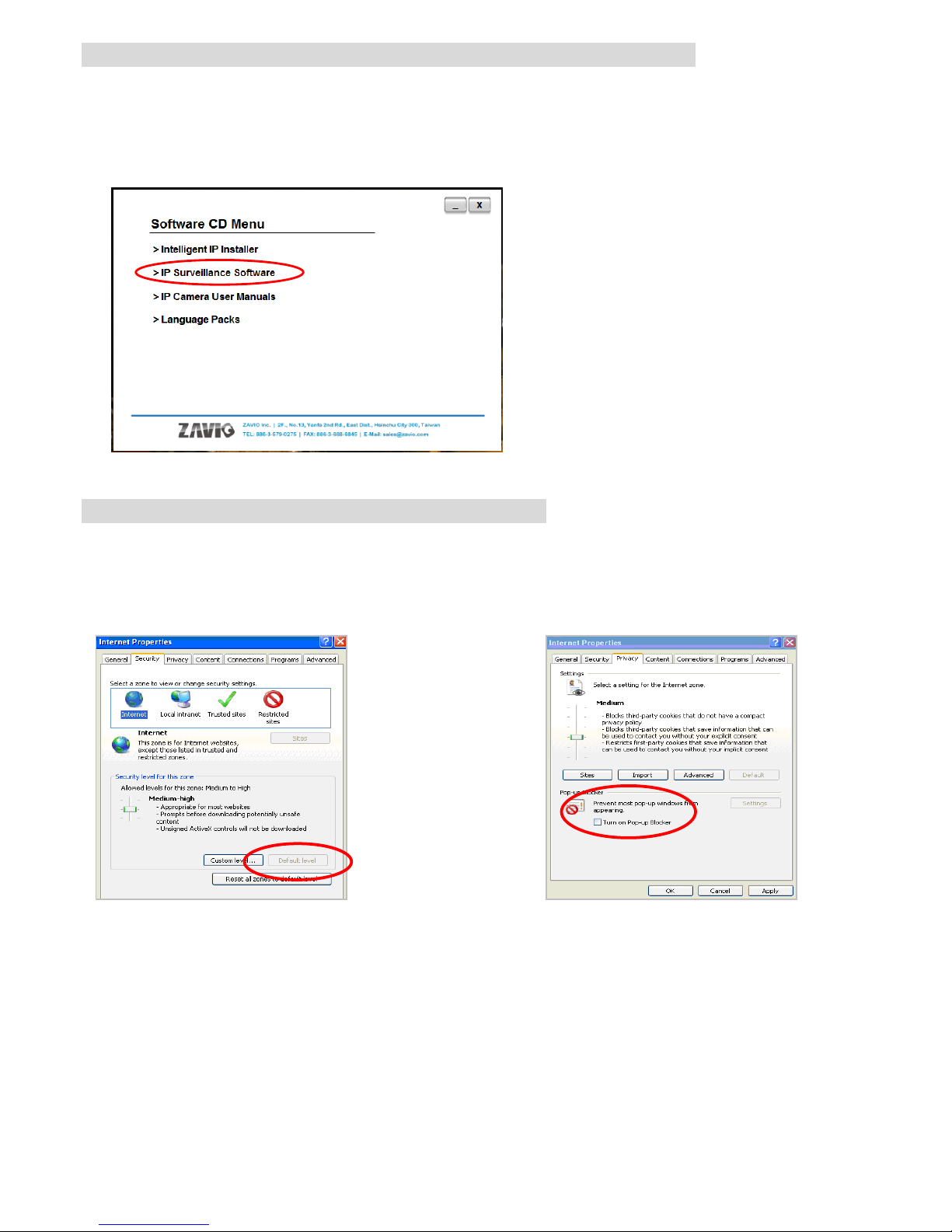

Microsoft OS: Use the software CD to install Intelligent IP Installer
Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these
steps to install the firmware.
Select “Intelligent IP Installer” and follow the installation process to complete the installation.
Access the IP Camera using Intelligent IP Installer
1. Please check two settings before using Intelligent IP Installer.
2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active
camera and video server devices. Select the relevant IP camera from the list and double click to link to
IE.
8
a. Browser’s Internet Properties → Security
→ Default Level
b. Browser’s Internet Properties → Privacy
→ Uncheck Pop-up Blocker
4. When accessing the IP Camera for the first time, a yellow information bar appears below the address
bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’.
9
3. Enter your Username and Password
to login to the IP Camera.
(Default is admin / admin)
