MiniBulletIPCamera

QuickInstallationGuide

1



Quick Installation Guide

Please follow the installation steps below to set up your IP Camera.

Check the package contents with the list below. See P.1

Physical Overview. See P.2

I/O Terminal Block Circuit & I/O Terminal Block Pin Definition. See P.3

Position of SD card, video out and reset button. See P.4

Installation of hardware and connection of all cables. See P.4~P.5

MAC OS: using Safari Browser. See P.6

Z Plus. See P.7~P.8

Lighting environment.& Change the Web Interface into your preferred language

See P.9

Package Contents

Camera IP Camera

Quick Installation Guide Brief product information and quick installation

Accessory Alignment Sticker

Screw pack for wall and ceiling mounting

Waterproof connector

Terminal block 2 pin DC connector

Software

The following software and information are available online:

-Video Management Software

-Z PLUS

-User manuals

-Camera Language Packs

You may download the above at http://www.zavio.com/downloads.php or you

may scan the below QR-Code.

ToactivateVideoManagementSoftware,pleasecontactwithZavioFAE

([email protected])togetthelicensekey(Pleaseprovidecamera’s

Modelname/Serialnumber/MAC).



2



Physical Overview

CB3210

CB3211



3



I/O Terminal Block Circuit

Note: Please use the supplied waterproof RJ45 connector and seal all connectors tightly to avoid moisture.

I/O Terminal Block Pin Definition

Pin Color Definition

Description Max. V/A

Green & White

Audio In Connect the wires of the audio input device to GND

(White) and AUDIO LINE IN (Green). -

White+Green

Orange+Black

Audio Out Connect the wires of the audio output device to GND

(Orange+Black) and AUDIO LINE OUT (White+Green).

Purple & Black Alarm In 1

Connect to GND to activate, or leave floating (or

unconnected) to deactivate. 5V DC / 50mA

Red & Black Alarm In 2

Connect to GND to activate, or leave floating (or

unconnected) to deactivate. 5V DC / 50mA

Yellow +

Black & Green Alarm Out Relay contact output. Contact capacity with resistance

load.

0.3A at 125V AC

or 1A at 30V DC

Brown + Pink RS-485 - -

4



LED Indicator

LED Color Indication

Network Green Solid green when network is established.

Orange Blink orange when there is network activity.

SD Card & Reset button

Reset: When the device is powered, press the Reset Button to reboot the device,

or hold the Reset Button for 15 seconds to the settings back to factory default.

Install the hardware and connect all cables

A. RJ45 waterproof connector

1. Make sure all components are assembled as shown on the below graph.

2. Check that the Ethernet Port and the Waterproof main body are tightly fasten.

B. Wall mounting and Ceiling mounting

1) Attached the alignment sticker to the wall. Drill four holes into the wall. Then

hammer the supplied plastic anchors into the screw holes and secure the

bracket with supplied screws.

2) Adjust the angle of the bracket to aim the desired area.



5



C. Junction box AZ-J01 (optional accessory)

1. Install sticker

2. Wall screw

3. Adapter plate

4. Adapter platesticker

5. Bracket and camera

6. Foam pad

7. Stopper

8. Cable box

9. Sink head screw

10.Flatheadscrew

D. Connect all cables

D1. Without Power over Ethernet (PoE) connection

1. Connect the power adaptor to the IP Camera.

2. Use a standard RJ-45 network cable and connect the IP Camera to a

hub/switch/router.



D2. Power over Ethernet (PoE)

1. Use a standard RJ-45 network cable and connect the IP Camera to a

PoE-enabled hub/switch/router.



6



MAC OS using Safari Browser

1. Select Safari Icon

2. Click Bonjour function and select the camera you wish to access.



3. Enter name and password to login to the IP camera

(Default is admin / admin)





4. Live video will display in the center of your web browser

7



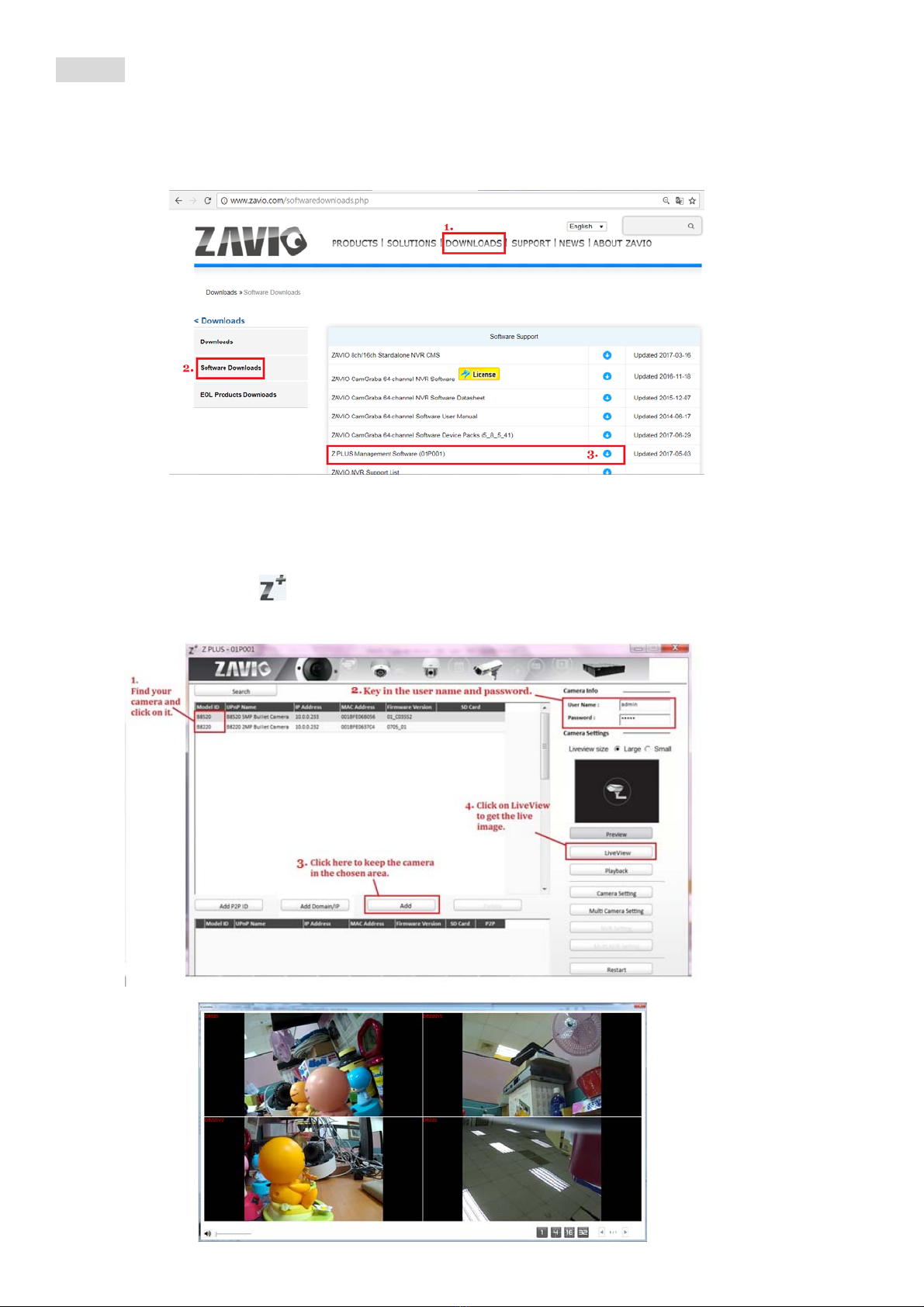

Z Plus

A. Get the image of camera with Z Plus.

1. Download Z Plus from ZAVIO official website..

2. Follow the instruction and install Z Plus.

3. Click the icon and get into the software.

8



B. Camera setting

9



Lighting environment setting

Default setting for lighting environment is Auto. You may change exposure

frequency to 50 or 60 Hz at Setting > Live View > Camera Setting > Image

Setting.



Change the Web Interface into your preferred language

Before accessing the Setting page to change the language of the web interface,

you must download the language pack.

1. Go to http://www.zavio.com/downloads.php and download the language pack

corresponding to your IP camera model.

2. Go to the IP camera setting page and upload the preferred language from the

language pack downloaded from step 1.

Setting > System > Maintenance > Language > Upload

3. Once the upload is complete, the browser will automatically change the

language.
