Zavio F7220 Bedienungsanleitung

/ B5210

ZAVIO Indoor Box Camera

Quick Installation Guide

Please follow the installation steps below to set up your IP camera.

Check the package contents with the list below. See P.2

Physical overview. See P.3

I/O Terminal Block Circuit. See P.4

I/O Terminal Block Pin Definition. See P.4

LED Indicator Definition. See P.4

Installation of hardware and connection of all cables. See P.5

Windows: Go to Zavio website and download Camera Installation Tool. See P.7

Access the IP Camera using Camera Installation Tool. See P.7

MAC OS: using Safari Browser. See P.10

Lighting environment. See P.12

Change language of the web interface. See P.12

Application of IP Camera. See P.13

Package contents

Camera IP camera

Quick Installation Guide Brief product information and quick installation

Accessory Hex screw driver

C-mount to CS mount adapter

Software

The following software and information are available online:

-Video Management Software

-Camera Installation Tool

-User manuals

-Camera Language Packs

Download the above at http://www.zavio.com/downloads.php or scan QR-Code.

To activate Video Management Software, please enter the license key below.

Physical overview

－Side －

－Front －

－Rear －

Reset:

When the device is powered, press the reset button to reboot the device, or hold the

reset button for 5 seconds to restore to factore settings.

DC Iris connector

Image sensor

Lens connector

I/O Terminal Block Circuit

I/O Terminal Block Pin Definition

PIN Definition Description Max. V/A

Out + Alarm Out + Relay contact output. 0.3A at 125V AC

or 1A at 30V DC

In + Alarm In +

Connected to GND to activate, or leave

floating (or unconnected) to deactivate.

5V DC / 50mA

LED Indicator

LED Color Indication

Network Green Solid green when network is established.

Orange Blink orange when there is network activity.

Install the hardware and connect all cables

A. Mounting the lens to the camera

a) Mount the lens by turning it clockwise on the camera until it stops.

b) Unscrew the focus controller to adjust to the desired focus.

c) Tighten the focus controller when finished.

B. Wall and Ceiling mounting

a) Fix the base plate to a flat surface with the three supplied screws.

b) Loosen the lock ring to adjust the desired angle of the camera.

c) Tighten the lock ring.

Figure 1

C. Connect all cables

C1. Without Power over Ethernet (PoE) connection

1. Connect the power adaptor to the IP Camera.

2. Use a standard RJ-45 network cable and connect the IP Camera to a

hub/switch/router.

C2. Power over Ethernet (PoE)

1. Use a standard RJ-45 network cable and connect the IP Camera to a PoE-enabled

hub/switch/router.

C3. Wireless connection

1. Connect the power adaptor to the IP camera.

2. Insert Wi-Fi Dongle.

3. Connect to Wi-Fi.

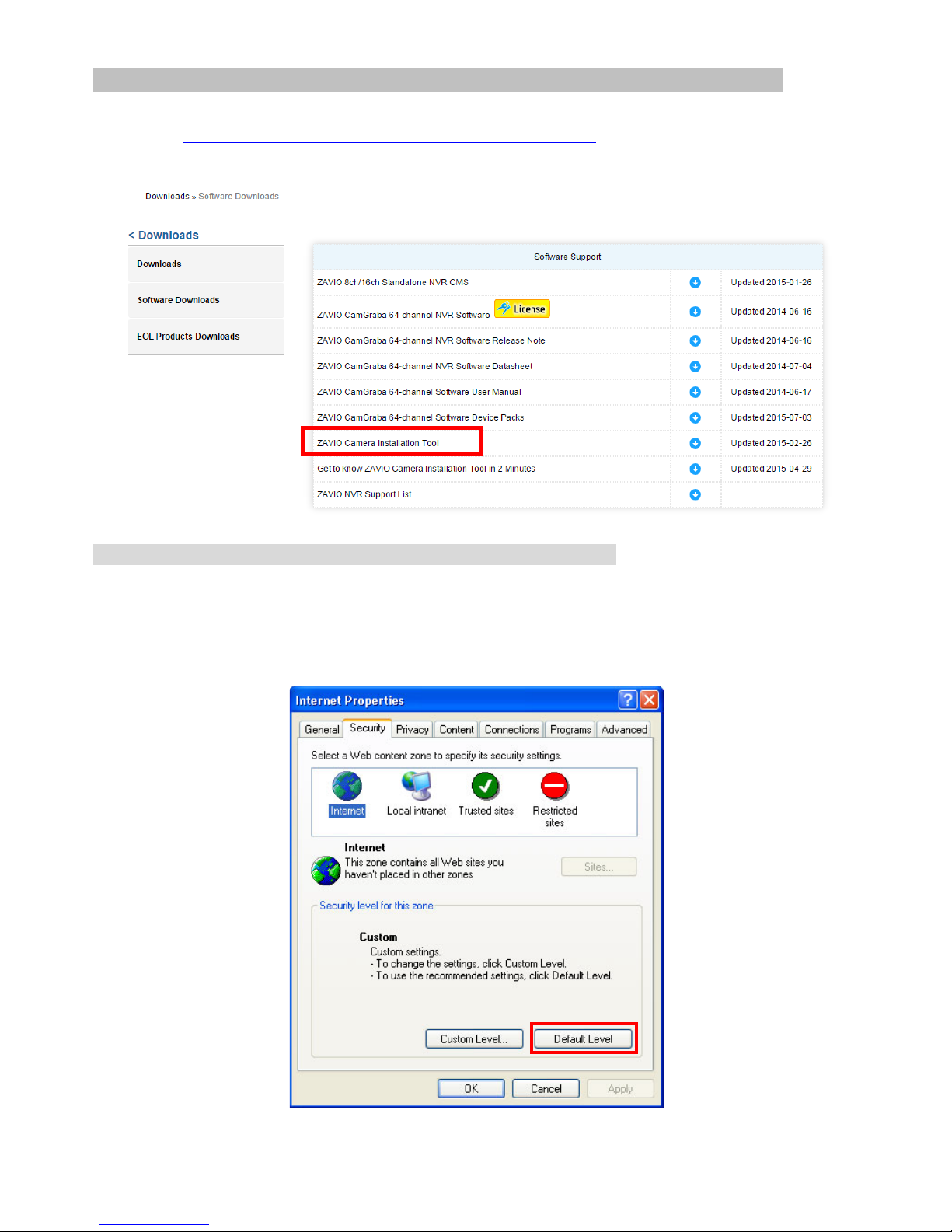

Windows: Go to Zavio Website and download Camera Installation Tool

Please go http://www.zavio.com/softwaredownloads.php download “Camera

Installation Tool”. And follow the installation process to complete the installation.

Access the IP Camera using Camera Installation Tool

1. Please check two settings before using Camera Installation Tool.

a. Browser’s Internet Properties →Security→Default Level

b. Browser’s Internet Properties →Privacy →Uncheck Pop-up Blocker

2. Click the Camera Installation Tool Icon on your desktop. The main page will show

up listing all active camera and video server devices. Select the desired IP

cameras from the list and click Link to IE.

3. Enter Username and Password to login to the IP Camera.

(Default is admin / admin)

4. When accessing the IP Camera for the first time, a yellow information bar appears

below the address bar: This website wants to install the following add-on:

AxvideoView.cab from ‘Zavio Inc’.

5. Click the information bar, and select Install ActiveX control.

6. Click Install

7. Live video will display in the center of your web browser.

MAC OS using Safari Browser

1. Select Safari Icon
