ZKTeco ML10 Series Bedienungsanleitung
1
USER MANUAL
ML10 / PL10 series
Version: 2.2
Date: Jan. 2019
Table of Contents
Read Before Use.........................................................................................................4
Safety Precautions....................................................................................................................4
Structure........................................................................................................................................5
Basic Function ............................................................................................................6
User Introduction.....................................................................................................................6
Button Function........................................................................................................................6
Lock Indication ..........................................................................................................................7
Lock Initialization......................................................................................................................8
Using Mechanical Key...........................................................................................................9
9V External Battery ...............................................................................................................10
Register First Administrator.............................................................................................11
Register Other Administrators.......................................................................................12
Register Normal User..........................................................................................................13
Register Temporary User...................................................................................................14
Delete Temporary User Group......................................................................................15
Delete Normal User Group..............................................................................................16
Delete Admin Group...........................................................................................................17
Enable/Disable Normally Open Mode.....................................................................18
Disabling Normally Open Mode:.................................................................................18
Page | 4
Safety Precautions
1. Factory setting of all new locks allows any verification to unlock them.
2. The lock is equipped with mechanical keys for manually unlocking. Store the
mechanical key in a safe place.
3. Four alkaline AA batteries (not included) are required to power on the lock,
Non-alkaline and rechargeable batteries ARE NOT RECOMMENDED.
4. If the lock does not have any activity for ten seconds it will go into sleep mode.
5. For best results, place the fingerprint properly onto the fingerprint sensor.
Read Before Use
Page | 5
Structure
Front view Rear / Bottom view
1
LED
2
Fingerprint Sensor
3
Sensor Holder
4
ID Card Swiping Area
5 H
andle
6
Mechanical Key Hole
7 Battery
Box Cover
8
Battery Area
9
Button / Temporary User
10
Button / Admin user
1
1 Back LED
1
2 Button○
-/ Delete user
1
3 Button ○
+/ Add user
1
4 Reset Button
1
5 Button / Normal User
1
6 9V Emergency Battery Interface
6
1
2
3
5
4
1
4
1
5
1
6
1
3
7
8
9
10
11
12
Page | 6
User Introduction
Group Verification Mode Function
Administrator 20 (Fingerprint:10, ID Card: 10) Add/delete fingerprint or ID card; Enable
Normally Open (NO) mode; Unlock the door
Normal User 120 (Fingerprint:60, ID Card: 60) Unlock the door; Enable NO mode
Temporary User 40 (Fingerprint:20, ID Card: 20) Unlock the door; Enable NO mode
Button Function
Buttons Function
Add Users
Delete Users
Administrator User Group and Enable NO mode
Normal User Group and Enable NO mode
Temporary User Group and Enable NO mode
Basic Function
Page | 7
Lock Indication
Lock Status Indication
Successful Operation Single beep and green light blinks
Failed Operation Two beeps and red light blinks
Low battery Seven beeps and red light blinks 7 times
Unlock One beep and the lock makes a rolling sound for the first
time, which indicates the door is unlocked.
Lock The lock makes a rolling sound for the second time, which
indicates the door is locked.
Page | 8
Lock Initialization
Method 1 Method 2
Press the "Reset" button with
a pin
Press the sensor holder to
power up the lock
Loosen the pin
Press the button in order "+",
"1", "2", "3" , "-"
Initialize succeeded
One beep for each
press, the back LED
blinks green
Green light blinks
A long beep, LED blinks
green for 1 second
Note: The lock will be restored to factory defaults settings after initialization, and the door can be opened with
any fingerprint or ID card.
Operating Steps
Indication
Operating Steps
Delete all normal users
Delete all administrators
Reset succeeded
Delete all temporary users
Please refer “Delet
Normal User”
Please refer “Delet
Administrator”
Please refer “Delet
Temporary User”
Page | 9

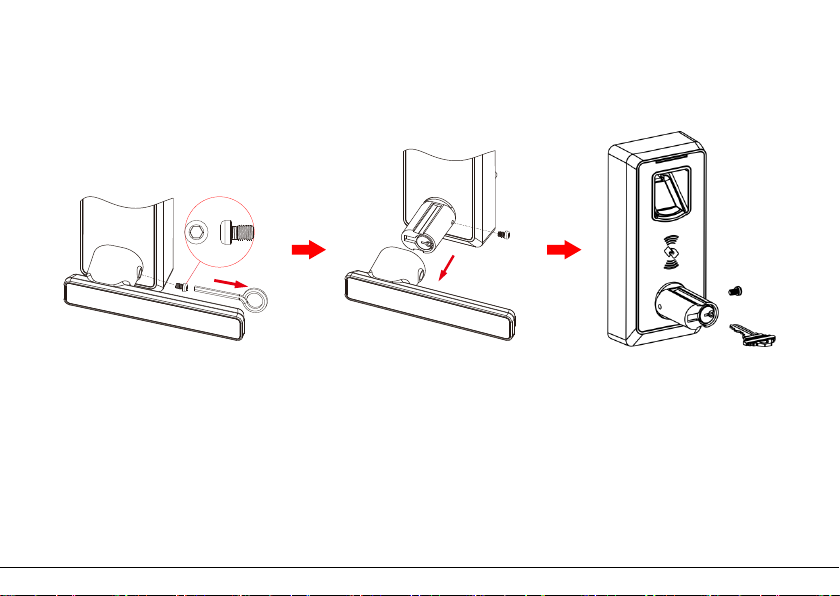

Using Mechanical Key
Step:
1. Using hex wrench, remove the screw.
2. Insert the key and unlock.
Hexagon Screw
Pull the handle out
Page | 10

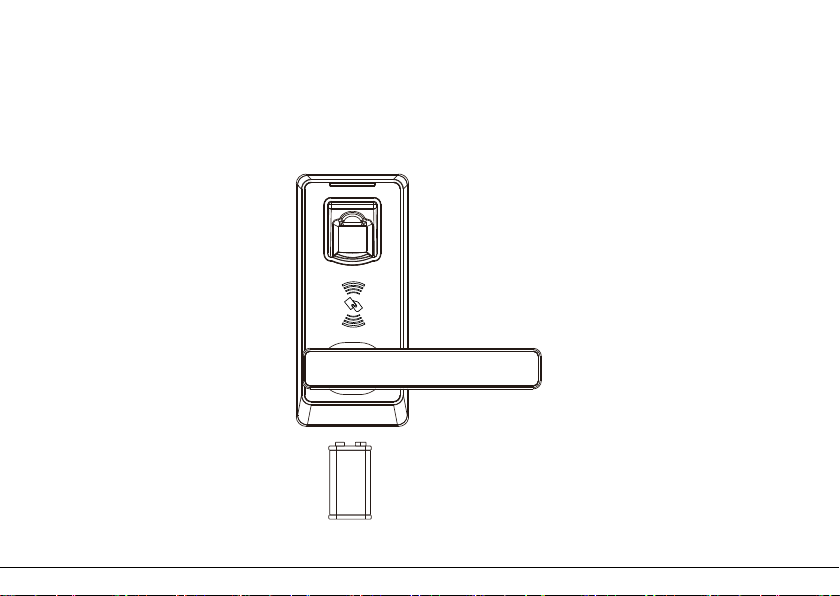

9V External Battery
9V external battery is used to operate the lock when the battery is fully discharged.
