Zte ZXHN H108N Merkblatt

H108N V2.1

Configuration Manual

ZTE H108N V.2.1 Configuration manual

Page i ZTE Proprietary and Confidential

Contents

1Accessing the Device ...................................................................................... 3

2Setup section................................................................................................... 4

2.1 Wizard................................................................................................. 4

2.2 Internet Setup...................................................................................... 9

2.2.1 Configuration for multi-device with dynamic IP..................... 9

2.2.2 Configuration for multi-device with static IP........................ 11

2.2.3 Configuration for standalone device with dynamic IP ......... 13

2.2.4 Configuration for standalone device with static IP .............. 14

2.2.5 Configuration for standalone device (generic).................... 16

2.2.6 Generic Configuration........................................................ 17

2.3 Wireless ............................................................................................ 21

2.3.1 Wireless Basics ................................................................. 22

2.3.2 Wireless Security............................................................... 24

2.4 Local Network ................................................................................... 28

2.5 Local IPv6 Network ........................................................................... 32

2.6 Time and Date................................................................................... 35

2.7 Logout............................................................................................... 36

3Advanced section .......................................................................................... 37

3.1 Advanced Wireless............................................................................ 37

3.1.1 Advanced Settings............................................................. 38

3.1.2 MAC Filtering..................................................................... 40

3.1.3 Security Settings ............................................................... 41

3.1.4 WPS Settings .................................................................... 42

3.2 SAMBA file share .............................................................................. 45

3.3 Port opening...................................................................................... 47

3.3.1 Automatic uPnP................................................................. 47

3.3.2 Port forwarding .................................................................. 48

3.3.3 Port filtering ....................................................................... 50

3.4 Other options..................................................................................... 51

ZTE H108N V.2.1 Configuration manual

Page ii ZTE Proprietary and Confidential

4Management section ..................................................................................... 52

4.1 Global IPv6 ....................................................................................... 52

4.2 System Management ........................................................................ 53

4.3 Firmware Update............................................................................... 54

5Hardware notice ............................................................................................ 56

5.1 Safety Precautions ............................................................................ 56

5.2 System Requirements ....................................................................... 57

5.3 Features............................................................................................ 57

ZTE CONFIDENTIAL: This document contains proprietary information of ZTE

and is not to be disclosed or used without the prior written permission of ZTE.

Due to update and improvement of ZTE products and technologies, information

in this document is subjected to change without notice.

ZTE H108N V.2.1 Configuration manual

Page 3 ZTE Proprietary and Confidential

1 Accessing the Device

The following is the detailed description of accessing the device for the first time.

Step 1 Open your browser and enter this address:

http://192.168.1.1:8000.

Step 2 The Login page shown in the following figure appears. Enter the

password and click Login. The user name and password of the super

user are 1234 and 1234.

ZTE H108N V.2.1 Configuration manual

Page 4 ZTE Proprietary and Confidential

2 Setup section

In the main interface, click Setup tab to enter the Setup menu as follow. In the

following pages we will discuss about the use of each function.

2.1 Wizard

The H108N V2.1 is customized with the configuration for your internet provider

(check the operator logo printed on the case of the router). In this way you don’t

have to worry because it should work automatically.

May you wish to configure it by yourself, the Wizard enables fast and easy

configuration of Internet connection and other important parameters. The

following sections describe the configuration of those parameters.

When subscribing to a broadband service, you should be aware of the method,

by which you are connected to the Internet. Technical information about the

ZTE H108N V.2.1 Configuration manual

Page 5 ZTE Proprietary and Confidential

properties of your Internet connection is provided by your Internet service

provider (ISP). For example, your ISP should inform you whether you are

connected to the Internet using a static or dynamic IP address, or the protocol,

such as PPPoA or PPPoE, that you use to communicate over the Internet.

Note:

The next chapter “Internet Setup” describes the scenarios for Movistar

Internet Provider in Spain, including the configuration values itself. If

this is your case we recommend you jump ahead to the chapter.

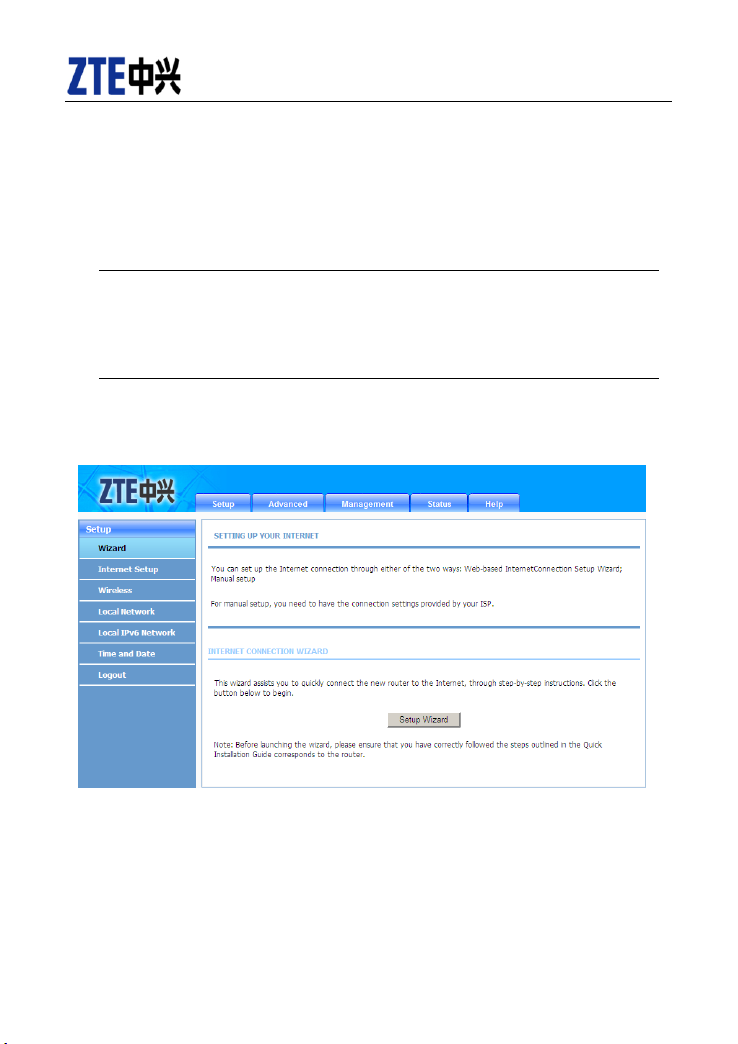

Choose Setup > Wizard. The page shown in the following figure appears.

Click Setup Wizard. The page shown in the following figure appears.

ZTE H108N V.2.1 Configuration manual

Page 6 ZTE Proprietary and Confidential

There are 4 steps to configure the device. Click Next to continue.

Step 1 Set the time and date in this page. After setting, click Next.

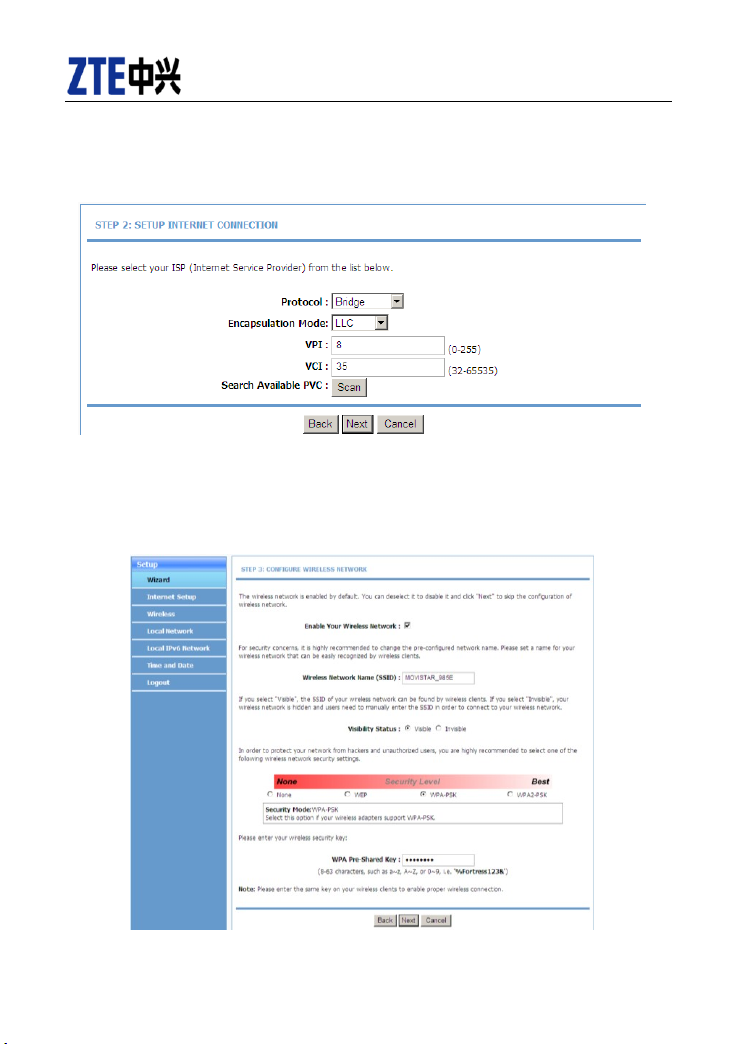

Step 2 Configure the Internet connection in this page.

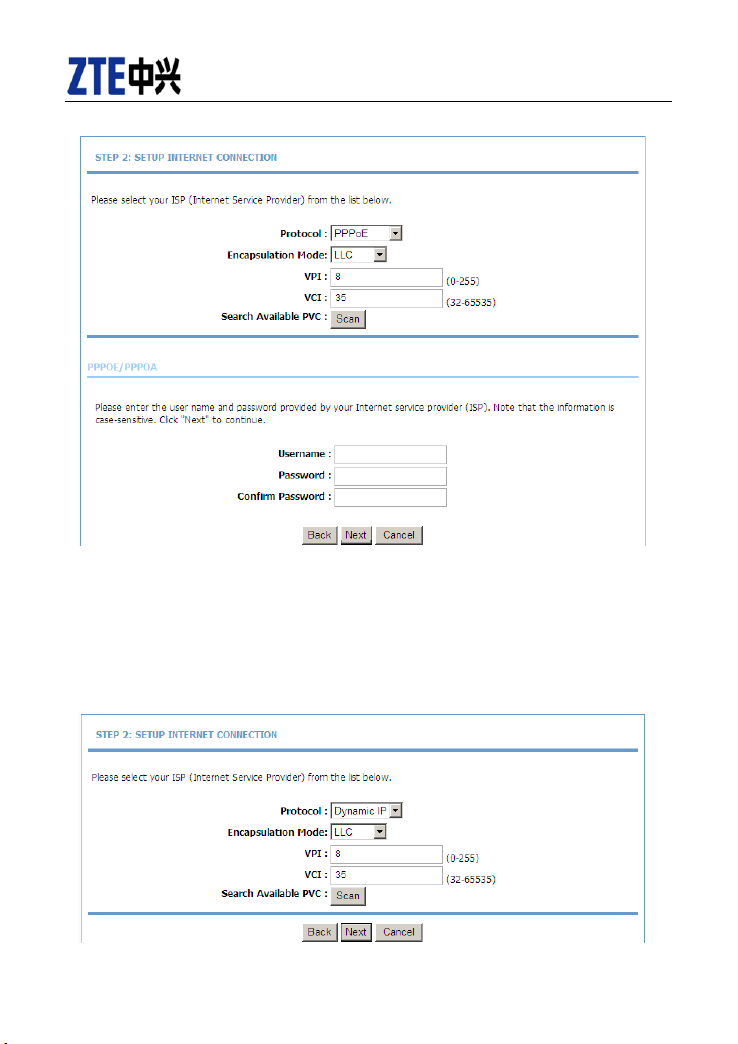

(A) If the internet service you subscribed is PPPoE or PPPoA,choose the

Protocol as following figure appears.Set the VPI and VCI. Enter the user name

and password provided by your ISP.

ZTE H108N V.2.1 Configuration manual

Page 7 ZTE Proprietary and Confidential

(B) If the internet service you subscribed is Static IP or Dynamic IP, choose the

Protocol as following figure appears (this will match to the MER+LLC protocol).

The page shown in the following figure appears. For Static IP enter the IP

Address, Subnet Mask, Default Gateway and Primary DNS Server provided

by your ISP.

ZTE H108N V.2.1 Configuration manual

Page 8 ZTE Proprietary and Confidential

appears.

Click Next. The page shown in the following page appears.

Step 3 Configure the wireless network. Enter the information and click Next.

ZTE H108N V.2.1 Configuration manual

Page 9 ZTE Proprietary and Confidential

Step 4 Click Apply to save the settings.

Note:

In each step of the Wizard page, you can click Back to review or

modify the previous settings. Click Cancel to exit the wizard page.

2.2 Internet Setup

2.2.1 Configuration for multi-device with dynamic IP

Multiuser configuration allows you to create a network of multiple computers,

mobile phones, or tablets, with access to the Internet from all of them.
