3R Anyty 3R-VIEWTER-500UV Bedienungsanleitung
Portable Digital Microscope Viewter
3R-VIEWTER-500UV（UV LED Model）
3R-VIEWTER-500IR（IR LED Model）
Operating Instruction
―1 ―
Index
1. Contents 2
2. Name of each parts 3
3. Set up
3.1 Charging 5
3.2 Insert SD card. 5
3.3 Loading lens cover and spacer 6
3.4 Adjust magnification and focal point 7
3.5 Connect Controller 8
4. Use ‘Viewter’
4.1 Power 9
4.2 Adjust magnification and focal point 9
4.3 Digital zoom 9
4.4 LED adjustment 10
4.5 Display scale 10
4.6 Capture still picture 11
4.7 Capture movie 12
4.8 Preview saved data 12
5. Settings
5.1 Setting of still mode 14
5.2 Setting of movie mode 15
5.3 Setting of preview mode and editing 16
5.4 Setting of Viewter 16
6. Software（VIEWTER Plus）
6.1 Install VIEWTER Plus 20
6.2 Preparation for using（Remove saved data）23
6.3 Use of VIEWTER Plus 26
7. Notes and Q&A 34
8. Spec 35
9. Cautions 36
―2 ―
1. Contents
The product contains items below. Please check package
※Description without spacer in some parts of this manual
Viewter Wired Controller Lens cover（x2）
Spacer（x2）USB charging cable miniUSB cable
AC/USB charging adaptor
Strap
Simple scale
Software CD（VIEWTER Plus）
SDHC Card 4GB（sample）
Cleaning cloth
Manual（This book）
―3 ―
2. Name of each sector
Name of each part below
●Viewter
Name
Function
①Power Button
Switch Viewter on/off
②Shutter Button
Button for capturing picture/movie
③Controller connector
Port for Wire controller
④Holder hock
Hock for strap
⑤Lens cover
Lens and lens cover for height adjustment
⑥Charging lamp
Red light during charge period
⑦LED dial
Dial for LED adjustment
⑧miniUSB port
For connecting to PC
⑨Charging connector
Port for charging Viewter
Continue to next page
―4 ―
Name
function
⑩Monitor
Display information
⑪Magnification Dial
Dial for adjusting magnification and focal point
⑫Lens cover
Lens cover for height adjusting
⑬SD/SDHC Slot
Slot for setting SD card
⑭LED button
Button for setting LED mode
⑮Menu button
Button for displaying setting menu
⑯Mode button
Button for switching mode
⑰Direction key
keys for setting menu.etc
⑱Confirmation button
Button for confirming options
⑲⑳Digital zoom
For adjusting digital zoom system

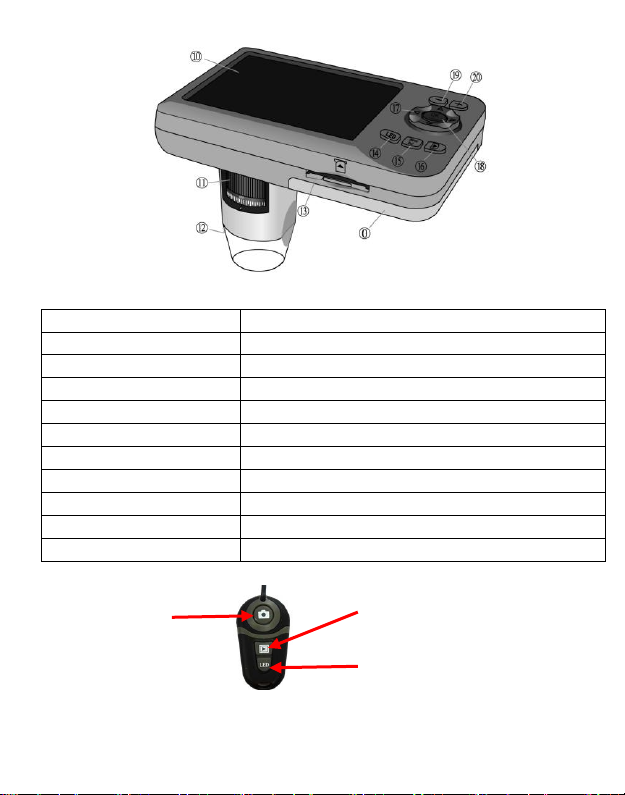

●Wire Controller（Approx 90cm long）
Each function of button on controller is same as each same name of button on scope.
Shutter button
Mode button
LED button
―5 ―
3. Set up
3.1 Charging
Please charge the ‘Viewter’ Microscope before use it. Use attached USB charging cable
and AC/USB adaptor to connect ‘Viewter’ to household wall outlet. Charging lamp will
be red during charging period. Charging time will be approx 4~5 hours. Charging lamp
will be blue when charging is complete.
※Please charge battery until full power before first use
※We do not recommend you use it and charge it at same time or it will shorten battery
life
3.2 Insert SD card
Images captured by Viewter will be saved in SD card. Please insert SD card into SD/SDHC
card slot as a image on next page. Maximum usable size of SD is 32GB.
※If you use MicroSD/SDHC card, please make sure that MicroSD/SDHC card
is set in adaptor correctly.
※If the card could not be read properly, please remove the card and set
it again.

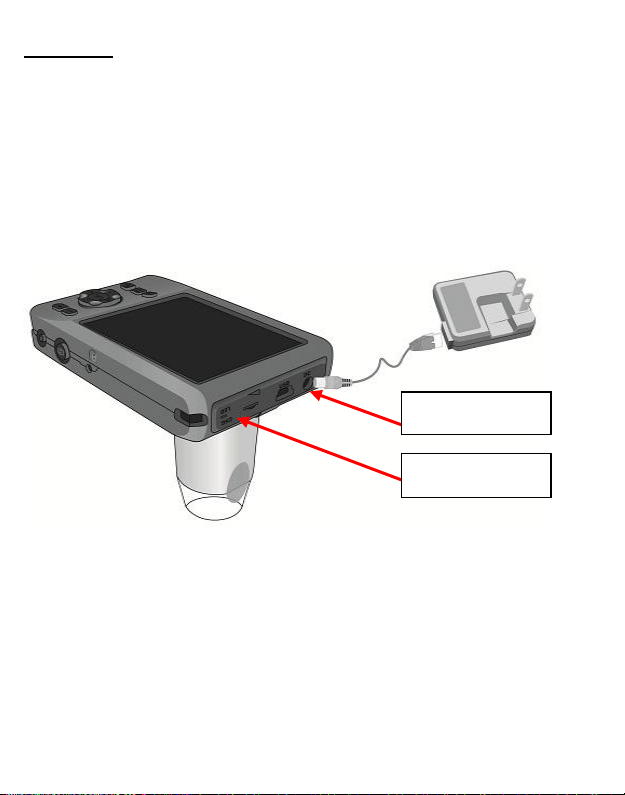

Charging port
Charging lamp
―6 ―
3.3 Loading lens cover and spacer
Viewter contains 2 sets of lens covers and spacers.
●For x60 + x200
●For x80 + x150
Change lens cover and spacer to gain magnification you want. You could also
remove them when you could not gain magnification you want with them.
Pull this direction to remove
―7 ―
3.4 Adjust magnification and focal point
Please adjust magnification dial after loading lens cover and spacer as well
as for finer adjustment during capturing.
The image shows magnification and focal range below. Let the lens cover touch
the object you want to observe. If the object could not be touched, please
remove it when you observe.
Dial
Lens cover
Lens cover
Lens cover
―8 ―
3.5 Connect controller
Connect attached controller to Viewter when you want to use it stable. Please
connect controller to controller port on Viewter.
※Functions of controller
○Shutter
○Mode change
○LED change
―9 ―
4. Use Viewter
4.1 Power
Switch it on when it is ready. Press power button for 1 second and the monitor
will be activated. Follow the same way when you want to switch it off.
4.2 Adjust magnification and focal point
Get lens part (Lens cover) closed to object, the image of object will be
displayed on screen. Please use magnification dial to adjust magnification
and focal point.
4.3 Digital zoom
You could also use digital zoom function to adjust magnification.
Press 「＋ / －」 button to adjust magnification of digital zoom.
Maximum zooming sizex4
※Due to its feature, the image quality will deteriorate when you use digital
zoom function.

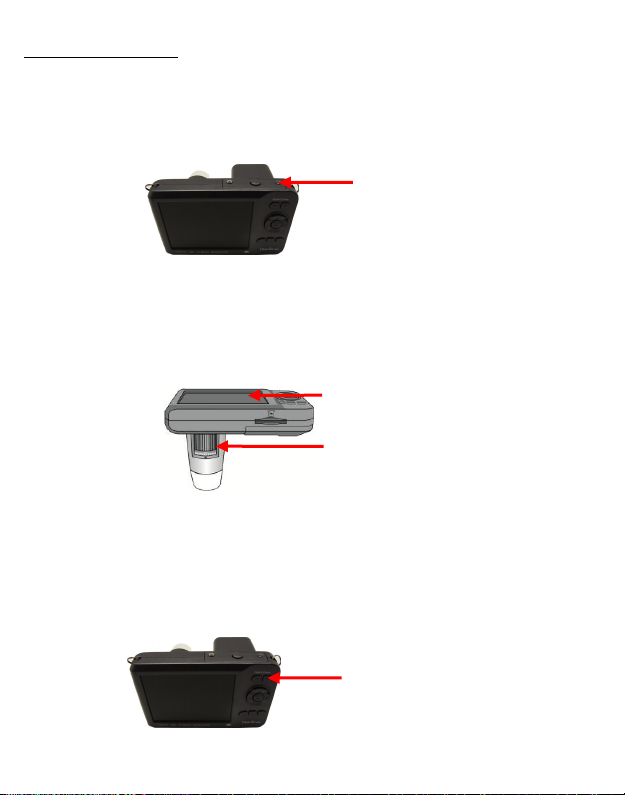

Power Button
Monitor
Dial
Digital zoom button（＋ －）
