Olympus SZ61 Bedienungsanleitung

INSTRUCTIONS

This instruction manual is for the Olympus Zoom Stereo Microscopes. To ensure the safety,

obtain optimum performance and to familiarize yourself fully with the use of this microscope, we

recommend that you study this manual thoroughly before operating the microscope.

Retain this instruction manual in an easily accessible place near the work desk for future reference.

For details of products included in the configuration of this system, see “1 MODULES AND

NOMENCLATURE” (P.3) and “8 OPTIONAL MODULES” (P. 18).

ZOOM STEREO MICROSCOPES

SZ61/SZ61-60

SZ61TR

SZ51/SZ51-60

Optical Microscope and Accessory

Downloaded from ManualsNet.com search engine

SZ2 series

IMPORTANT....................................................................................................................................................... 1

1 MODULES AND NOMENCLATURE .......................................................................................... 3

2 SUMMARY OF OBSERVATION PROCEDURE.................................................................. 5

2-1 Preparation.............................................................................................................................................................. 5

2-2 Observation Procedure................................................................................................................................ 5

3 OPERATION.................................................................................................................................................. 6

3-1 Base.............................................................................................................................................................................. 6

1Using the Stage Plate................................................................................................................................................................6

2Adjusting the Focus Adjustment Knob Tension...............................................................................................................................6

3-2 Microscope Body.............................................................................................................................................. 6

1Adjusting the Interpupillary Distance...........................................................................................................................6

2Adjusting the Diopter (Zoom Confocality Adjustment)................................................................................7

3Using the High/Low Zoom Magnification Stopper .........................................................................................8

4Using the Eye Shades ..............................................................................................................................................................8

5Mounting the Eyepiece Micrometer Disk.................................................................................................................9

6Using the Auxiliary Objectives........................................................................................................................................10

7Selecting the Light Path (SZ61TR) ..............................................................................................................................10

8Adjusting the Confocality of the Camera (SZ61TR)..................................................................................... 11

4 TROUBLESHOOTING GUIDE ......................................................................................................12

5 SPECIFICATIONS ...................................................................................................................................13

6 OPTICAL PERFORMANCE.............................................................................................................14

7 ASSEMBLY...................................................................................................................................................15

7-1 Assembly Diagram .........................................................................................................................................15

7-2 Detailed Assembly Procedures...........................................................................................................16

8 OPTIONAL MODULES .......................................................................................................................18

8-1 BX Stage Adapter Type 1 SZX-STAD1 ..........................................................................................18

8-2 Stage Adapter Type 1 SZH-STAD1..................................................................................................20

8-3 Gliding Stage SZH-SG................................................................................................................................. 21

8-4 Cup Stage SZH-SC.......................................................................................................................................22

CONTENTS

Downloaded from ManualsNet.com search engine

SZ2 series

IMPORTANT

1. After the equipment has been used in an observation of a

specimen that is accompanied with a potential of infection, clean

the parts coming in contact with the specimen to prevent infection.

· Moving this microscope is accompanied with the risk of

dropping the specimen. Be sure to remove the specimen

before moving this product.

The SZ2 series of stereo microscopes are provided with ESD (Electro-Static Discharge) protection specifications. They are

provided with electroconductive coating in their external finish to reduce the surface resistance and grounding lead wires

in their standard base or frame to eliminate static electricity from them.

To maintain the ESD protection performance, always use the microscope in combination with the

modules described in this manual or options having the ESD protection specifications. Otherwise, the

grounding will not work properly.

·The eye shades of the eyepieces are not provided with the ESD protection performance. Be sure to

remove them

·The SZ2-SPBW stage plate is provided with the ESD protection performance only in the black surface.

NOTE

SAFETY PRECAUTIONS

· Hold the bottom of the stand with one hand while holding base column with the other hand to avoid tilting the

microscope.

· In case the specimen is damaged by erroneous operation, promptly take the infection prevention measures.

2. When the optional 0.5X auxiliary objective ais used, the microscope become unstable due to the use of the SZ2-

ET auxiliary sleeve b. Be careful not to topple down the microscope. )

In addition, when a camera is mounted on the SZ61TR, special care is required because the microscope becomes

more unstable.

1Getting Ready

1. A microscope is a precision instrument. Handle it with care and avoid subjecting it to sudden or severe impact.

2. Do not use the microscope where it is subjected to direct sunlight, high temperature and humidity, dust or

vibrations. (For the operating conditions, see “SPECIFICATIONS” on page 13.)

3. Be careful not to leave stains and fingerprints on the lens surfaces.

Contamination of the lens and mirror deteriorates the view of images.

4. Do not turn the left and right zoom adjustment knobs in the opposite directions, as this will result in a failure.

5. The rubber parts of the eyepiece sleeves are fragile and should be handled carefully. If they are damaged, dirt will

penetrate inside the microscope.

Downloaded from ManualsNet.com search engine

2Maintenance and Storage

1. To clean the lenses and other glass components, simply blow dirty away using a commercially available blower

and wipe gently using a piece of cleaning paper (or clean gauze).

If a lens is stained with fingerprints or oil smudges, wipe it gauze slightly moistened with commercially available

absolute alcohol.

Since the absolute alcohol is highly flammable, it must be handled carefully.

Be sure to keep it away from open flames or potential sources of electrical sparks –– for

example, electrical equipment that is being switched on or off.

Also remember to always use it only in a well-ventilated room.

2. Do not attempt to use organic solvents to clean the microscope components other than the glass components. To

clean them, use a lint-free, soft cloth slightly moistened with a diluted neutral detergent.

3. Do not disassemble any part of the microscope as this could result in malfunction or reduced performance.

4. When disposing of the microscope. Check the regulations and rules of your local government and be sure to

observe them.

CAUTION

If the microscope is used in a manner not specified by this manual, the safety of the user may be imperiled. In addition,

the equipment may also be damaged. Always use the equipment as outlined in this instruction manual.

The following symbols are used to set off text in this instruction manual.

CAUTION : Indicates that failure to follow the instructions in the warning could result in

bodily harm to the user and/or damage to equipment (including objects in the

vicinity of the equipment).

NOTE

: Indicates that failure to follow the instructions could result in damage to equipment.

TIP

: Indicates commentary (for ease of operation and maintenance).

3Caution

4Intended use

This product has been designed to be used to observe magnified images of specimens in various routine work and

research applications.

This includes the observation of living cells or of specimen taken from tissues to gain physiological or morphological

information at hospitals or laboratories.

Typical field of applications are genetics, human blood and tissue examination, neurology, pharmacology and cellular biology.

Further applications of this device include measurement and imaging for materials research, precision manufacturing, electronics

design and medical device fabrication. Additional industrial applications are added by individual companies and researchers.

Do not use this product for any purpose other than its intended use.

This product complies with the requirements of directive 98/79/EC concerning in vitro diagnostic medical

devices. CE marking means the conformity to the directive.

This product is applied with the requirements of EMC standard IEC/EN61326-2-6 and IEC/EN61326-1

concerning electromagnetic compatibility.

This product complies with the emission and immunity requirements described in IEC61326 series. The

electromagnetic environment should be evaluated prior to operation of this product.

Downloaded from ManualsNet.com search engine

SZ2 series

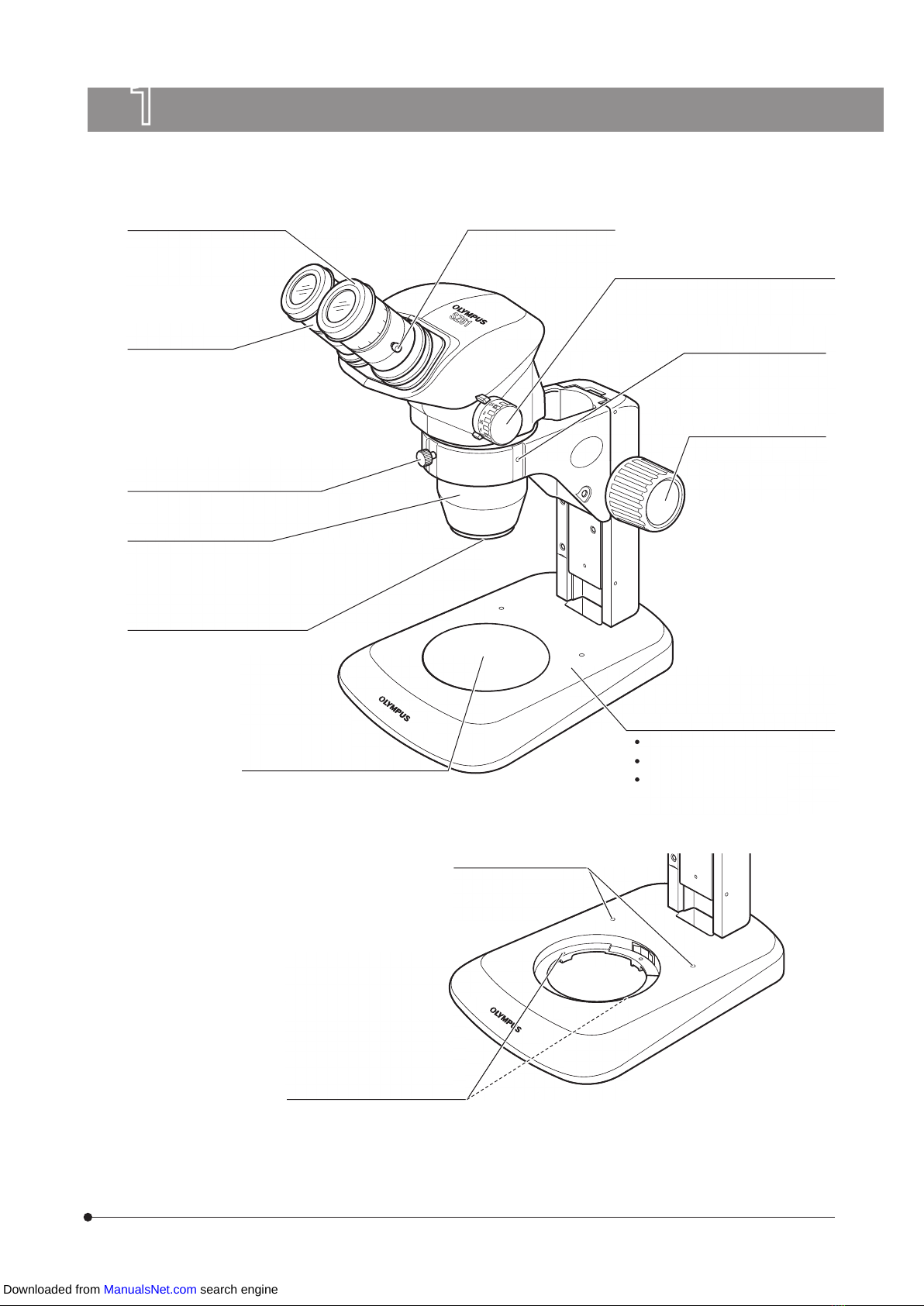

1 MODULES AND NOMENCLATURE

Eyepiece clamping knob

(x 2)

Accessory mount thread

(x 5)

Zoom adjustment knob (Page 7and 8)

· SZ61/61-60/TR: 0.67X to 4.5X

· SZ51/51-60: 0.8X to 4X

Focus adjustment knob

(Page 6)

Stroke : 120 mm

Eye shade (Page 8)

Auxiliary objective mount thread

Optional auxiliary objectives

· 110ALK0.3X

· 110ALK0.4X

· 110AL0.5X-2

· 110AL0.62X

· 110AL0.75X-2

· 110AL1.5X

· 110AL2X-2

Optional stage mounting holes

M4 screw (x 2)

Accessory mount holes

Eyepiece

· WHSZ10X

· WHSZ10X-H

· WHSZ15X-H

· WHSZ20X

· WHSZ20X-H

· WHSZ30X-H

Body clamping knob

(Threaded for accessory mounting)

Microscope Body

· SZ61

· SZ61-60

· SZ61TR

· SZ51

· SZ51-60

Stage Plate

· SZ2-SPBW

(ESD protection on black surface)

· SP-C

Olympus classifies SZ61, SZ61-60, SZ61TR, SZ51 and SZ51-60 as an optical microscope and other units as optical

microscope accessories.

Stand

Standard stand: SZ2-ST

LED illuminator stand: SZ2-ILST*

LED transmitted light illumination:

SZX2-ILLTQ*

SZX2-ILLTS*

A separate instruction manual is available for the module marked *.

Downloaded from ManualsNet.com search engine

Observation Tube of SZ61TR

C-mount (Page 11)

C-mount clamping screw

Confocality adjustment clamping

screw (Page 11)

(x 2)

Light path selector lever (Page 10)

Pulled out : Camera path 100%

(Right eyepiece sleeve

light path 0%)

Pushed in : Right eyepiece sleeve

light path 100%

Downloaded from ManualsNet.com search engine

SZ2 series

2SUMMARY OF OBSERVATION PROCEDURE

Ref. Page

1. Confirm the mounting, particularly that of the microscope body. .......................................................................................................................................(Page 15 — 17)

2. Confirm that the eyepieces are positioned correctly with respect to the standard base...................................................................................(Page 16)

3. Adjust the rotation tension of the focus adjustment knob............................................................................................................................................................................(Page 6)

4. Prepare the light source as required.

2-2 Observation Procedure

2-1 Preparation

Place the specimen on the stage plate. (Page 6)

Adjust the interpupillary distance. (Page 6)

Adjust the eyepiece diopter. (Page 7)

This operation is not possible with the eyepieces without

helicoids (WHSZ10X/20X).

The operation is slightly difference when a micrometer is mounted in

one of the eyepieces with helicoids.

NOTE

Set the zoom adjustment knob afor the lowest magnification and

rotate the focus adjustment knob bto bring the specimen into

approximate focus.

Rotate the zoom adjustment knob ato the target magnification

and rotate the focus adjustment knob bto bring the specimen into

accurate focus.

Downloaded from ManualsNet.com search engine

3 OPERATION

3-1 Base

When reflected light illumination is used, the stage plate can be placed

either the white or black surface facing up depending on which side

makes the specimen easier to view.

·To maintain the ESD performance, use the black surface of

the SZ2-SPBW stage plate.

·When transmitted light illumination is used, use the optional

SP-C transparent glass stage plate.

NOTE

This operation is intended to facilitate the rotation of the

knobs while preventing spontaneous drop of the microscope

body. It is recommended to set the knob tension to a slightly

higher level than the point where spontaneous drop occurs.

Hold the left and right focus adjustment knobs awith both hands,

fix the left knob and rotate the right knob. The rotation tension of the

knobs increases or decreases according to the direction in which the

right knob is rotated.

TIP

1Using the Stage Plate

2Adjusting the Focus Adjustment Knob Tension

Clamp.

To increase

To decrease

3-2 Microscope Body

While holding the left and right eyepiece sleeves awith both hands,

look through the eyepieces and adjust for binocular vision until the

left and right fields of view coincide completely.

1Adjusting the Interpupillary Distance

Downloaded from ManualsNet.com search engine

Andere Handbücher für SZ61

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Olympus Mikroskop Handbücher

Olympus

Olympus SZX16 Installationsanleitung

Olympus

Olympus CKX31 Betriebsanleitung

Olympus

Olympus BH2 Series Bedienungsanleitung

Olympus

Olympus ST. HS Bedienungsanleitung

Olympus

Olympus U-MDOB3 Bedienungsanleitung

Olympus

Olympus DP73 Bedienungsanleitung

Olympus

Olympus IX81 Bedienungsanleitung

Olympus

Olympus BX41 Bedienungsanleitung

Olympus

Olympus BX-URA2 Bedienungsanleitung

Olympus

Olympus CX21 Bedienungsanleitung

Olympus

Olympus BH2 Series Betriebsanleitung

Olympus

Olympus SZX16 Bedienungsanleitung

Olympus

Olympus U-DA Bedienungsanleitung

Olympus

Olympus U-CBS Bedienungsanleitung

Olympus

Olympus CX43-RFAB Bedienungsanleitung

Olympus

Olympus VMF Betriebsanleitung

Olympus

Olympus KHC Bedienungsanleitung

Olympus

Olympus CK40M FRAME Betriebsanleitung

Olympus

Olympus BXFMA Bedienungsanleitung

Olympus

Olympus bx40 Bedienungsanleitung

Olympus

Olympus POS Bedienungsanleitung

Olympus

Olympus CHBS Bedienungsanleitung

Olympus

Olympus FH Bedienungsanleitung

Olympus

Olympus BHTU-112 Bedienungsanleitung

Beliebte Mikroskop Handbücher anderer Marken

Thermo Scientific

Thermo Scientific Nicolet iN10 Leitfaden

National

National DC3-163 Bedienungsanleitung

KERN Optics

KERN Optics OPE-1 Bedienungsanleitung

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Bedienungsanleitung

Prior

Prior Lux POL Bedienungsanleitung

Opitec

Opitec Smartscoop 115615 Bedienungsanleitung

KERN

KERN OPO-1 Bedienungsanleitung

Topcon

Topcon SP-1P Bedienungsanleitung

Motic

Motic PA43 Bedienungsanleitung

Leica

Leica DVM5000 Benutzerhandbuch

MshOt

MshOt MZ62 Bedienungsanleitung

KERN Optics

KERN Optics OZR-5 Bedienungsanleitung

VWR

VWR VisiScope 384 Series Bedienungsanleitung

Nikon

Nikon ECLIPSE E200 POL Bedienungsanleitung

Leica

Leica DI C800 Handbuch

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Bedienungsanleitung

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Bedienungsanleitung

Leica

Leica FL560 Bedienungsanleitung
