ACTi GNR-330 Bedienungsanleitung
Quick Installation Guide
GNR-330
64-Channel 6-Bay RAID Tower Standalone NVR
V2017.02.06
2 Standalone NVR Quick Installation Guide
Thank you for purchasing ACTi Standalone Network Video Recorder. This guide
contains all the information you need to quickly set up ACTi INR server system
via local interface.
For detailed instructions on installation, operation and how to log in to INR as
a web client, please refer to the product manuals provided on ACTi corporate
website.
The items below are prerequisite for installation:
• Network cameras
• Network cables
• Network switch
• Monitor (with VGA or HDMI cable)
• USB mouse
• AtleastoneACTi-certied3.5-inchSATAharddisk
Findthecertieddiskmodelsathttp://www.acti.com/hddselector
BEFORE YOU START
Standalone NVR Quick Installation Guide 3
UNPACK
AT A GLANCE
Storage Disk Bays x 6
Power Button
Power Status LED Indicator
USB Ports x 2
Front Panel
Rear Panel
HARDWARE INSTALLATION
USB Ports x 4
VGA Port
LAN1 Port LAN2 Port
AC Power Connector
eSATA Port
HDMI Port / Display Port
Display Port
Line-in
Line-out
Mic-in
This package contains:
• GNR x 1
• HDD Tray Keys Pack x 1
• Disk Screws Pack x 1
• Quick Installation Guide x 1
• Power Cord x 1
• Universal Converter x 1
• Warranty Card x 1
4 Standalone NVR Quick Installation Guide
HARD DISK INSTALLATION
TURN OFF THIS UNIT before you move the trays. Repeat the following steps
to install the disks into Storage Disk bays.
REMOVE THE TRAY
Step 1
Slide the lock tab up, the
hinge tab will pop out by
itself.
Step 2
Pull the hinge tab to 90
degress from the front,
and pull out the tray.
INSTALL THE TRAY
Step 4
Place your thumb on the lock to push
the tray into position in the chassis.
Step 5
Press the hinge tab until it clicks into
place.
MOUNT THE DISK
Step 3
Mount the disk by lock-
ing it with supplied disk
screws to the bottom of
the tray.
CONNECT THE DEVICES
The examle below displays a network consisting of only INR, network cameras
and required peripherals. Please remember to enable the DHCP service on your
router for INR to obtain an IP address automatically. Power Source
Switch
Cameras
eSATA
Storage
USB Devices
VGA Monitor
Note
To assign a static IP address to INR, enter
Windowsandcongurethenetwork
settings in Network and Sharing Center.
Standalone NVR Quick Installation Guide 5
START-UP
CREATE HARDWARE RAID
1. On the unit’s front panel, press down Power Button to turn on the unit.
2. As this unit starts up, you will enter Windows logon screen. Input the
password“123456“tologinasadministrator.
Note
Before removing or in-
serting the hard disk
trays, please make sure
the unit is turned off.
Moving the trays while
the unit is operating
can cause damage to
the disk.

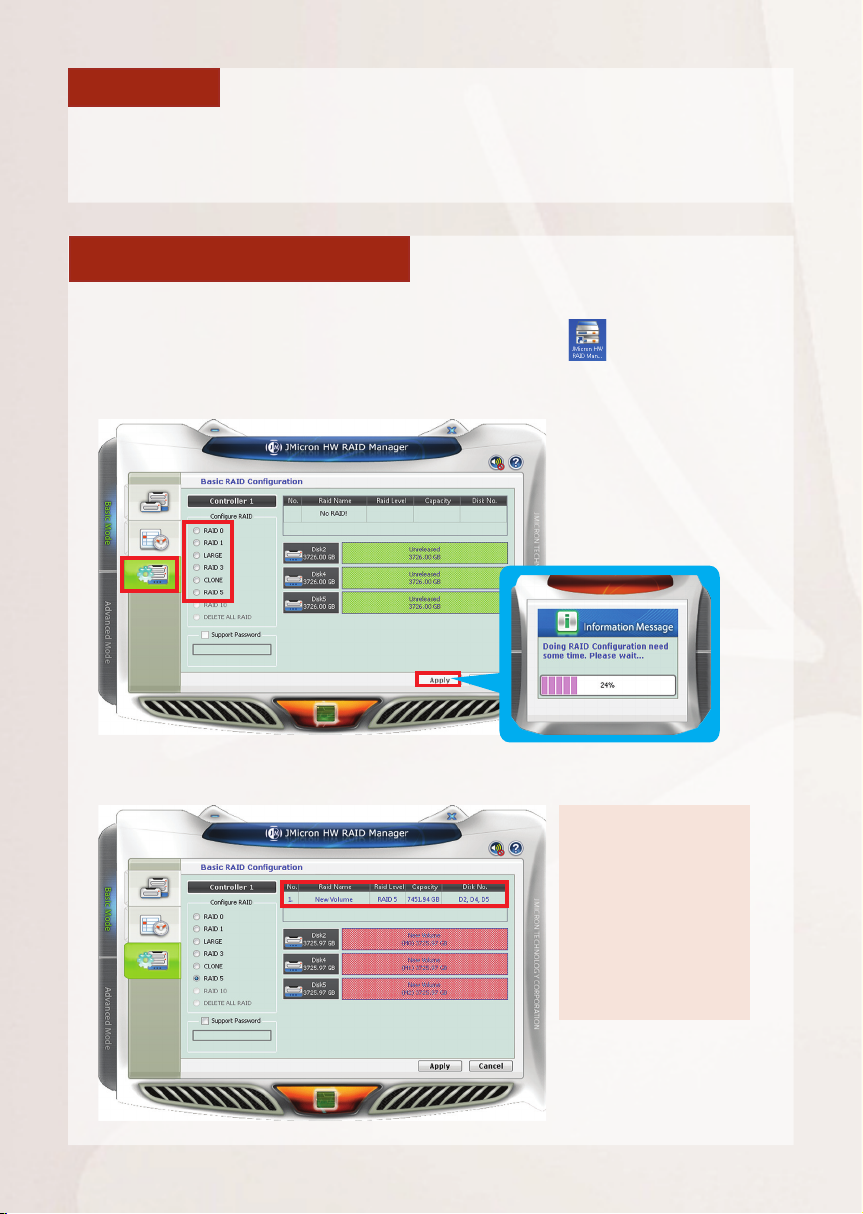

AsthisunitsupportshardwareRAIDconguration,youcanmakediskarraysusing
the bundled software utility.
1. On Windows Desktop, double-click on the shortcut to initialize the
RAID management utility.
2. On Basic RAID Conguration tab, select a RAID type and click on “Apply“.
3.Afterthecongurationiscomplete,theRAIDinformationwillappear.
6 Standalone NVR Quick Installation Guide
CREATE DISK VOLUMES
Use Windows Disk Management to create disk volumes so that INR can
access the available storage space.
1. In Windows Search Box, search and enter “computer management”.
SOFTWARE CONFIGURATION
2. Select “Disk Management”, right-click on a disk title and select “Initialize
Disk”, choose “GPT” as the partition style and click on“OK”.
3.Right-click on the initialized disk and select the volume type to make a new
volume.
Standalone NVR Quick Installation Guide 7

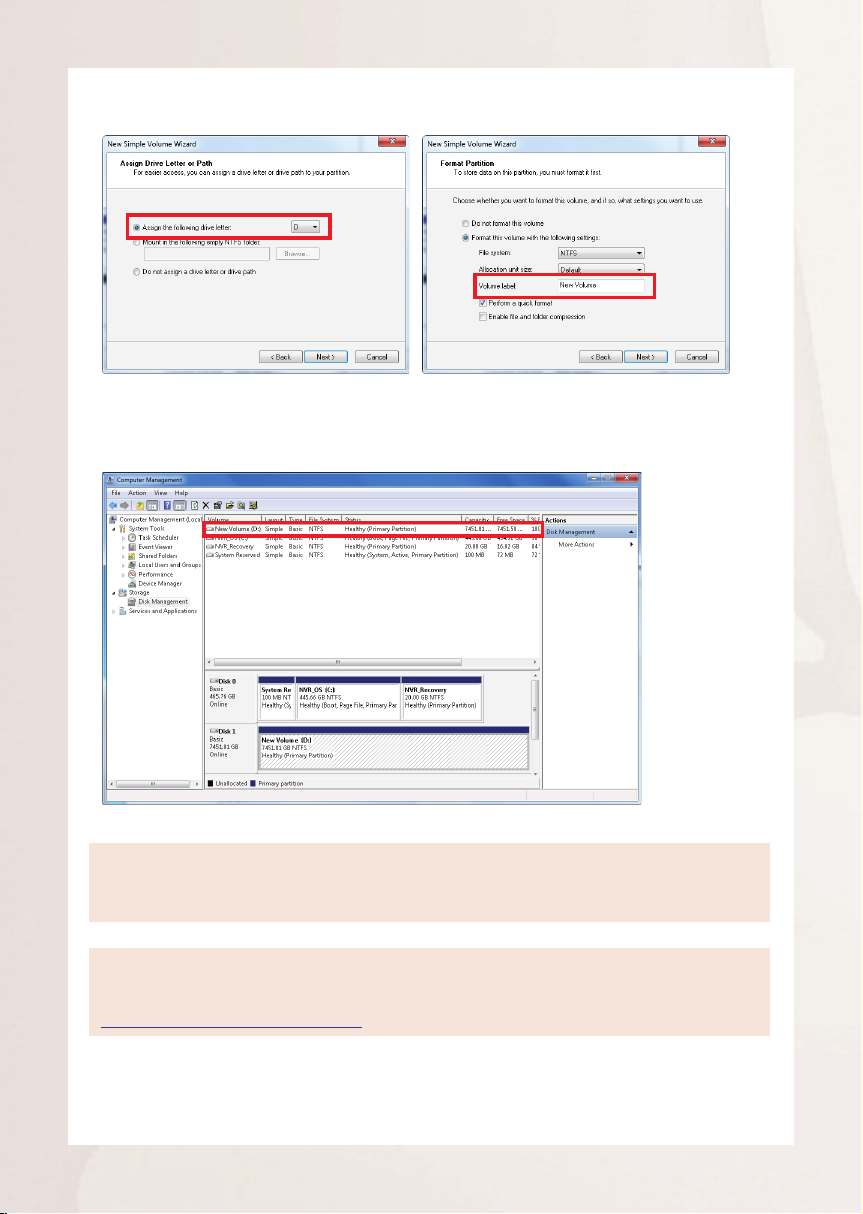

4. On New Volume Wizard window, make sure you assign the desired drive
letter and give a proper label name to this volume.
Note
TomakeaStripedvolume,aMirroredvolumeoraRAID-5volume,itisrecommendedtoselect
disks of the same model and capacity.
Note
For detailed instructions on choosing the RAID types and troubleshooting hard disk issues,
please refer to System Administrator’s manual provided on ACTi Download Center at
http://www.acti.com/downloadcenter
5.After the volume is created, it is shown on volume list and is ready for
recording.
8 Standalone NVR Quick Installation Guide
LOG IN
On Windows Destop, double-click on
to enter NVR interface. Input the default
account and password to log in.
Account: admin
Password: 123456
“123456”isthedefaultpasswordofNVR
system administrator’s user account. For
security reasons, please remember to change it.
CREATE USERS
On NVR screen, click Setup button to enter Setup page and then Users tab.
1. Select “User Groups”, click “Add” to start adding a new user group.
2. Input group ID and click “Apply”.
3.Click on the title bar of Users panel, click “Add” to start adding a new user.
4. Input user’s Account, Password, Email address and select its User Group,
and then click “Apply”.
Standalone NVR Quick Installation Guide 9
SELECT STORAGE DRIVES
1. Go to Setup page and then Storage tab.
ADD CAMERAS
1. Go to Setup page and then Devices tab.
Search Cameras
Use “Search Cameras” to auto-search
the network for ACTi cameras, or
“Search ONVIF Cameras” for
ONVIF-compliant cameras of any
brand. After selecting your desired
cameras, click “Apply”.
Add Camera Manually
If you are adding a camera located
in another network, use “Add
Camera Manually”. Fill in Media
Type, Protocol, IP Address, HTTP
Port, Account and Password. Finally,
click “Get Device Settings” and then
“Apply”.
To nd ONVIF-compliant
cameras, input the correct
accountandpassowrdrst,
and then click to start
searching.
2. Click “Add”.
3.Choose a search
method based
on your network
environment and
camera brand.
2. On Disk Drive
List, de-select C
Drive, and select
other storage
drives.
3.Click “Apply“.
10 Standalone NVR Quick Installation Guide
CONFIGURE CAMERA SETTINGS
1. Go to Setup page and then Devices tab. Choose the camera from Camera
List.
2. Select Basic, Video, PTZ, or Preset Tourtabtocongurerelatedsettings.
SET RECORDING SCHEDULE
The recording service automatically starts full-time recording for a newly added
camera. You can modify the recording schedule to suit your needs.
1. Go to Setup page and then Schedule tab. Select the camera from Camera
List.
2. Choose a recording mode: or
Schedule Recording: Records video continuously during the scheduled
session.
Event Recording:Recordsvideobasedonspecictriggerssuchaswhena
motion is deteced by the camera.
Note
If you have any question during system installation, please feel free to contact our engineers via
ACTi Customer Help Desk platform at http://www.acti.com/CHD
3.Drag on the time
tabletodene
the time session.
4. Click “Apply“.
