AssayMAP 96AM

Wash Station

Maintenance Guide

Notices

No part of this manual may be reproduced

in any form or by any means (including

electronic storage and retrieval or

translation into a foreign language) without

prior agreement and written consent from

Agilent Technologies, Inc. as governed by

United States and international copyright

laws.

Installation Guide Part Number

G5542-90004

Edition

Revision B, February 2018

Contact Information

Agilent Technologies Inc.

Automation Solutions

5301 Stevens Creek Blvd.

Santa Clara, CA 95051

USA

Technical Support: 1.800.979.4811 (US) or

+1.408.345.8011 (rest of world)

[email protected]om

Customer Service: 800-227-9770 (US and

Canada)

By country: http://www.agilent.com/en-

us/contact-us/page

Documentation feedback:

[email protected]

Web:

http://www.agilent.com/en-us/products/

automation-solutions

Acknowledgements

Microsoft® and Windows® are either

registered trademarks or trademarks of the

Microsoft Corporation in the United States

and other countries.

Warranty

The material contained in this docu-

ment is provided “as is,” and is sub-

ject to being changed, without notice,

in future editions. Further, to the max-

imum extent permitted by applicable

law, Agilent disclaims all warranties,

either express or implied, with regard

to this manual and any information

contained herein, including but not

limited to the implied warranties of

merchantability and fitness for a par-

ticular purpose. Agilent shall not be

liable for errors or for incidental or

consequential damages in connection

with the furnishing, use, or perfor-

mance of this document or of any

information contained herein. Should

Agilent and the user have a separate

written agreement with warranty

terms covering the material in this

document that conflict with these

terms, the warranty terms in the sep-

arate agreement shall control.

Technology Licenses

The hardware and/or software described in

this document are furnished under a

license and may be used or copied only in

accordance with the terms of such license.

Restricted Rights Legend

If software is for use in the performance of

a U.S. Government prime contract or sub-

contract, Software is delivered and

licensed as “Commercial computer soft-

ware” as defined in DFAR 252.227-7014

(June 1995), or as a “commercial item” as

defined in FAR 2.101(a) or as “Restricted

computer software” as defined in FAR

52.227-19 (June 1987) or any equivalent

agency regulation or contract clause. Use,

duplication or disclosure of Software is

subject to Agilent Technologies’ standard

commercial license terms, and non-DOD

Departments and Agencies of the U.S. Gov-

ernment will receive no greater than

Restricted Rights as defined in FAR 52.227-

19(c)(1-2) (June 1987). U.S. Government

users will receive no greater than Limited

Rights as defined in FAR 52.227-14

(June1987) or DFAR 252.227-7015 (b)(2)

(November 1995), as applicable in any

technical data.

Safety Notices

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice, or the

like that, if not correctly performed or

adhered to, could result in personal

injury or death. Do not proceed

beyond a WARNING notice until the

indicated conditions are fully

understood and met.

A CAUTION notice denotes a hazard. It

calls attention to an operating procedure,

practice, or the like that, if not correctly

performed or adhered to, could result in

damage to the product or loss of important

data. Do not proceed beyond a CAUTION

notice until the indicated conditions are

fully understood and met.

AssayMAP 96AM Wash Station

Maintenance Guide



96AM Wash Station Maintenance

Guide

This guide contains the following topics:

•“About this guide” on page 2

•“About the 96AM Wash Station” on page 4

•“Required resources and workflow” on page 4

•“Determining if the chimneys are in good condition” on page 6

•“Emptying the 96AM Wash Station” on page 6

•“Uninstalling the 96AM Wash Station” on page 10

•“Replacing damaged chimneys” on page 11

•“Installing the wash station and connecting the tubing” on

page 13

•“Testing the 96AM Wash Station” on page 16

1 96AM Wash Station Maintenance Guide

About this guide

2AssayMAP 96AM Wash Station Maintenance Guide

About this guide

Who should read this guide

The instructions in this guide assume that you have the following:

•An understanding of the AssayMAP Bravo Platform

•Familiarity with the Protein Sample Prep Workbench

•Experience in working on mechanical equipment

What this guide covers

This guide describes how to inspect and replace chimneys in the 96AM Wash

Station.

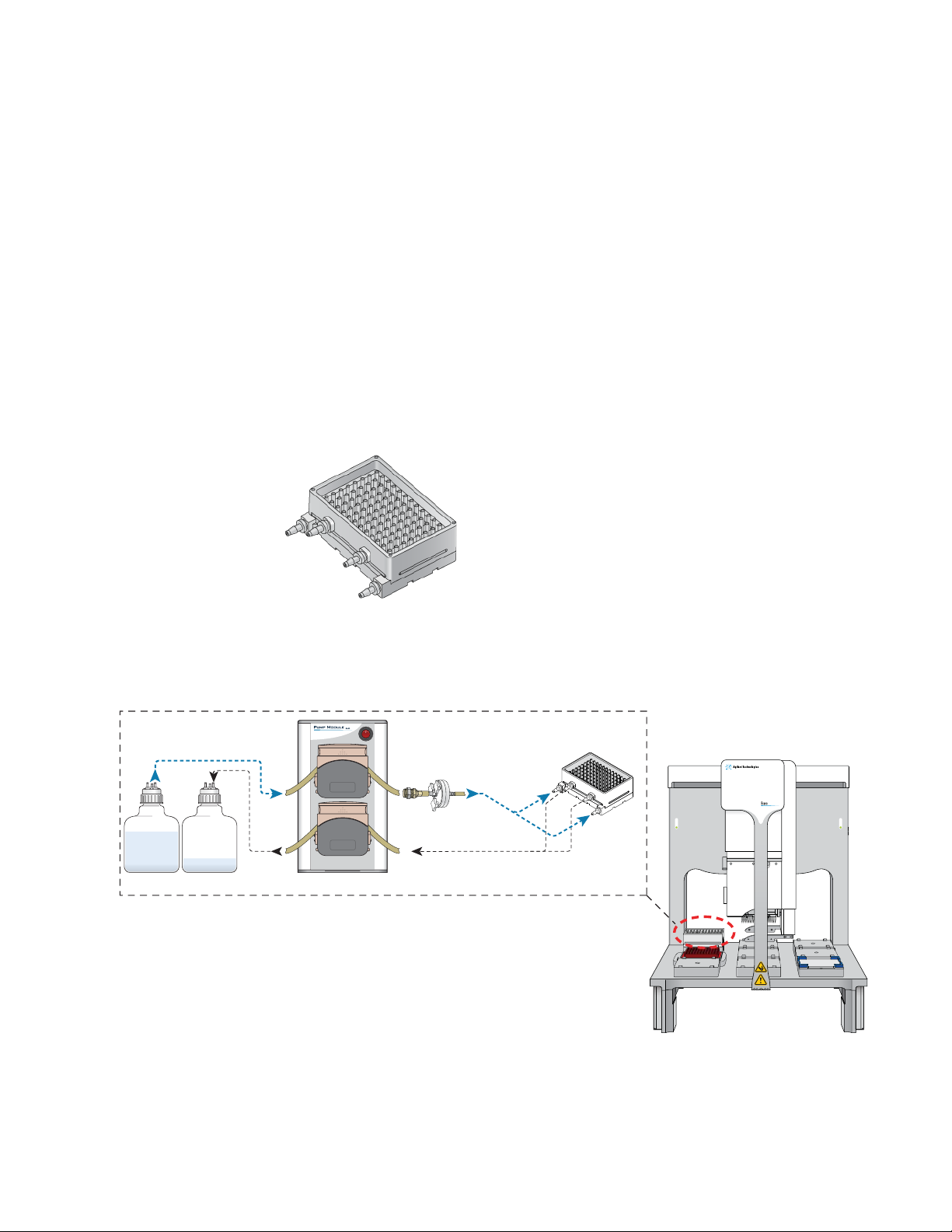

Figure 96AM Wash Station

The 96AM Wash Station is a component of the AssayMAP autofilling station, as

the following figure shows.

Figure AssayMAP autofilling station, including 96AM Wash Station, Pump Module, tubing, and carboys

Source Waste

1 96AM Wash Station Maintenance Guide

About this guide

AssayMAP 96AM Wash Station Maintenance Guide

Related user guides and where to find them

Accessing the user documentation

You can access the user documentation in the Protein Sample Prep Workbench

as follows:

•Application user guides. In the Protein Sample Prep Workbench, click Utility

Library, locate the utility of interest, and then click Instructions.

•Utility instructions. In the Protein Sample Prep Workbench, click Literature

Library, locate the topic of interest, and then click Open.

Alternatively, you can access the user documentation in the VWorks Knowledge

Base using either of the following methods:

•From within VWorks software, select Help > Knowledge Base or press F1.

•From the Windows desktop, do one of the following:

–Windows 10. Select Start > All Apps > Agilent Technologies > VWorks

Knowledge Base.

–Windows 7. Select Start > All Programs > Agilent Technologies > VVWorks >

User Guides > VWorks Knowledge Base.

•Go to www.agilent.com/chem/askb.

For information on… See…

Potential safety hazards and how to

avoid them

Bravo Platform Safety and

Installation Guide

Using the Protein Sample Prep

Workbench

Literature Library in the Protein

Sample Prep Workbench

Setting up, operating, maintaining, and

troubleshooting the Bravo Platform

Bravo Platform User Guide

Setting teachpoints for the AssayMAP

Bravo Platform

Bravo Platform User Guide

Setting up the Pump Module and the

autofilling reservoirs and wash stations

Pump Module User Guide

Creating and editing VWorks protocols

and application interfaces

VWorks Automation Control User

Guide

Running a syringe test of the Bravo

96AM Head

AssayMAP Syringe Test Utility

User Guide in the Protein Sample

Prep Workbench

Replacing a defective syringe in the

Bravo 96AM Head

AssayMAP Bravo Syringe

Replacement User Guide

1 96AM Wash Station Maintenance Guide

About the 96AM Wash Station

4AssayMAP 96AM Wash Station Maintenance Guide

About the 96AM Wash Station

The 96AM Wash Station has 96 chimneys and is scaled to work with the

syringe probes in the Bravo 96AM Head. The wash station is used for washing

the syringes and washing cartridges or pipette tips that are seated on the

syringe probes.

Figure Chimney detail in the 96AM Wash Station

Fresh wash liquid enters the 96AM Wash Station through two inlet ports (1),

shown in the following figure. The wash liquid flows up through the chimneys,

and the waste overflows from the chimneys and is removed through two outlet

ports (2).

Figure Inlet ports (1) and outlet ports (2) in the 96AM Wash Station

Required resources and workflow

Ensure that you have the following tools and materials:

•Replacement Wash Station Chimneys: large internal diameter, pack 100,

Agilent part number 15586- 002

•Hex driver to uninstall and install 2- mm hex screws

•1 needle- nose pliers to remove the bad chimneys from the 96AM Wash

Station

•Small rubber pad or foam to protect your thumb when seating a new

chimney in the 96AM Wash Station.

CAUTION Ensure that you use only the 96AM Wash Station on the AssayMAP Bravo

Platform. Using a model of the Tip Wash Station other than the 96AM Wash Station can result

in a potential crash with the Bravo 96AM Head.

WARNING The probes of the Bravo 96AM Head are sharp and can scratch you if they

brush across your hand. A probe scratch can expose you to any contaminants remaining on

the probes. Wear gloves and use extreme caution to avoid brushing against the probes.

1 96AM Wash Station Maintenance Guide

Required resources and workflow

AssayMAP 96AM Wash Station Maintenance Guide

Perform the following steps in the order given.

Step For this task... See...

1Inspect the chimneys for damage and

irregularities.

“Determining if the

chimneys are in good

condition” on page 6

2Empty the wash station. “Emptying the 96AM Wash

Station” on page 6

3Uninstall the wash station. “Uninstalling the 96AM

Wash Station” on page 10

4Replace the damaged chimneys. “Replacing damaged

chimneys” on page 11

5Install the wash station. “Installing the wash station

and connecting the tubing”

on page 13

6Verify the wash station teachpoint

and adjust it, as necessary:

aInitialize the AssayMAP 1

profile and adjust the

teachpoint for the 96AM Wash

Station.

bUse the AssayMAP Teachpoint

Update protocol to update the

teachpoint in the remaining

profiles in the Protein Sample

Prep Workbench

automatically.

AssayMAP Bravo Platform

Installation Guide (for field

service personnel) or

Bravo Platform User Guide

7Start up the AssayMAP Bravo

Platform and verify that all the

chimneys work consistently.

“Testing the 96AM Wash

Station” on page 16

1 96AM Wash Station Maintenance Guide

Determining if the chimneys are in good condition

6AssayMAP 96AM Wash Station Maintenance Guide

Determining if the chimneys are in good condition

During normal operation of the 96AM Wash Station, the fluid flow out of the

top of each chimney and the shape of the fluid dome at the top of each

chimney must consistent. To ensure consistency in the fluid flow from each

chimney, the chimneys must be:

•Clean and free of any debris.

•Free of deformities or irregularities.

See the good condition chimneys in the following figure. The chimneys

must not be damaged, such as those shown in the figure (possibly from a

head collision).

•Equal in height and installed in the same orientation.

Figure Close up views of 96AM Wash Station chimneys

Chimney irregularities or damaged chimneys can cause large droplets to cling

to the syringe probes, which can introduce variability in the assay.

Emptying the 96AM Wash Station

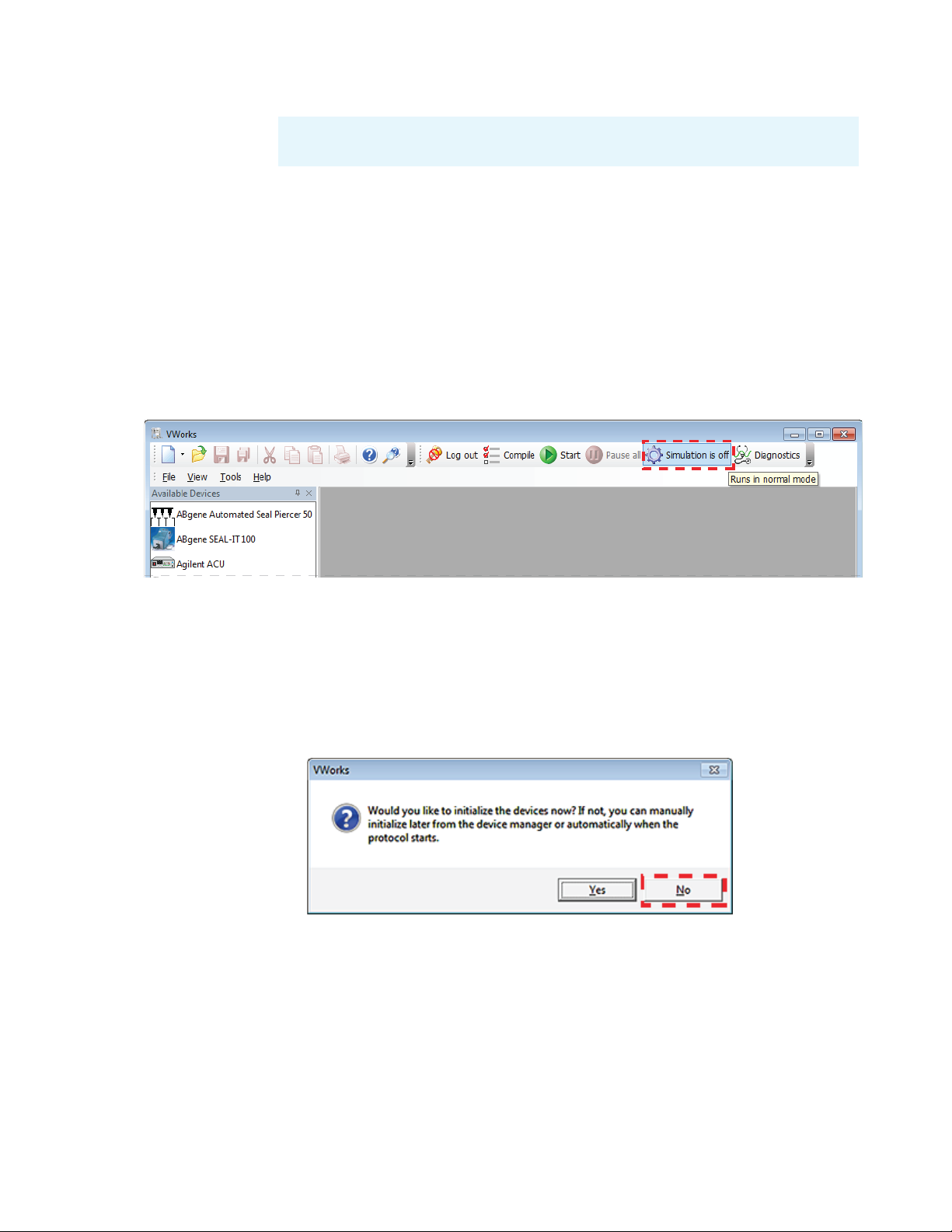

This topic describes how to use the Pump Reagent task in Bravo Diagnostics to

empty any fluid from the wash station.

Before you start

WARNING The probes of the Bravo 96AM Head are sharp and can scratch you if they

brush across your hand. A probe scratch can expose you to any contaminants remaining on

the probes. Wear gloves and use extreme caution to avoid brushing against the probes.

WARNING When you initialize the Bravo Platform, the head and tie bar can move. To

prevent potential injury, keep clear of the device while it is in motion.

CAUTION To prevent potential equipment damage, ensure that the deck is clear of any

obstacles before initializing the AssayMAP Bravo Platform.

1 96AM Wash Station Maintenance Guide

Emptying the 96AM Wash Station

AssayMAP 96AM Wash Station Maintenance Guide

Running the Pump Reagent task to empty the wash station

To empty the wash station using the Pump Reagent task:

1At the carboy that contains the wash solution, remove the lid and lift it so

that the tubing is above the liquid level.

2Ensure that the Protein Sample Prep Workbench is closed, and then start

the VWorks software.

You can use the VWorks desktop icon or the Start menu on the Windows

desktop to start the VWorks software.

3Ensure that Simulation is off.

4In the VWorks window, open the AssayMAP Bravo device file

(AssayMAP Bravo.dev).

To do this, click File > Open. In the Open dialog box, ensure the file type is

Device Files (*.dev), select the file, and then click Open.

The device files are installed in the following default location:

C:\VWorks Workspace\Workbench\Device Files

5Click No when the Would you like to initialize devices now? message appears.

6In the AssayMAP Bravo.dev tab, click Device diagnostics. The Bravo Diagnostics

dialog opens.

CAUTION Using an incorrect profile can cause equipment damage. Ensure that the profile

is correct for the head type and deck configuration.

1 96AM Wash Station Maintenance Guide

Emptying the 96AM Wash Station

8AssayMAP 96AM Wash Station Maintenance Guide

Figure AssayMAP Bravo.dev tab and Profile setting for AssayMAP 1

7Click the Profiles tab, select the Profile name AssayMAP 1, and then click

Initialize this profile.

8If the There appears to be a plate present error message appears, click Ignore and

Continue to continue the homing process.

9When the Verify that it is safe to home the W-axis message appears, click Retry to

continue homing the w-axis.

Inhaltsverzeichnis

Andere Agilent Technologies Laborausrüstung Handbücher

Agilent Technologies

Agilent Technologies 979 Bedienungs- und Sicherheitshinweise

Agilent Technologies

Agilent Technologies N2727A Bedienungsanleitung

Agilent Technologies

Agilent Technologies 7200 Betriebsanleitung

Agilent Technologies

Agilent Technologies 3100 OFFGEL Fractionator Bedienungsanleitung

Agilent Technologies

Agilent Technologies Medalist i3070 Series Benutzerhandbuch

Agilent Technologies

Agilent Technologies Medalist i1000 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 8860 Bedienungsanleitung

Agilent Technologies

Agilent Technologies TriScroll Exhaust Silencer Kit Bedienungsanleitung

Agilent Technologies

Agilent Technologies G4319A Bedienungsanleitung

Agilent Technologies

Agilent Technologies 7890A Handbuch

Agilent Technologies

Agilent Technologies 6850 Series II Bedienungsanleitung

Agilent Technologies

Agilent Technologies 1260 Infinity II Bedienungsanleitung

Agilent Technologies

Agilent Technologies 240 Series AA Bedienungsanleitung

Agilent Technologies

Agilent Technologies 33120A Bedienungsanleitung

Agilent Technologies

Agilent Technologies 7820A GC Betriebsanleitung

Agilent Technologies

Agilent Technologies G1364B Bedienungsanleitung

Agilent Technologies

Agilent Technologies InfinityLab LC Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies InfinityLab LC Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies SureCycler 8800 Sicherheitsleitfaden

Agilent Technologies

Agilent Technologies 5890 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6890 Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies IDP3GBKIT Bedienungsanleitung

Agilent Technologies

Agilent Technologies Cryogenic Bedienungsanleitung

Agilent Technologies

Agilent Technologies Labware MiniHub G5584A Bedienungsanleitung

Beliebte Laborausrüstung Handbücher anderer Marken

Qiagen

Qiagen DML 3000 Bedienungsanleitung

Queensgate

Queensgate NANOSCAN OP400 Programmierhandbuch

Conviron

Conviron GEN1000-GE Bedienungsanleitung

Parr Instrument

Parr Instrument 4560 Bedienungsanleitung

IKA

IKA IC control Bedienungsanleitung

Integra

Integra DOSE IT Bedienungsanleitung

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Bedienungsanleitung

NI PXI-5422 Handbuch

Collomix

Collomix Aqix Bedienungsanleitung

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung

Ocean Insight

Ocean Insight FLAME-NIR+ Bedienungsanleitung

Parker

Parker ALIGN-MG-NA Bedienungsanleitung

BD 644787 Bedienungsanleitung

DENTAURUM

DENTAURUM Compact Megaplus Bedienungsanleitung

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Bedienungsanleitung

VWR

VWR SAS Super IAQ Bedienungsanleitung

illumina

illumina MiSeqDx Bedienungsanleitung

Yamato

Yamato BM510 Bedienungsanleitung
